GE
Gas Cooktop

Model # ZGU48N6DD1SS Official GE counter unit

Here are the diagrams and repair parts for Official GE ZGU48N6DD1SS counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

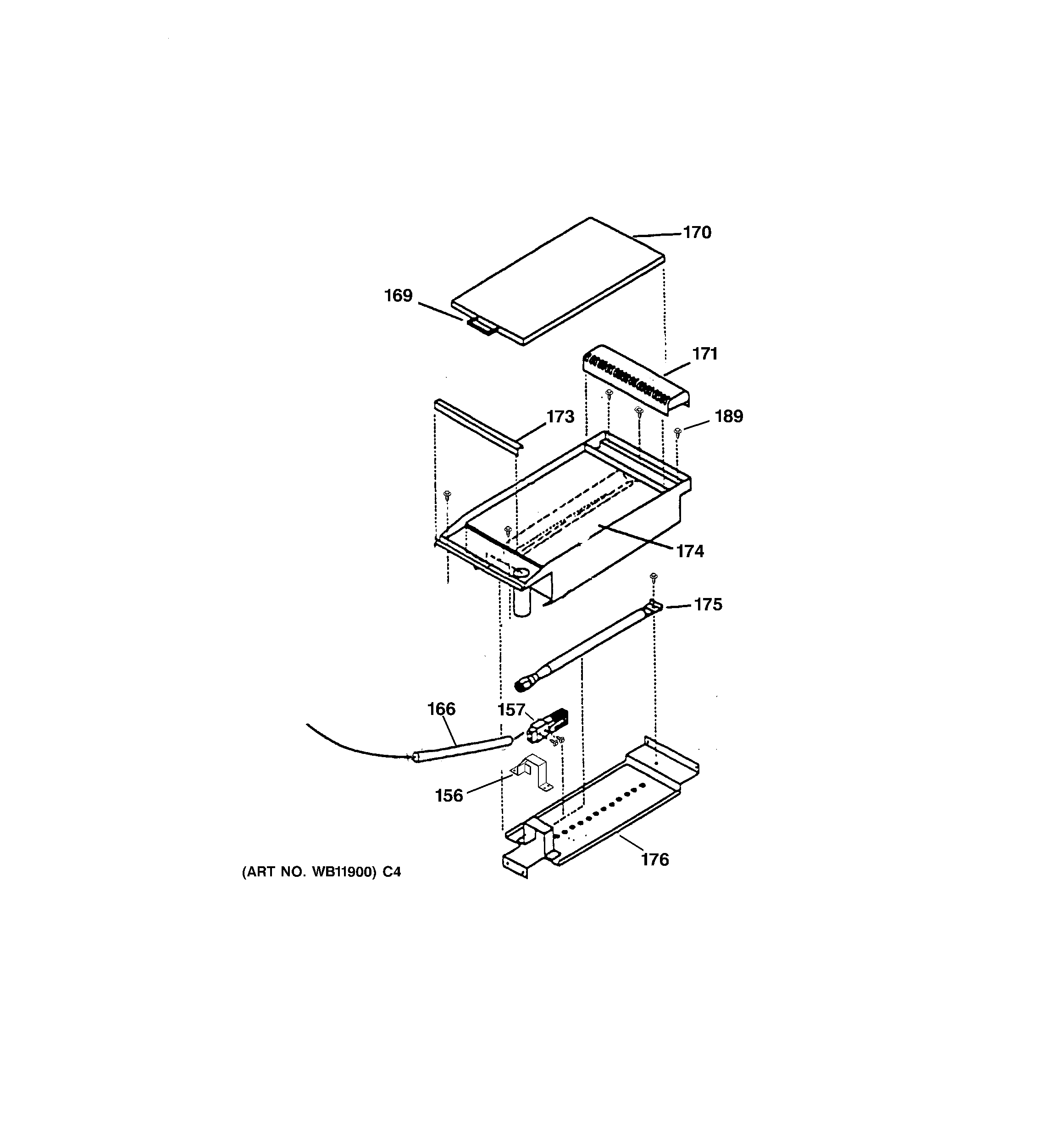

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Range Surface Burner Igniter Switch WB24X5367
#20

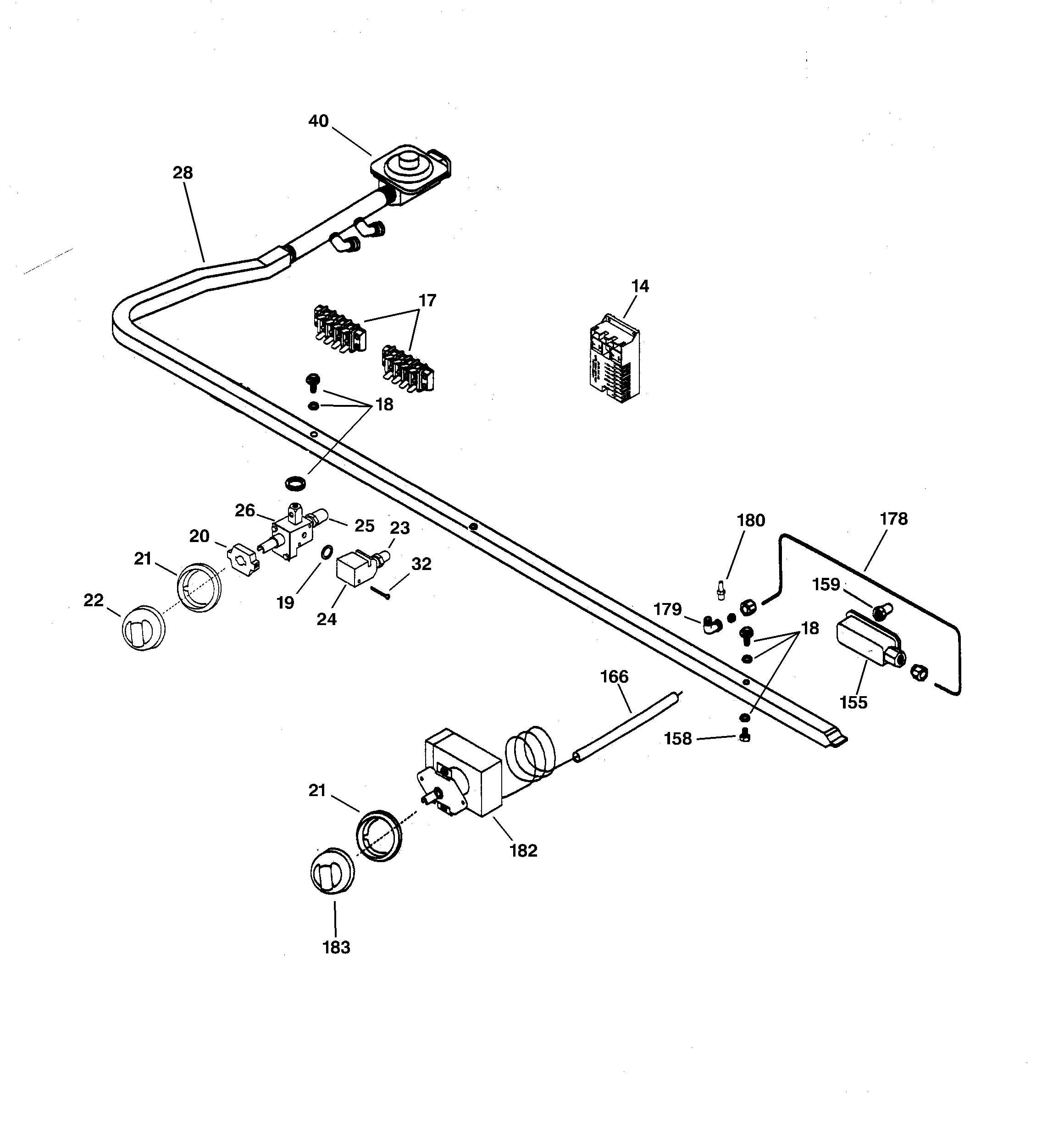

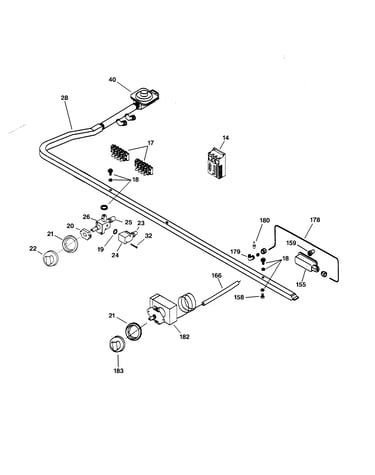

Manifold & controls diagram

Range surface burner igniter switch

Part #WB24X5367

$64.87 |
8% OFF Phone Price : $70.87
In Stock
Electrode WB02X8598
#6

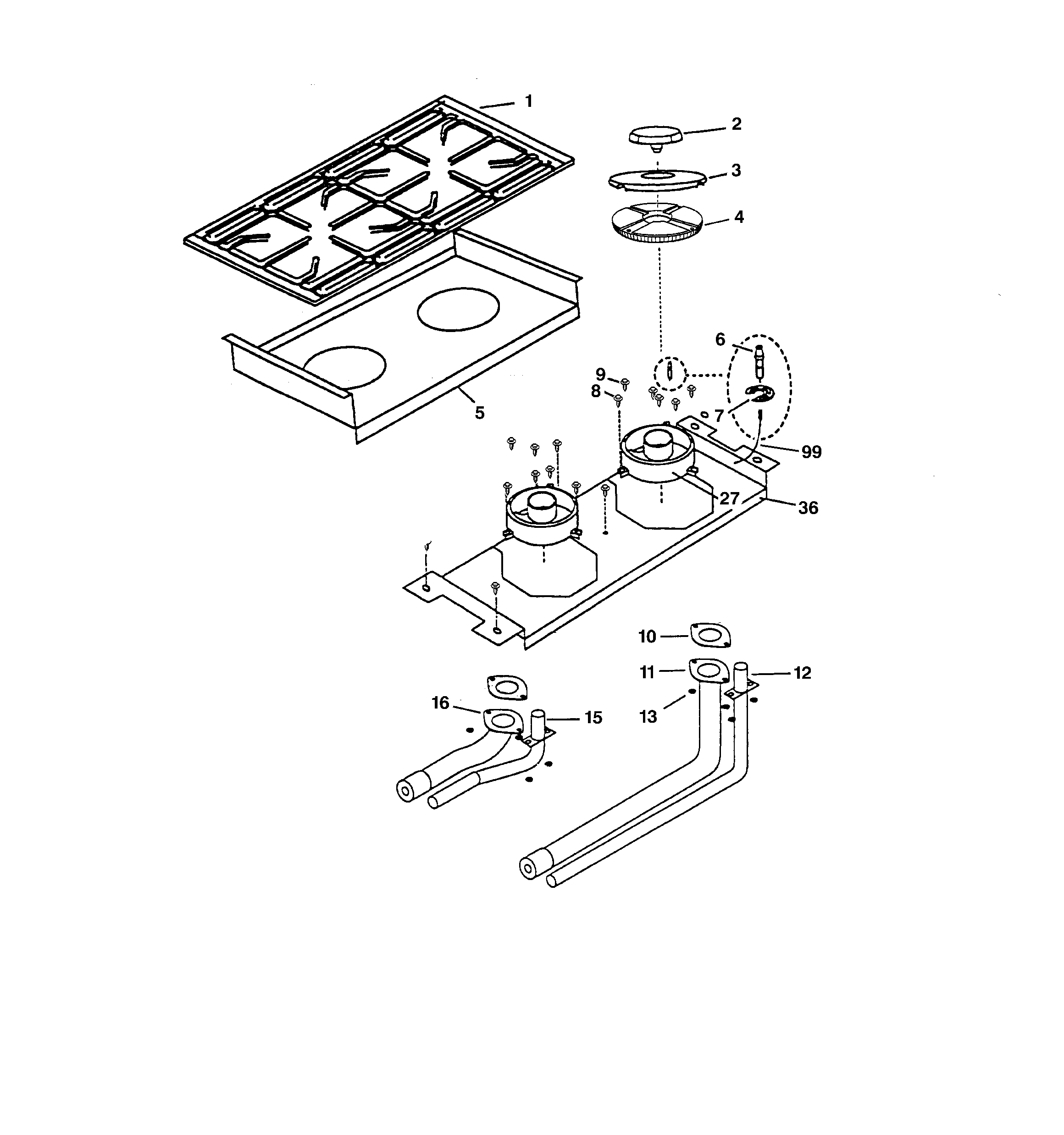

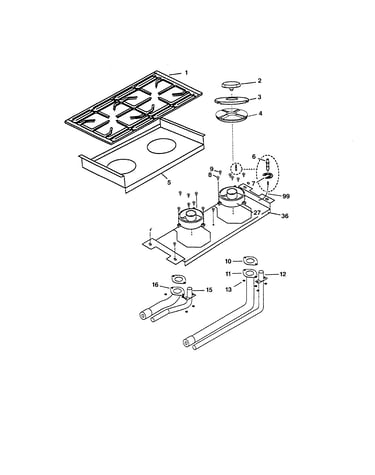

Burner assembly diagram

Electrode

Part #WB02X8598

Replaced by #WB2X8598

?
Manufacturer substitution
This part replaces WB02X8598. Substitute parts can look different from the original.
$82.19 |
7% OFF Phone Price : $88.19
In Stock
Burner Hanger WB49X10033
#36

Burner assembly diagram

Burner hanger

Part #WB49X10033

$118.07
In Stock
Installation 49-8787
#999

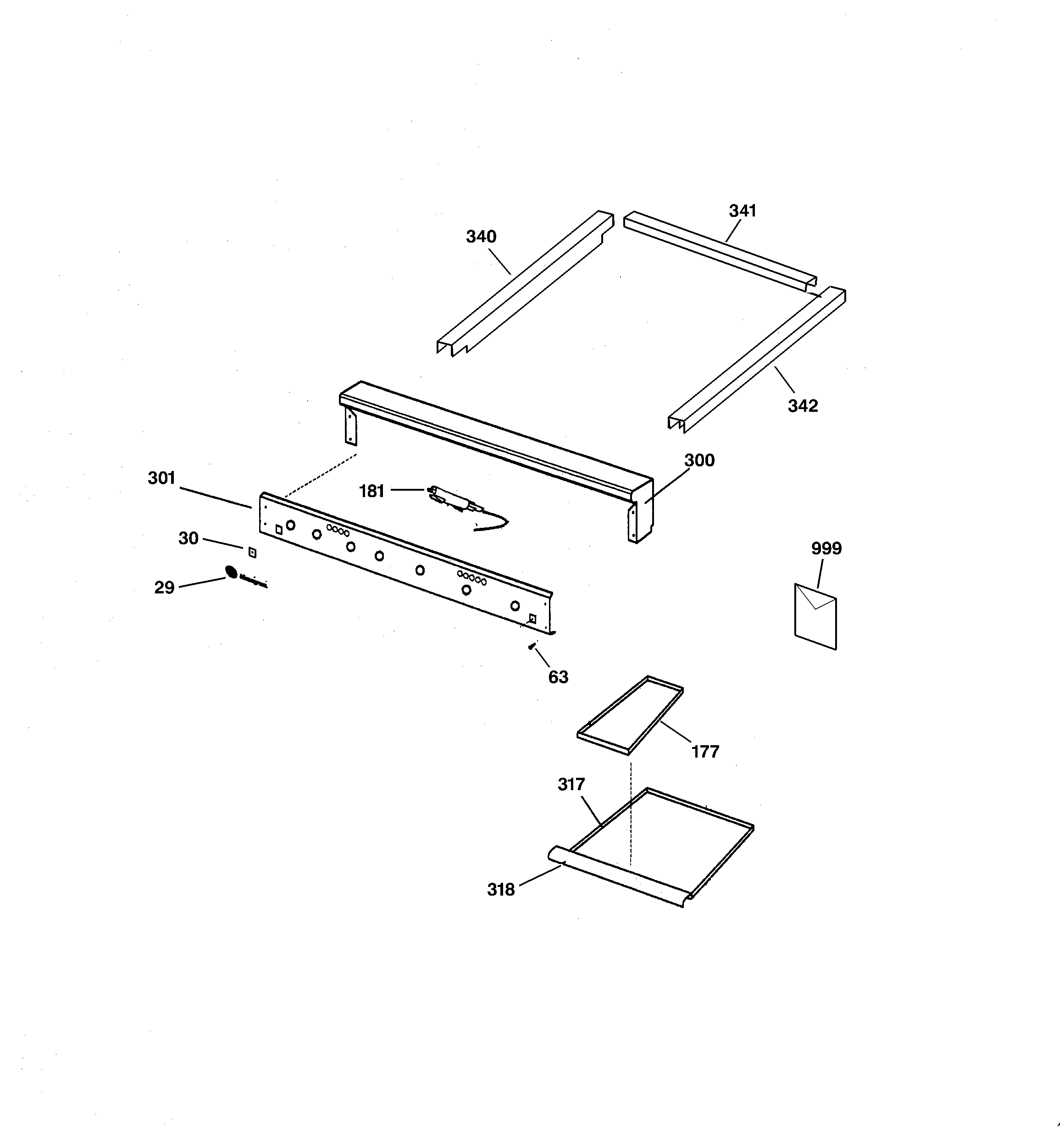

Escutcheon & trim diagram

Installation

Part #49-8787

This item is not returnable
$5.99
In Stock
Logo Clip WB01X10070
#30

Escutcheon & trim diagram

Logo clip

Part #WB01X10070

Replaced by #WR01X10300

?
Manufacturer substitution
This part replaces WB01X10070. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
Spark Module WB20X5077
#14

Manifold & controls diagram

Spark module

Part #WB20X5077

Replaced by #WB21X10029

?
Manufacturer substitution
This part replaces WB20X5077. Substitute parts can look different from the original.
$159.77 |
7% OFF Phone Price : $171.77
In Stock
Electrode Clip WB02X8599
#7

Burner assembly diagram

Electrode clip

Part #WB02X8599

The manufacturer no longer makes this part, and there's no substitute part

Simmer Orifice WB21X10040
#23

Manifold & controls diagram

Simmer orifice

Part #WB21X10040

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Fiber WB02X8611
Sleeve fiber

Part #WB02X8611

The manufacturer no longer makes this part, and there's no substitute part

Pan Liner WB32X5114
#177

Escutcheon & trim diagram

Pan liner

Part #WB32X5114

The manufacturer no longer makes this part, and there's no substitute part
