Model # 21A-634A766 Official Troybilt tiller

Here are the diagrams and repair parts for Official Troybilt 21A-634A766 tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

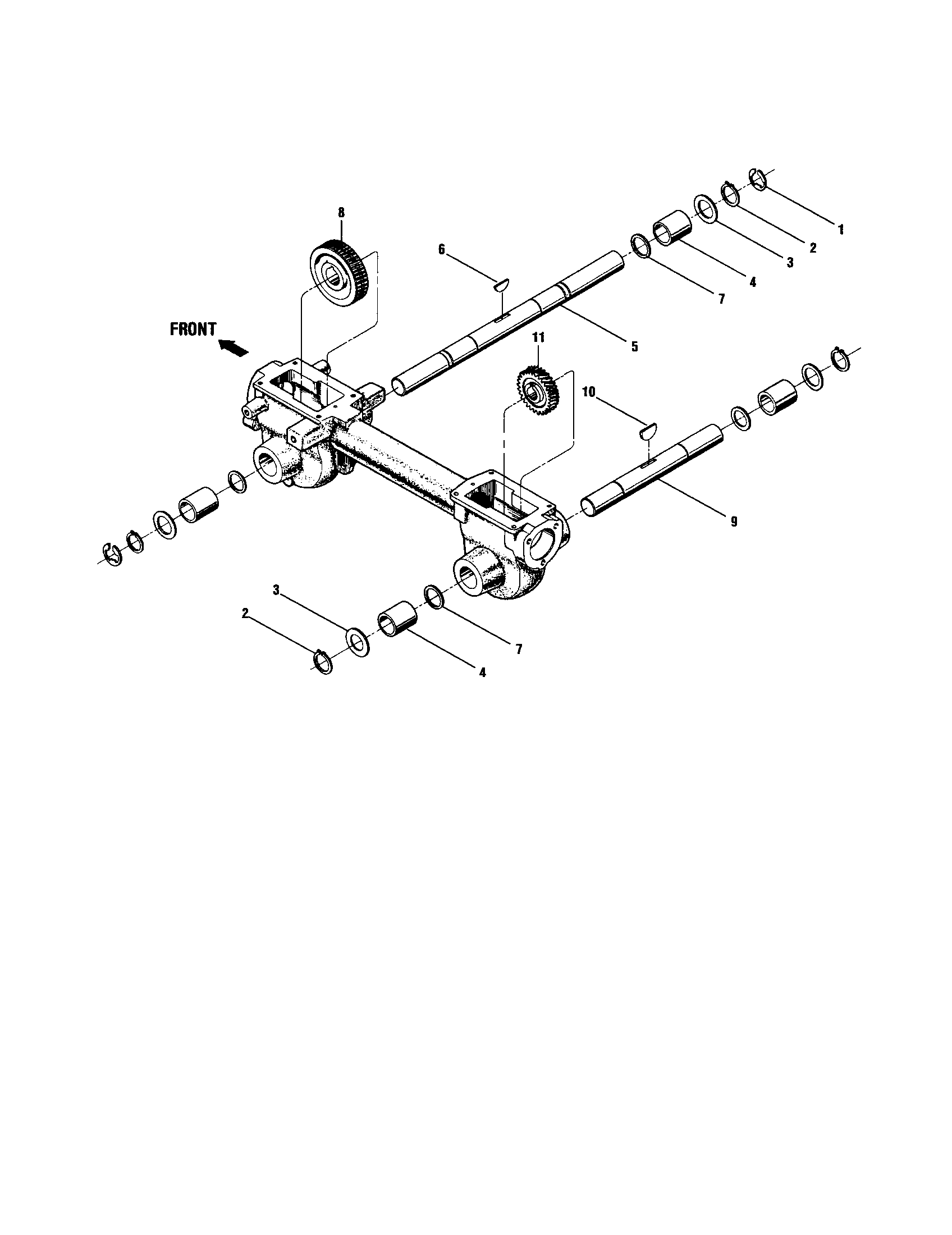

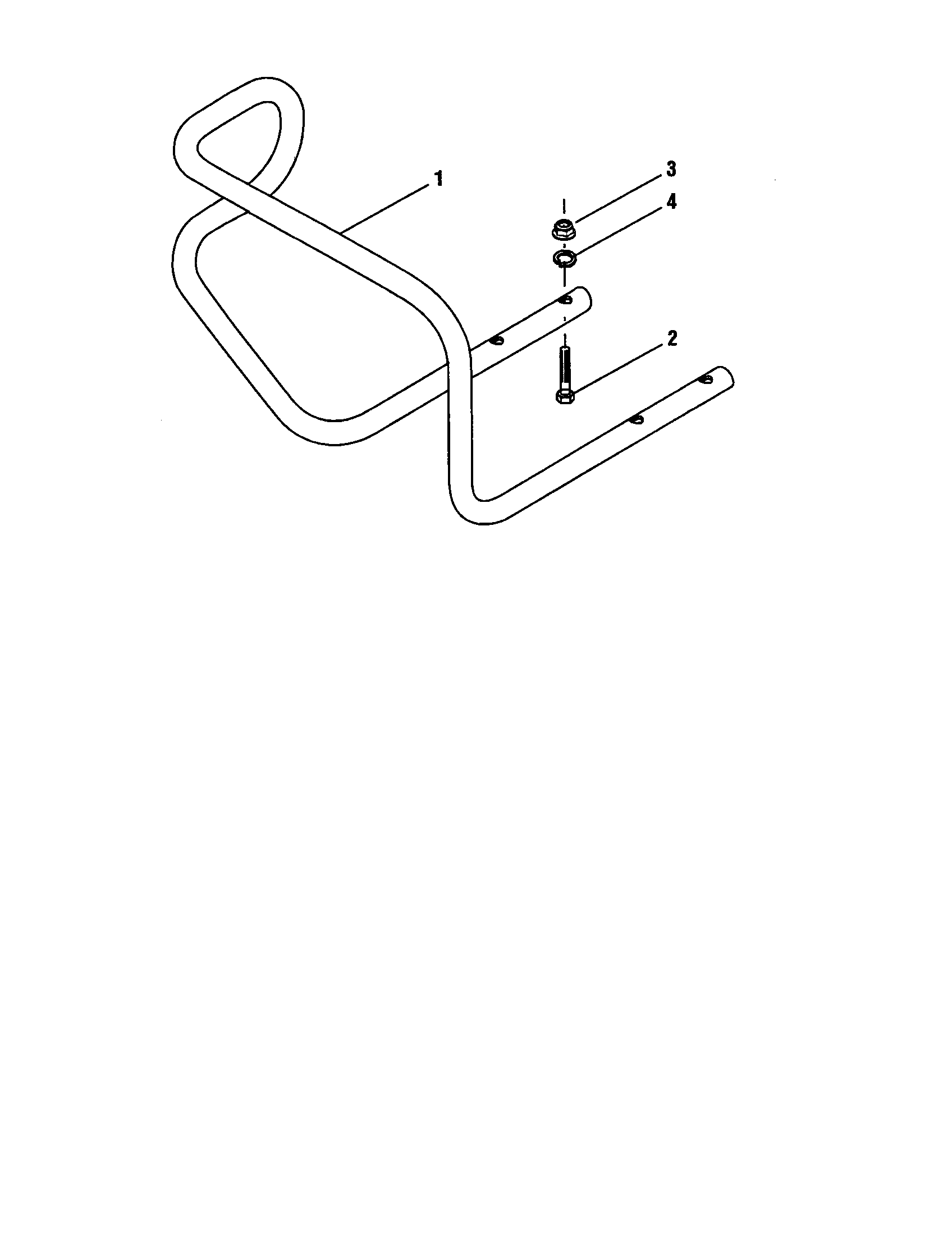

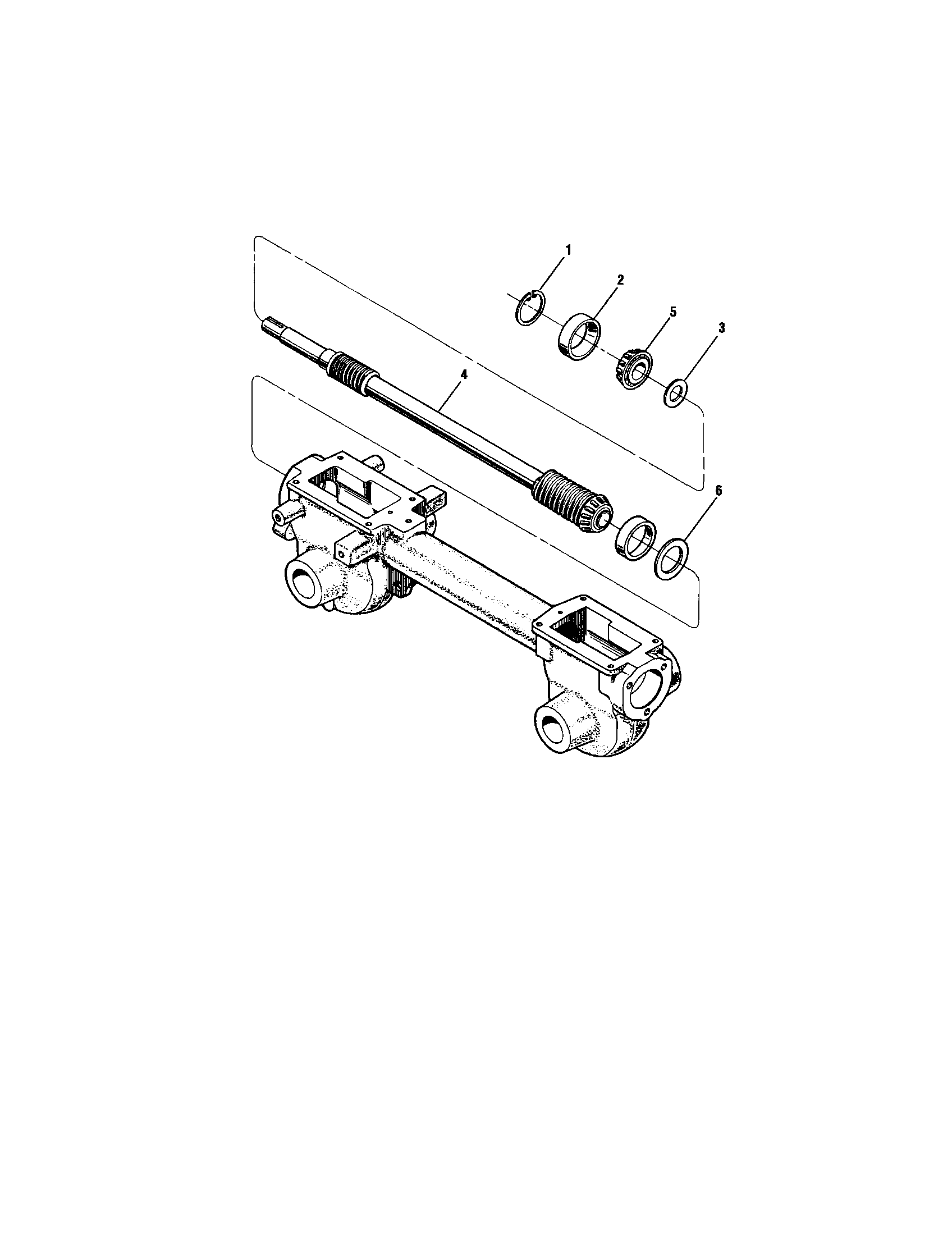

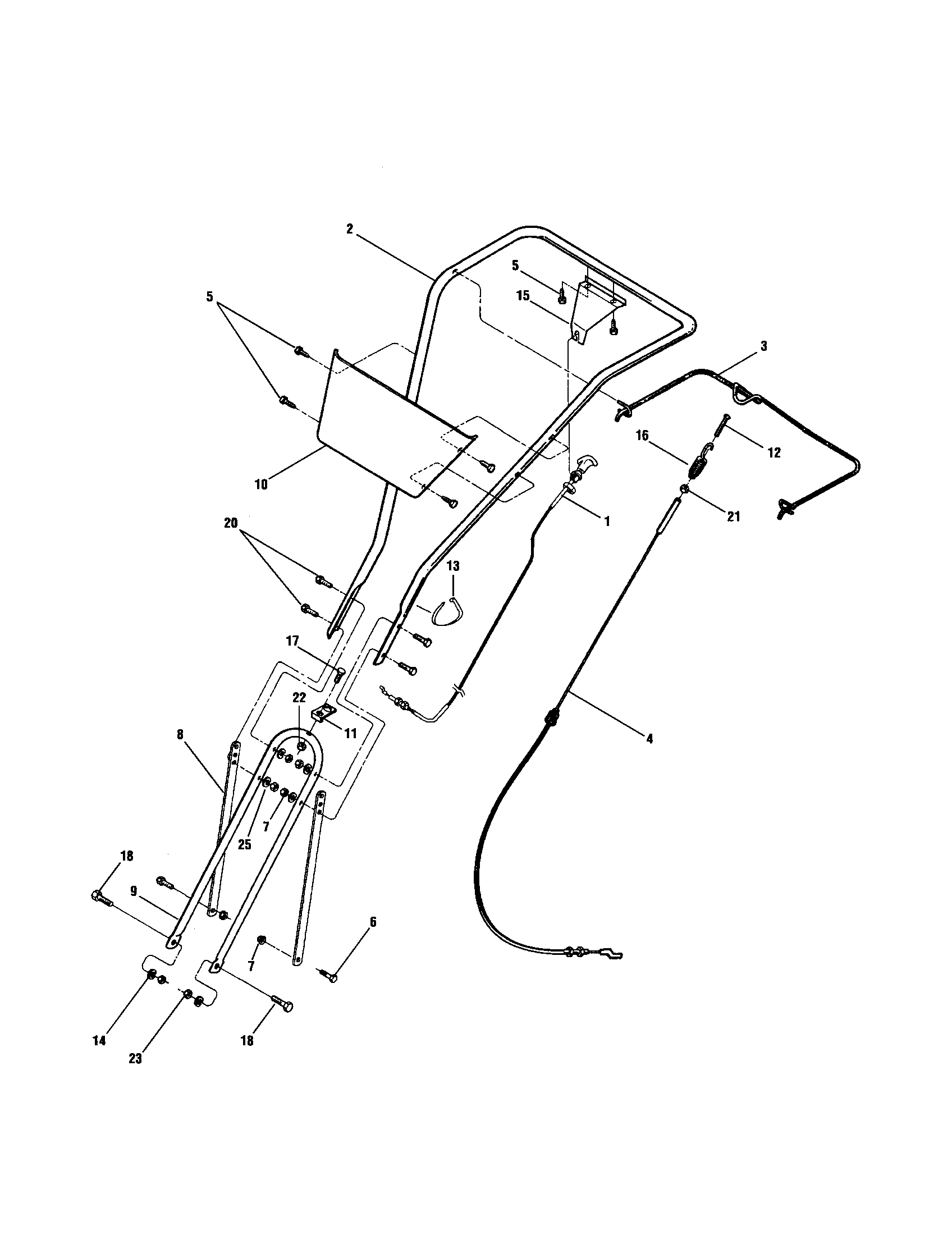

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.53 |
18% OFF Phone Price : $5.53
In Stock
Yard Machines Lawn Tractor Bolt (replaces 01000668, 1982728, 1983620, 43001, 715326, 910-0253, 9711, B1100046, Gw-325284, Gw-750a, Gw-90012, Gw-9711, Gw-98068, Gw-98-068, Gw-b1100046, Gw-b70235, Gw-m6520008, Gw-pt/01395/00, Gw-pt/80153/00, Gw-t70235, Wd- 710-0514
#1

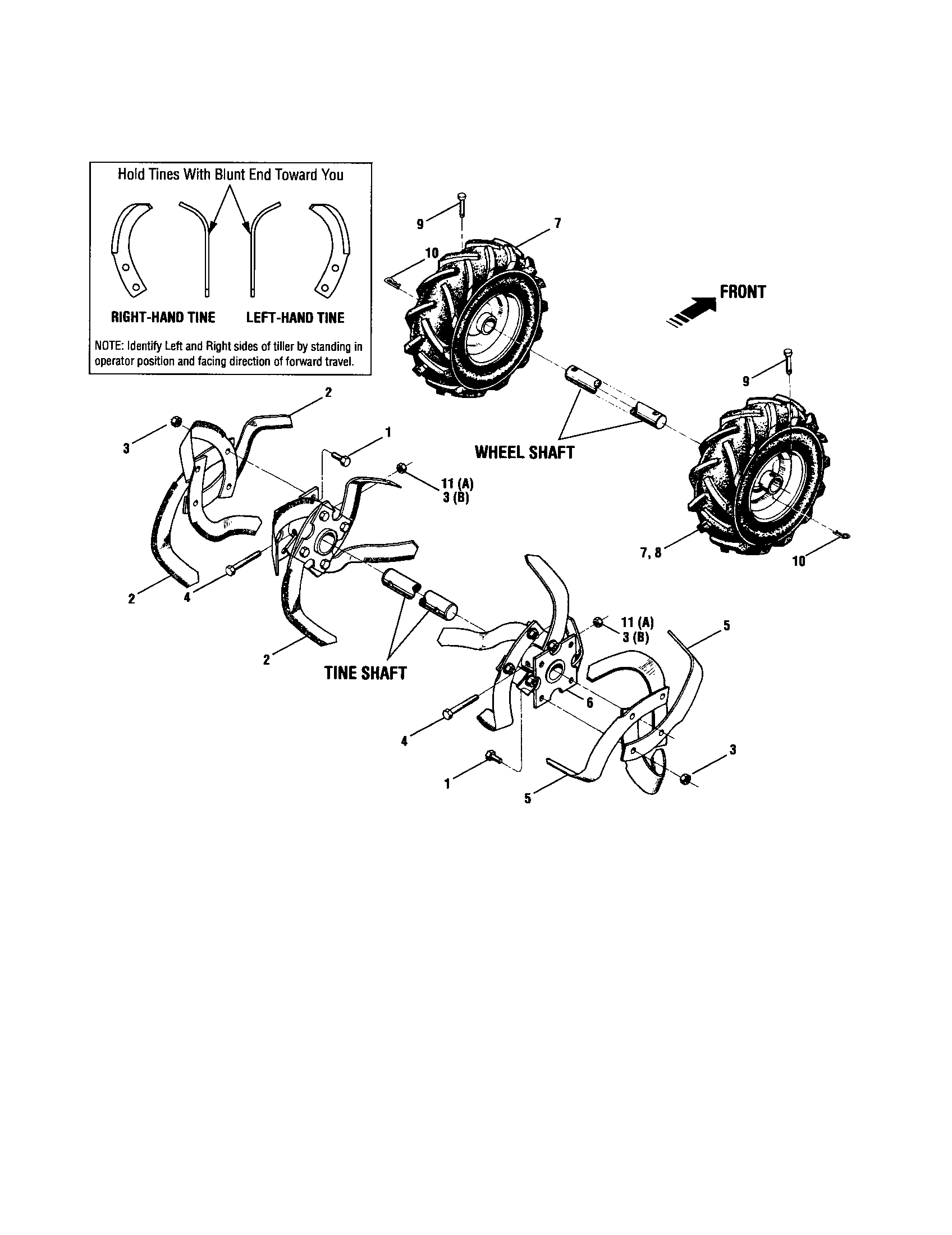

Wheel and tire assembly diagram

Yard machines lawn tractor bolt (replaces 01000668, 1982728, 1983620, 43001, 715326, 910-0253, 9711, b1100046, gw-325284, gw-750a, gw-90012, gw-9711, gw-98068, gw-98-068, gw-b1100046, gw-b70235, gw-m6520008, gw-pt/01395/00, gw-pt/80153/00, gw-t70235, wd-

Part #710-0514

This item is not returnable
$5.33 |
16% OFF Phone Price : $6.33
In Stock
Belt 1916657
#7

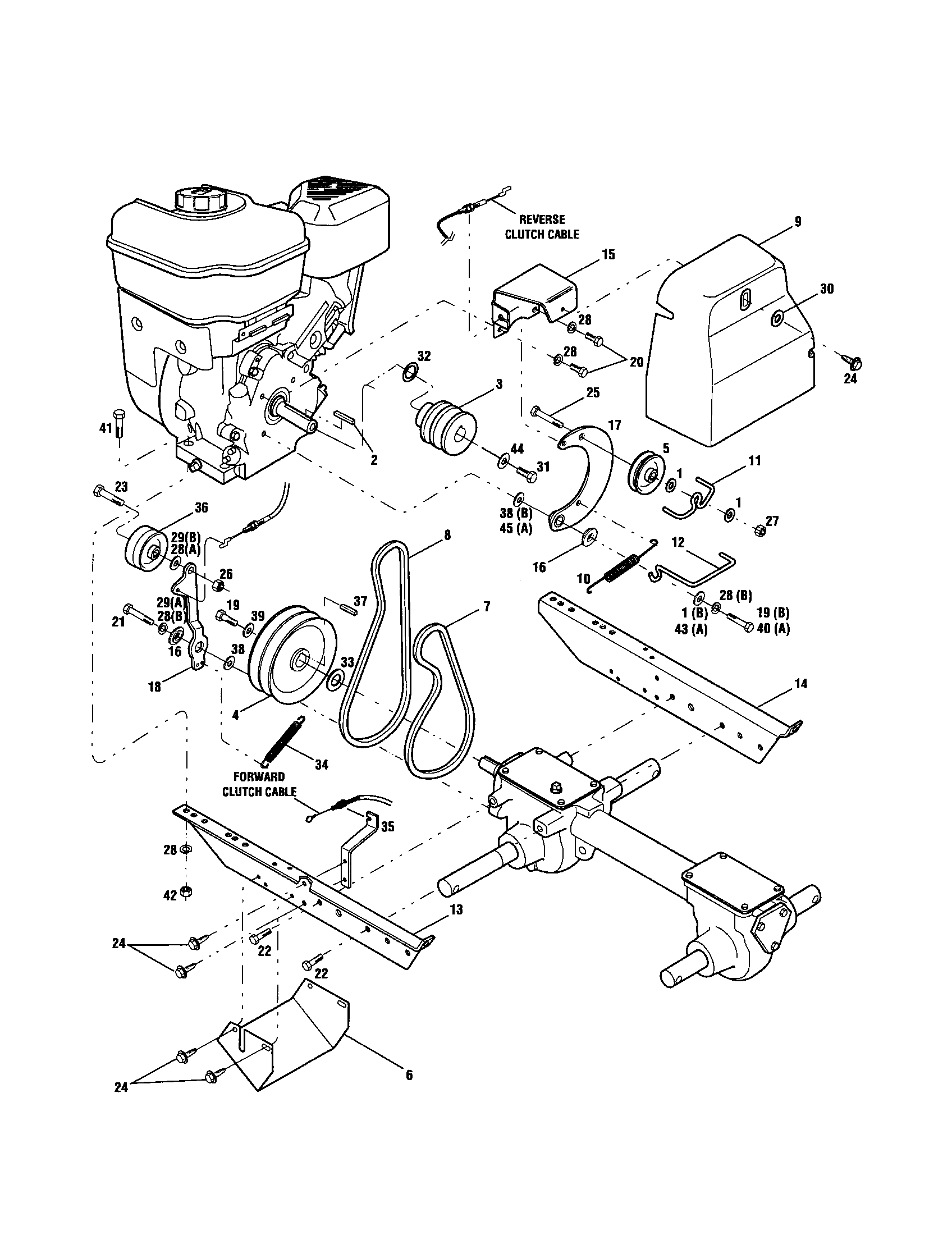

Belt drive and cover diagram

Belt

Part #1916657

Replaced by #954-04090

?
Manufacturer substitution
This part replaces 1916657. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$25.18 |
19% OFF Phone Price : $31.18
In Stock
Lawn & Garden Equipment Screw, 3/8-16 X 1-3/4-in 710-0347
#4

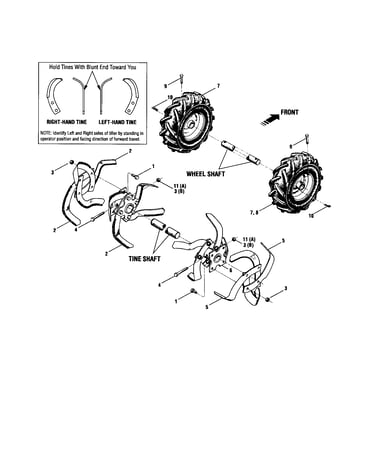

Wheel and tire assembly diagram

Lawn & garden equipment screw, 3/8-16 x 1-3/4-in

Part #710-0347

This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Reverse Belt 1916658
#8

Belt drive and cover diagram

Reverse belt

Part #1916658

Replaced by #954-04091

?
Manufacturer substitution
This part replaces 1916658. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$27.89 |
18% OFF Phone Price : $33.89
In Stock
Ryobi Lawn & Garden Equipment Hex Nut (replaces 912-3010) 712-3010
#42

Belt drive and cover diagram

Ryobi lawn & garden equipment hex nut (replaces 912-3010)

Part #712-3010

$7.71
In Stock
Ryobi Stop Nut 712-0429
#7

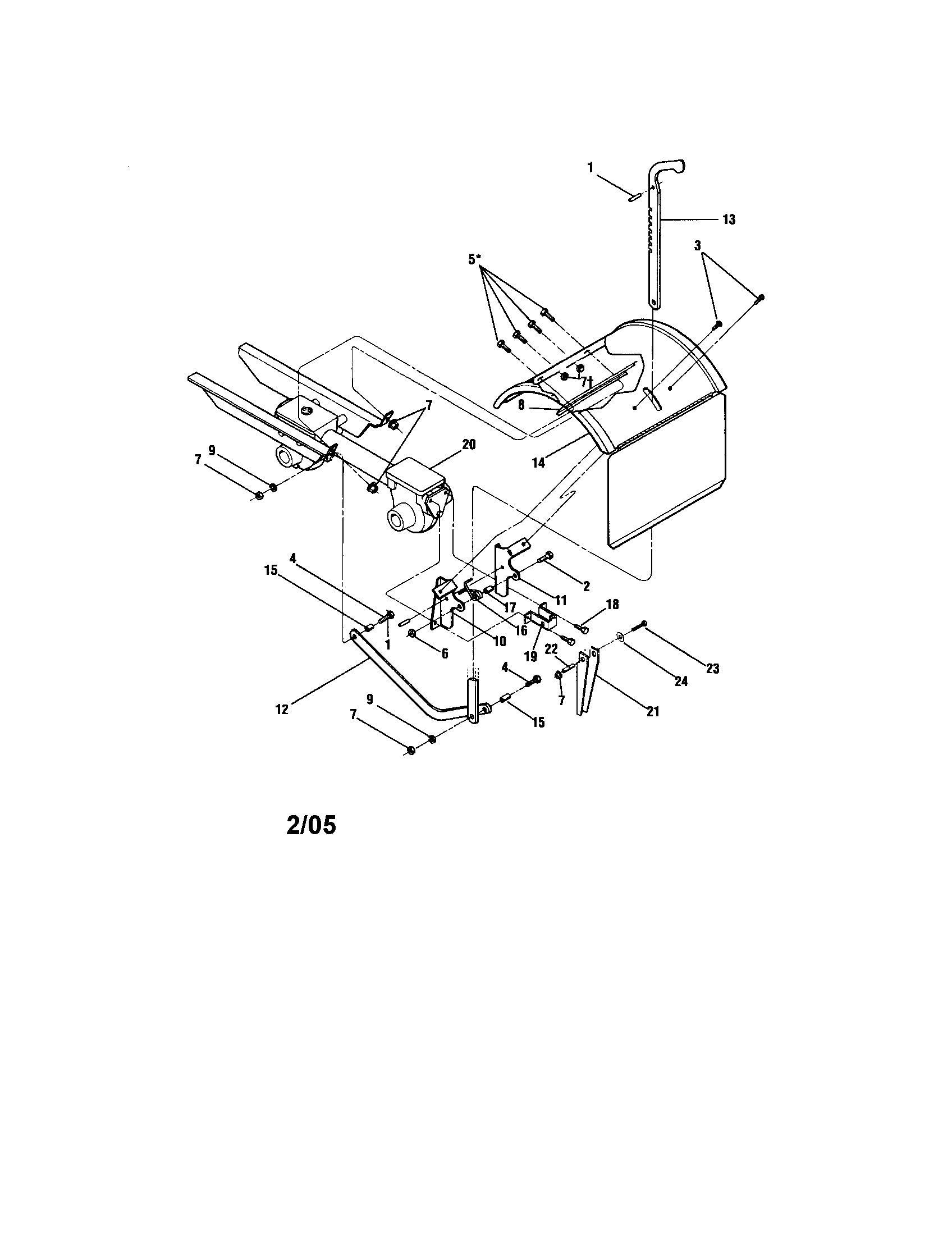

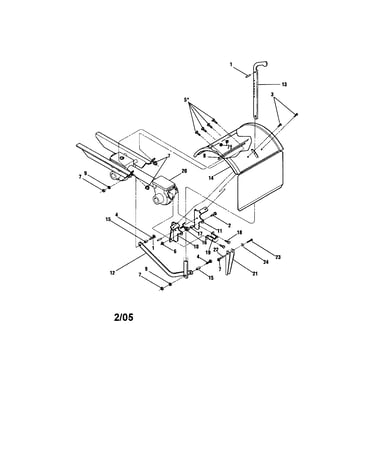

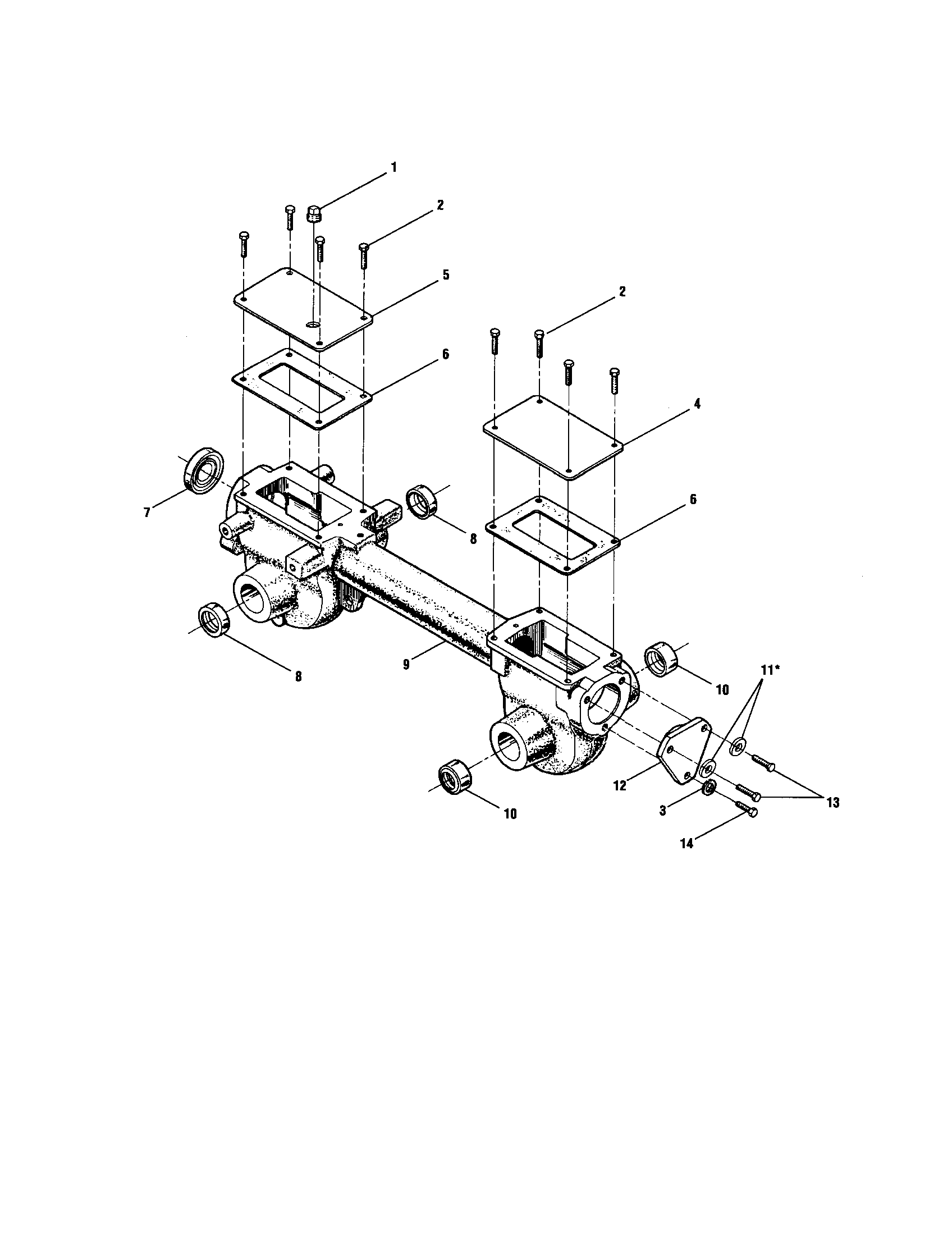

Tine hood/transmission diagram

Ryobi stop nut

Part #712-0429

This item is not returnable
$7.06
In Stock
Sears Snowblower Flat Washer (replaces 936-0159) 736-0159
#1

Belt drive and cover diagram

Sears snowblower flat washer (replaces 936-0159)

Part #736-0159

This item is not returnable
$5.73 |
15% OFF Phone Price : $6.73
In Stock
Ryobi Lawn Tractor Screw 710-0376
#21

Belt drive and cover diagram

Ryobi lawn tractor screw

Part #710-0376

This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Yard Machines Lawn & Garden Equipment Hex Bolt 710-0520
#23

Belt drive and cover diagram

Yard machines lawn & garden equipment hex bolt

Part #710-0520

This item is not returnable
$7.77
In Stock
