Model # BPW024SKA1 Official ICP blower coil unit
Here are the diagrams and repair parts for Official ICP BPW024SKA1 blower coil unit, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
BPW024SKA1 Blower Coil Unit
#2

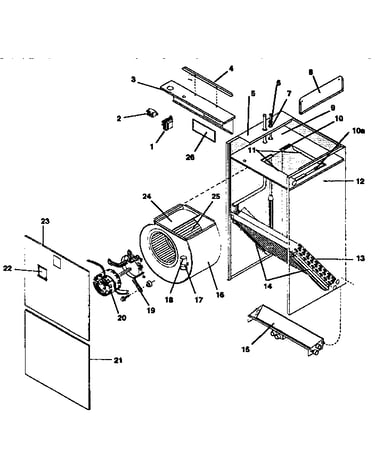

Functional replacement parts diagram
Relay spdt
Part #1058148
The manufacturer no longer makes this part, and there's no substitute part
#25
Functional replacement parts diagram
Furnace blower fan wheel
Part #611795
$168.16
In Stock
#15
Functional replacement parts diagram
Drain pan
Part #1095279
$537.22
In Stock
#7
Functional replacement parts diagram
Control housing
Part #1057787
$31.31
In Stock
#19
Functional replacement parts diagram
Mount kit
Part #1002801
$39.00
In Stock
#18
Functional replacement parts diagram
Cap rnrd
Part #1094239
Replaced by #12907
?
Manufacturer substitution
This part replaces 1094239. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
#NI
All parts diagram
Air filter
Part #64501
The manufacturer no longer makes this part, and there's no substitute part
#1
Functional replacement parts diagram
Trans
Part #1095527
Replaced by #1082611
?
Manufacturer substitution
This part replaces 1095527. Substitute parts can look different from the original.
$101.35 |
11% OFF Phone Price : $113.35
In Stock
#NI
All parts diagram
Orifice
Part #1055236
Replaced by #1160289
?
Manufacturer substitution
This part replaces 1055236. Substitute parts can look different from the original.
$110.27
In Stock
#4
Functional replacement parts diagram
Angle duct
Part #1094081
The manufacturer no longer makes this part, and there's no substitute part
