Model # 51221382450 Official LXI stereo double cassette player & recorder with am/fm radio

Here are the diagrams and repair parts for Official LXI 51221382450 stereo double cassette player & recorder with am/fm radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Cushion Microphone 01-12090-01
#22

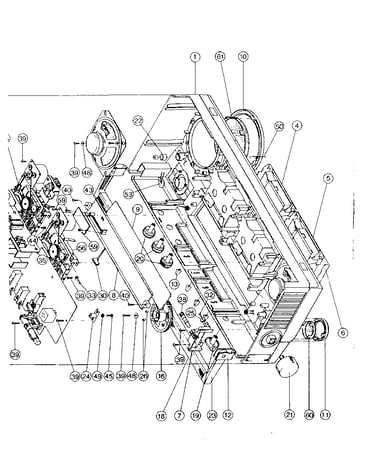

Cabinet front diagram

Cushion microphone

Part #01-12090-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 9191-00-00
#79

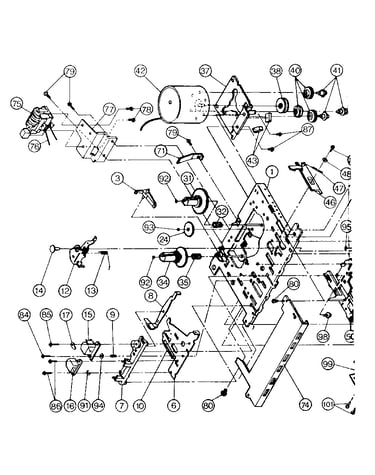

Chassis diagram

Screw

Part #9191-00-00

The manufacturer no longer makes this part, and there's no substitute part

Record Spring 1510-02-02
#2

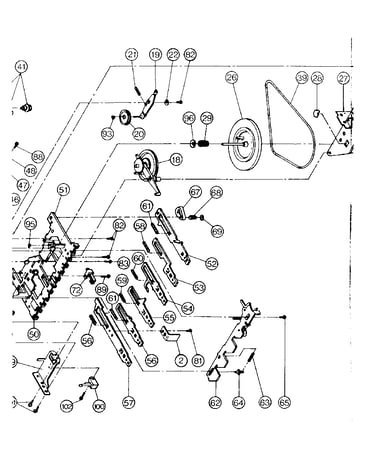

Flywheel diagram

Record spring

Part #1510-02-02

The manufacturer no longer makes this part, and there's no substitute part

Btry Conn Pl 02-70709-02
#31

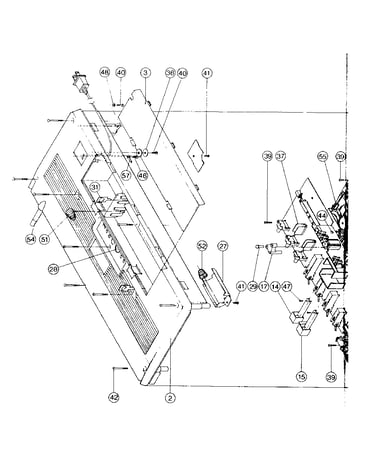

Cabinet back diagram

Btry conn pl

Part #02-70709-02

The manufacturer no longer makes this part, and there's no substitute part

Bushing 01-22275-01
#12

Cabinet front diagram

Bushing

Part #01-22275-01

The manufacturer no longer makes this part, and there's no substitute part

Heat Erase E-621ML
#16

Chassis diagram

Heat erase

Part #E-621ML

The manufacturer no longer makes this part, and there's no substitute part

Counter Belt 297-13-01
#76

Chassis diagram

Counter belt

Part #297-13-01

The manufacturer no longer makes this part, and there's no substitute part

Cassette Knob 01-22277-03
#14

Cabinet back diagram

Cassette knob

Part #01-22277-03

The manufacturer no longer makes this part, and there's no substitute part

Volume Control Knob 01-22378-03
#20

Cabinet front diagram

Volume control knob

Part #01-22378-03

The manufacturer no longer makes this part, and there's no substitute part

Pvc Adaptor 01-01856-01
#24

Cabinet front diagram

Pvc adaptor

Part #01-01856-01

The manufacturer no longer makes this part, and there's no substitute part
