Model # 24ABR360A0032010 Official Carrier air conditioner
Here are the diagrams and repair parts for Official Carrier 24ABR360A0032010 air conditioner, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
24ABR360A0032010 Air Conditioner
#20

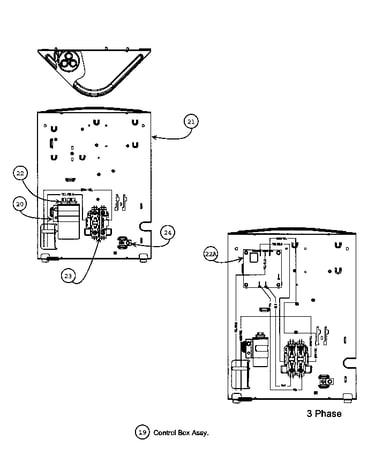

Control box diagram
Strap cap
Part #317739-303
$9.20
In Stock
#NI

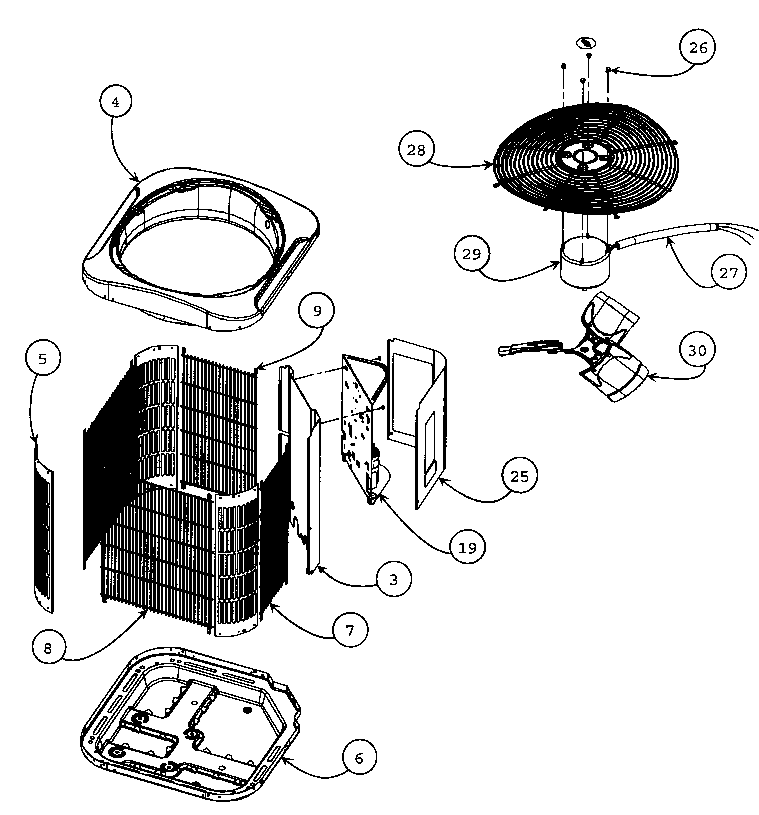

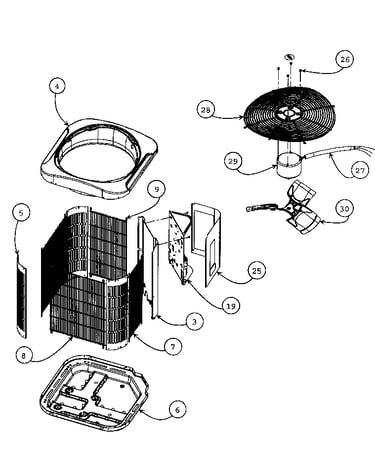

Cabinet parts diagram
Comp plug
Part #324091-412
Replaced by #P298-001
?
Manufacturer substitution
This part replaces 324091-412. Substitute parts can look different from the original.
$91.62
In Stock
#NI
Cabinet parts diagram
Carrier start assist ptc kit
Part #KAACS0201PTC
$257.16
In Stock
#NI
Cabinet parts diagram
Central air conditioner start capacitor (replaces hc95de088, p281-8805)
Part #P281-8806
$55.42
In Stock
#3
Cabinet parts diagram
Serv panel
Part #329606-707164
$105.58
In Stock
#NI
Cabinet parts diagram
Central air conditioner compressor hard start kit
Part #KSAHS1501AAA
$308.91 |
$12.00 OFF Phone Price : $320.91
In Stock
#NI
Cabinet parts diagram
Kit, svce
Part #328963-753
$106.56
In Stock
#NI
Cabinet parts diagram
Cap,stem
Part #328963-751
$108.28
In Stock
#NI
Cabinet parts diagram
Relay
Part #P283-9930
$124.98
In Stock
#39

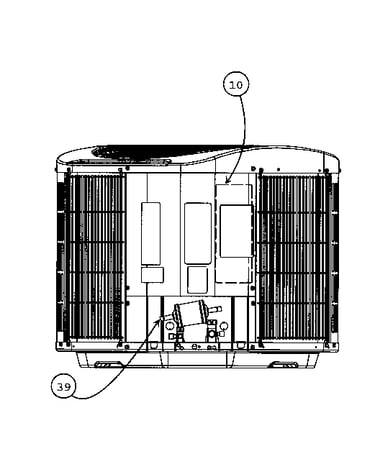

Side view diagram
Drier, fil
Part #KH43LZ034
$89.33
In Stock
