Here are the diagrams and repair parts for Official Tappan VG30BW2 gas range - lv32489050, as well as links to manuals and error code tables, if available.

Error Codes

By Schematic

By Part

SELECT DIAGRAM

Browse Parts forVG30BW2 Ranges

#5

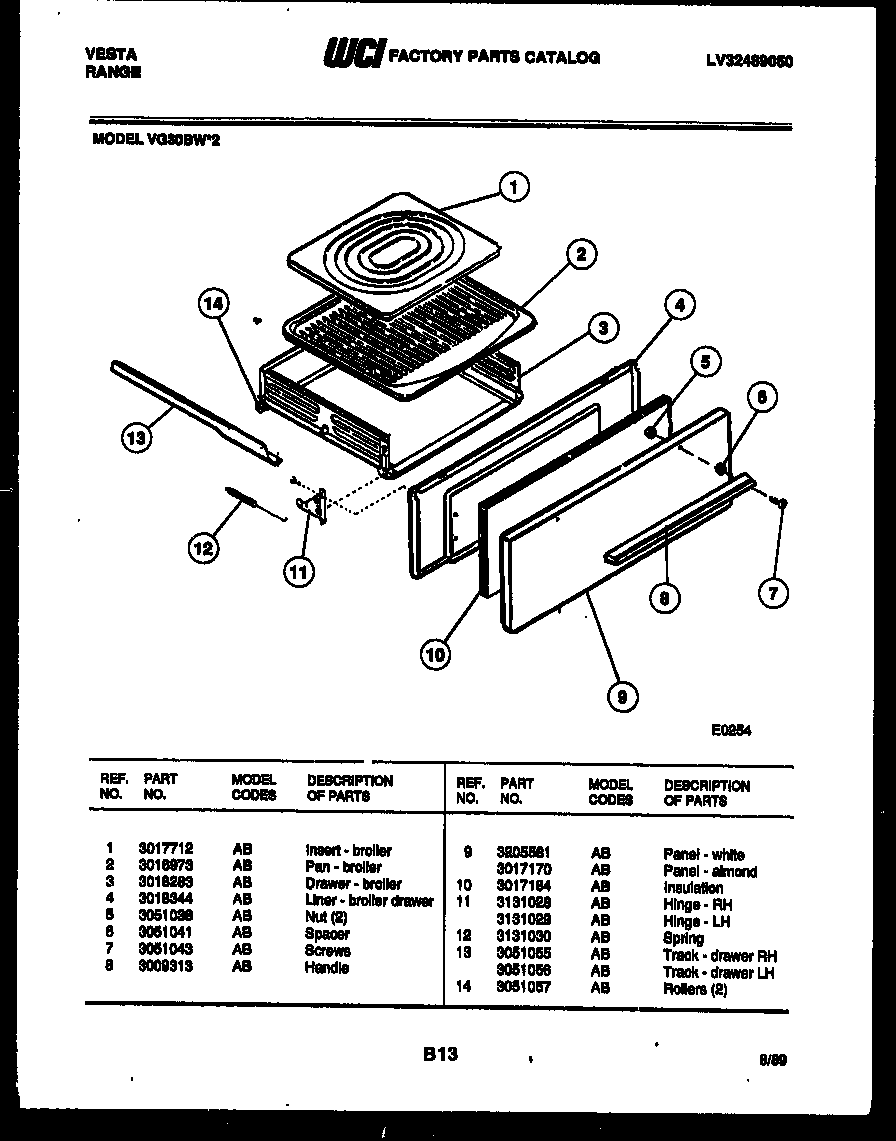

Broiler drawer parts diagram
Nut
Part #3051038
Replaced by #5303013272
?
Manufacturer substitution
This part replaces 3051038. Substitute parts can look different from the original.
This item is not returnable
$18.06 |
10% OFF Phone Price : $20.06
In Stock
Qty
#3

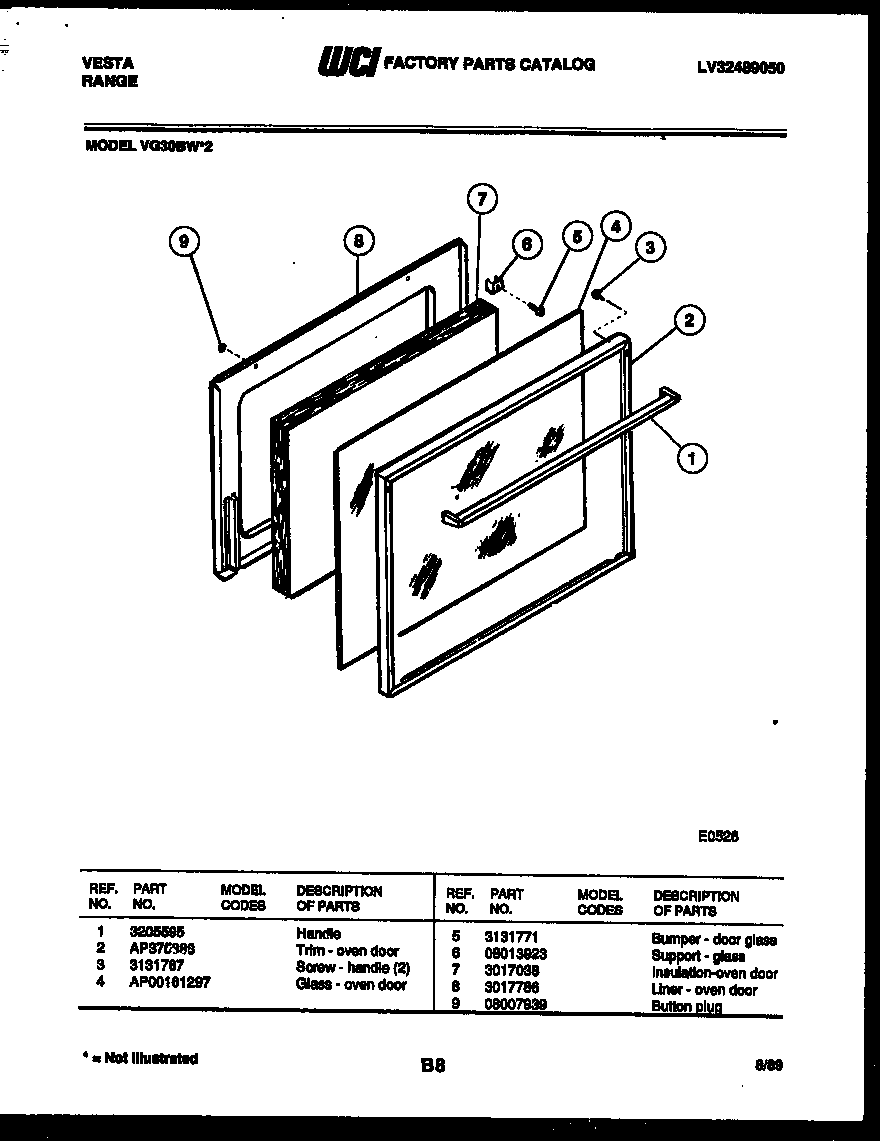

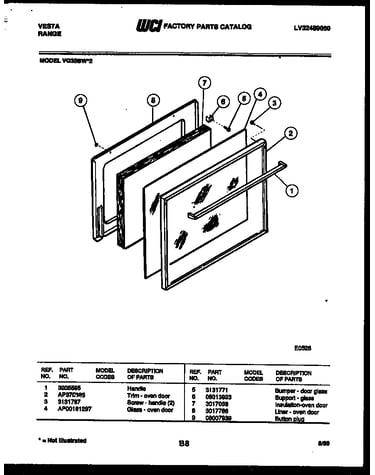

Door parts diagram
Screw
Part #3131767
Replaced by #134156200
?
Manufacturer substitution
This part replaces 3131767. Substitute parts can look different from the original.
This item is not returnable
$31.79
In Stock
Qty
#1

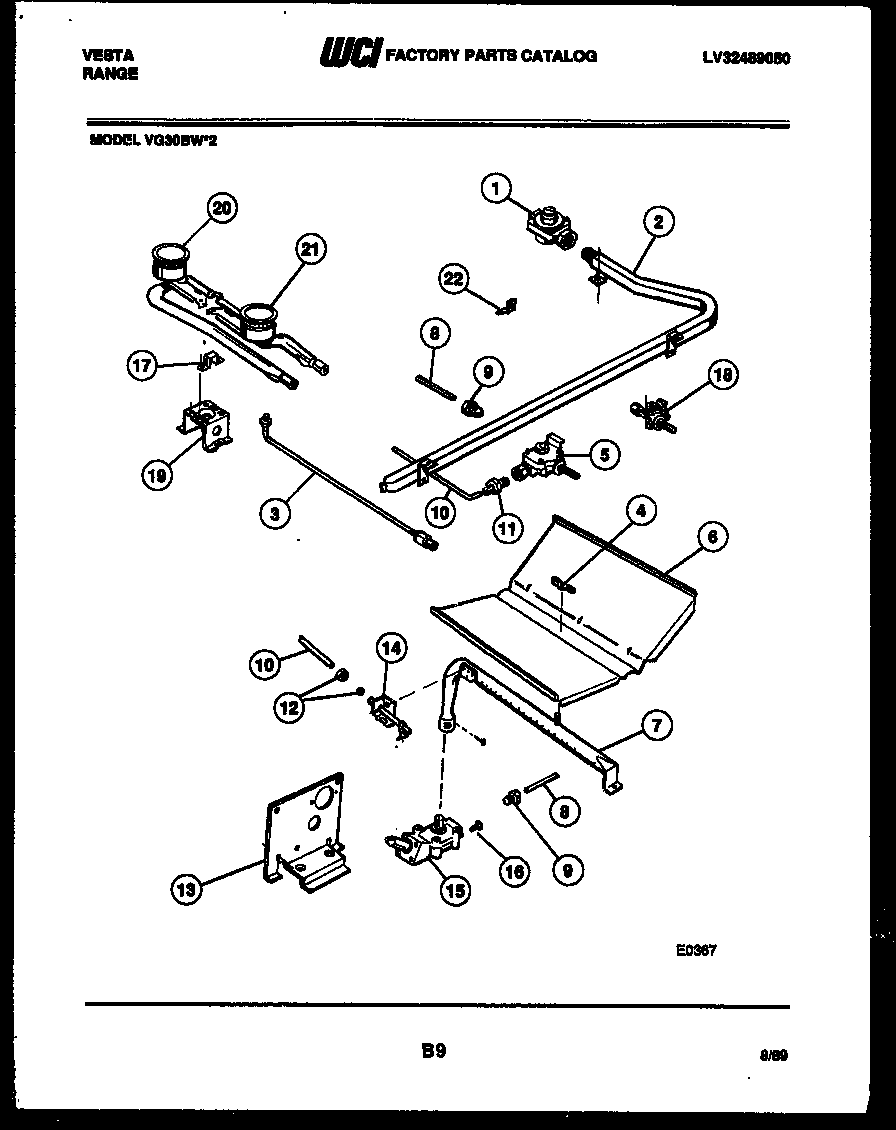

Burner, manifold and gas control diagram
Regulator
Part #08007974
Replaced by #5308007974
?
Manufacturer substitution
This part replaces 08007974. Substitute parts can look different from the original.
$194.70 |
6% OFF Phone Price : $206.70
In Stock
Qty
#5
Burner, manifold and gas control diagram
Thermostat
Part #08013927
The manufacturer no longer makes this part, and there's no substitute part
#3
Broiler drawer parts diagram
Drawer
Part #3018283
Replaced by #5304504568
?
Manufacturer substitution
This part replaces 3018283. Substitute parts can look different from the original.
$179.83 |
6% OFF Phone Price : $191.83
In Stock
Qty
#7
Broiler drawer parts diagram
Screw
Part #3051043
Replaced by #5303292012
?
Manufacturer substitution
This part replaces 3051043. Substitute parts can look different from the original.
$15.60
In Stock
Qty
#8A

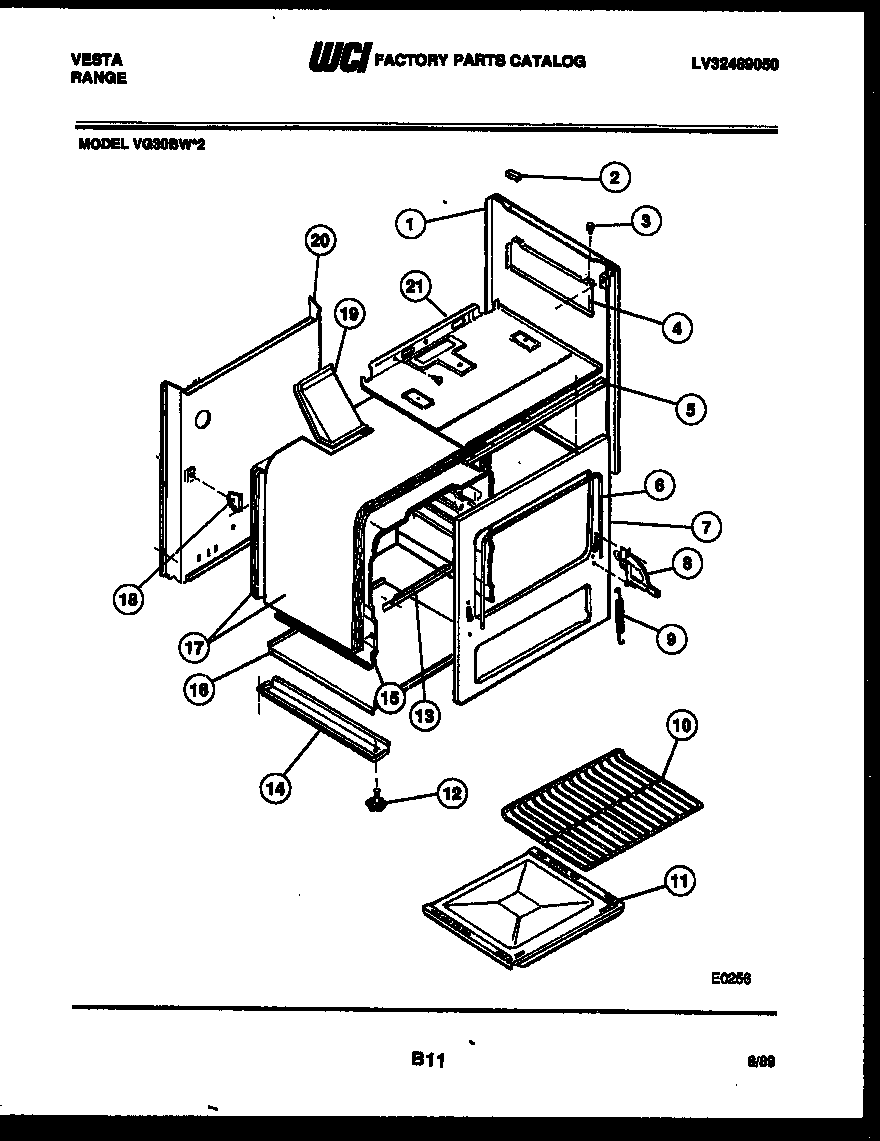

Body parts diagram
Hinge
Part #3204672
Replaced by #318348801
?
Manufacturer substitution
This part replaces 3204672. Substitute parts can look different from the original.
$101.46 |
11% OFF Phone Price : $113.46
In Stock
Qty
#9

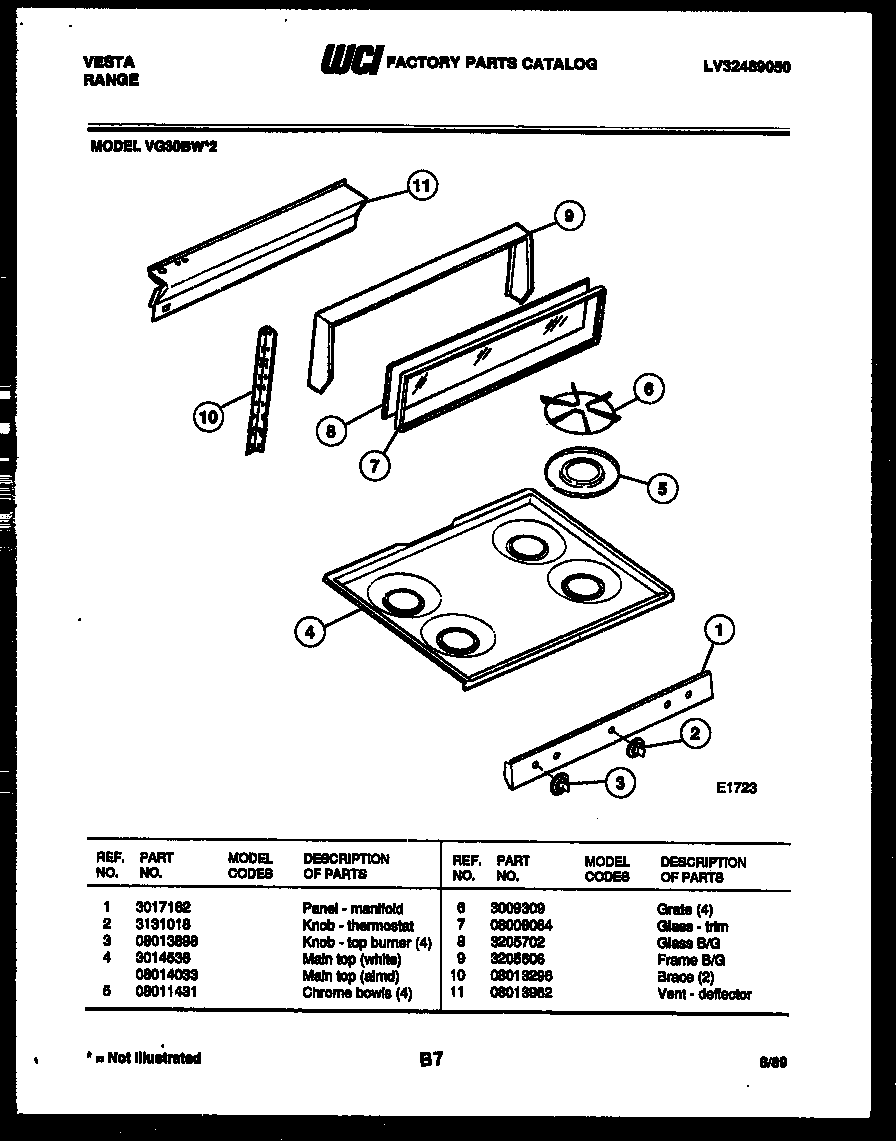

Backguard and cooktop parts diagram
Frame
Part #3205606
The manufacturer no longer makes this part, and there's no substitute part
#14
Burner, manifold and gas control diagram
Oven pilot
Part #3205598
The manufacturer no longer makes this part, and there's no substitute part
#4
Backguard and cooktop parts diagram
Top white
Part #3014536
The manufacturer no longer makes this part, and there's no substitute part
