Gas Cooktop

Model # PGT136UWW-P1131489NW Official Modern Maid gas cooktop

Here are the diagrams and repair parts for Official Modern Maid PGT136UWW-P1131489NW gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Tapng Scrw 8 0041792
Tapng scrw 8

Part #0041792

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 0041792. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Electrode, T 0305975
#9999

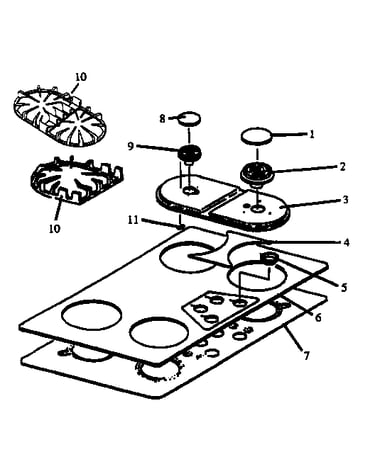

Page 3 diagram

Electrode, t

Part #0305975

Replaced by #WP3185804

?
Manufacturer substitution
This part replaces 0305975. Substitute parts can look different from the original.
This item is not returnable
$34.99 |
15% OFF Phone Price : $40.99
In Stock
Regulator 0304611
#11

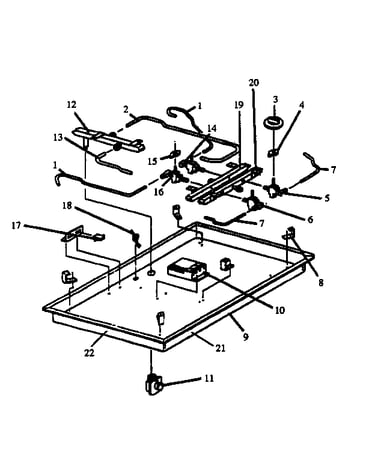

Page 4 diagram

Regulator

Part #0304611

The manufacturer no longer makes this part, and there's no substitute part

Drip Guard 0303433
#5

Page 3 diagram

Drip guard

Part #0303433

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief 0042109
Strain relief

Part #0042109

The manufacturer no longer makes this part, and there's no substitute part

Burner Plate 303525W
#3

Page 3 diagram

Burner plate

Part #303525W

The manufacturer no longer makes this part, and there's no substitute part

Burner Cap 303534T
#8

Page 3 diagram

Burner cap

Part #303534T

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket Assembly 0305287
#9999

Page 4 diagram

Mounting bracket assembly

Part #0305287

The manufacturer no longer makes this part, and there's no substitute part

Burner Body 0304909
#9

Page 3 diagram

Burner body

Part #0304909

The manufacturer no longer makes this part, and there's no substitute part

Glass Plate 0304835
#7

Page 3 diagram

Glass plate

Part #0304835

The manufacturer no longer makes this part, and there's no substitute part
