Upright Vacuum

Model # S4180AT Official Eureka sanitaire upright vacuum

Here are the diagrams and repair parts for Official Eureka S4180AT sanitaire upright vacuum, as well as links to manuals and error code tables, if available.

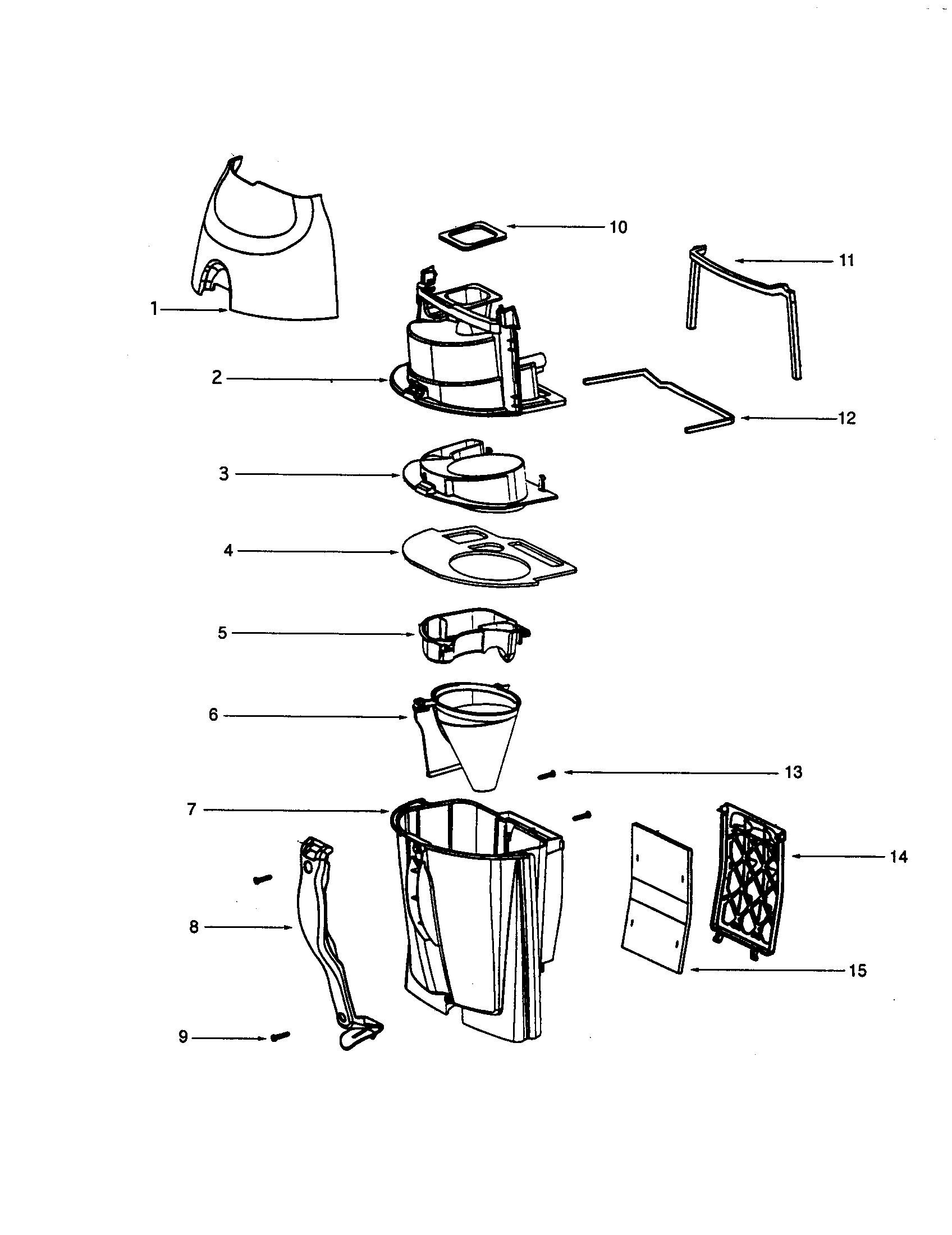

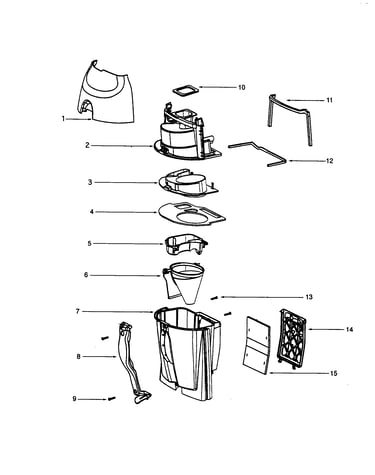

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
S4180AT Vacuum Cleaners

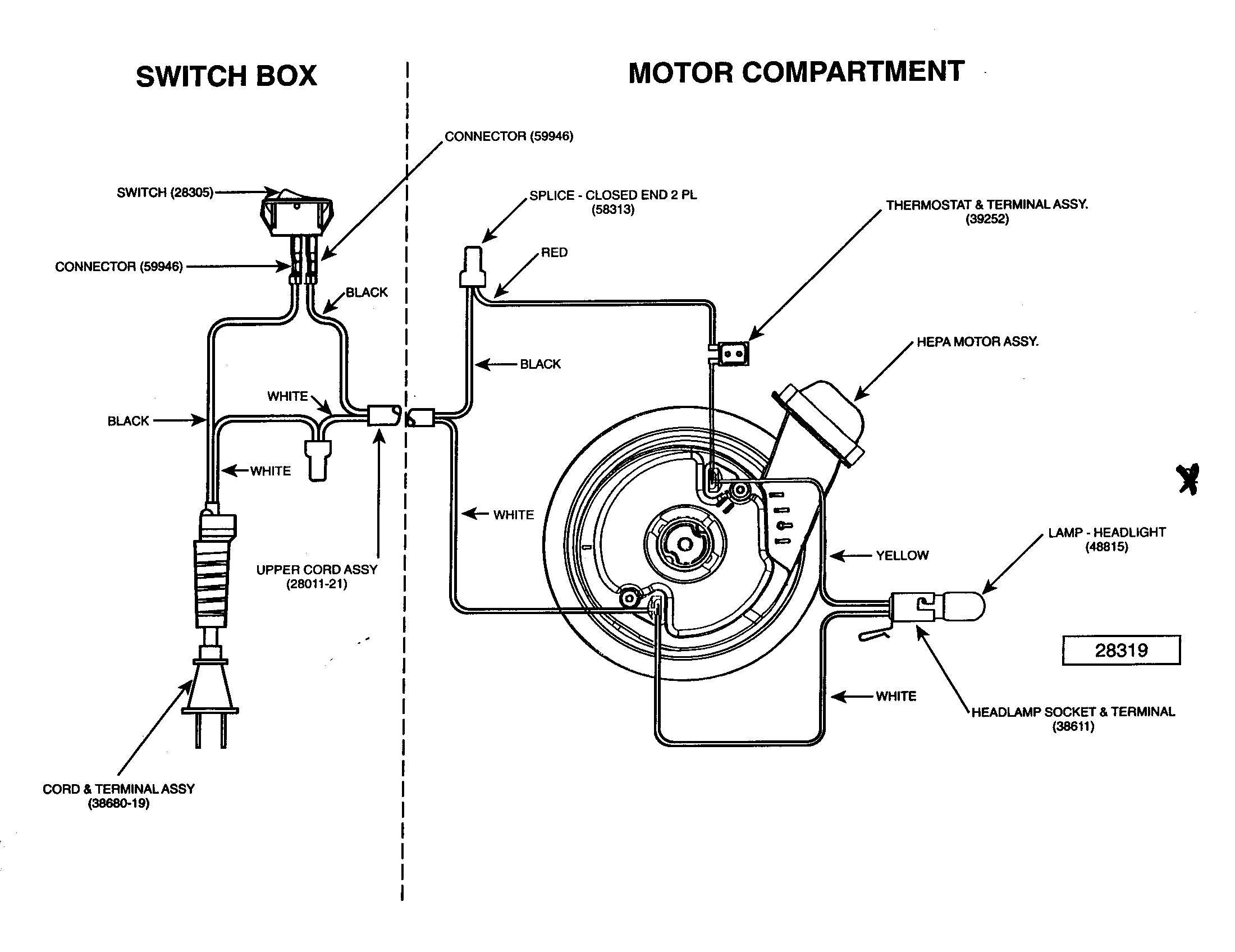

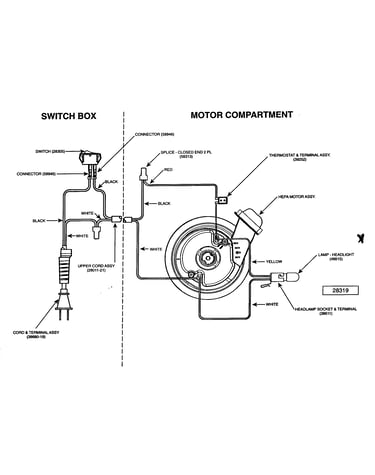

Thermostat 39252-1
#23

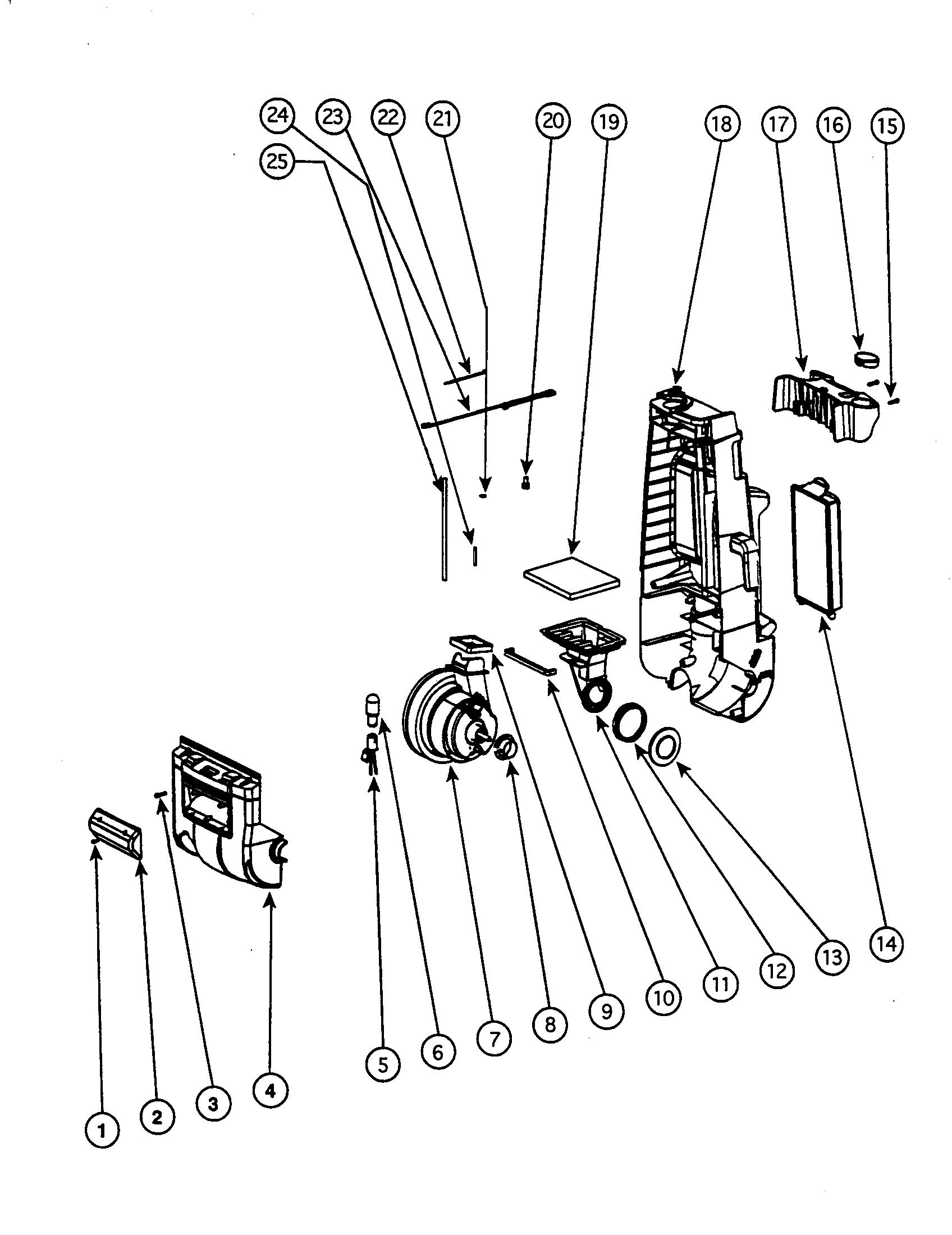

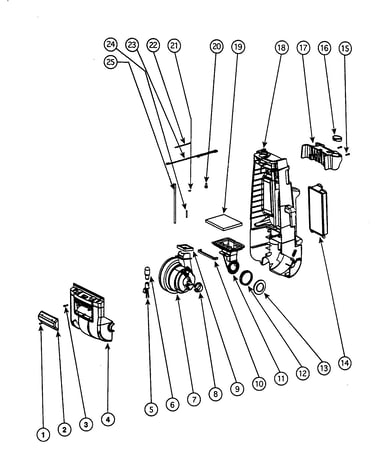

Motor diagram

Thermostat

Part #39252-1

The manufacturer no longer makes this part, and there's no substitute part

Push On Nut 60613
#21

Motor diagram

Push on nut

Part #60613

The manufacturer no longer makes this part, and there's no substitute part

Hardware 70124
#10

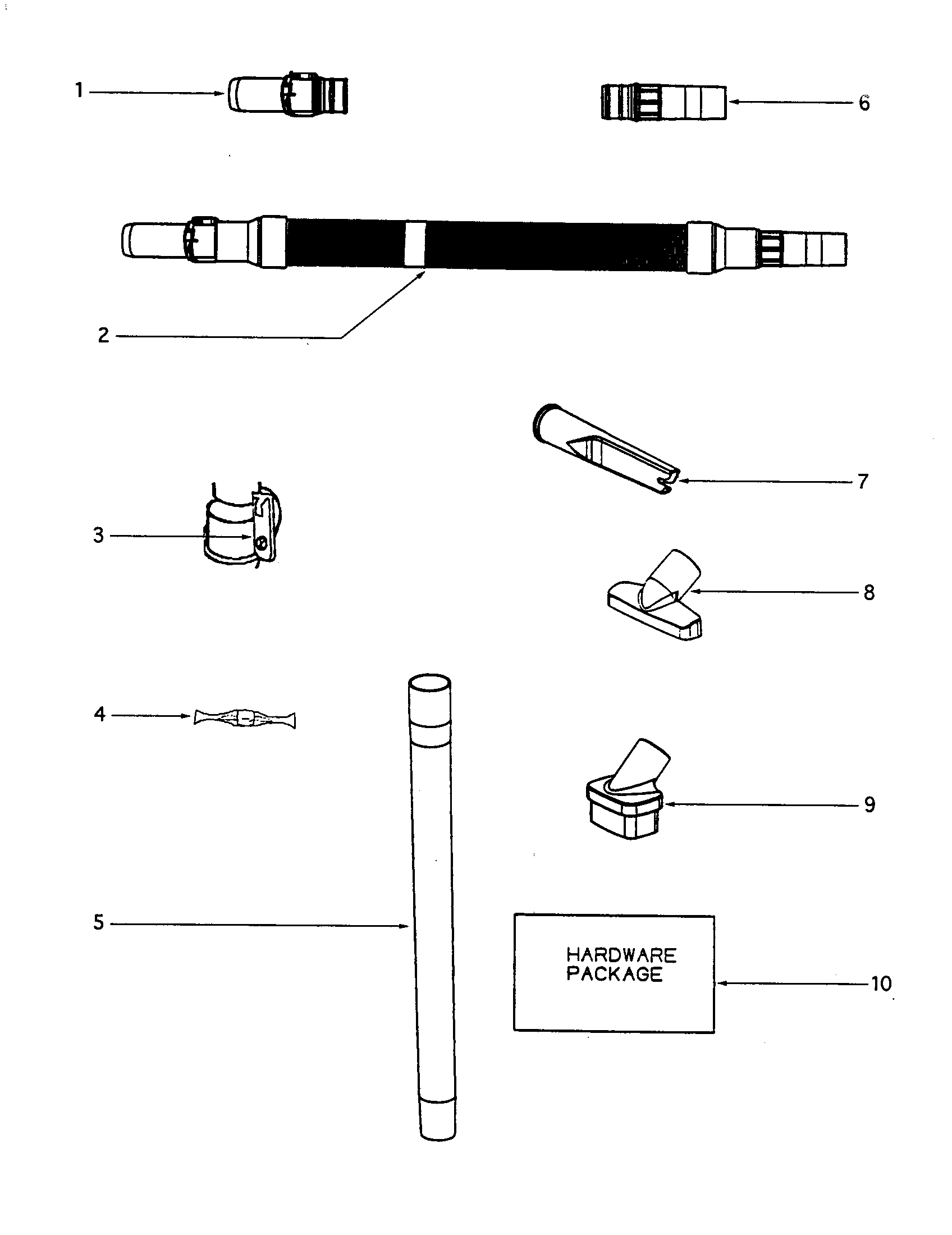

Attachments diagram

Hardware

Part #70124

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Vacuum Spring 54943
#20

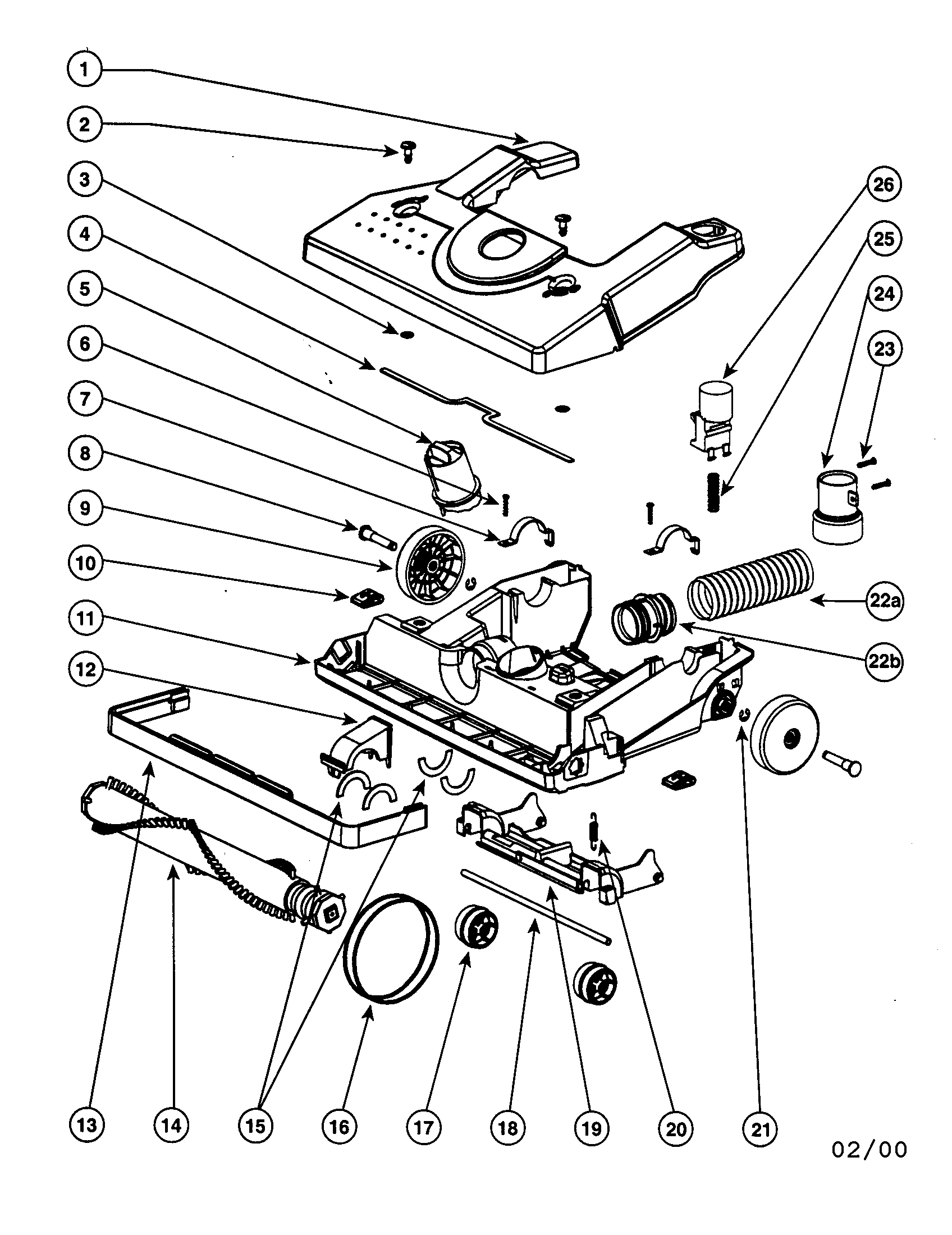

Hood diagram

Electrolux vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Housing 02349-288N
#19

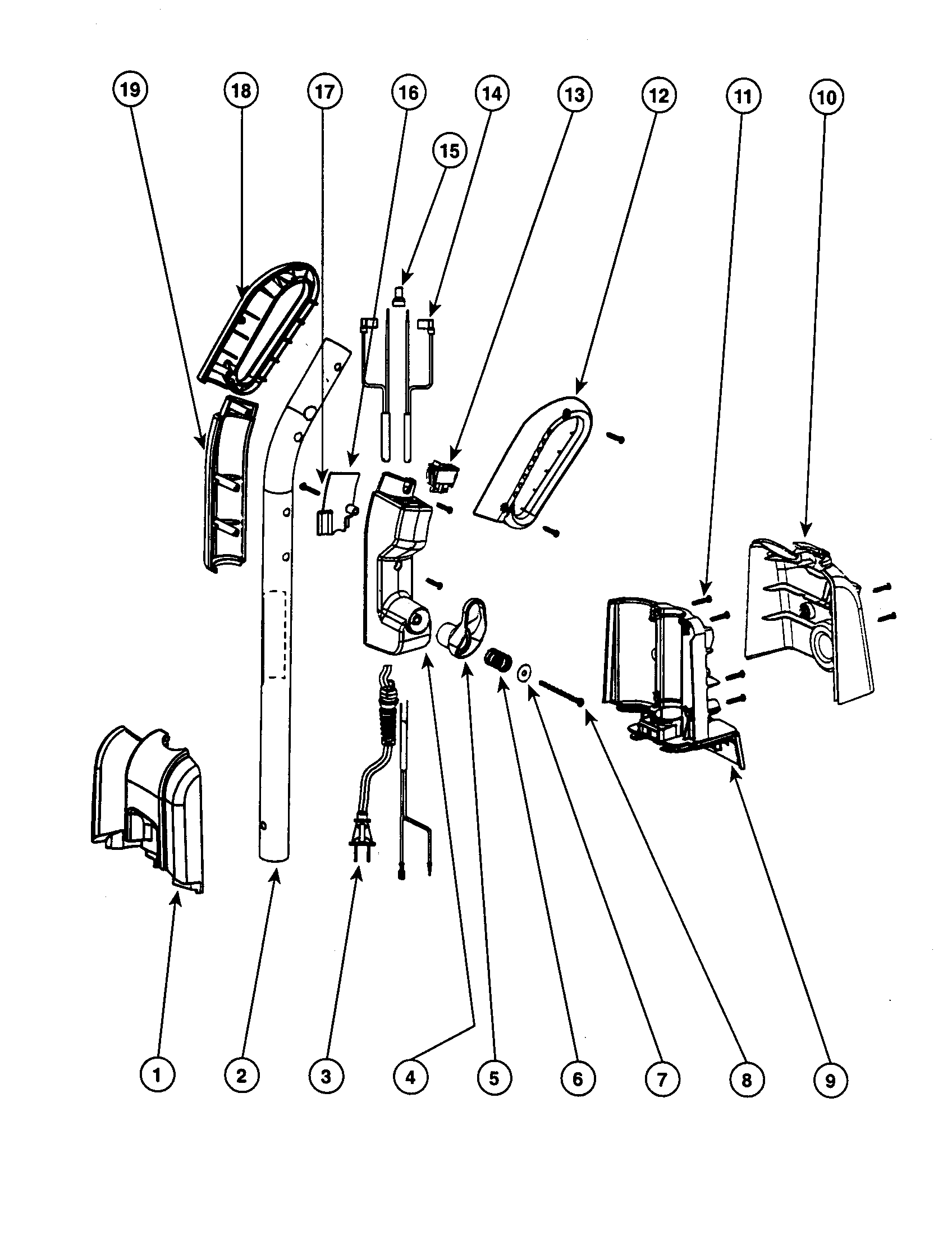

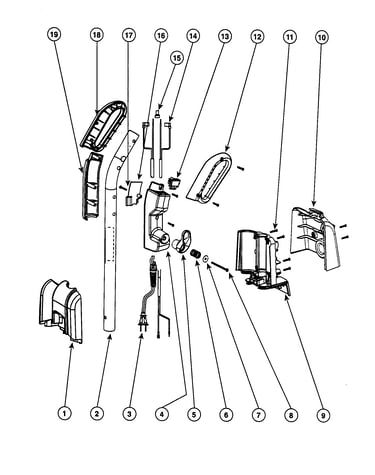

Handle diagram

Housing

Part #02349-288N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Secondary Filter 39334
#19

Motor diagram

Vacuum secondary filter

Part #39334

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Twist-on Wire Connector, 5-pack 60192-1
Vacuum twist-on wire connector, 5-pack

Part #60192-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Upholstery Nozzle 38284-3
#8

Attachments diagram

Vacuum upholstery nozzle

Part #38284-3

The manufacturer no longer makes this part, and there's no substitute part

Adapter 28051A-119N
#1

Attachments diagram

Adapter

Part #28051A-119N

The manufacturer no longer makes this part, and there's no substitute part

Hood 60249-2
#1

Hood diagram

Hood

Part #60249-2

The manufacturer no longer makes this part, and there's no substitute part
