Briggs & Stratton
Gas Pressure Washer

Model # 020531-00 Official Briggs & Stratton gas power washer

Here are the diagrams and repair parts for Official Briggs & Stratton 020531-00 gas power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Pressure Washer Hose 196006GS
#12

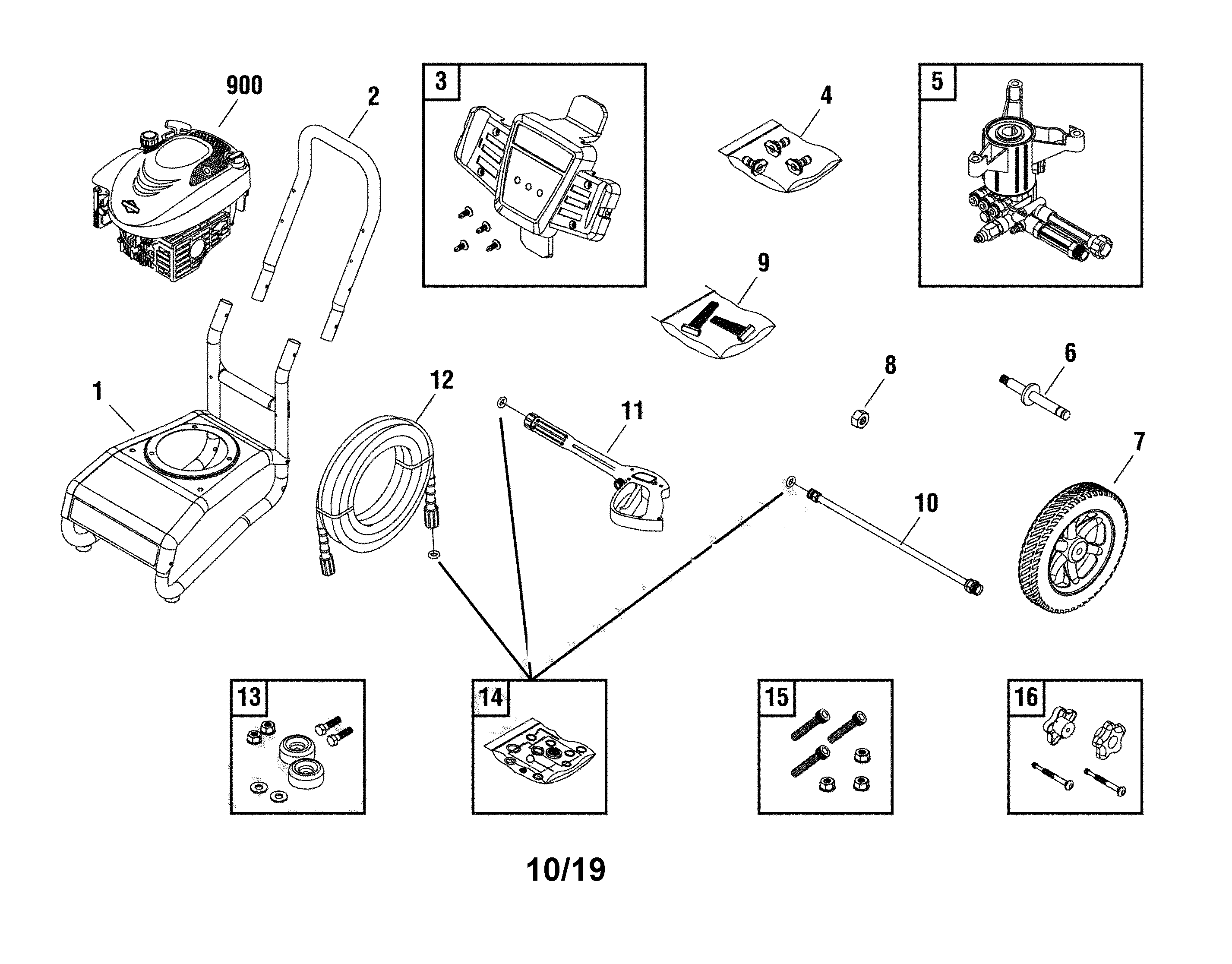

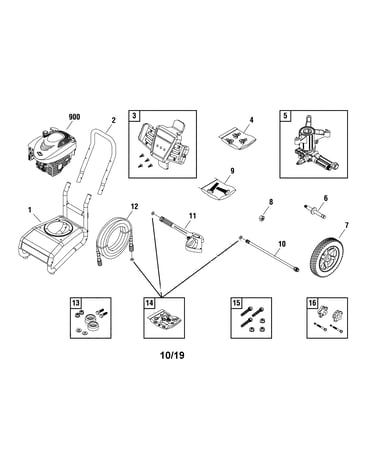

Main unit (317506) diagram

Pressure washer hose

Part #196006GS

Replaced by #84006753

?
Manufacturer substitution
This part replaces 196006GS. Substitute parts can look different from the original.
BEST SELLER
$83.66 |
7% OFF Phone Price : $89.66
In Stock
Pressure Washer Outlet Tube Kit (replaces 190634gs, 2840260gs, 2840890gs) 201497GS
#H

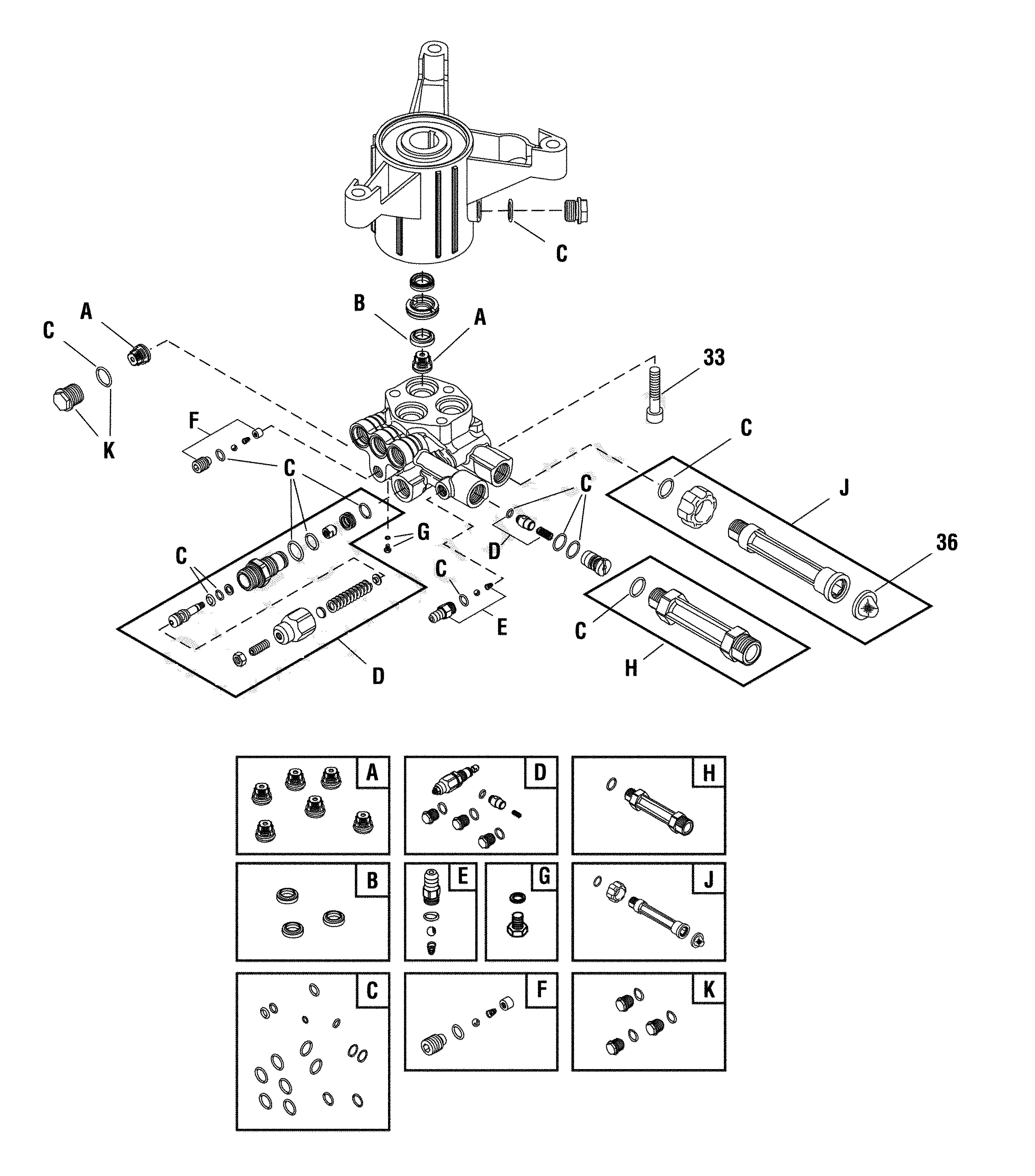

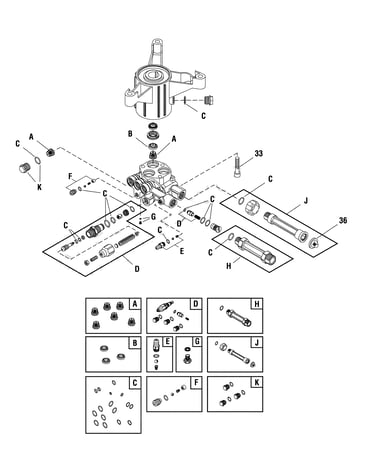

Pump (201112) diagram

Pressure washer outlet tube kit (replaces 190634gs, 2840260gs, 2840890gs)

Part #201497GS

BEST SELLER
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Pressure Washer Thermal Release Valve (replaces 194298gs) 208673GS
#NI14

Pump (201112) diagram

Pressure washer thermal release valve (replaces 194298gs)

Part #208673GS

BEST SELLER
$20.84 |
22% OFF Phone Price : $26.84
In Stock
Pressure Washer Water Inlet Screen (replaces 1266330gs, B2384) B2384GS
#36

Pump (201112) diagram

Pressure washer water inlet screen (replaces 1266330gs, b2384)

Part #B2384GS

BEST SELLER
This item is not returnable
$6.04 |
14% OFF Phone Price : $7.04
In Stock
Gun Assembly 204627GS
#11

Main unit (317506) diagram

Gun assembly

Part #204627GS

Replaced by #84003228

?
Manufacturer substitution
This part replaces 204627GS. Substitute parts can look different from the original.
BEST SELLER
$104.22 |
10% OFF Phone Price : $116.22
In Stock
Pressure Washer Extension Wand 207784GS
#10

Main unit (317506) diagram

Pressure washer extension wand

Part #207784GS

Replaced by #706595

?
Manufacturer substitution
This part replaces 207784GS. Substitute parts can look different from the original.
$50.80 |
11% OFF Phone Price : $56.80
In Stock
Pressure Washer Water Inlet Kit (replaces 2840250gs, 2841220gs) 201496GS
#J

Pump (201112) diagram

Pressure washer water inlet kit (replaces 2840250gs, 2841220gs)

Part #201496GS

$50.96 |
11% OFF Phone Price : $56.96
In Stock
Husqvarna Pressure Washer Fastening Clip (replaces B1797) B1797GS
#3A

Main unit (317506) diagram

Husqvarna pressure washer fastening clip (replaces b1797)

Part #B1797GS

This item is not returnable
$6.69 |
13% OFF Phone Price : $7.69
In Stock
Pressure Washer Pump Valve Kit 200344GS
#A

Pump (201112) diagram

Pressure washer pump valve kit

Part #200344GS

$37.69 |
14% OFF Phone Price : $43.69
In Stock
Generac Pressure Washer Vibration Kit 192310GS
#13

Main unit (317506) diagram

Generac pressure washer vibration kit

Part #192310GS

This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Symptoms for gas pressure washers

Choose a symptom to see related pressure washer repairs.

View all

Why does my pressure washer spray too hard?

Main causes: faulty unloader valve, bad pressure regulator…

Read more

Why won't my pressure washer engine start?

Main causes: stale fuel, gummed up carburetor, engine needs tune up, throttle and choke controls need adjustment, bad re…

Read more

Why does my pressure washer's engine lose power?

Main causes: dirty air filter, stale fuel, clogged or dirty carburetor, bad unloader valve…

Read more

Why won't the pressure washer starter rope retract?

Main causes: broken recoil spring, damaged recoil starter…

Read more

Why is smoke coming from the pressure washer's exhaust?

Main causes: overfilling engine with oil, improper fuel/air mixture, choke system problems, dirty carburetor, engine nee…

Read more

Why does water spray out of my pressure washer's pressure relief valve?

Main causes: pump running for more than 5 minutes when the spray wand isn't being used, faulty pressure relief valve, ba…

Read more

Why is the spray from my pressure washer weak?

Main causes: insufficient water supply, clogged water inlet screen, clogged pressure hose, faulty pump check valves, stu…

Read more

Why won't my pressure washer mix in the detergent?

Main causes: using a high-pressure spray tip when applying detergent, clogged siphon tube, chemical injection system fai…

Read more

Why doesn't my pressure washer recoil starter work?

Main causes: damaged recoil starter, oil inside cylinder, locked up engine piston…

Read more
