KitchenAid
Gas Cooktop

Model # KGCC566RWW01 Official KitchenAid gas counter unit

Here are the diagrams and repair parts for Official KitchenAid KGCC566RWW01 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Burner Head 8286181
#16A

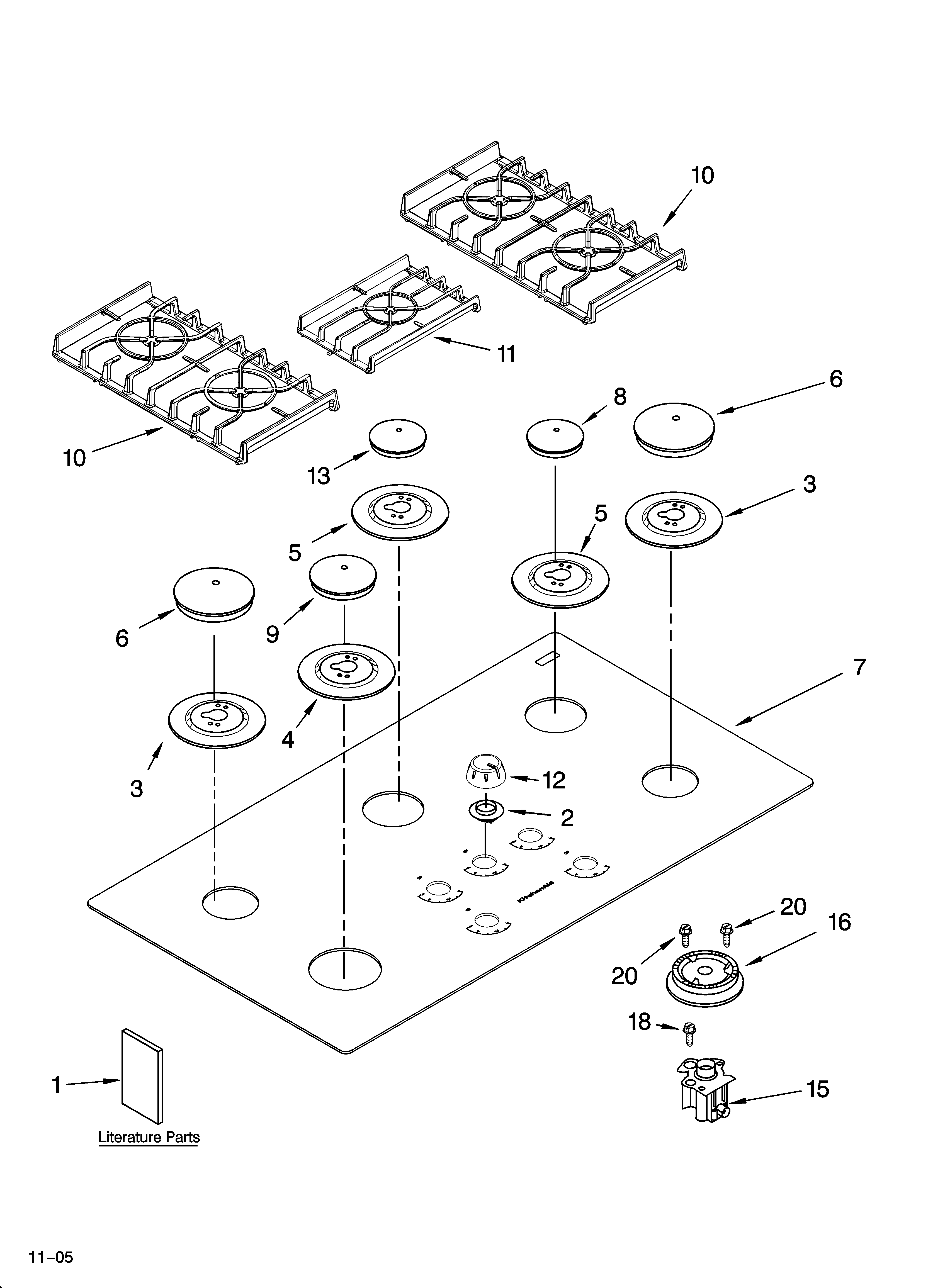

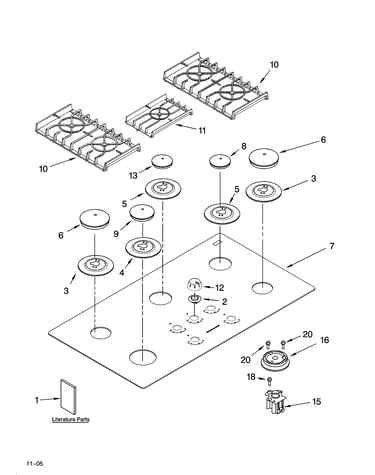

Cooktop, burner and grate parts diagram

Burner head

Part #8286181

Replaced by #WPW10406243

?
Manufacturer substitution
This part replaces 8286181. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Cooktop Igniter Switch And Harness Assembly 4456901
#12

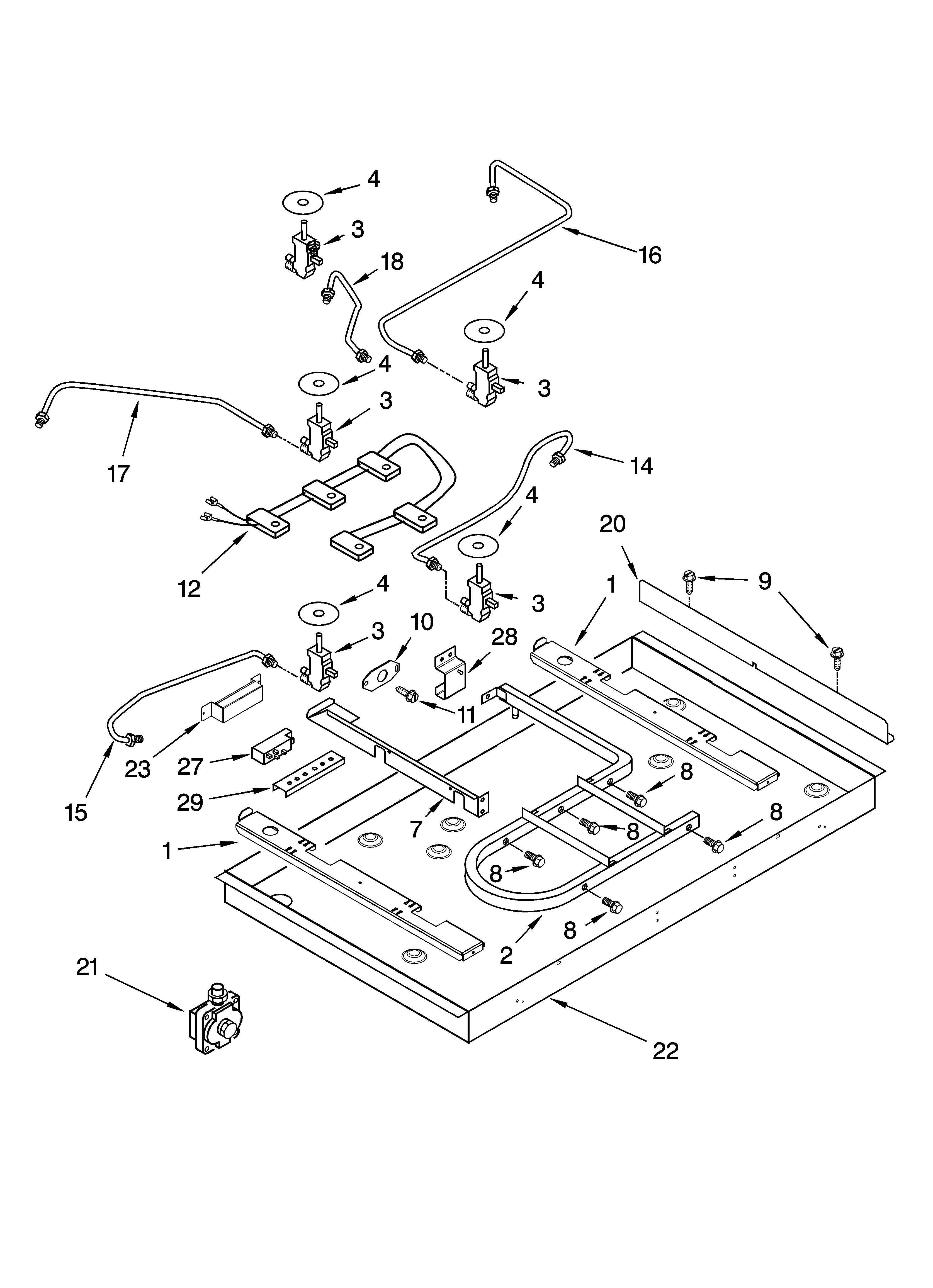

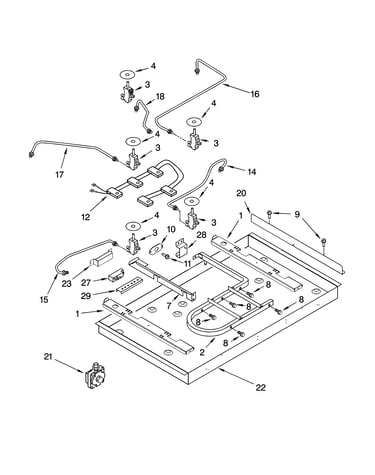

Burner box, gas valves, and switches, optional parts diagram

Cooktop igniter switch and harness assembly

Part #4456901

Replaced by #WP4456901

?
Manufacturer substitution
This part replaces 4456901. Substitute parts can look different from the original.
$108.63 |
10% OFF Phone Price : $120.63
In Stock
Range Screw 3196160
#11

Burner box, gas valves, and switches, optional parts diagram

Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Holder Orifice 8286180
#15B

Cooktop, burner and grate parts diagram

Holder orifice

Part #8286180

Replaced by #WPW10128451

?
Manufacturer substitution
This part replaces 8286180. Substitute parts can look different from the original.
$50.93 |
11% OFF Phone Price : $56.93
In Stock
Range Screw 4449809
#18

Cooktop, burner and grate parts diagram

Range screw

Part #4449809

Replaced by #WP4449809

?
Manufacturer substitution
This part replaces 4449809. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Grommet-wh 3180081
#2

Cooktop, burner and grate parts diagram

Grommet-wh

Part #3180081

Replaced by #WP3180081

?
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
$6.70 |
13% OFF Phone Price : $7.70
In Stock
Main Top 8286172
#7A

Cooktop, burner and grate parts diagram

Main top

Part #8286172

Replaced by #W10661511

?
Manufacturer substitution
This part replaces 8286172. Substitute parts can look different from the original.
$329.00 |
$12.00 OFF Phone Price : $341.00
In Stock
Gasket Switch 3191387
#4

Burner box, gas valves, and switches, optional parts diagram

Gasket switch

Part #3191387

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 3191387. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Range Screw 3177991
Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Cooktop Burner Valve (orange) 8286561
#3C

Burner box, gas valves, and switches, optional parts diagram

Cooktop burner valve (orange)

Part #8286561

$133.59 |
8% OFF Phone Price : $145.59
In Stock
