Whirlpool
Side-By-Side Refrigerator

Model # BRS70HRANA00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool BRS70HRANA00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

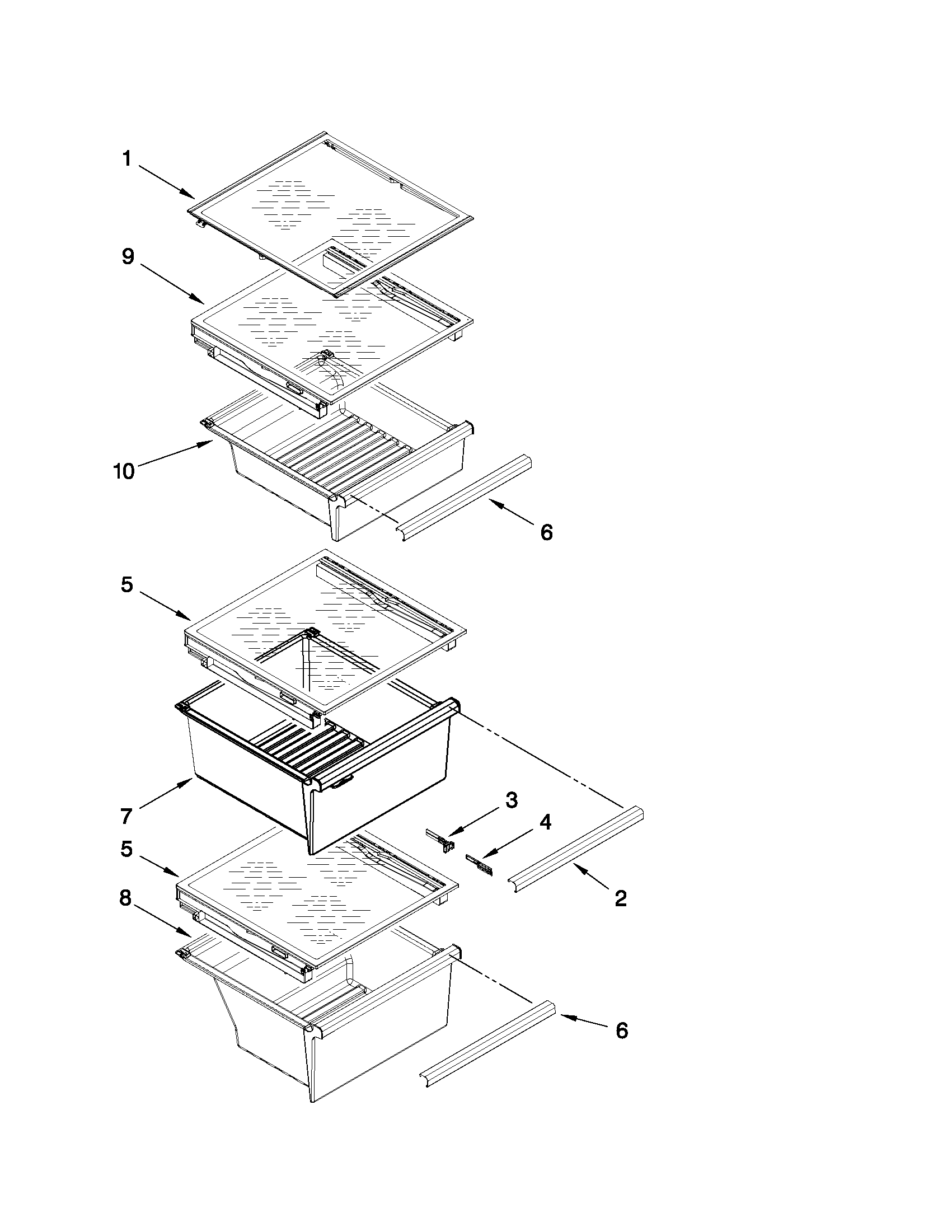

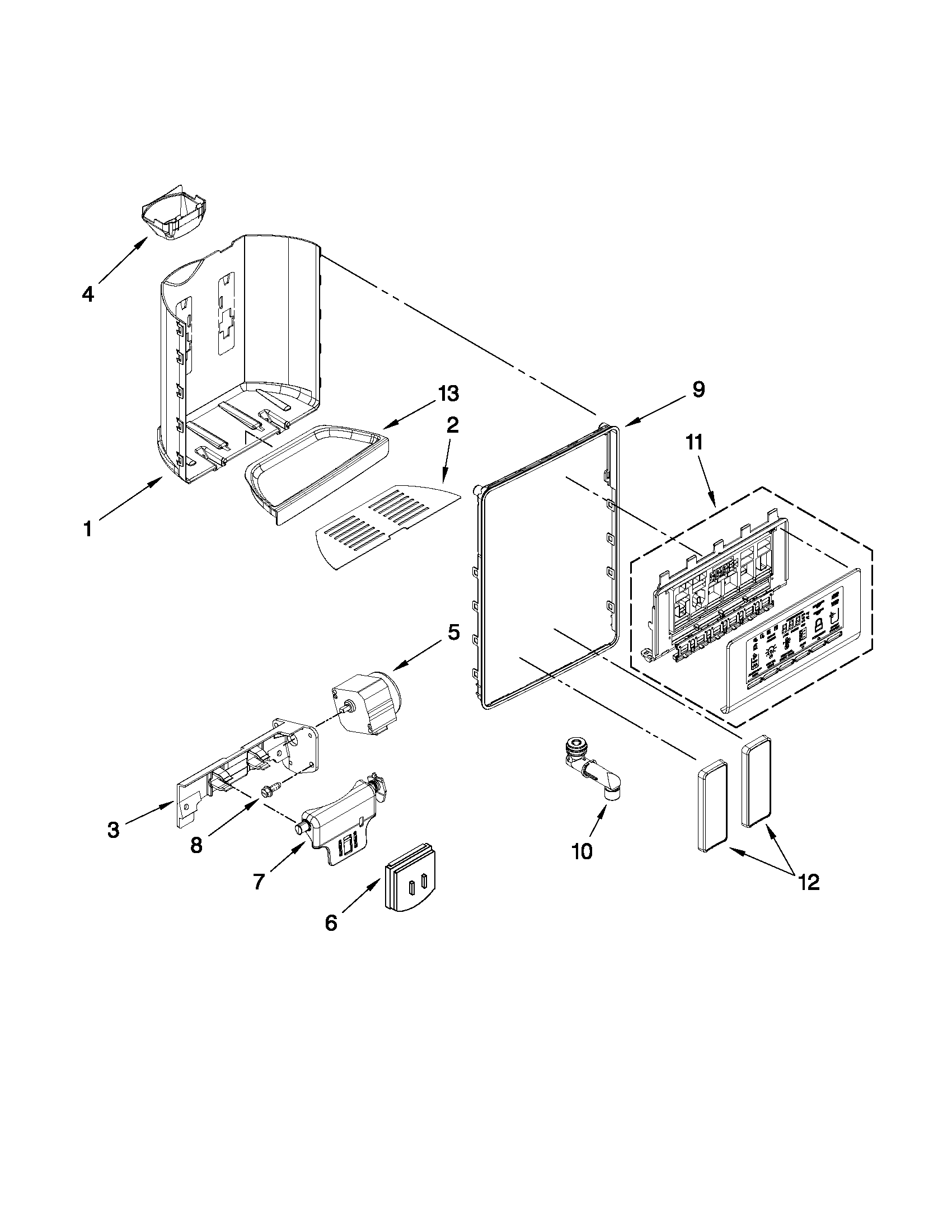

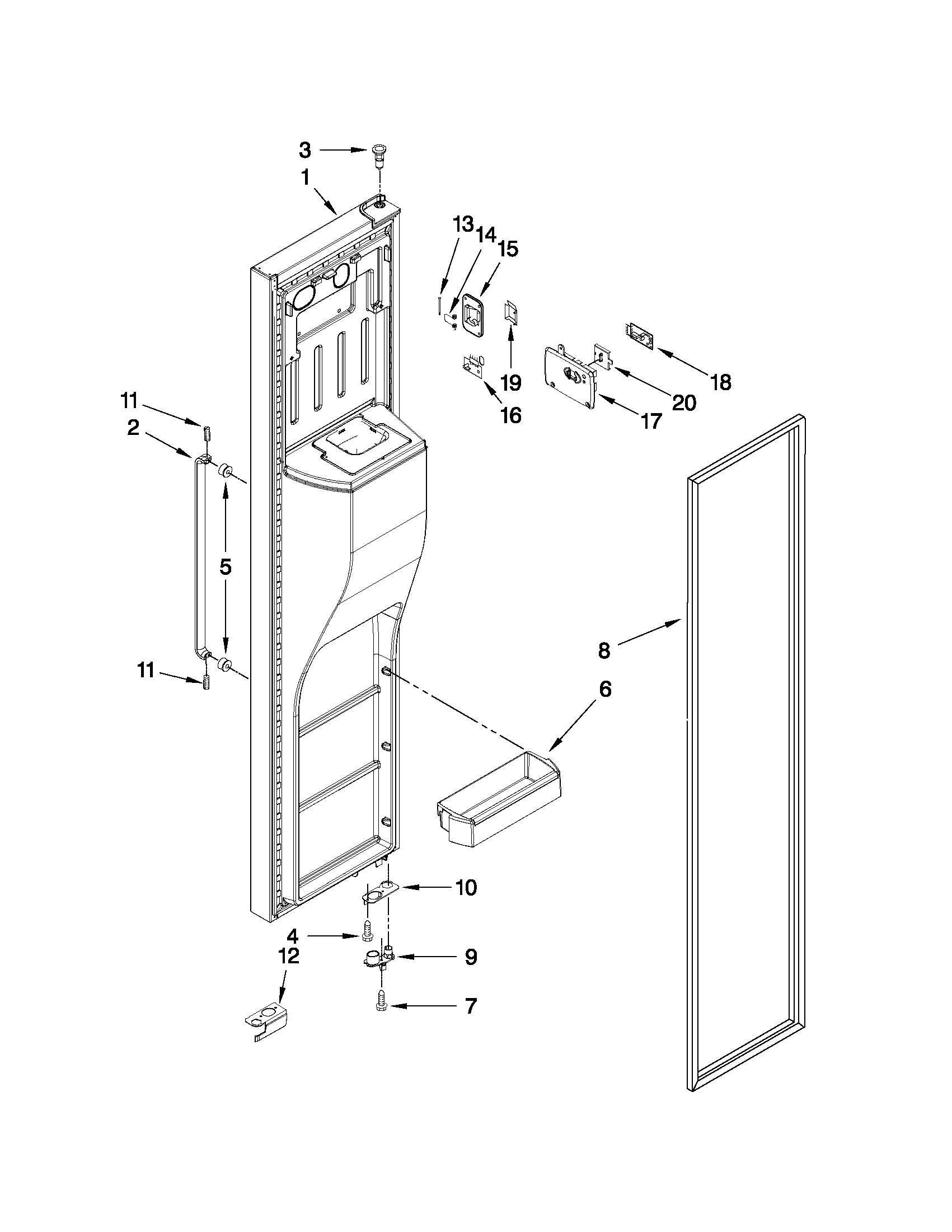

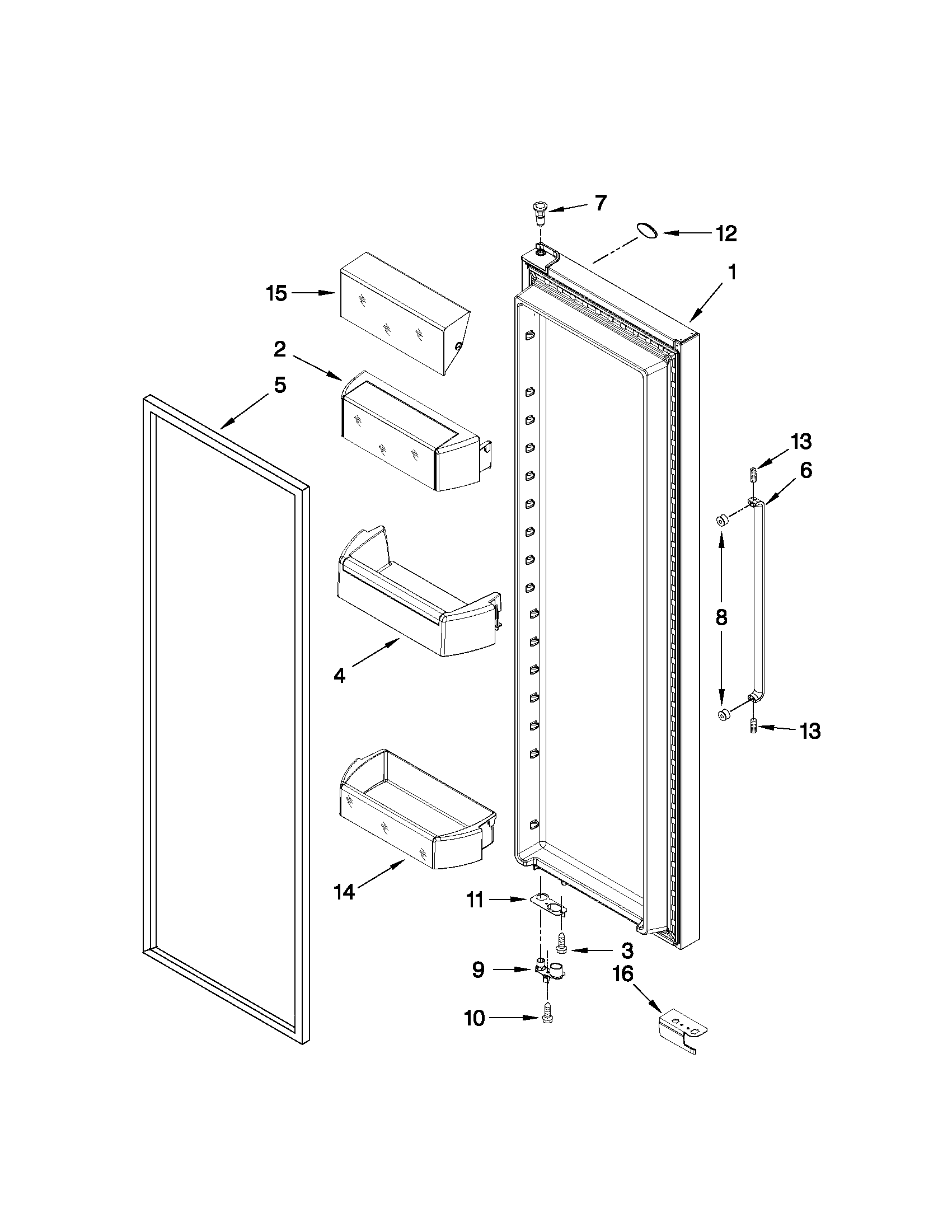

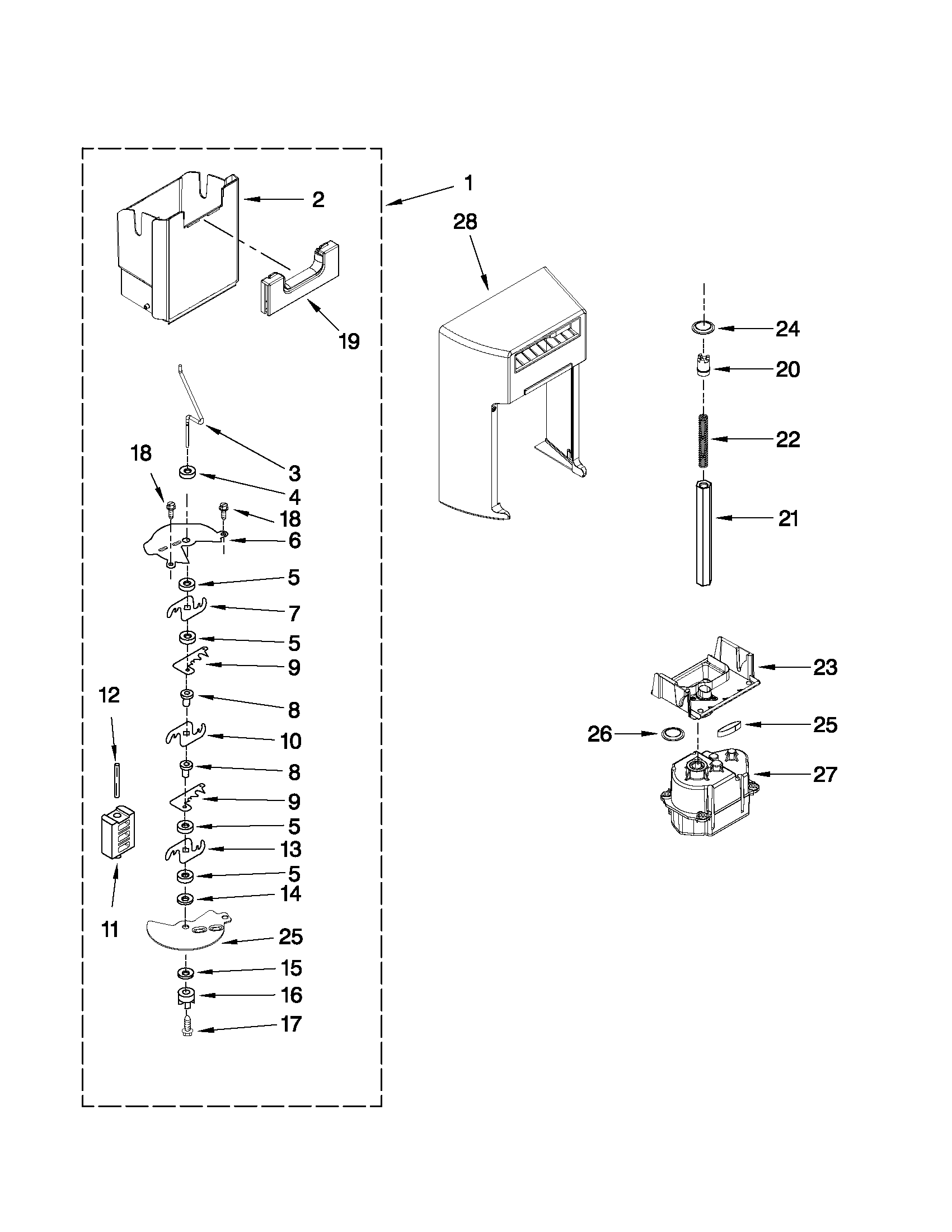

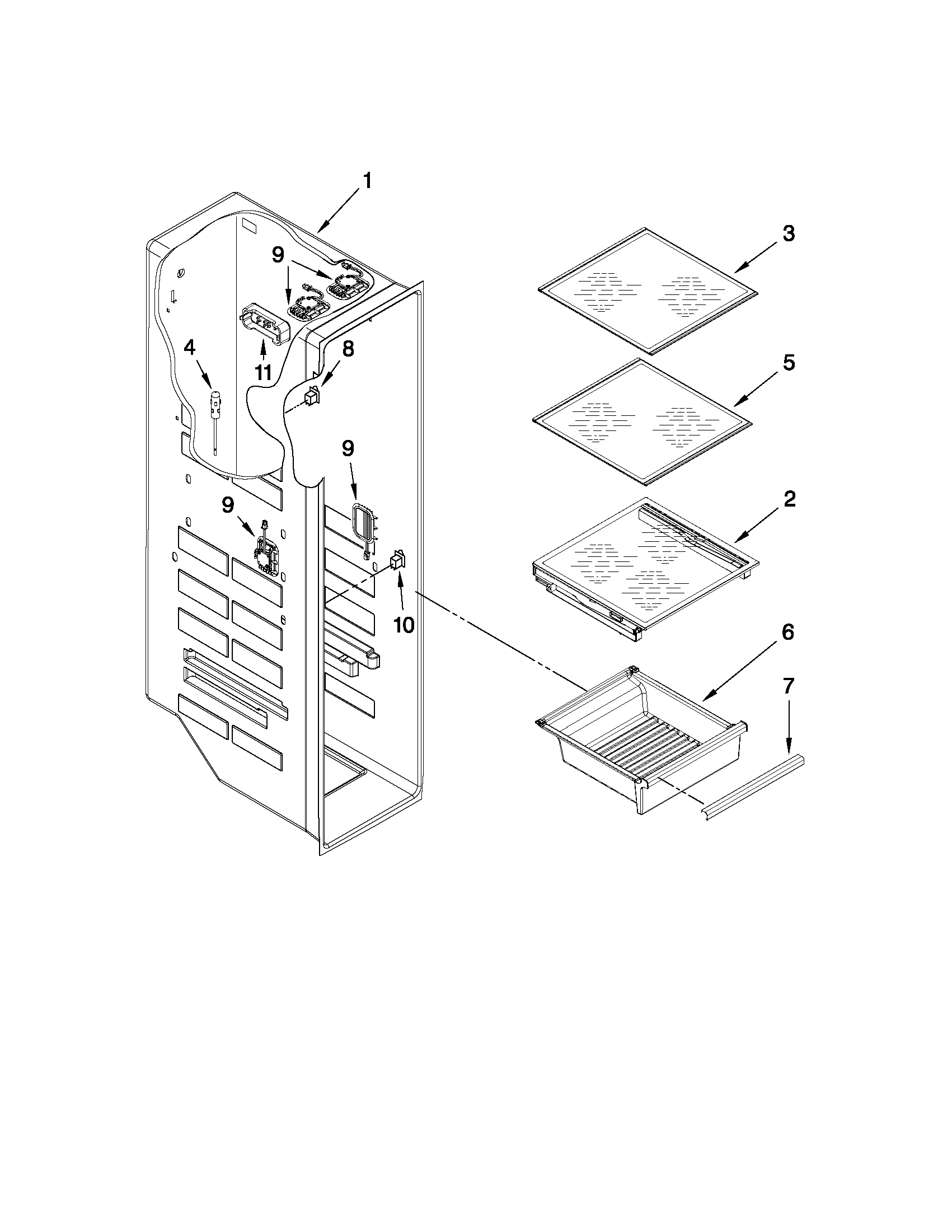

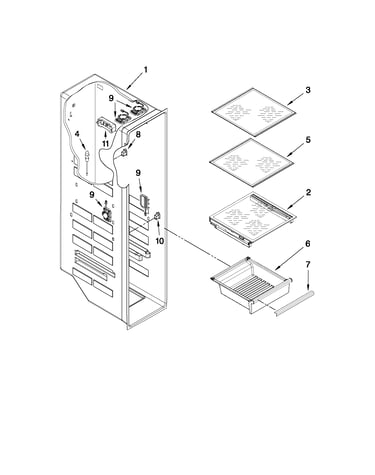

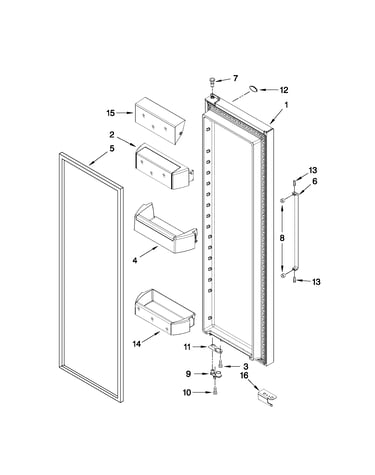

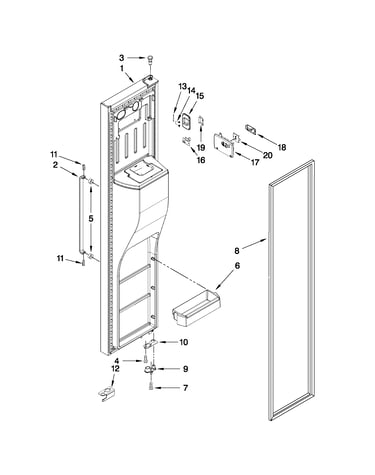

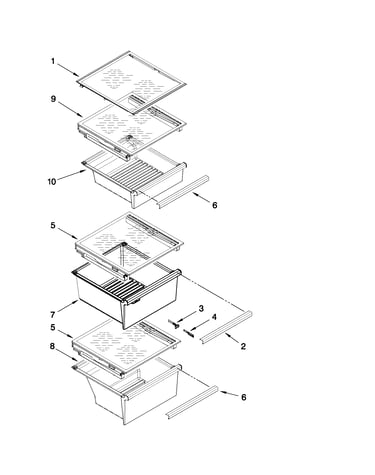

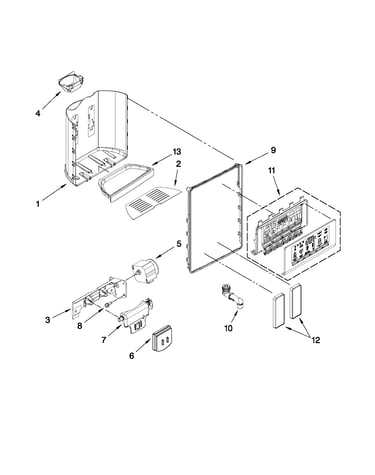

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 263 parts  |
Refrigerator Water Filter W10295370
#3

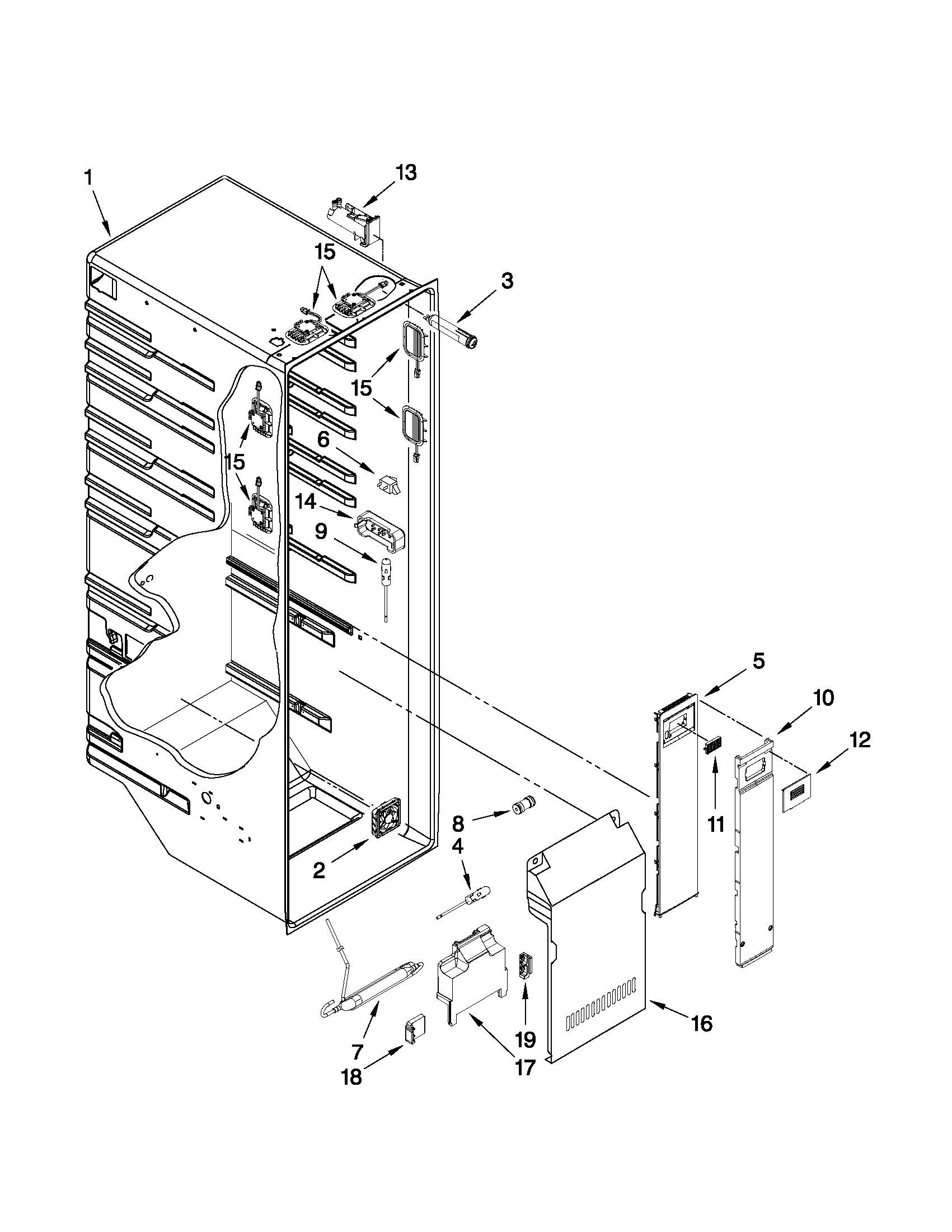

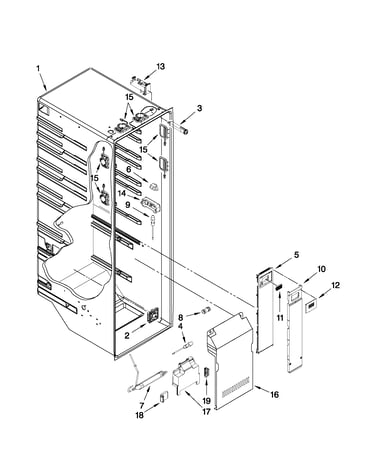

Refrigerator liner parts diagram

Refrigerator water filter

Part #W10295370

Replaced by #EDR1RXD1

?
Manufacturer substitution
This part replaces W10295370. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Drier W/dye 2317845
#21A

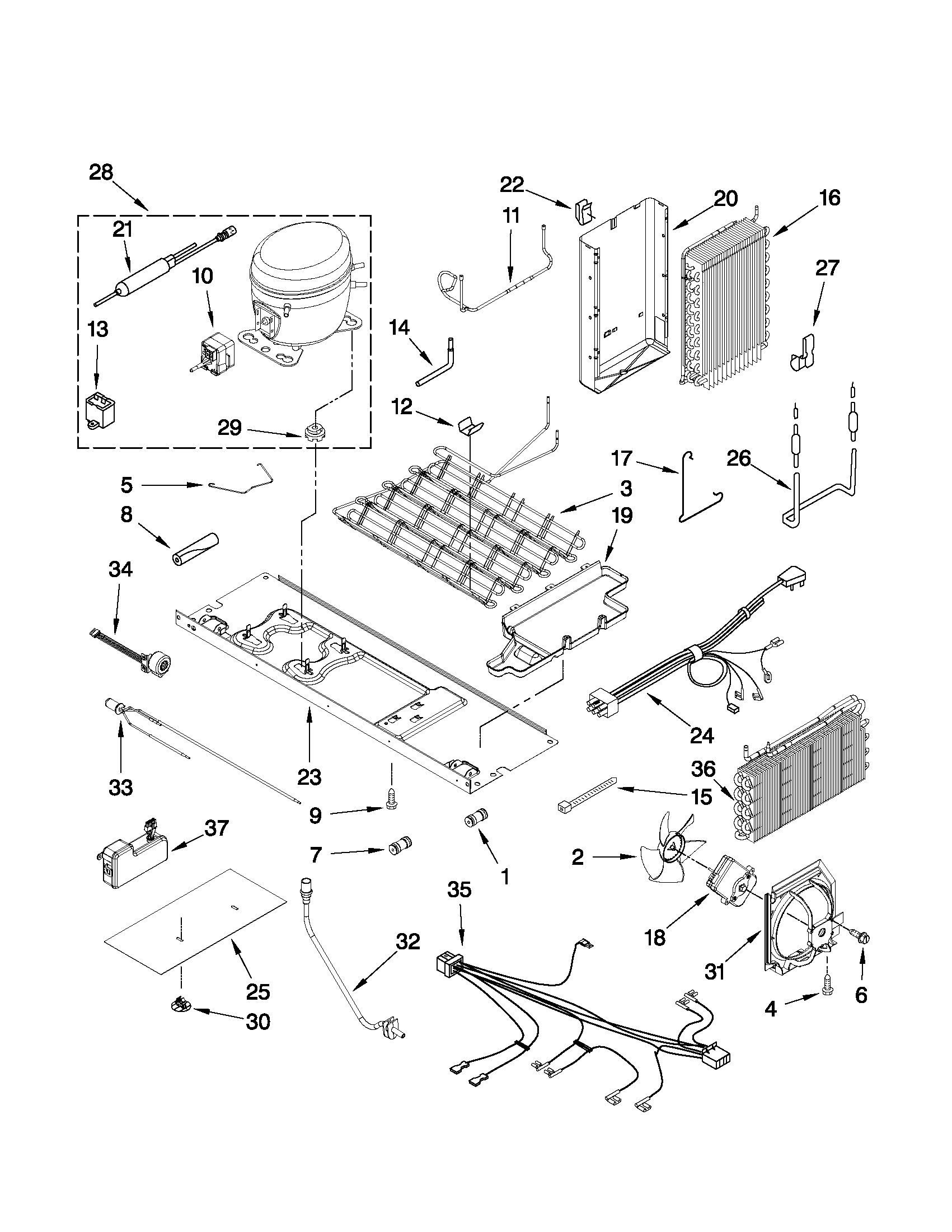

Unit parts diagram

Drier w/dye

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Drier Tube W10286069
#21

Unit parts diagram

Drier tube

Part #W10286069

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10286069. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Push-button Switch C3680314
#6

Refrigerator liner parts diagram

Refrigerator push-button switch

Part #C3680314

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680314. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Light W10279030
Refrigerator light

Part #W10279030

Replaced by #W10695459

?
Manufacturer substitution
This part replaces W10279030. Substitute parts can look different from the original.
BEST SELLER
$86.75 |
6% OFF Phone Price : $92.75
In Stock

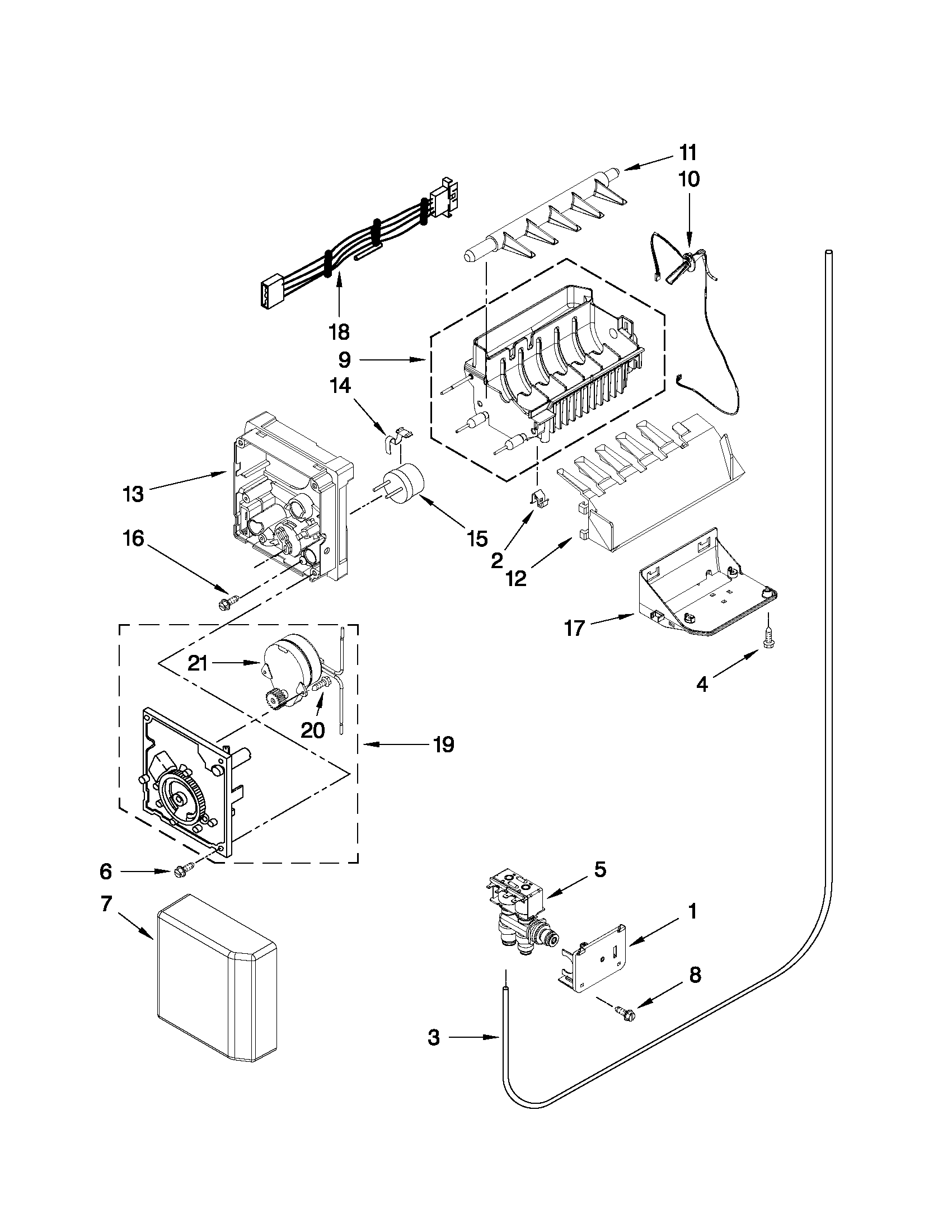

Refrigerator Water Inlet Valve W10238100
#11

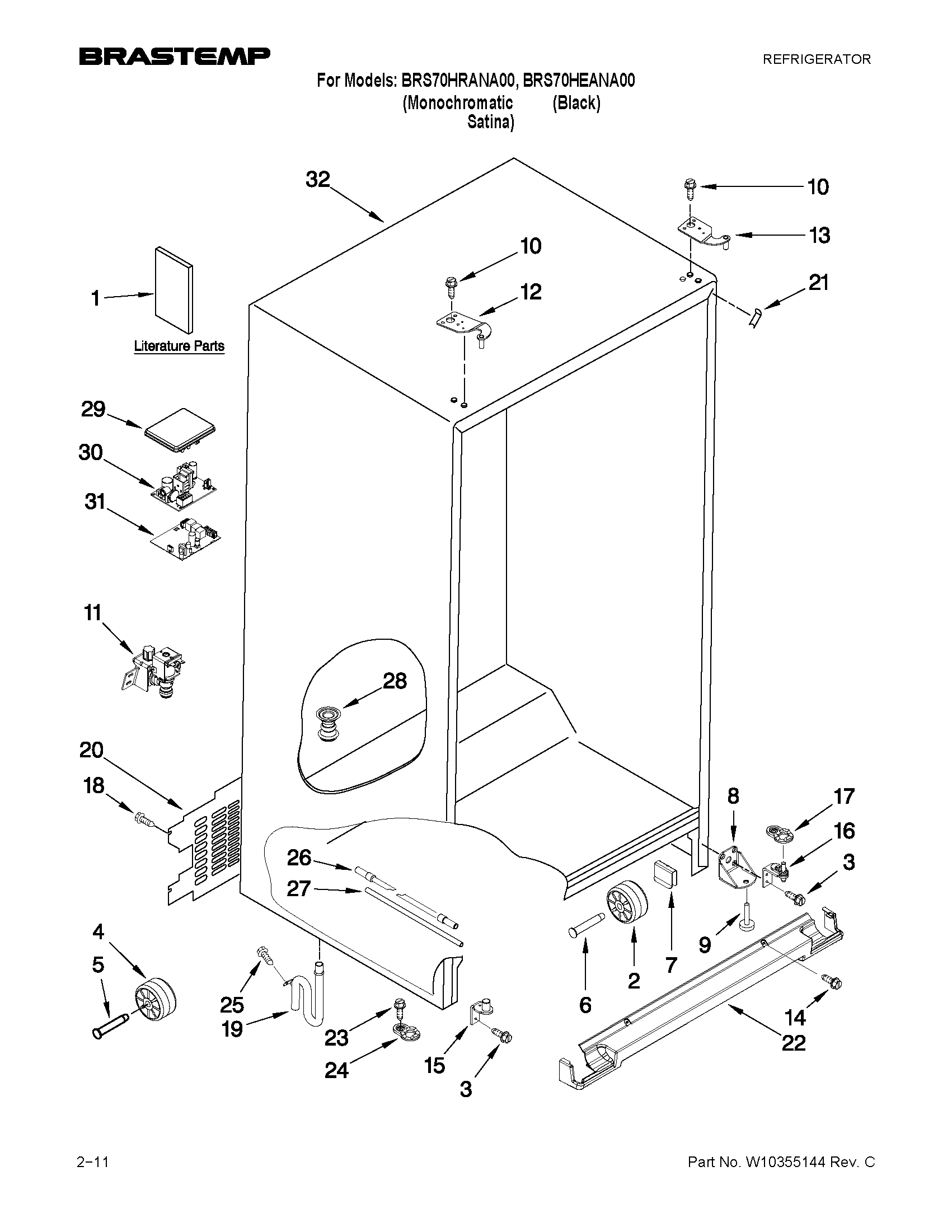

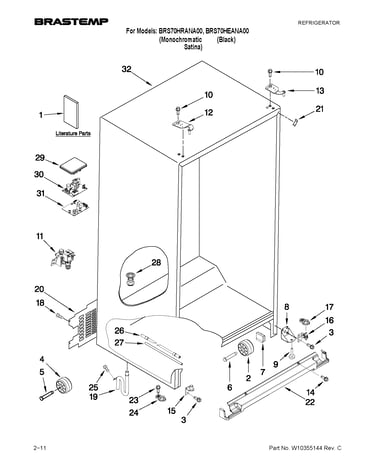

Cabinet parts diagram

Refrigerator water inlet valve

Part #W10238100

Replaced by #WPW10238100

?
Manufacturer substitution
This part replaces W10238100. Substitute parts can look different from the original.
BEST SELLER
$104.37 |
10% OFF Phone Price : $116.37
In Stock
Refrigerator Evaporator Fan Blade 2169142
#8

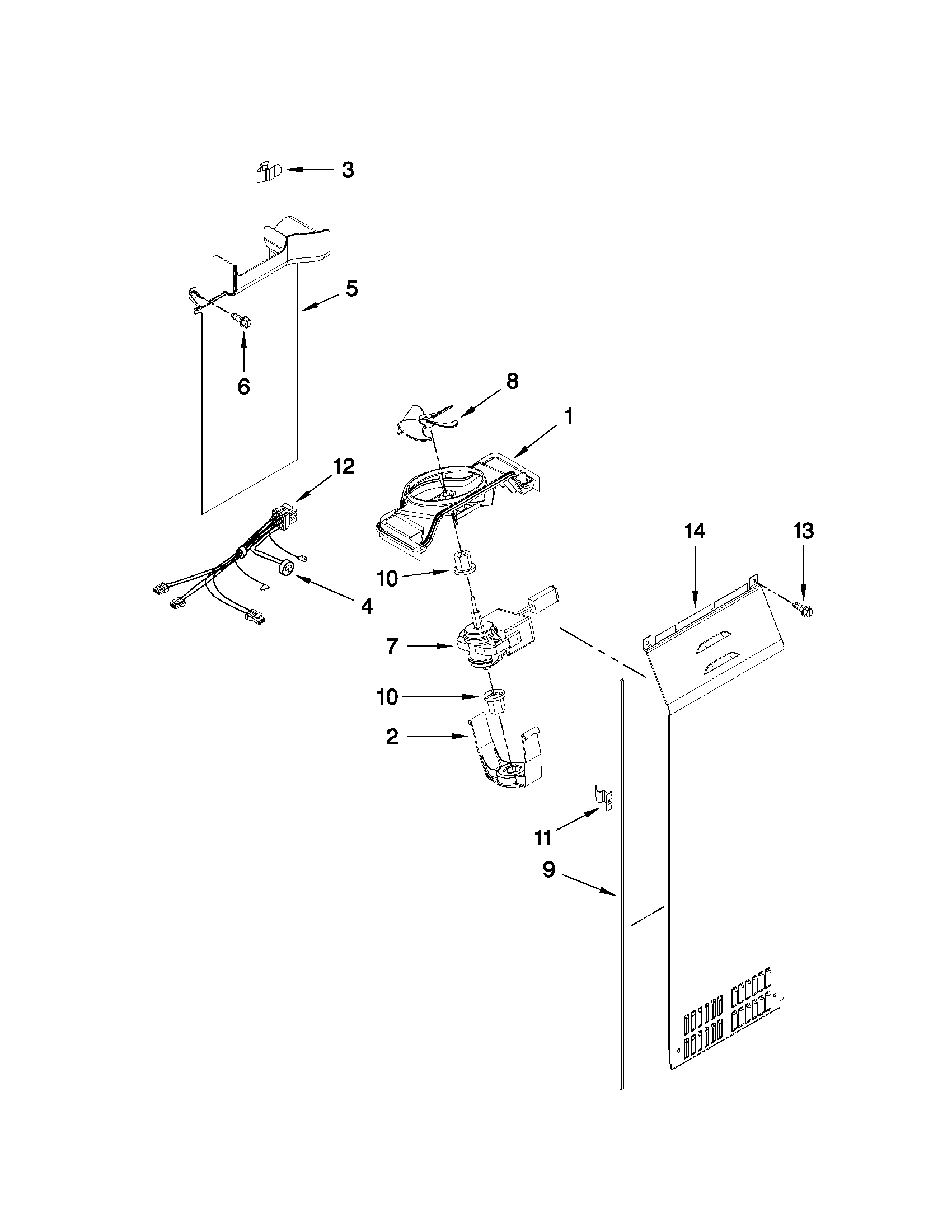

Air flow parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Start Device W10128791
#10A

Unit parts diagram

Start device

Part #W10128791

Replaced by #WPW10197428

?
Manufacturer substitution
This part replaces W10128791. Substitute parts can look different from the original.
BEST SELLER
$52.44 |
10% OFF Phone Price : $58.44
In Stock
Refrigerator Start Relay W10197428
#10

Unit parts diagram

Refrigerator start relay

Part #W10197428

Replaced by #WPW10197428

?
Manufacturer substitution
This part replaces W10197428. Substitute parts can look different from the original.
BEST SELLER
$52.44 |
10% OFF Phone Price : $58.44
In Stock
Evaporator Motor W10312647
#7

Air flow parts diagram

Evaporator motor

Part #W10312647

Replaced by #4389144

?
Manufacturer substitution
This part replaces W10312647. Substitute parts can look different from the original.
BEST SELLER
$59.21 |
9% OFF Phone Price : $65.21
In Stock
