Model # DUS500B/P1173716W Official Caloric dishwasher

Here are the diagrams and repair parts for Official Caloric DUS500B-P1173716W dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

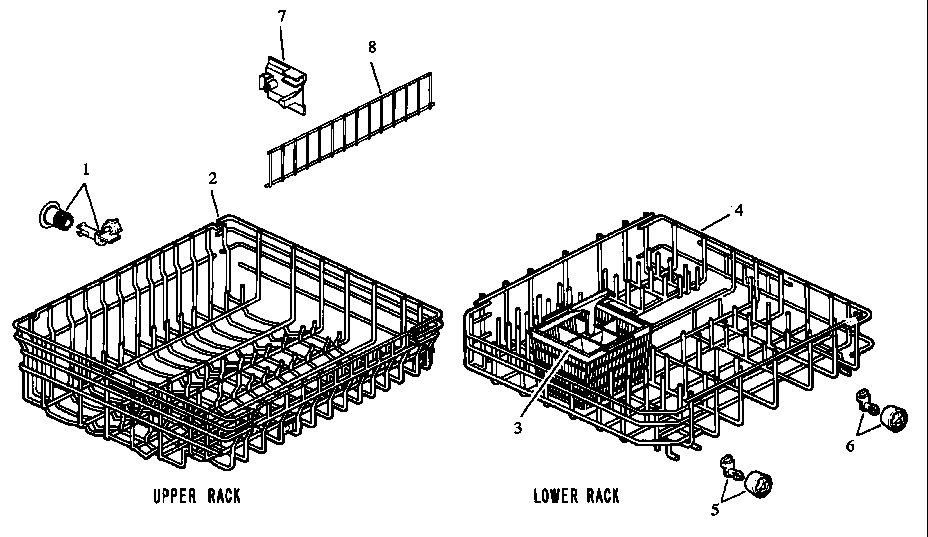

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Retainer Pb Switch R0905546
#17A

Escutcheon/timer diagram

Retainer pb switch

Part #R0905546

The manufacturer no longer makes this part, and there's no substitute part

Switch Leaf Assembly R0905716
#5A

Escutcheon/timer diagram

Switch leaf assembly

Part #R0905716

The manufacturer no longer makes this part, and there's no substitute part

Frame R0910052
#32B

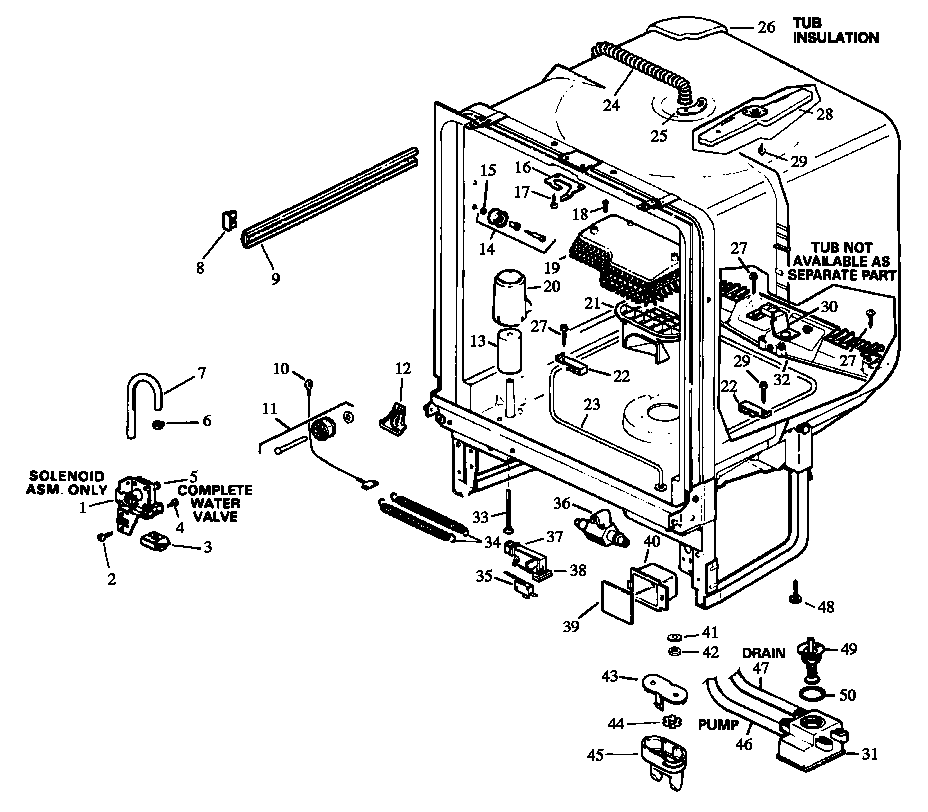

Tub diagram

Frame

Part #R0910052

The manufacturer no longer makes this part, and there's no substitute part

Solenoid Assembly R0909002
#1

Tub diagram

Solenoid assembly

Part #R0909002

The manufacturer no longer makes this part, and there's no substitute part

Sump Inlet R0905719
#26A

Motor/pump diagram

Sump inlet

Part #R0905719

The manufacturer no longer makes this part, and there's no substitute part

Drain Tube Assembly R0903584
#35A

Motor/pump diagram

Drain tube assembly

Part #R0903584

The manufacturer no longer makes this part, and there's no substitute part

Grader, Nut R0905563
#29

Motor/pump diagram

Grader, nut

Part #R0905563

The manufacturer no longer makes this part, and there's no substitute part

Switch, Pushbutton (p1173716w) R0902503
#18A

Escutcheon/timer diagram

Switch, pushbutton (p1173716w)

Part #R0902503

The manufacturer no longer makes this part, and there's no substitute part

Seal, Split Ring R0905557
#4

Motor/pump diagram

Seal, split ring

Part #R0905557

The manufacturer no longer makes this part, and there's no substitute part

Solenoid Bracket R0905639
#41

Motor/pump diagram

Solenoid bracket

Part #R0905639

The manufacturer no longer makes this part, and there's no substitute part
