Model # WL075012 Official Weslo aero 750 exercise bike

Here are the diagrams and repair parts for Official Weslo WL075012 aero 750 exercise bike, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Magnet,rnd,m 100498
#48

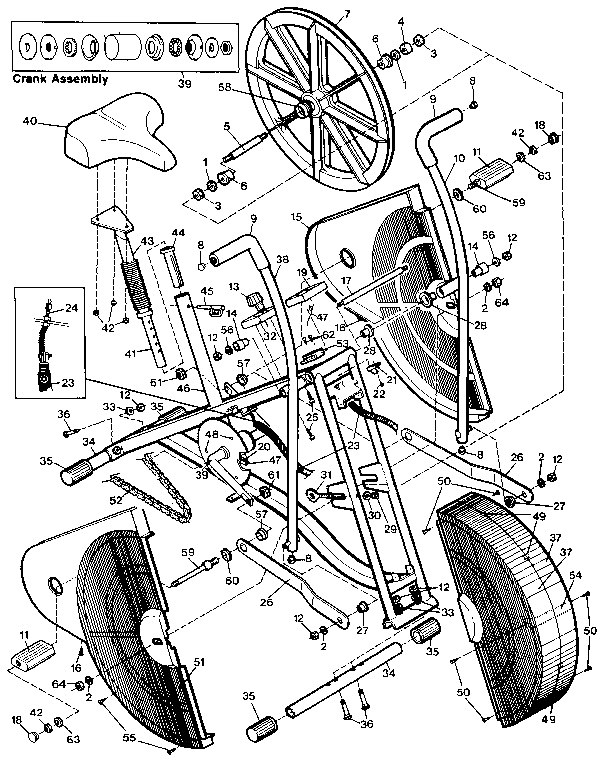

Unit parts diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
In Stock
Exercise Equipment Flat Washer 014127
#30

Unit parts diagram

Exercise equipment flat washer

Part #014127

This item is not returnable
In Stock
Exercise Equipment Flat Washer 014073
Exercise equipment flat washer

Part #014073

This item is not returnable
In Stock
Exercise Equipment Screw 013162
#22

Unit parts diagram

Exercise equipment screw

Part #013162

This item is not returnable
In Stock
Wshr,flat,sa 101494
#60

Unit parts diagram

Wshr,flat,sa

Part #101494

This item is not returnable
In Stock
Weider Carriage Bolt 100326
#36

Unit parts diagram

Weider carriage bolt

Part #100326

This item is not returnable
In Stock
Clip,fan Grd 054035
#49

Unit parts diagram

Clip,fan grd

Part #054035

This item is not returnable
In Stock
Batt,a-76,wa 033134

#NI

All parts diagram

Batt,a-76,wa

Part #033134

The manufacturer no longer makes this part, and there's no substitute part

Tcd,cbl Assy 101366
#24

Unit parts diagram

Tcd,cbl assy

Part #101366

The manufacturer no longer makes this part, and there's no substitute part

Endcap,stblz 040207
#35

Unit parts diagram

Endcap,stblz

Part #040207

The manufacturer no longer makes this part, and there's no substitute part
