Frigidaire
Built-In Microwave

Model # FGMO205KWDY Official Frigidaire built-in microwave

Here are the diagrams and repair parts for Official Frigidaire FGMO205KWDY built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

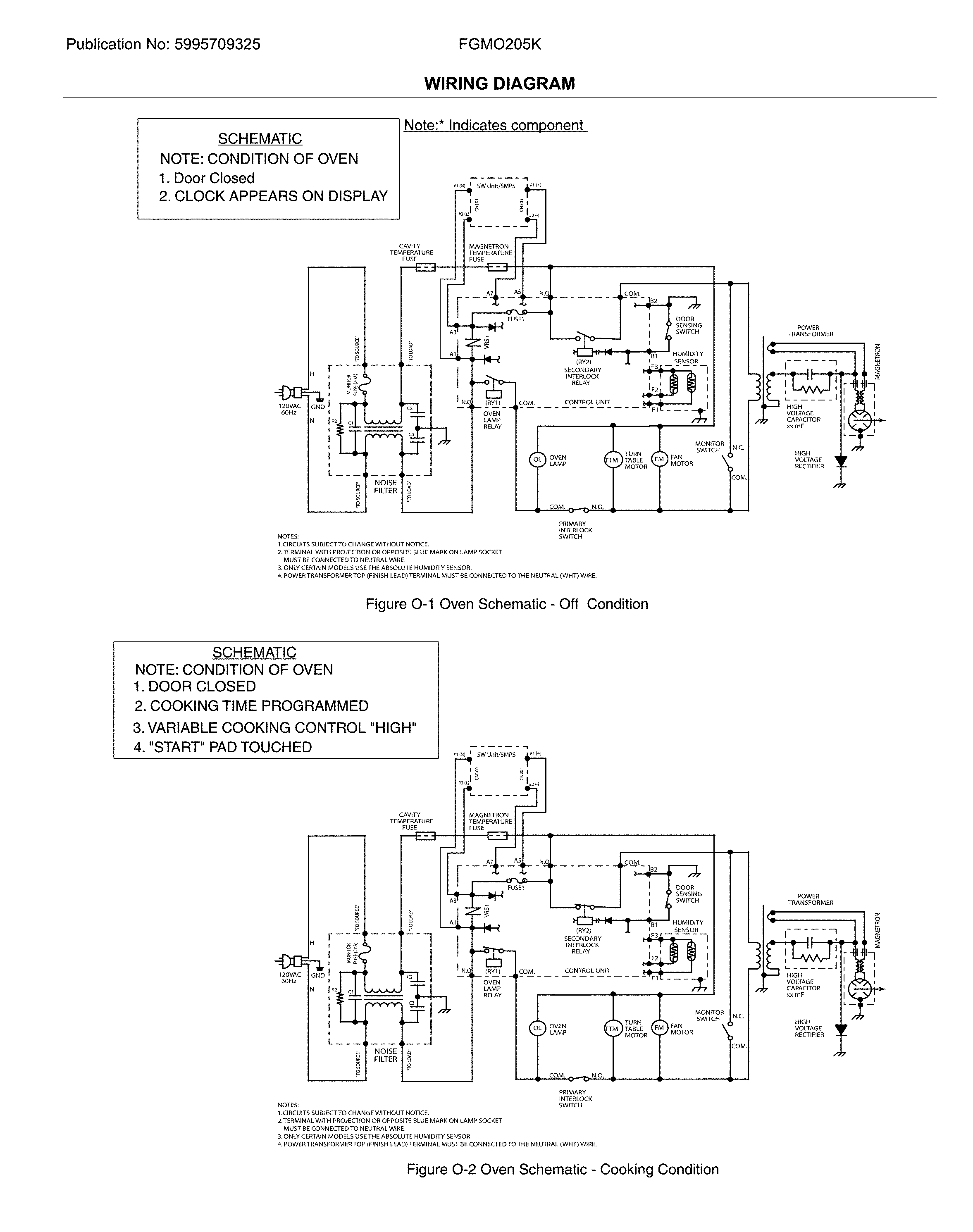

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Wall Oven Microwave Magnetron 5304440781
#8

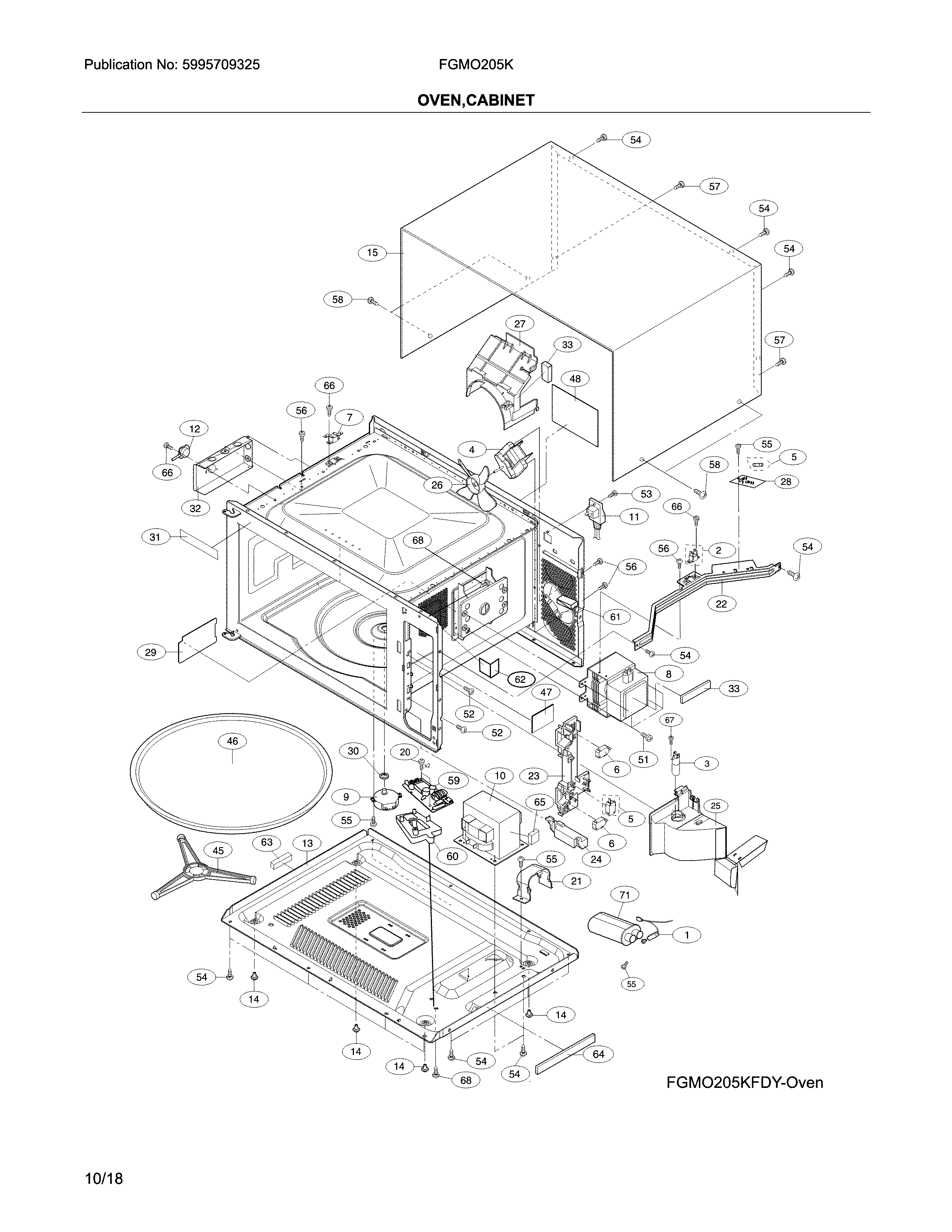

Cabinet,oven diagram

Wall oven microwave magnetron

Part #5304440781

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304440781. Substitute parts can look different from the original.
BEST SELLER
$140.66 |
10% OFF Was : $156.29
In Stock
Microwave High-voltage Capacitor 5304493150
#1

Cabinet,oven diagram

Microwave high-voltage capacitor

Part #5304493150

BEST SELLER
This item is not returnable
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Wire 5304503442
#50

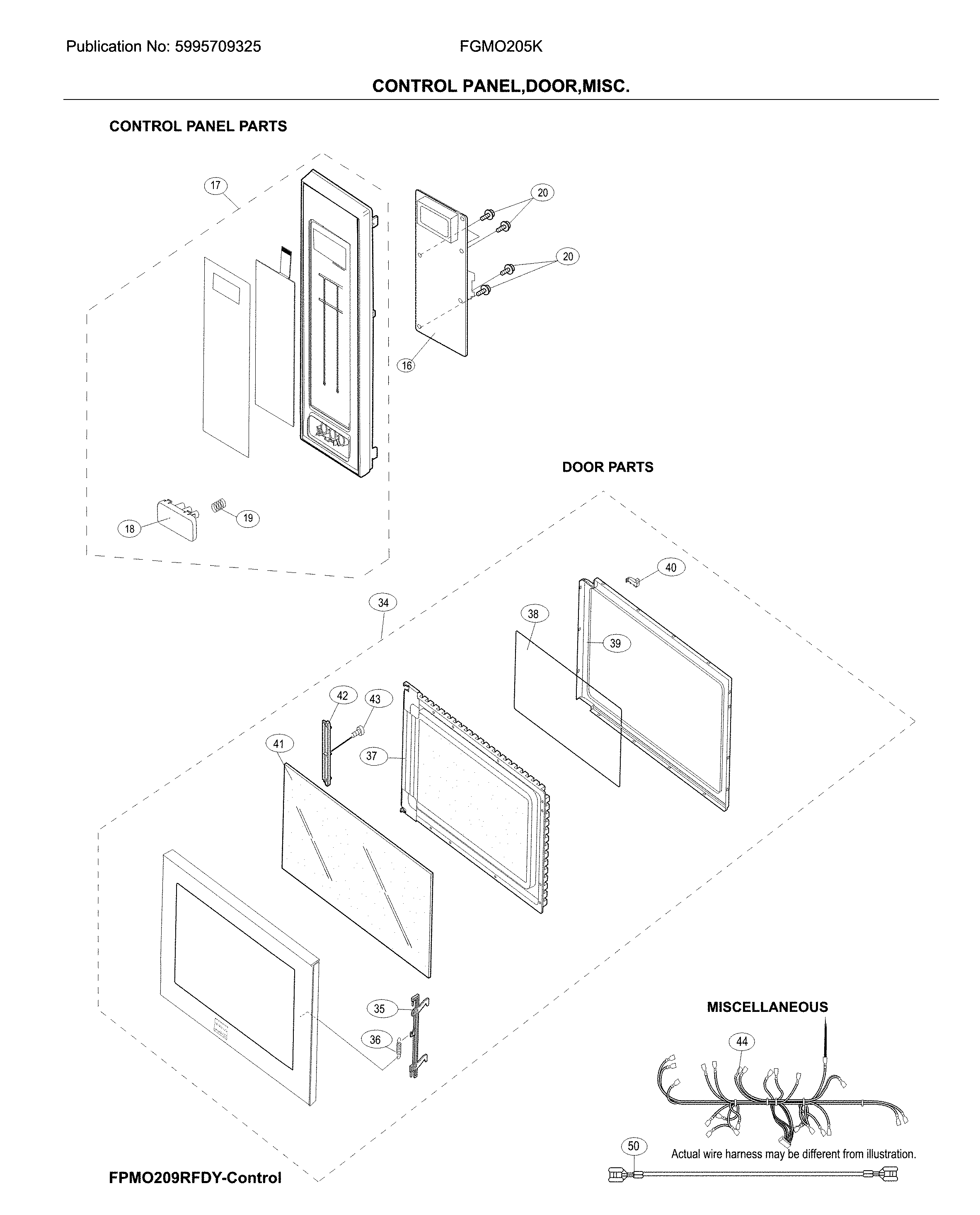

Control panel,door,misc diagram

Wire

Part #5304503442

Replaced by #5304493150

?
Manufacturer substitution
This part replaces 5304503442. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Cover 5304478947
#29

Cabinet,oven diagram

Cover

Part #5304478947

Replaced by #5304462314

?
Manufacturer substitution
This part replaces 5304478947. Substitute parts can look different from the original.
$49.09 |
11% OFF Phone Price : $55.09
In Stock
Microwave Magnetron Fuse (replaces 5304458211, 75303319550) 5303319550
#2

Cabinet,oven diagram

Microwave magnetron fuse (replaces 5304458211, 75303319550)

Part #5303319550

$95.19 |
11% OFF Phone Price : $107.19
In Stock
Wall Oven Microwave Door Latch 5304441893
#35

Control panel,door,misc diagram

Wall oven microwave door latch

Part #5304441893

$39.67 |
13% OFF Phone Price : $45.67
In Stock
Microwave Door Interlock Switch And Fuse 5304479020
#5

Cabinet,oven diagram

Microwave door interlock switch and fuse

Part #5304479020

$86.53
In Stock
Microwave Turntable Motor 5304440021
#9

Cabinet,oven diagram

Microwave turntable motor

Part #5304440021

$61.51
In Stock
Receptacle 5304440779
#3

Cabinet,oven diagram

Receptacle

Part #5304440779

Replaced by #5304500304

?
Manufacturer substitution
This part replaces 5304440779. Substitute parts can look different from the original.
$49.09 |
11% OFF Phone Price : $55.09
In Stock
Motor 5304493152
#4

Cabinet,oven diagram

Motor

Part #5304493152

$64.22
In Stock
