Model # EPC5548FC1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP EPC5548FC1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Control Housing 1057787
#5

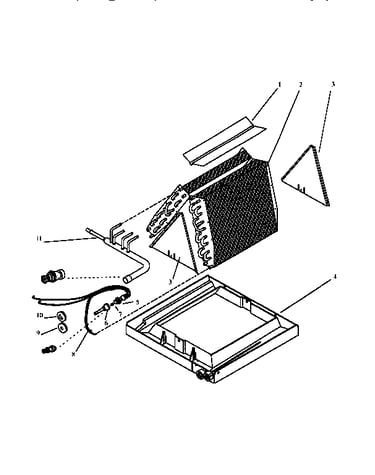

Functional "cased" coils diagram

Control housing

Part #1057787

$31.31
In Stock
Plug 711996

#NI

All parts diagram

Plug

Part #711996

Replaced by #1162328

?
Manufacturer substitution
This part replaces 711996. Substitute parts can look different from the original.
$22.77
In Stock
Bracket 1062570
#3

Non-functional "cased" coils diagram

Bracket

Part #1062570

The manufacturer no longer makes this part, and there's no substitute part

Panel Filler 23248500
#6

Non-functional "cased" coils diagram

Panel filler

Part #23248500

The manufacturer no longer makes this part, and there's no substitute part

Baffle Coil 1062505
#1

Functional "cased" coils diagram

Baffle coil

Part #1062505

The manufacturer no longer makes this part, and there's no substitute part

Instal Instr 1069813

#NI

All parts diagram

Instal instr

Part #1069813

The manufacturer no longer makes this part, and there's no substitute part

Grommet 1062621
#9

Functional "cased" coils diagram

Grommet

Part #1062621

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 1069092
#2

Non-functional "cased" coils diagram

Wrapper

Part #1069092

The manufacturer no longer makes this part, and there's no substitute part

Panl Fill-in 33385402
#4

Non-functional "cased" coils diagram

Panl fill-in

Part #33385402

The manufacturer no longer makes this part, and there's no substitute part

Restrictor . 1053661
#7

Functional "cased" coils diagram

Restrictor .

Part #1053661

The manufacturer no longer makes this part, and there's no substitute part
