Model # UT15151 Official Homelite trimmer/brushcutter

Here are the diagrams and repair parts for Official Homelite UT15151 trimmer/brushcutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

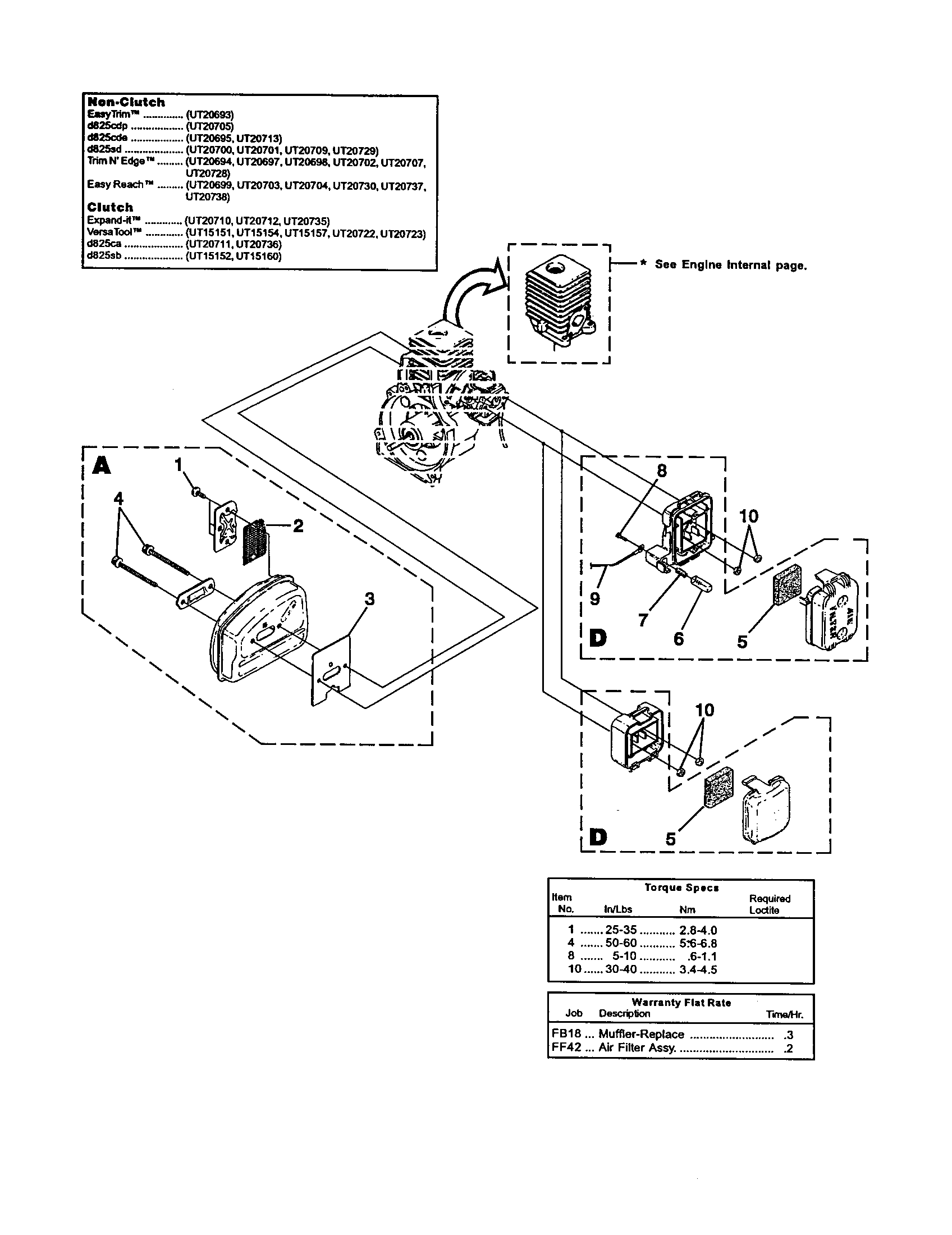

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Line Trimmer Screw 82278
#2

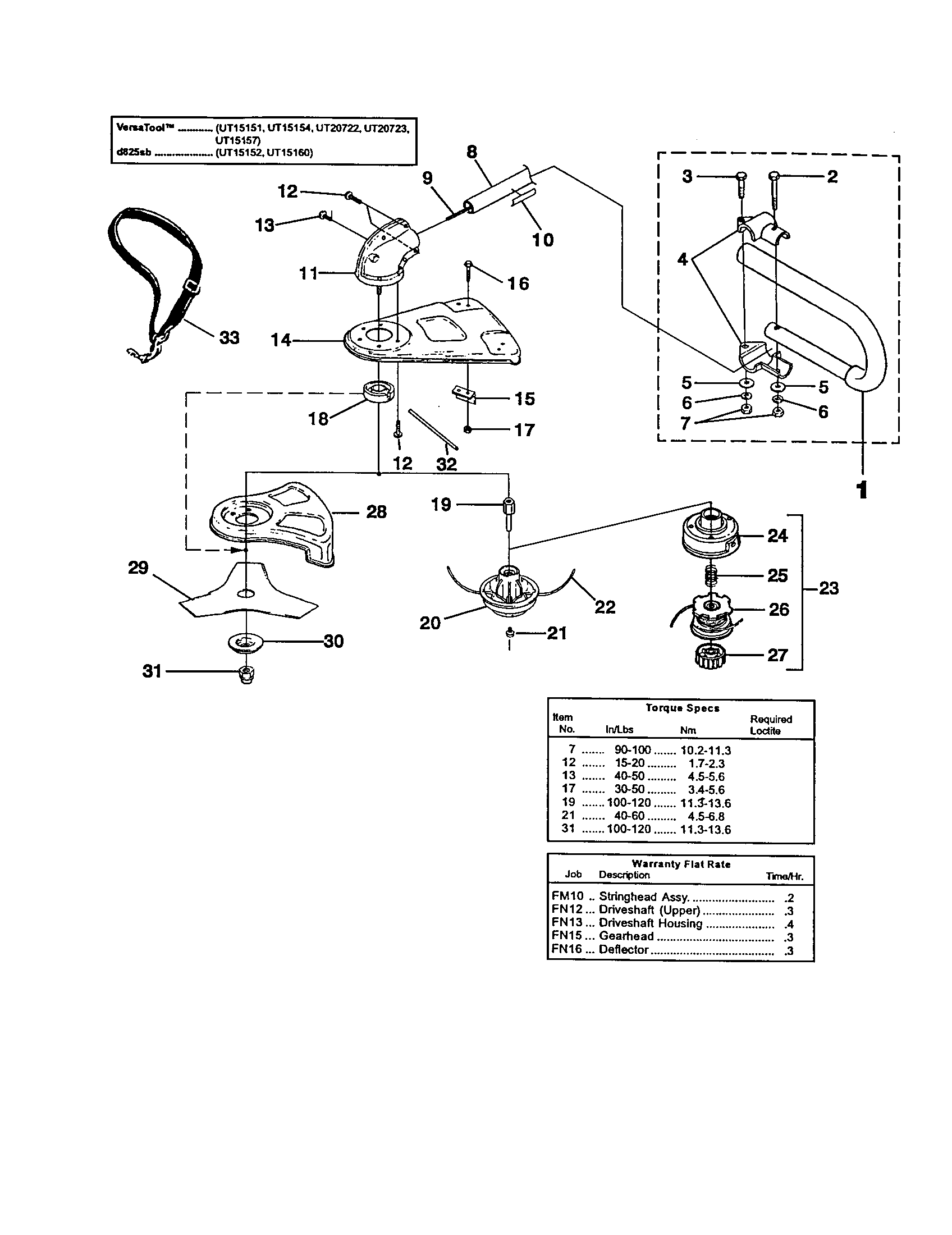

Shaft/spool and string/blade diagram

Line trimmer screw

Part #82278

The manufacturer no longer makes this part, and there's no substitute part

Short Block UP02994
#1

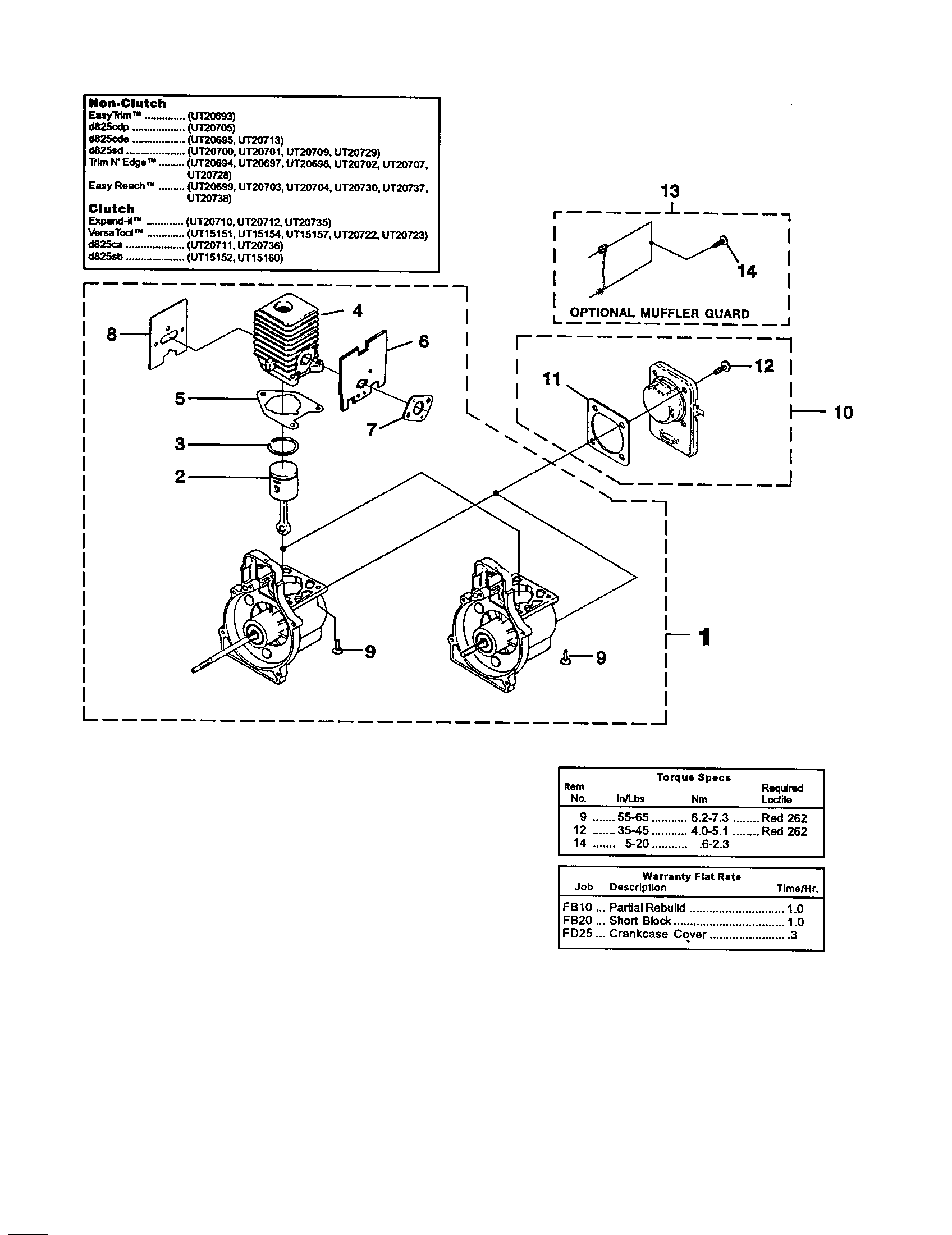

Engine internal diagram

Short block

Part #UP02994

The manufacturer no longer makes this part, and there's no substitute part

Spl&string UP00147
#26

Shaft/spool and string/blade diagram

Spl&string

Part #UP00147

The manufacturer no longer makes this part, and there's no substitute part

Holding Tool 00063
#32

Shaft/spool and string/blade diagram

Holding tool

Part #00063

The manufacturer no longer makes this part, and there's no substitute part

Gasket 06900A
#1

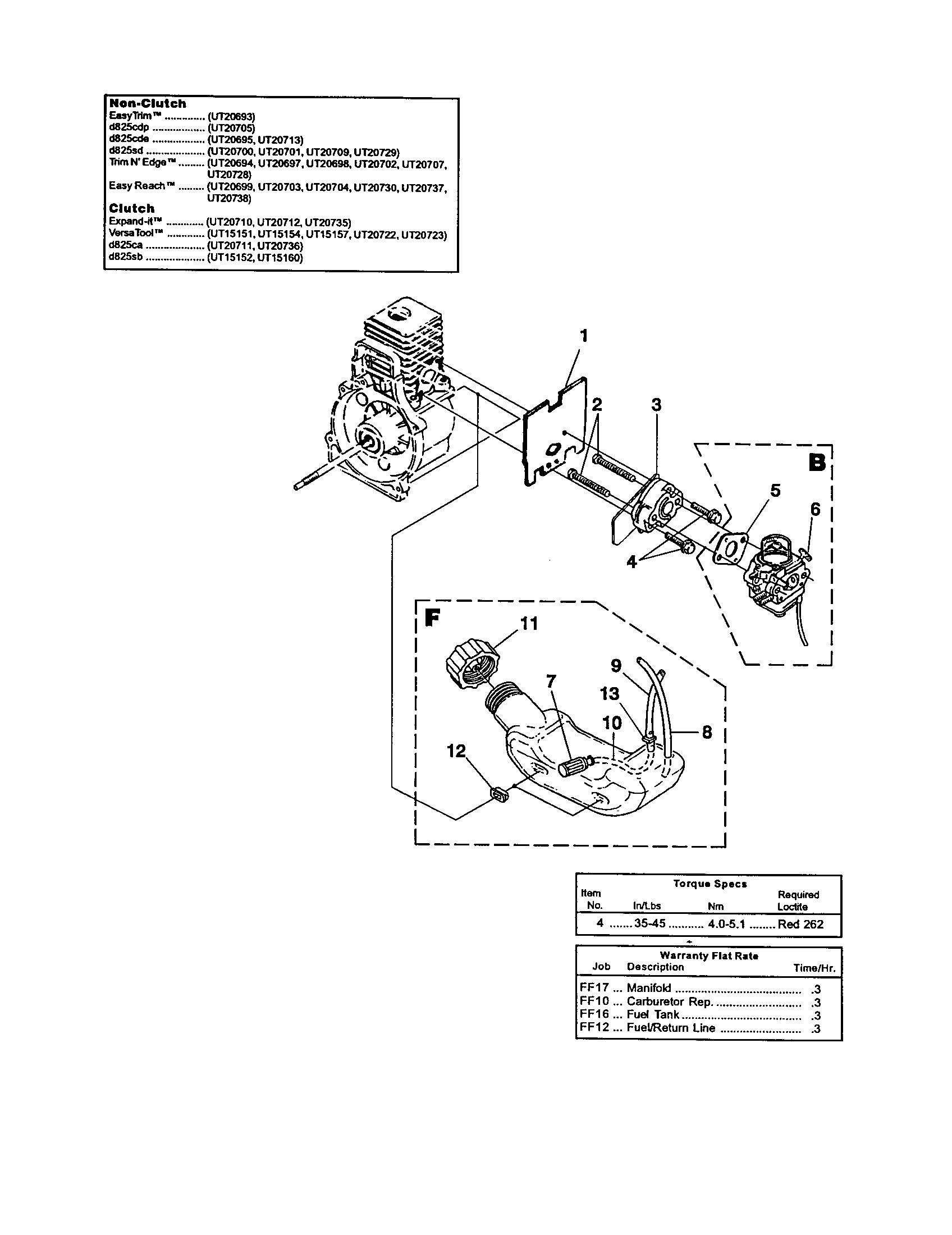

Carburetor and fuel tank diagram

Gasket

Part #06900A

The manufacturer no longer makes this part, and there's no substitute part

Washer 84004
#5

Shaft/spool and string/blade diagram

Washer

Part #84004

The manufacturer no longer makes this part, and there's no substitute part

Spring A98773A
#18

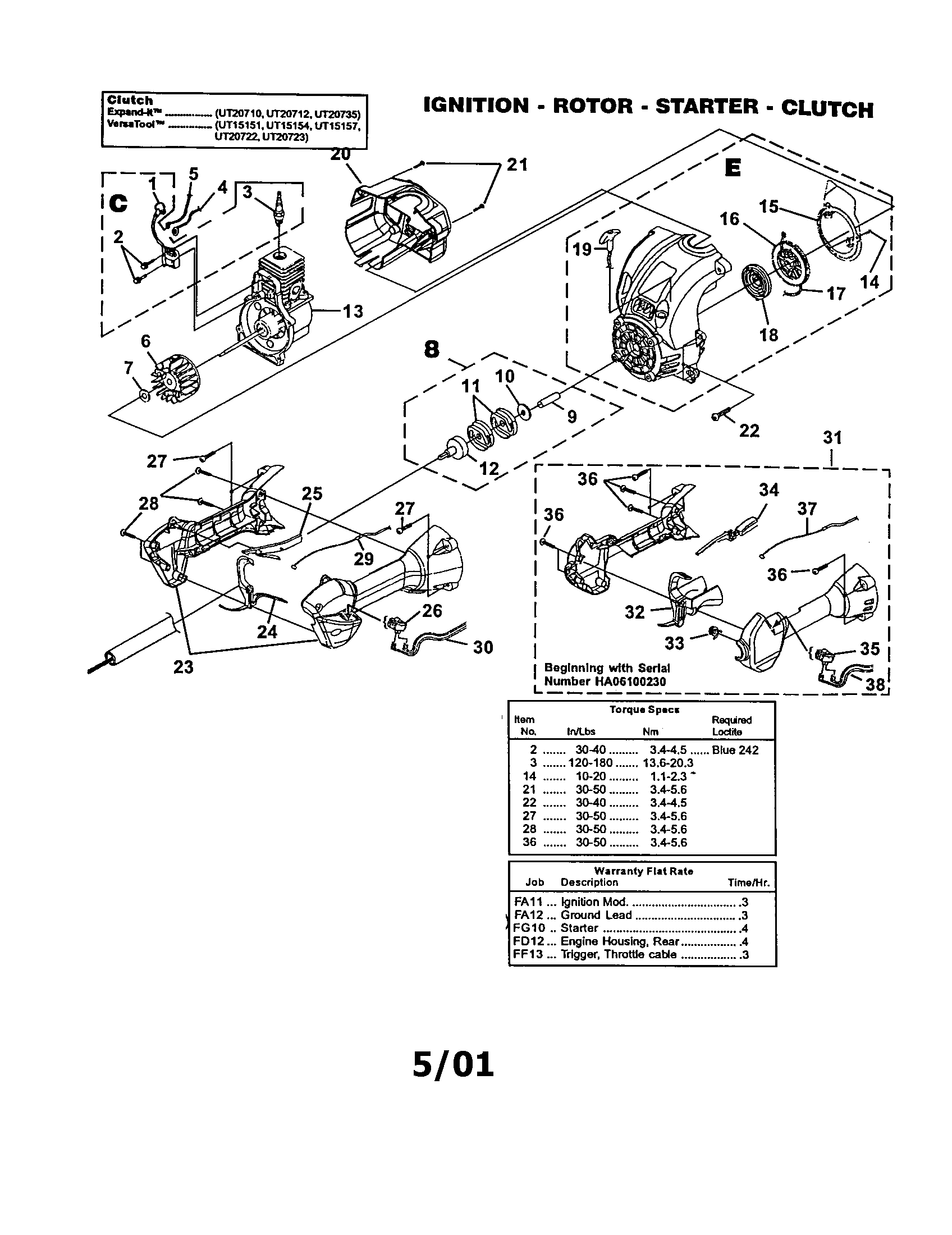

Ignition/rotor/starter/clutch diagram

Spring

Part #A98773A

The manufacturer no longer makes this part, and there's no substitute part

Blade D98717C
#29

Shaft/spool and string/blade diagram

Blade

Part #D98717C

The manufacturer no longer makes this part, and there's no substitute part

Piston Rod UP00768
#2

Engine internal diagram

Piston rod

Part #UP00768

The manufacturer no longer makes this part, and there's no substitute part

Carburetor UP00608
#B

Carburetor and fuel tank diagram

Carburetor

Part #UP00608

The manufacturer no longer makes this part, and there's no substitute part
