Model # 499290790 Official Lifestyler alpine trails

Here are the diagrams and repair parts for Official Lifestyler 499290790 alpine trails, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 95 parts |

Lock Nut HH-1288-T

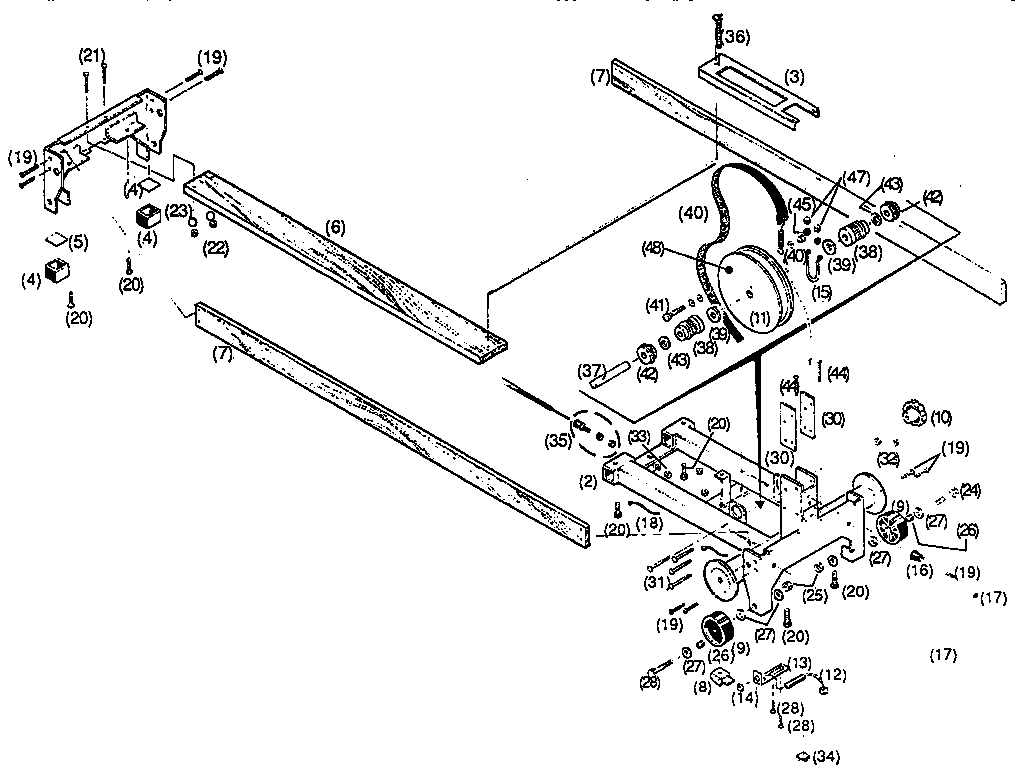

Belt roller assembly diagram

Lock nut

Part #HH-1288-T

The manufacturer no longer makes this part, and there's no substitute part

Sq Washer HH-1775-T

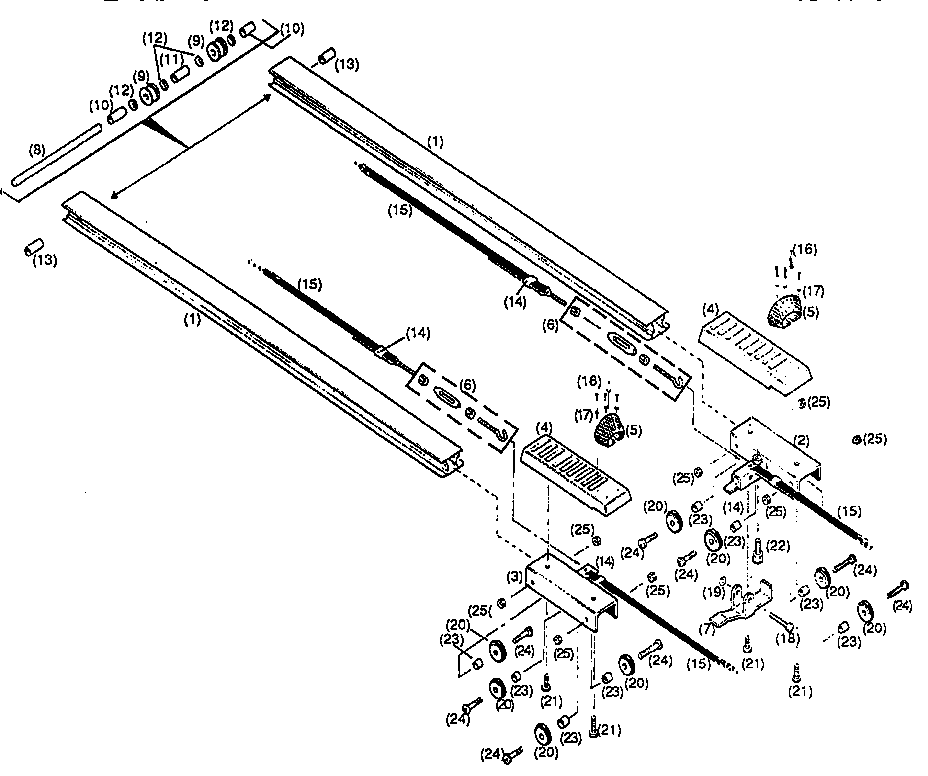

Frame assembly diagram

Sq washer

Part #HH-1775-T

The manufacturer no longer makes this part, and there's no substitute part

Screw HH-1061-T

Frame assembly diagram

Screw

Part #HH-1061-T

The manufacturer no longer makes this part, and there's no substitute part

Bumper MM-0119-T

Frame assembly diagram

Bumper

Part #MM-0119-T

The manufacturer no longer makes this part, and there's no substitute part

Rail EE-0038-T

Belt roller assembly diagram

Rail

Part #EE-0038-T

The manufacturer no longer makes this part, and there's no substitute part

R Trolley 38-0154-T

Belt roller assembly diagram

R trolley

Part #38-0154-T

The manufacturer no longer makes this part, and there's no substitute part

Outer Plate 38-0173-T

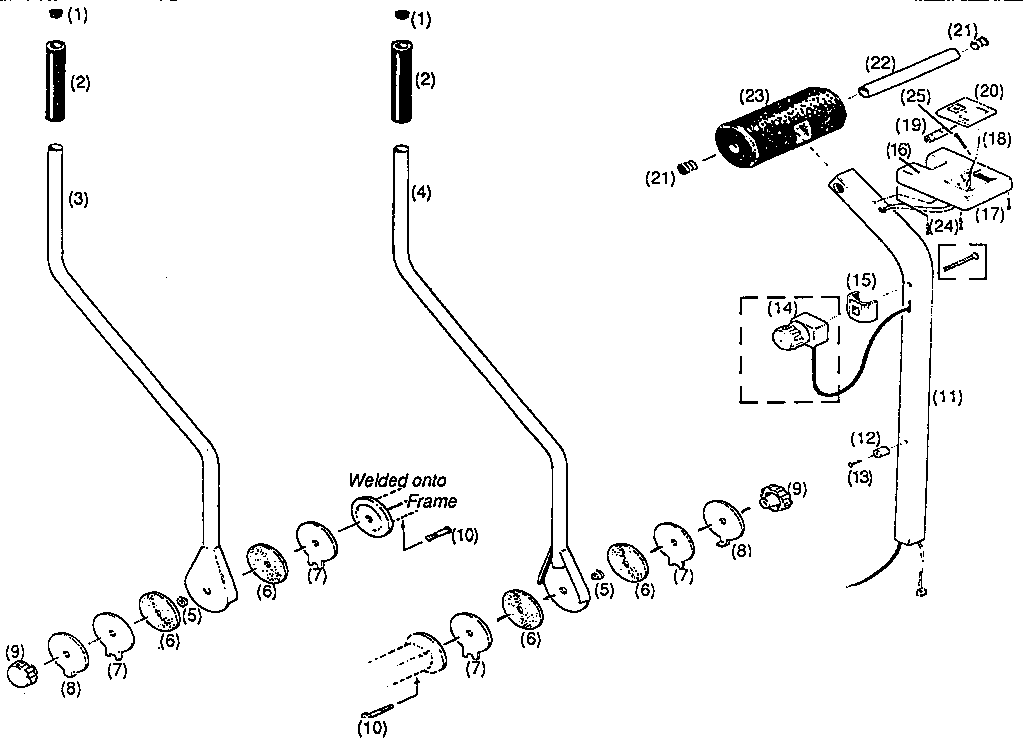

Pole and console assembly diagram

Outer plate

Part #38-0173-T

The manufacturer no longer makes this part, and there's no substitute part

Pal Nut HH-1287-T

Belt roller assembly diagram

Pal nut

Part #HH-1287-T

The manufacturer no longer makes this part, and there's no substitute part

Brake Pad MM-0131-T

Pole and console assembly diagram

Brake pad

Part #MM-0131-T

The manufacturer no longer makes this part, and there's no substitute part

Roller Belt MM-6617-T

Belt roller assembly diagram

Roller belt

Part #MM-6617-T

The manufacturer no longer makes this part, and there's no substitute part
