Model # EI7243 Official Snapper snow thrower

Here are the diagrams and repair parts for Official Snapper EI7243 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

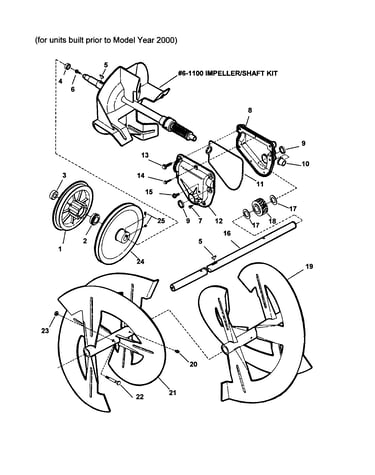

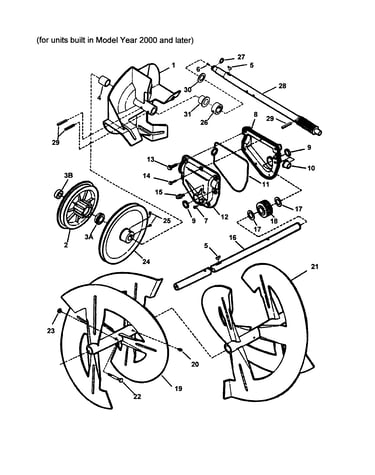

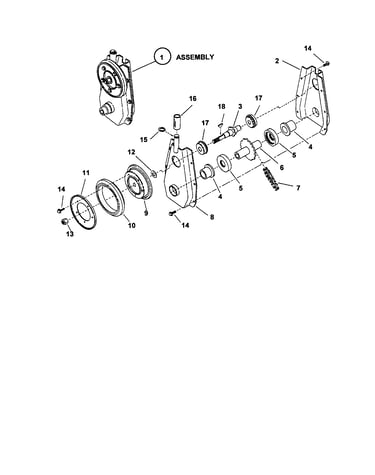

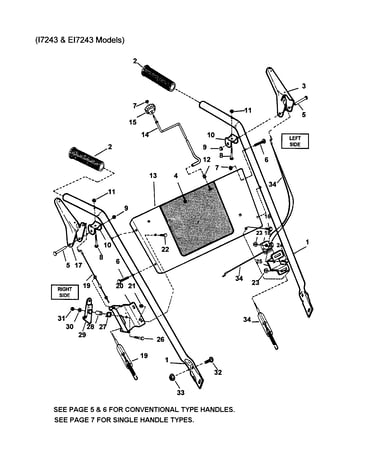

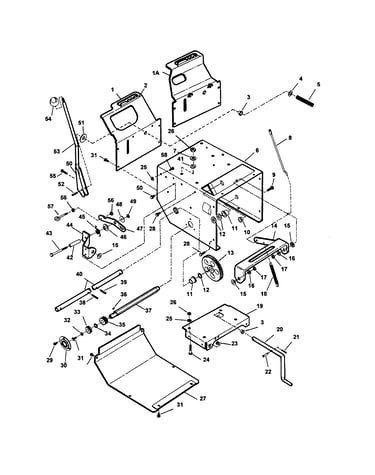

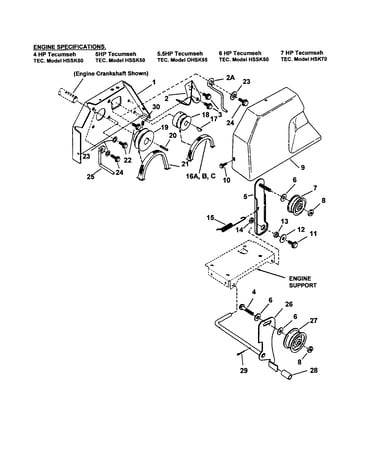

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 281 parts  |
Lube Fitting 1-3864
Lube fitting

Part #1-3864

Replaced by #7013864SM

?
Manufacturer substitution
This part replaces 1-3864. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
Control Panel 3-4287
#16A

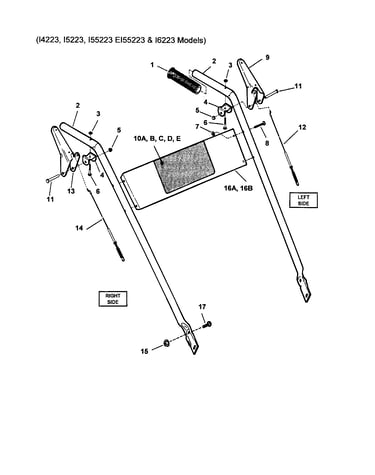

Handles/controls (conventional) diagram

Control panel

Part #3-4287

The manufacturer no longer makes this part, and there's no substitute part

Bolt, 1/4-20 X 5/8" Square Neck Carriage, Grade 5 (7) 9-0666
#12

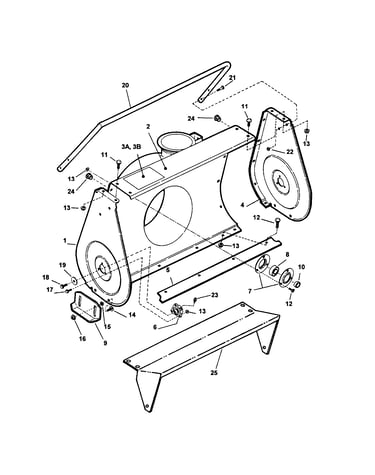

Collector housing (3 piece bolted) diagram

Bolt, 1/4-20 x 5/8" square neck carriage, grade 5 (7)

Part #9-0666

The manufacturer no longer makes this part, and there's no substitute part

Plate, Right Side (i17243 & Ei7243 Models) 3-4288
#1A

Collector housing (3 piece bolted) diagram

Plate, right side (i17243 & ei7243 models)

Part #3-4288

The manufacturer no longer makes this part, and there's no substitute part

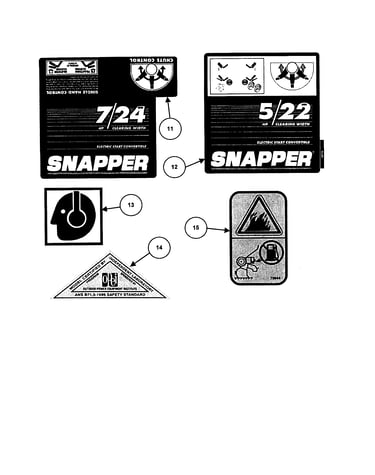

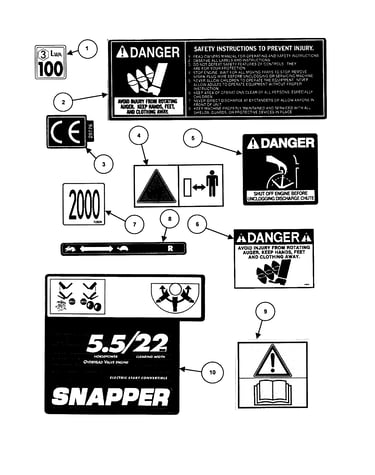

Decal, Chute Contro-6/22 (not Shown) 2-8251
Decal, chute contro-6/22 (not shown)

Part #2-8251

The manufacturer no longer makes this part, and there's no substitute part

Decal, Control Model E7/24 2-8713
Decal, control model e7/24

Part #2-8713

The manufacturer no longer makes this part, and there's no substitute part

Bearing, Auger Shaft (i7243 & Ei7243 Models)(2) 1-8736
#6A

Collector housing (3 piece bolted) diagram

Bearing, auger shaft (i7243 & ei7243 models)(2)

Part #1-8736

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 2-8253
#5

Discharge chute diagram

Hinge pin

Part #2-8253

The manufacturer no longer makes this part, and there's no substitute part

"o" Ring 1-5137
"o" ring

Part #1-5137

The manufacturer no longer makes this part, and there's no substitute part

Fitting, Grease (2) 1-0817
#23

Collector housing (3 piece bolted) diagram

Fitting, grease (2)

Part #1-0817

The manufacturer no longer makes this part, and there's no substitute part
