Gas Walk-Behind Mower

Model # 917371950 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917371950 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

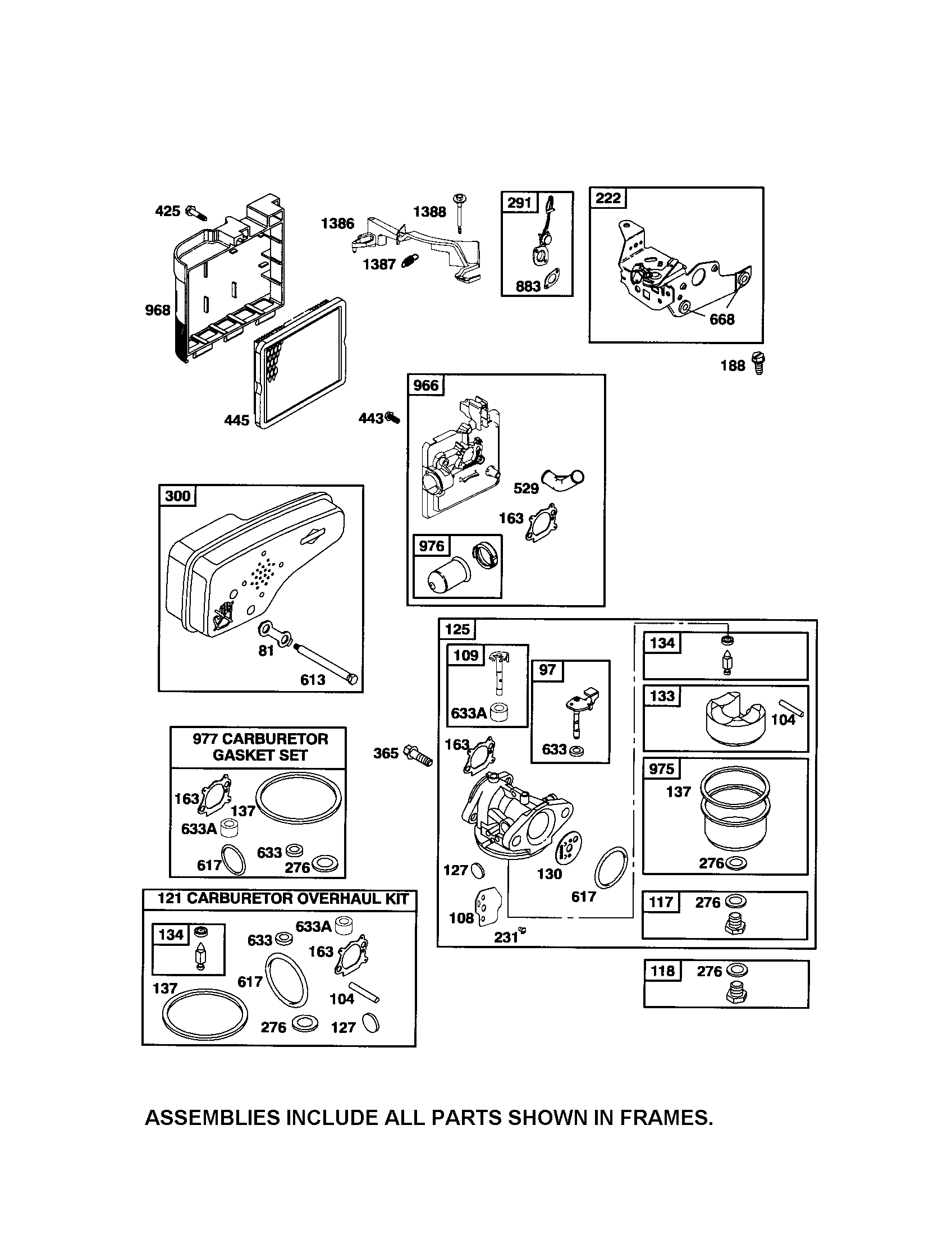

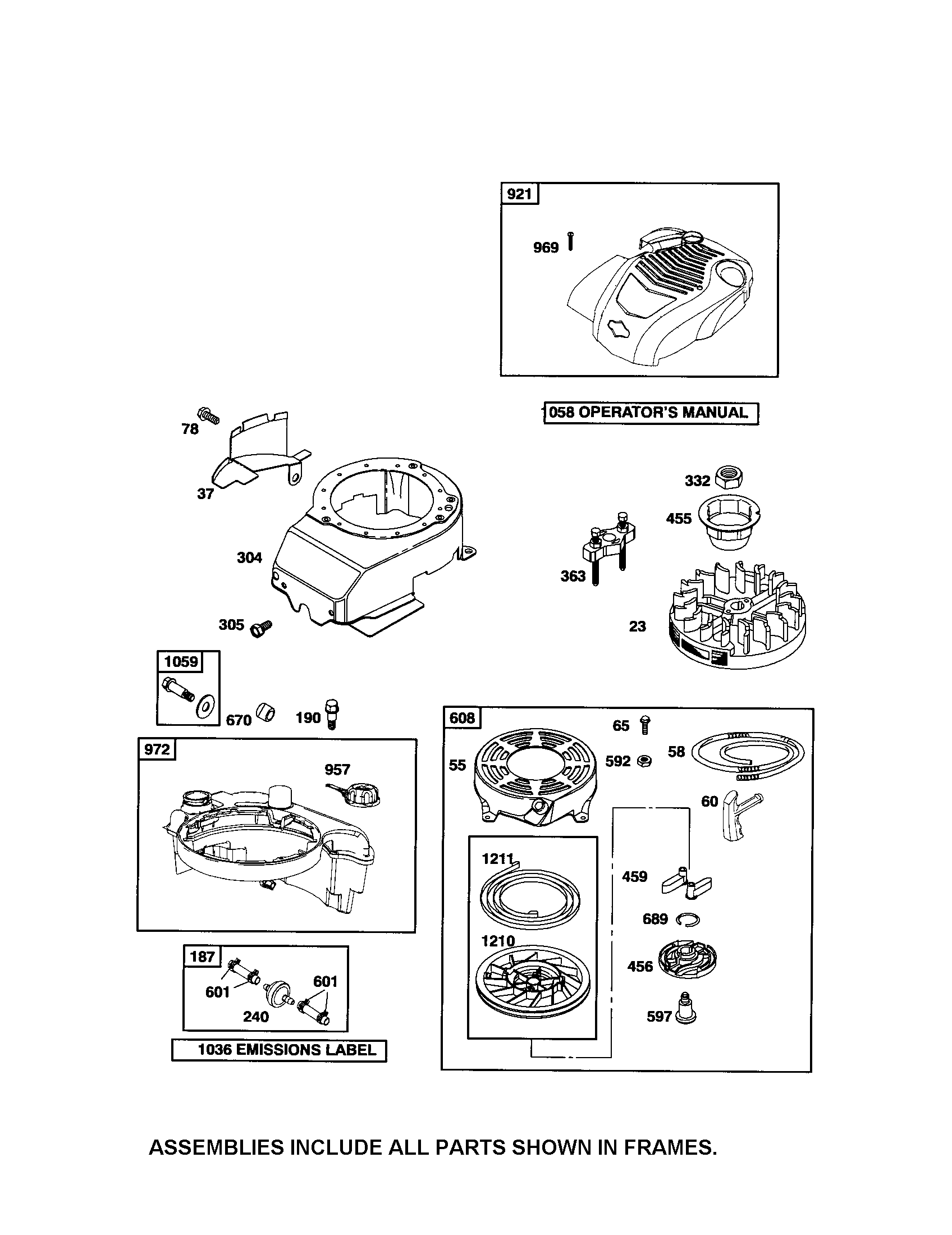

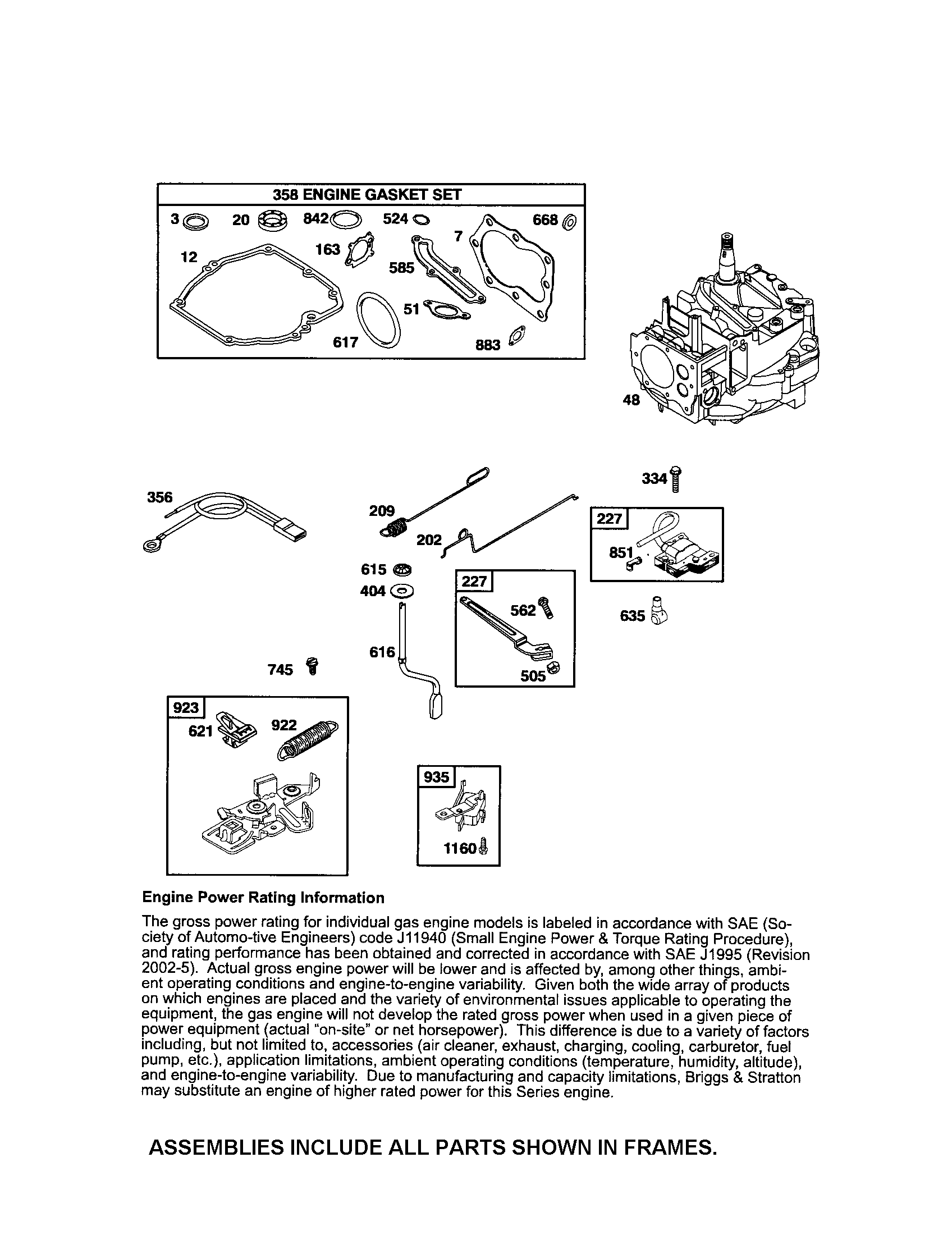

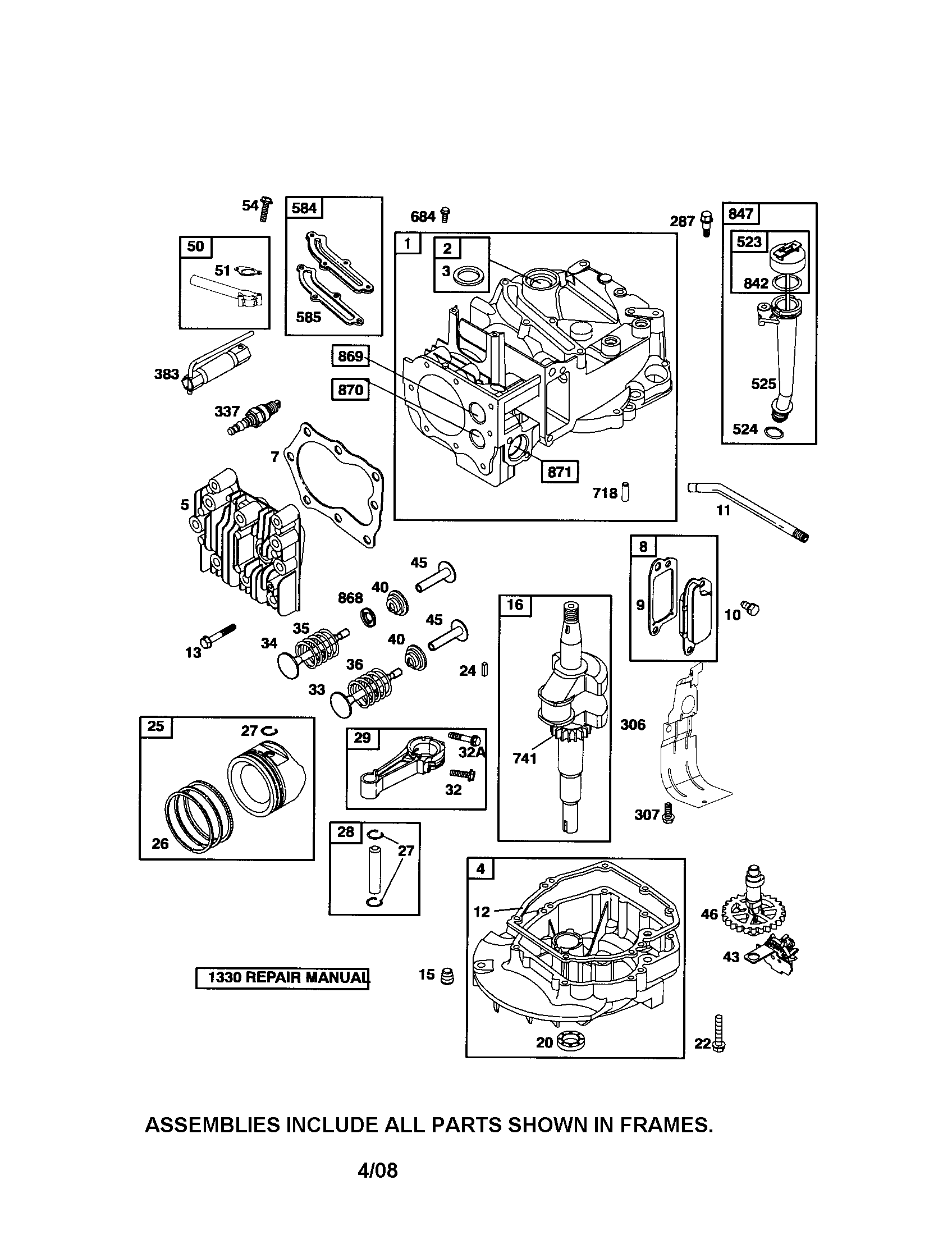

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 285 parts  |
Lawn Mower Drive Control Cable 407816
#1

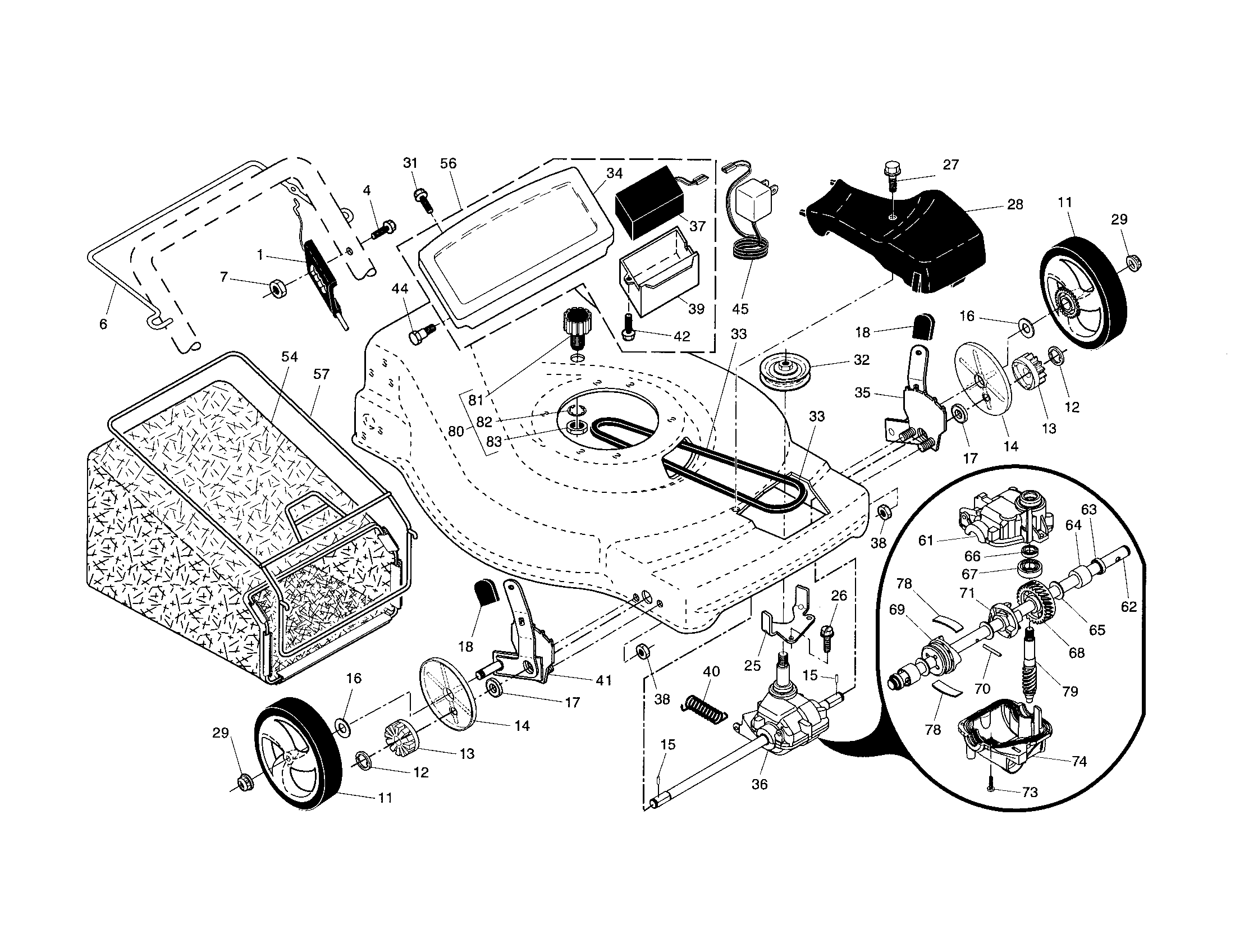

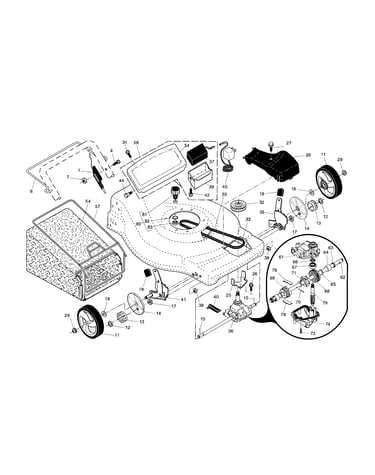

Drive control/gear case/wheels diagram

Lawn mower drive control cable

Part #407816

Replaced by #532407816

?
Manufacturer substitution
This part replaces 407816. Substitute parts can look different from the original.
BEST SELLER
$29.98 |
17% OFF Phone Price : $35.98
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Drive Pawl 404845
#15

Drive control/gear case/wheels diagram

Drive pawl

Part #404845

Replaced by #532404845

?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Mulching Blade 406707
#47

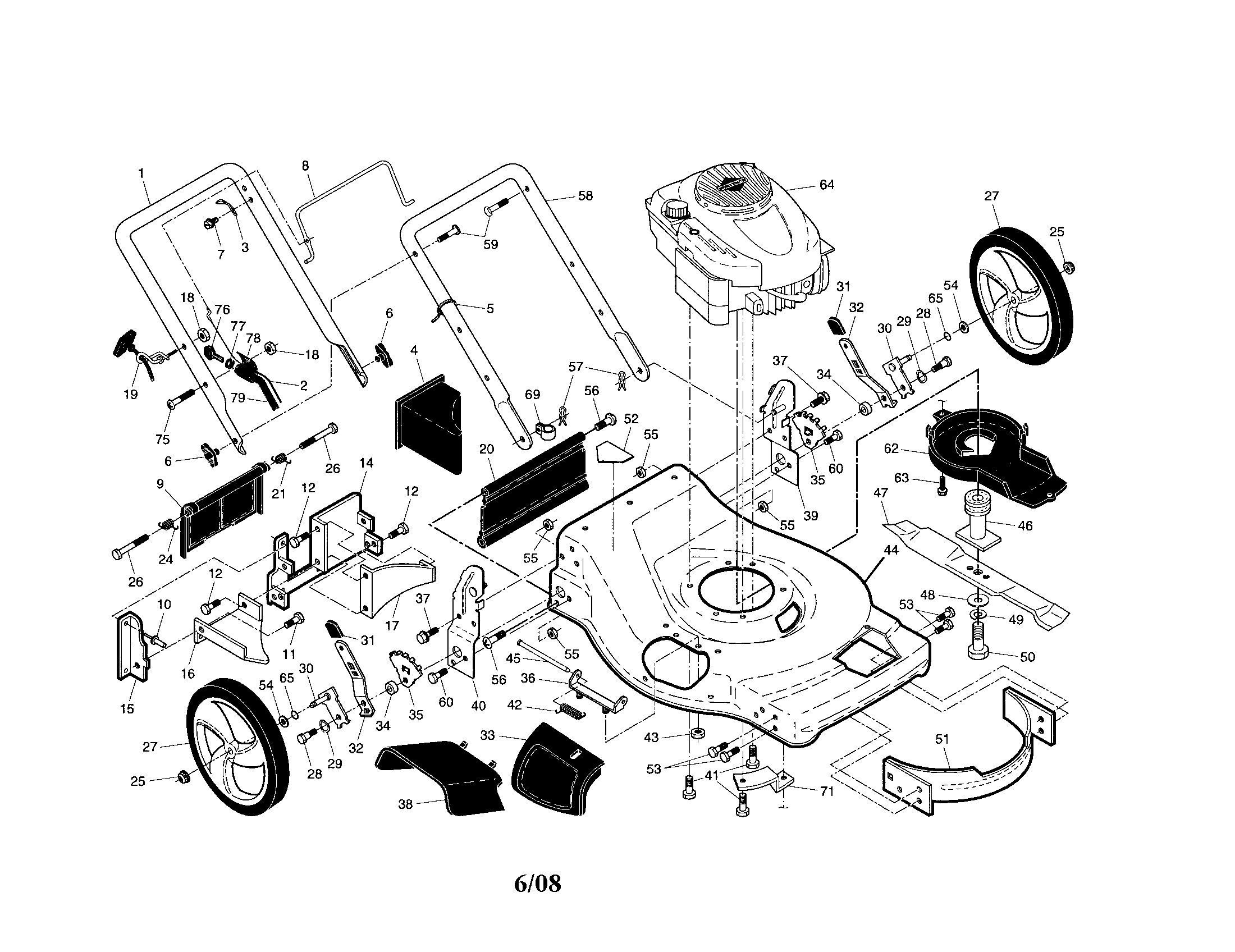

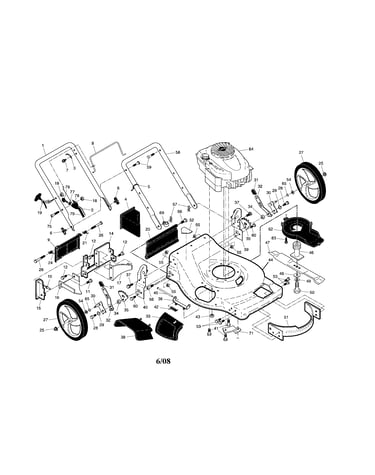

Engine/housing/handle diagram

Lawn mower mulching blade

Part #406707

Replaced by #532406707

?
Manufacturer substitution
This part replaces 406707. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.64 |
16% OFF Phone Price : $36.64
In Stock
Lawn Mower Wheel 194387X427
#27

Engine/housing/handle diagram

Lawn mower wheel

Part #194387X427

Replaced by #532433121

?
Manufacturer substitution
This part replaces 194387X427. Substitute parts can look different from the original.
BEST SELLER
$39.12 |
13% OFF Phone Price : $45.12
In Stock
Nut 132004
#18

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Lock Nut 73800400
Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#56

Engine/housing/handle diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Rod.hinge.21 175650
#45

Engine/housing/handle diagram

Rod.hinge.21

Part #175650

Replaced by #532175650

?
Manufacturer substitution
This part replaces 175650. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Guide.rope.s 194788
#19

Engine/housing/handle diagram

Guide.rope.s

Part #194788

Replaced by #586122501

?
Manufacturer substitution
This part replaces 194788. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
