Model # JBP26A*R2 Official GE electric range

Here are the diagrams and repair parts for Official GE JBP26AR2 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Range Oven Light Bulb WX12X1510
#1024

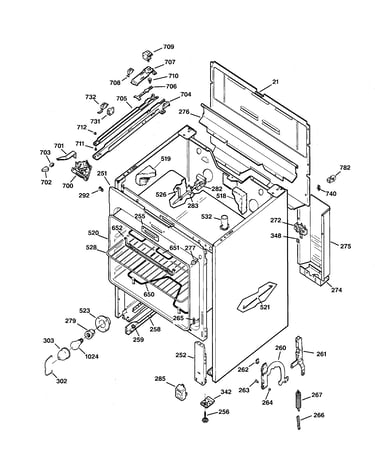

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Bake Element (replaces 8030, Wb44x10003, Wb44x5061, Wb44x5072, Wb44x5082r, Wb44x5083) WB44X5082
#650

Body parts diagram

Range bake element (replaces 8030, wb44x10003, wb44x5061, wb44x5072, wb44x5082r, wb44x5083)

Part #WB44X5082

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
8" Surf Elem WB30M0002
#156

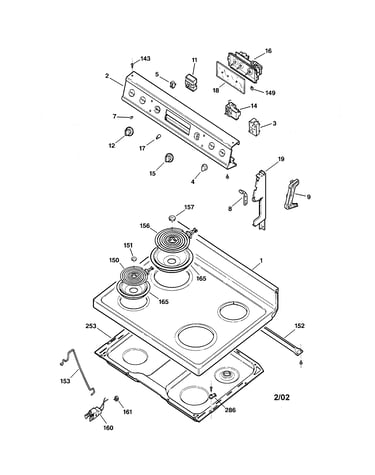

Control panel & cooktop diagram

8" surf elem

Part #WB30M0002

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30M0002. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Receptacle WB08X5095
#279

Body parts diagram

Receptacle

Part #WB08X5095

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08X5095. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
6" Surf Elem WB30M0001
#150

Control panel & cooktop diagram

6" surf elem

Part #WB30M0001

Replaced by #WB30M1

?
Manufacturer substitution
This part replaces WB30M0001. Substitute parts can look different from the original.
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Wall Oven Light Lens WB36X0389
#303

Body parts diagram

Wall oven light lens

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Range Surface Element Receptacle (replaces Wb02x7618, Wb17x5094, Wb2x7618) WB17X5113
#160

Control panel & cooktop diagram

Range surface element receptacle (replaces wb02x7618, wb17x5094, wb2x7618)

Part #WB17X5113

This item is not returnable
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Timer Knob WB03X5699
#17

Control panel & cooktop diagram

Timer knob

Part #WB03X5699

Replaced by #WB3X5699

?
Manufacturer substitution
This part replaces WB03X5699. Substitute parts can look different from the original.
This item is not returnable
$14.13 |
12% OFF Phone Price : $16.13
In Stock
Range Drip Pan (black) WB32X5070
#165

Control panel & cooktop diagram

Range drip pan (black)

Part #WB32X5070

Replaced by #WB31M20

?
Manufacturer substitution
This part replaces WB32X5070. Substitute parts can look different from the original.
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Washer WB01X0119
#362

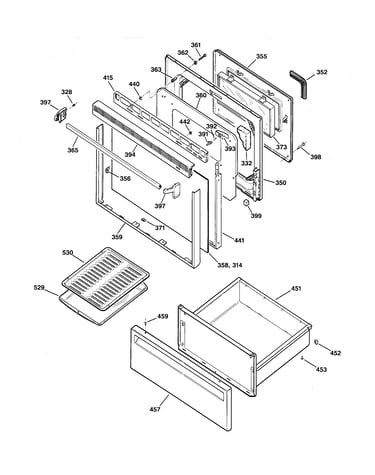

Door & drawer parts diagram

Washer

Part #WB01X0119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB01X0119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
