Model # 3-8411X1 Official Murray 26" women's crosstown touring atb bicycle

Here are the diagrams and repair parts for Official Murray 3-8411X1 26" women's crosstown touring atb bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |

Inner Tube 139X3
#13B

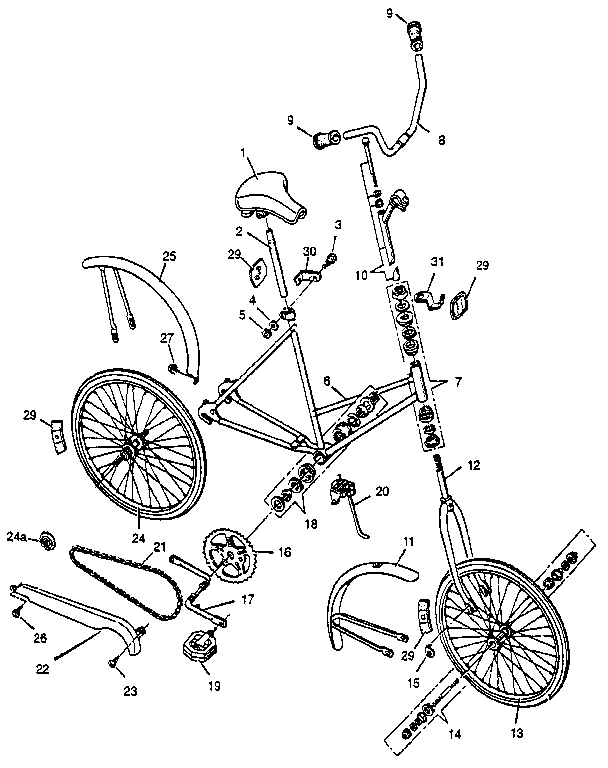

Ladies' 26" touring atb "crosstown" diagram

Inner tube

Part #139X3

The manufacturer no longer makes this part, and there's no substitute part

Rear Wheel 303092C
#24

Ladies' 26" touring atb "crosstown" diagram

Rear wheel

Part #303092C

The manufacturer no longer makes this part, and there's no substitute part

Tire/tube/rs 75X655PA
#13A

Ladies' 26" touring atb "crosstown" diagram

Tire/tube/rs

Part #75X655PA

The manufacturer no longer makes this part, and there's no substitute part

Handlebar As 40881C
#8

Ladies' 26" touring atb "crosstown" diagram

Handlebar as

Part #40881C

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 302336
#20

Ladies' 26" touring atb "crosstown" diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

Screw 26X222
#26

Ladies' 26" touring atb "crosstown" diagram

Screw

Part #26X222

The manufacturer no longer makes this part, and there's no substitute part

Bracket 49359Z
#30

Ladies' 26" touring atb "crosstown" diagram

Bracket

Part #49359Z

The manufacturer no longer makes this part, and there's no substitute part

Bearing Set 303384
#7

Ladies' 26" touring atb "crosstown" diagram

Bearing set

Part #303384

The manufacturer no longer makes this part, and there's no substitute part

Chain Guard 44346F202
#22

Ladies' 26" touring atb "crosstown" diagram

Chain guard

Part #44346F202

The manufacturer no longer makes this part, and there's no substitute part

Fork 44973F202
#12

Ladies' 26" touring atb "crosstown" diagram

Fork

Part #44973F202

The manufacturer no longer makes this part, and there's no substitute part
