Model # 88136306 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 88136306 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

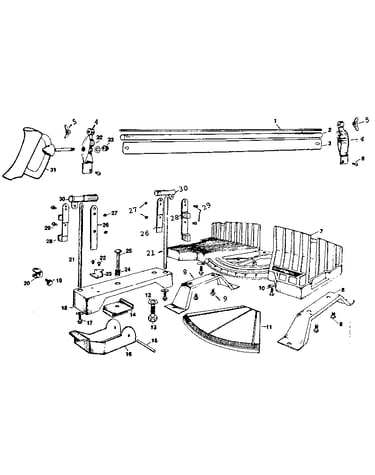

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Washr/screw 3025
#17

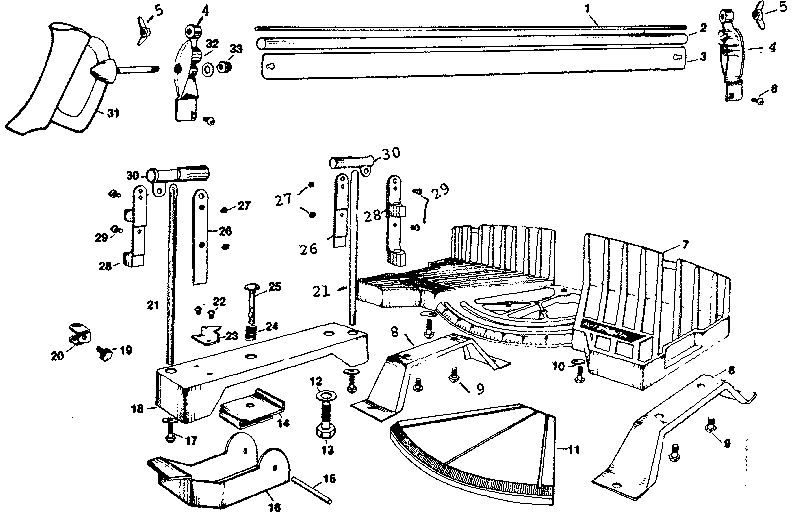

Unit parts diagram

Washr/screw

Part #3025

The manufacturer no longer makes this part, and there's no substitute part

Guid Carrier 30611
#30

Unit parts diagram

Guid carrier

Part #30611

The manufacturer no longer makes this part, and there's no substitute part

Guide Endcap 30615
#4

Unit parts diagram

Guide endcap

Part #30615

The manufacturer no longer makes this part, and there's no substitute part

Guide 30612B
#26

Unit parts diagram

Guide

Part #30612B

The manufacturer no longer makes this part, and there's no substitute part

Guide 30612A
#28

Unit parts diagram

Guide

Part #30612A

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 30602
#5

Unit parts diagram

Wing nut

Part #30602

The manufacturer no longer makes this part, and there's no substitute part

Clamp Pin 8036
#25

Unit parts diagram

Clamp pin

Part #8036

The manufacturer no longer makes this part, and there's no substitute part

Pivot Arm 30610
#18

Unit parts diagram

Pivot arm

Part #30610

The manufacturer no longer makes this part, and there's no substitute part

Screw 3012
#19

Unit parts diagram

Screw

Part #3012

The manufacturer no longer makes this part, and there's no substitute part

Tension Rod 30601
#1

Unit parts diagram

Tension rod

Part #30601

The manufacturer no longer makes this part, and there's no substitute part
