Craftsman
Gas Walk-Behind Mower

Model # 917380221 Official Craftsman 20" side-discharge rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917380221 20" side-discharge rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Walk-behind Lawn Mower Selector Knob 87877
#32

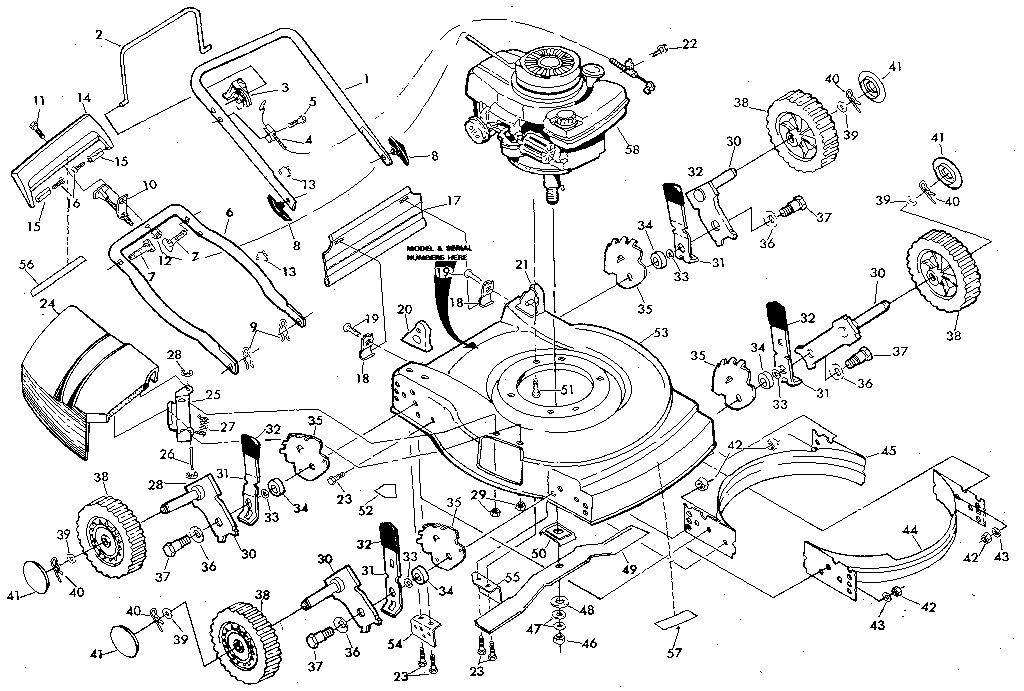

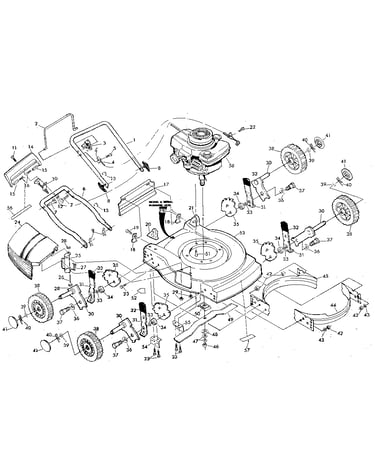

Replacement parts diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Bolt 58714
#7

Replacement parts diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Handle Knob 63688
#8

Replacement parts diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
American Yard Products Lawn & Garden Equipment Washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384) 88348
#33

Replacement parts diagram

American yard products lawn & garden equipment washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384)

Part #88348

Replaced by #532088348

?
Manufacturer substitution
This part replaces 88348. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Selctr Sprng 84888
#31

Replacement parts diagram

Selctr sprng

Part #84888

Replaced by #532401621

?
Manufacturer substitution
This part replaces 84888. Substitute parts can look different from the original.
$8.54
In Stock
Bracket, Left 85664
#21

Replacement parts diagram

Bracket, left

Part #85664

Replaced by #532192983

?
Manufacturer substitution
This part replaces 85664. Substitute parts can look different from the original.
$37.31
In Stock
Washer 62335
#36

Replacement parts diagram

Washer

Part #62335

Replaced by #532062335

?
Manufacturer substitution
This part replaces 62335. Substitute parts can look different from the original.
$13.69
In Stock
Clip 85827
#13

Replacement parts diagram

Clip

Part #85827

Replaced by #582940401

?
Manufacturer substitution
This part replaces 85827. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 51260
#39

Replacement parts diagram

Washer

Part #51260

Replaced by #596040101

?
Manufacturer substitution
This part replaces 51260. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Hairpin 51793
#9

Replacement parts diagram

Hairpin

Part #51793

Replaced by #532051793

?
Manufacturer substitution
This part replaces 51793. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
