Kenmore
Electric Range

Model # 9114698816 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 9114698816 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

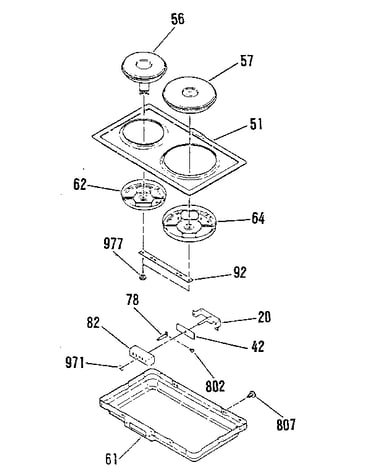

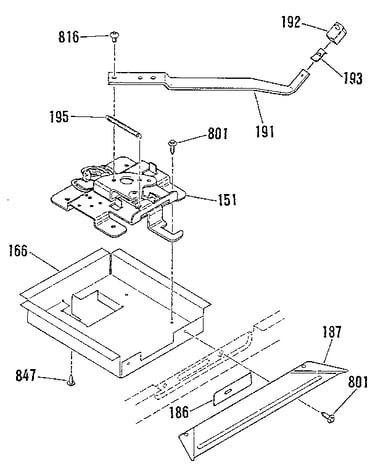

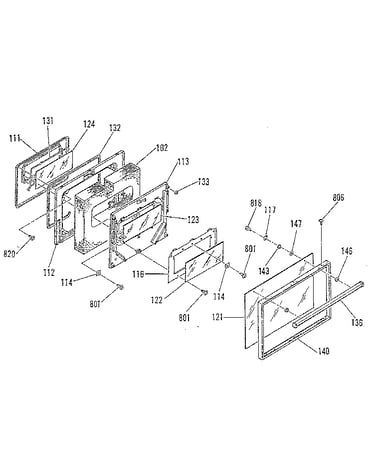

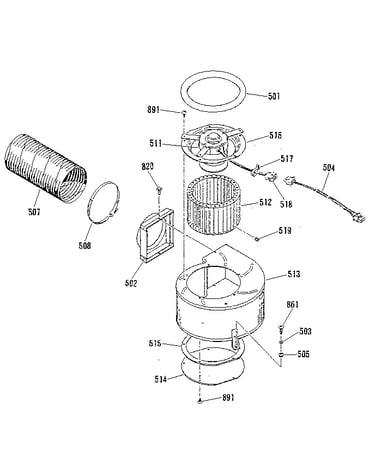

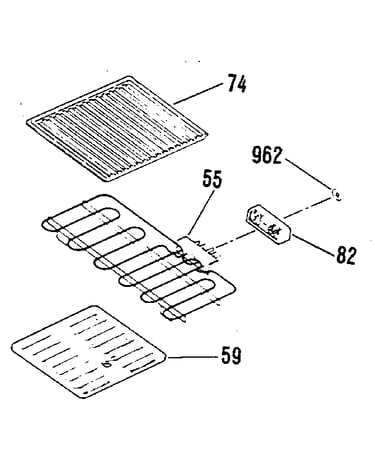

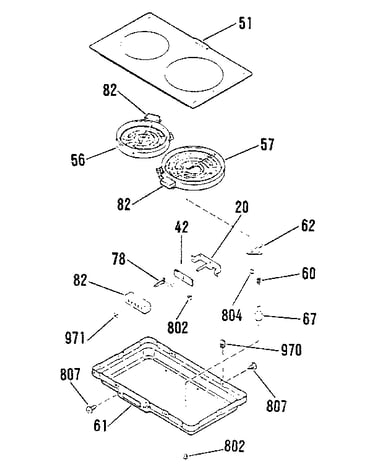

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 280 parts  |
Light Bulb 339665
#257

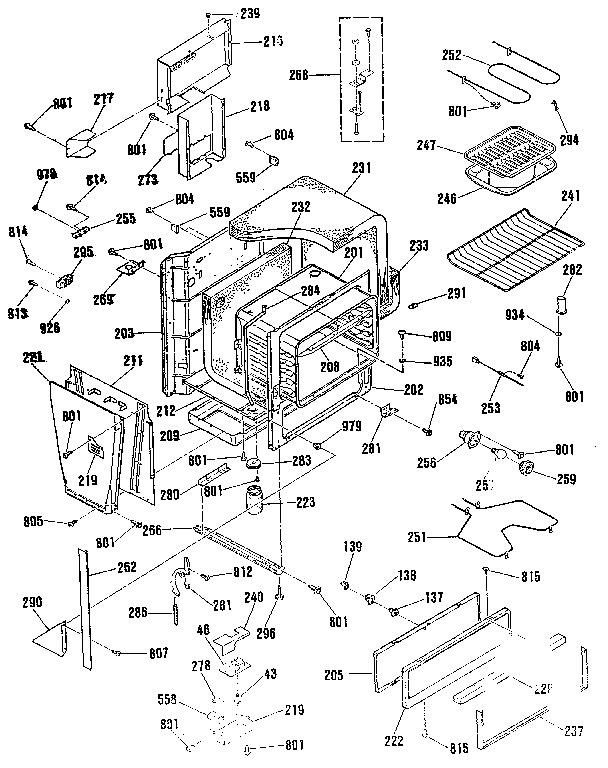

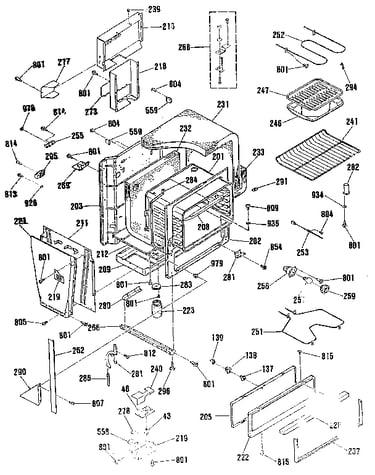

Oven body section diagram

Light bulb

Part #339665

Replaced by #40A15

?
Manufacturer substitution
This part replaces 339665. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Bake Element 340521
#251

Oven body section diagram

Range bake element

Part #340521

Replaced by #WB44K5012

?
Manufacturer substitution
This part replaces 340521. Substitute parts can look different from the original.
BEST SELLER
$44.59 |
12% OFF Phone Price : $50.59
In Stock
Bowl 292975
#60

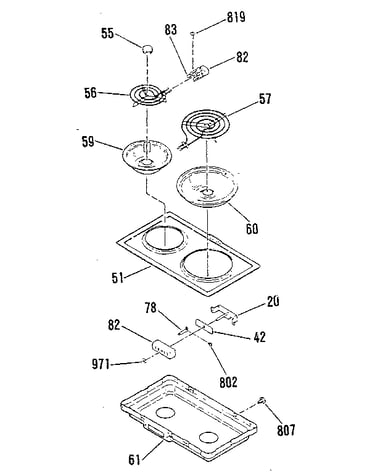

Opt. elec coil mod kit 4998521/4998621/4998821 diagram

Bowl

Part #292975

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 292975. Substitute parts can look different from the original.
BEST SELLER
$13.87 |
13% OFF Phone Price : $15.87
In Stock
Support 334565
#294

Oven body section diagram

Support

Part #334565

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces 334565. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
8 In Tp Unit 325503
#57

Opt. elec coil mod kit 4998521/4998621/4998821 diagram

8 in tp unit

Part #325503

Replaced by #WB30X253

?
Manufacturer substitution
This part replaces 325503. Substitute parts can look different from the original.
BEST SELLER
$57.45 |
9% OFF Phone Price : $63.45
In Stock
Screw 102428
#810

Oven body section diagram

Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Block Bracket 343494
#83

Opt. elec coil mod kit 4998521/4998621/4998821 diagram

Block bracket

Part #343494

Replaced by #WB17X211

?
Manufacturer substitution
This part replaces 343494. Substitute parts can look different from the original.
$8.87 |
10% OFF Phone Price : $9.87
In Stock
Screw 69014
#809

Oven body section diagram

Screw

Part #69014

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces 69014. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Infinite Control 345434
#19

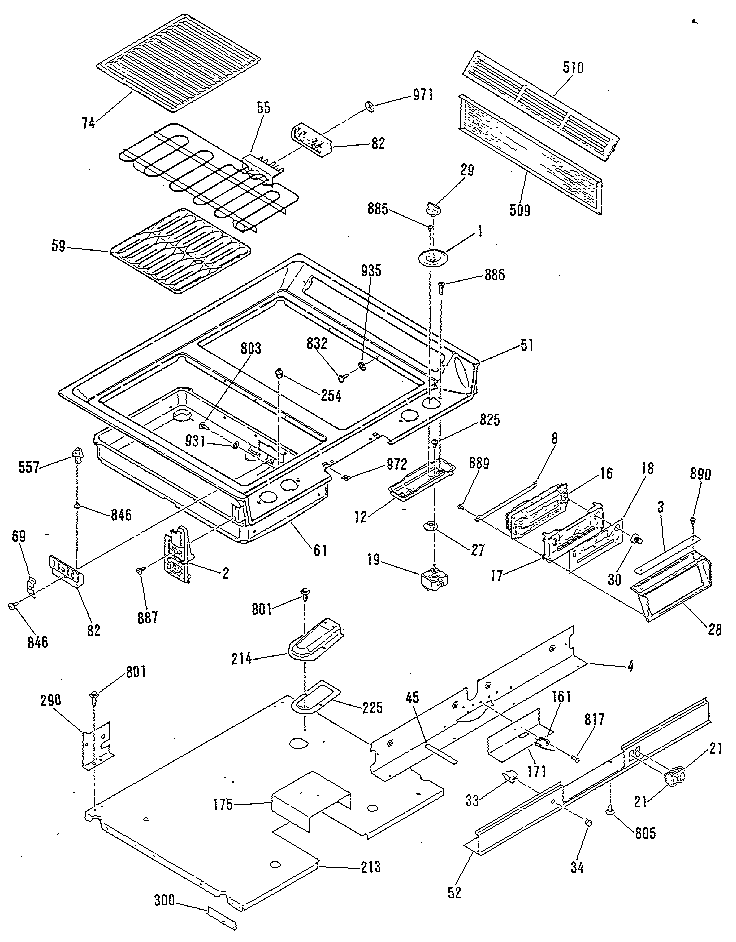

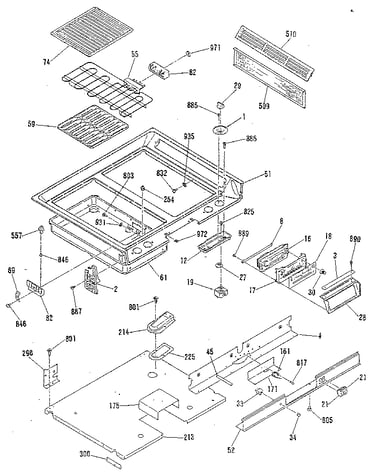

Main top section diagram

Infinite control

Part #345434

Replaced by #WB24X29365

?
Manufacturer substitution
This part replaces 345434. Substitute parts can look different from the original.
$74.10 |
7% OFF Phone Price : $80.10
In Stock
Screw 330244
#872

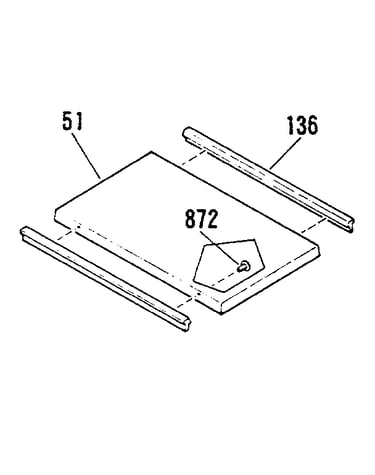

Opt. griddle/grill cover module kit 4998510 diagram

Screw

Part #330244

Replaced by #WB1X1425

?
Manufacturer substitution
This part replaces 330244. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
