Model # FR600V-AS11 Official Kawasaki engine

Here are the diagrams and repair parts for Official Kawasaki FR600V-AS11 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

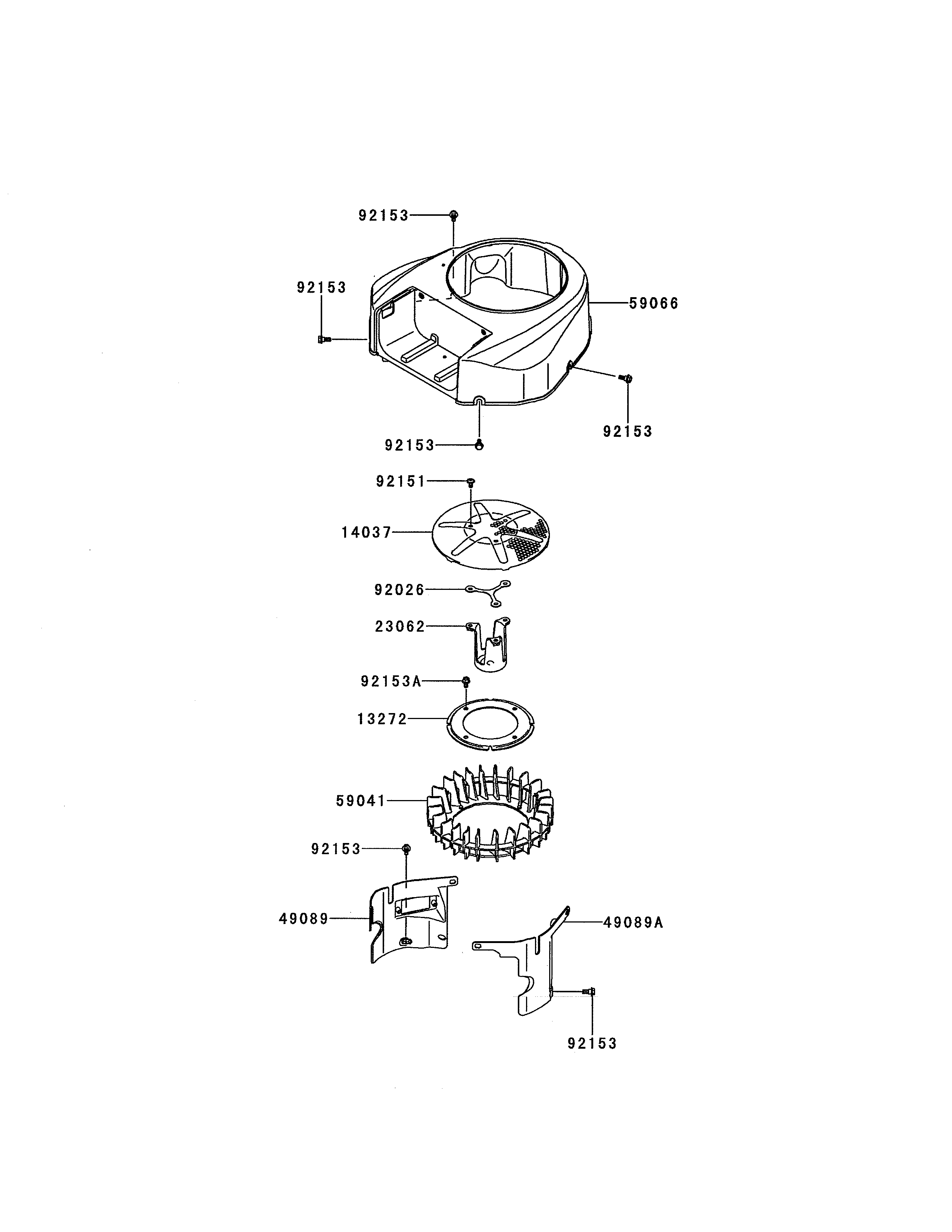

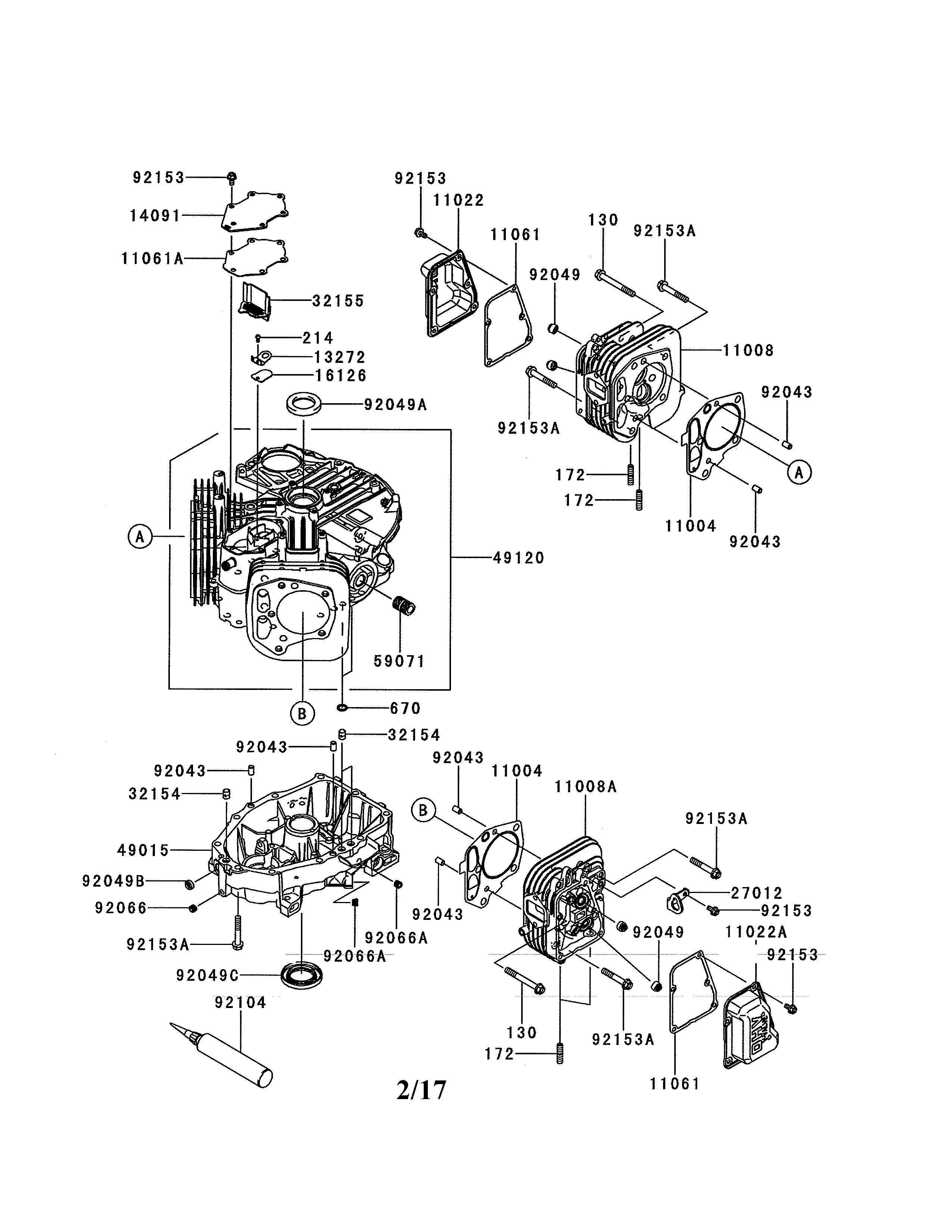

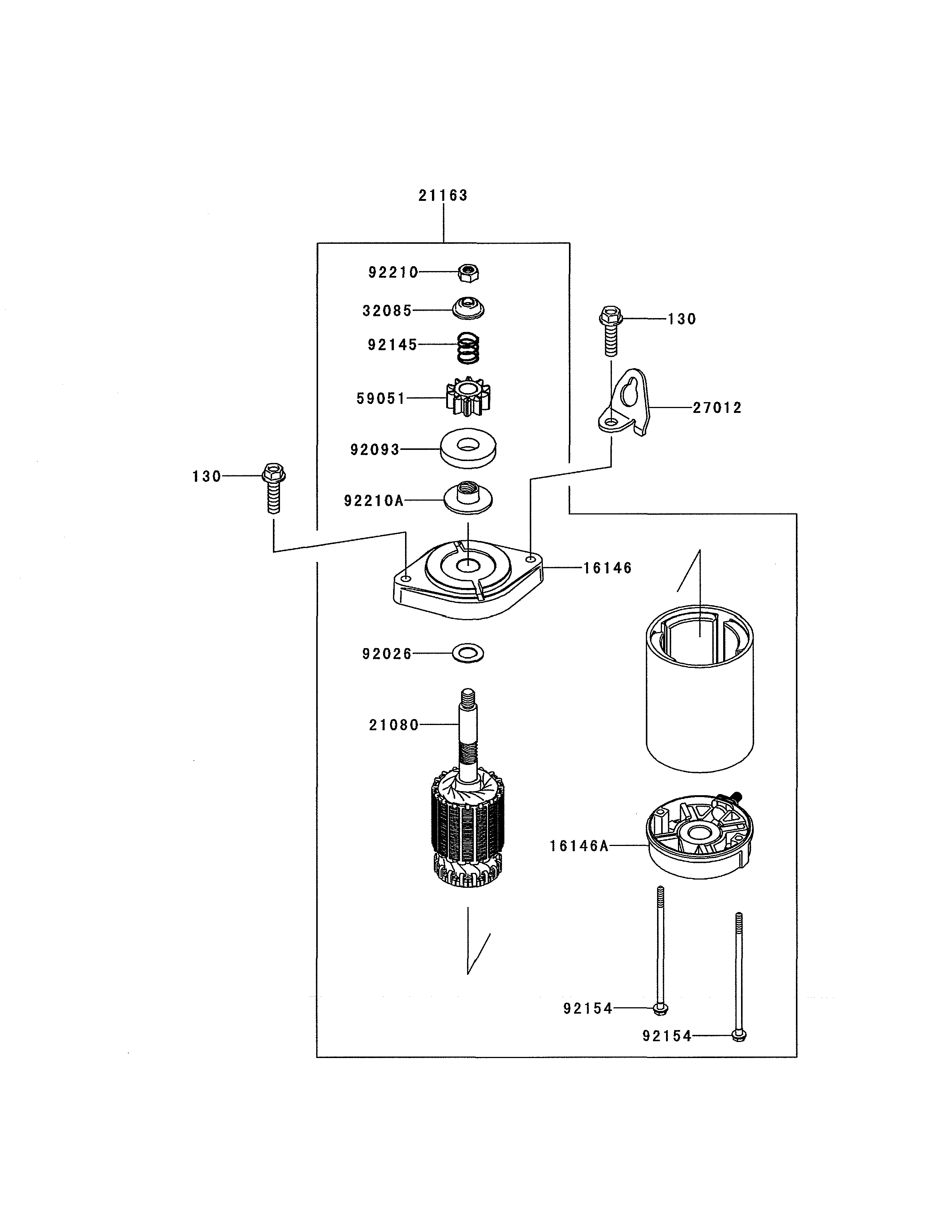

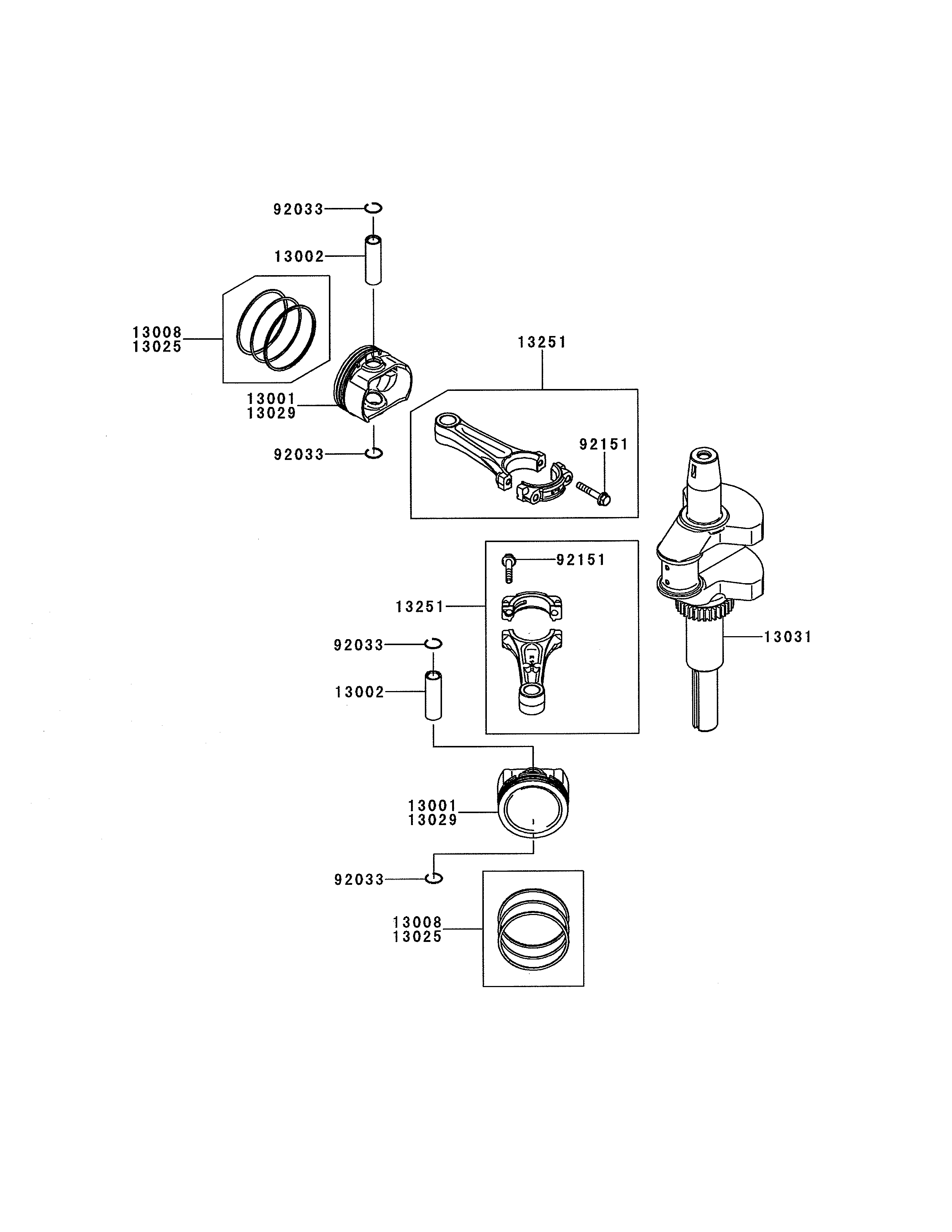

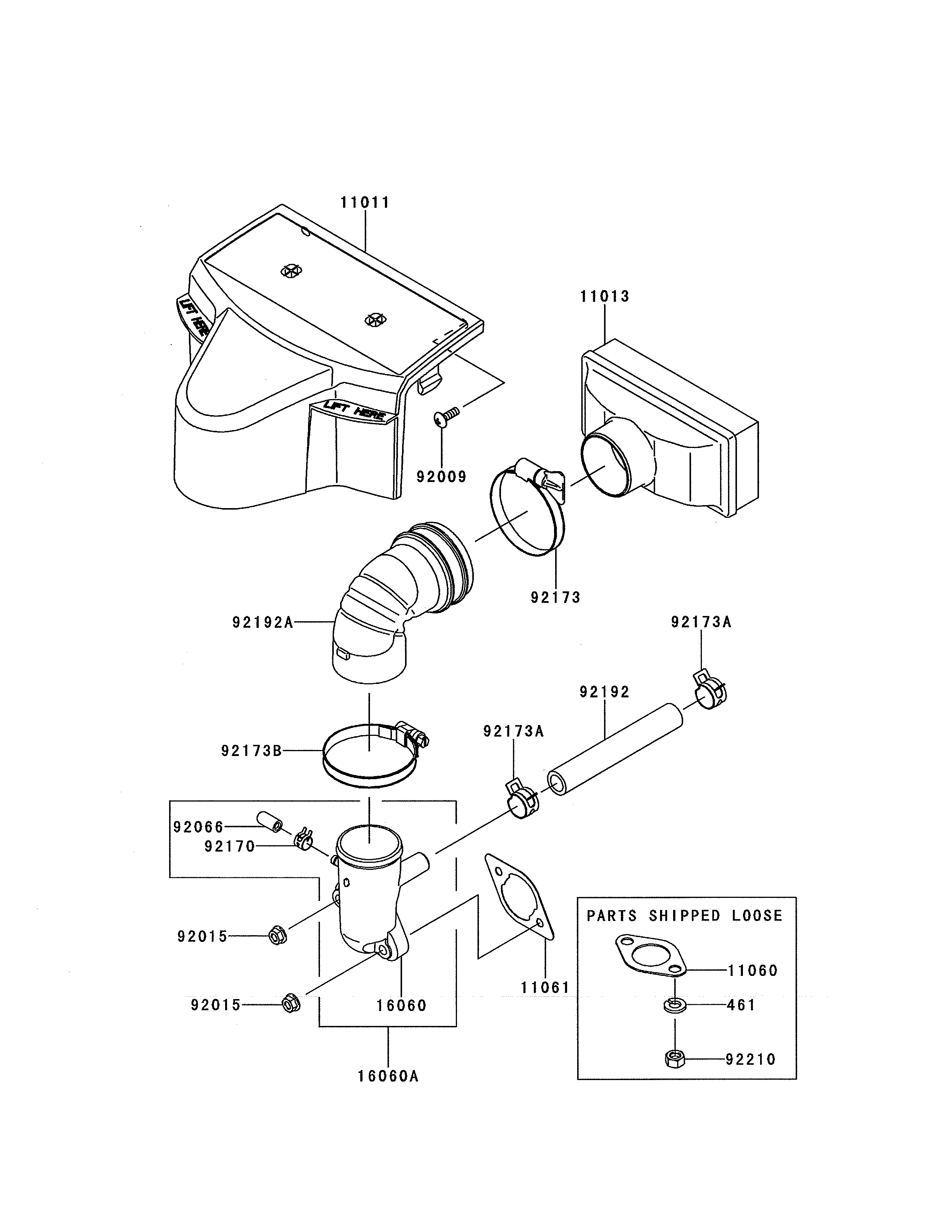

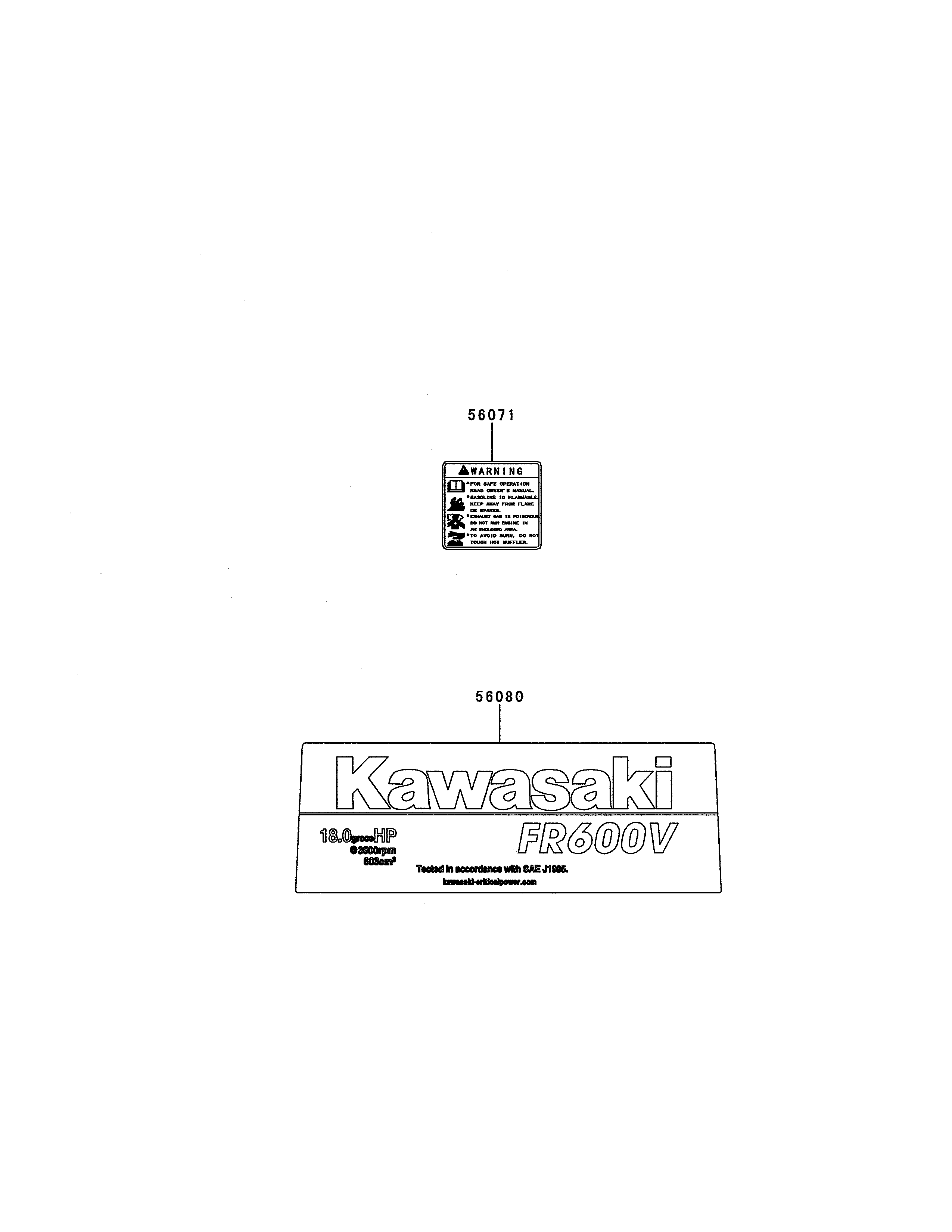

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Fuel Filter 49019-0014
#49019

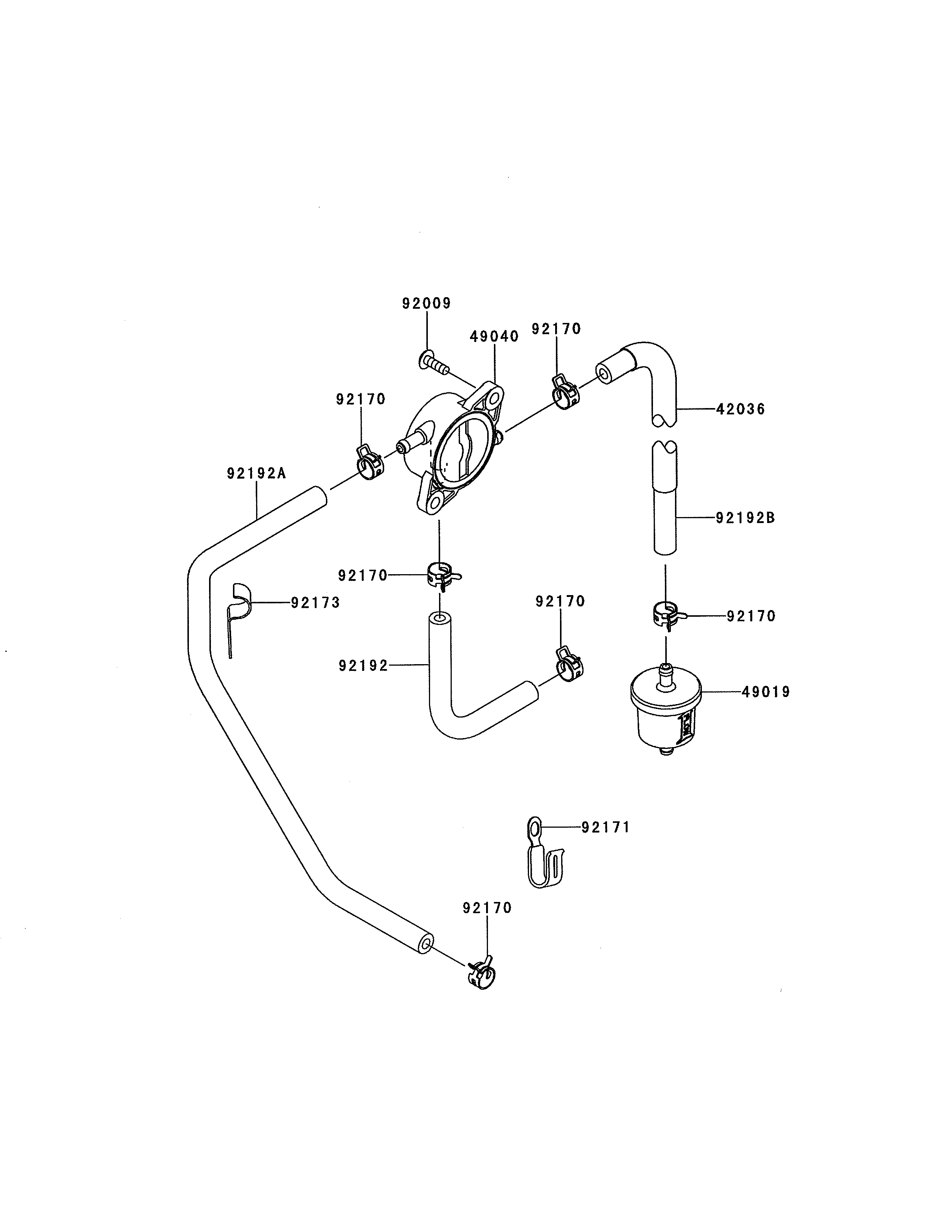

Fuel tank/fuel-valve diagram

Fuel filter

Part #49019-0014

Replaced by #KM-49019-0027

?
Manufacturer substitution
This part replaces 49019-0014. Substitute parts can look different from the original.
$23.77
In Stock
Lawn & Garden Equipment Engine 49065-7006
#49065

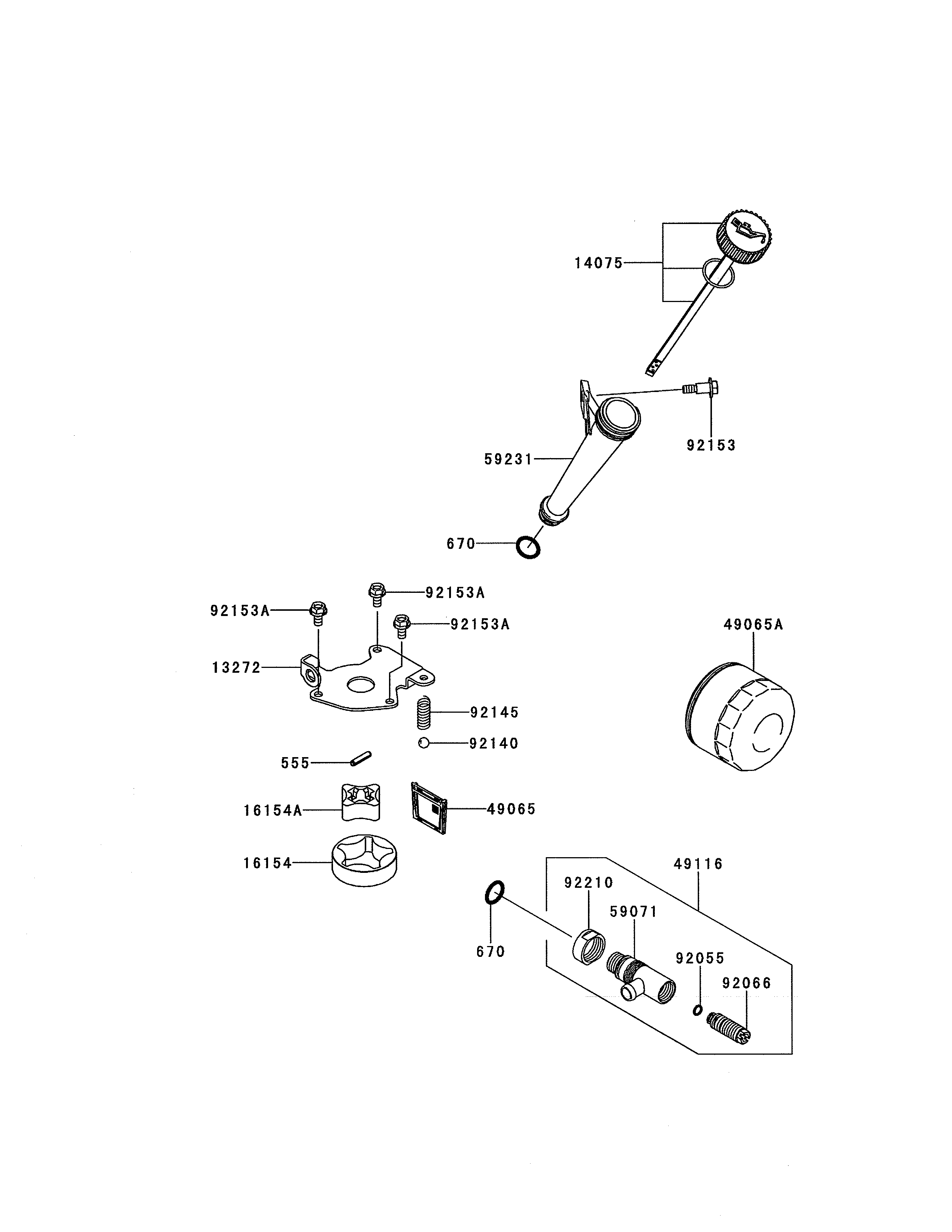

Lubrication equipment diagram

Lawn & garden equipment engine

Part #49065-7006

Replaced by #KM-49065-0720

?
Manufacturer substitution
This part replaces 49065-7006. Substitute parts can look different from the original.
$14.09
In Stock
Lawn & Garden Equipment Engine Flywheel 21193-7038
#21193

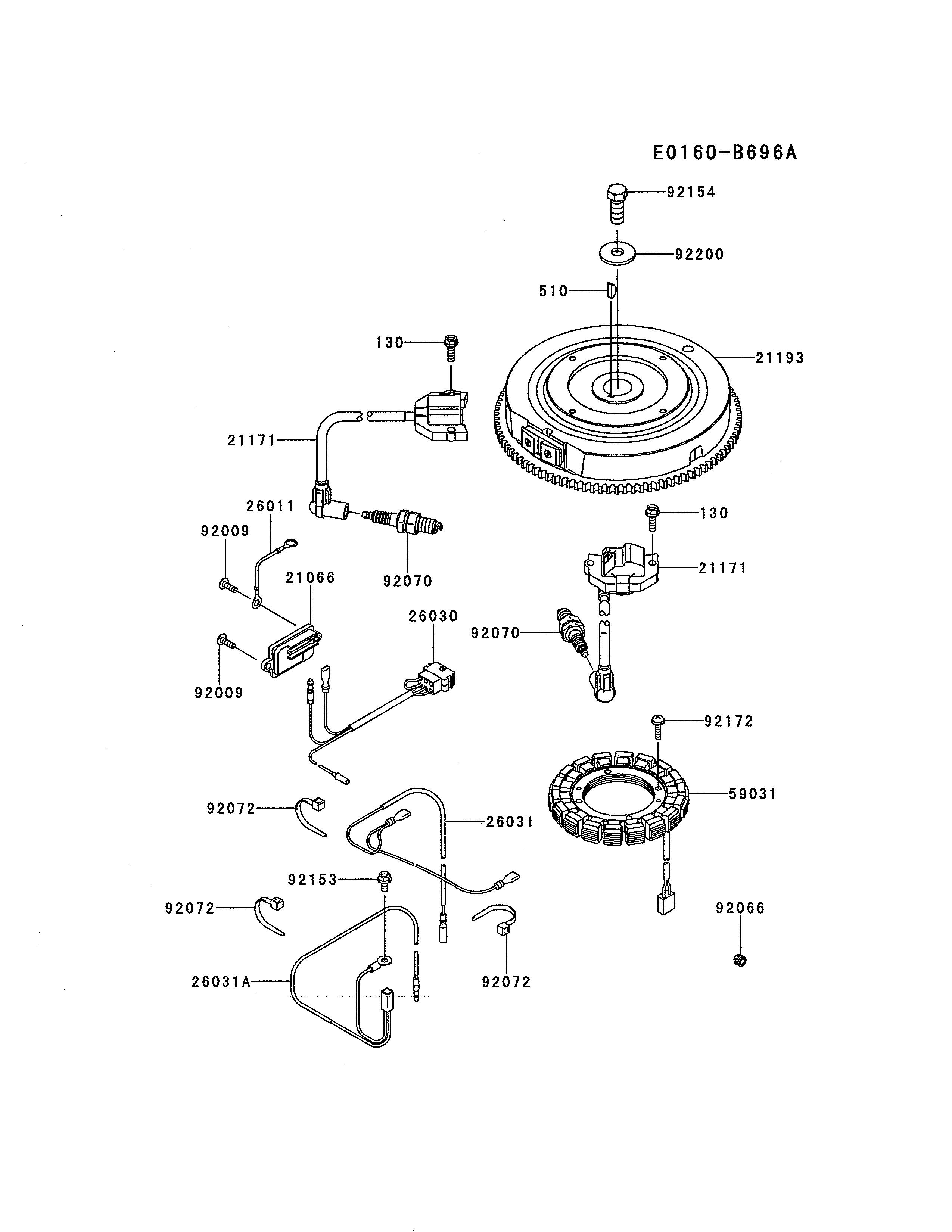

Electric equipment diagram

Lawn & garden equipment engine flywheel

Part #21193-7038

Replaced by #KM-21193-0035

?
Manufacturer substitution
This part replaces 21193-7038. Substitute parts can look different from the original.
$292.88 |
$12.00 OFF Phone Price : $304.88
In Stock
Governor 13070-7017
#13070

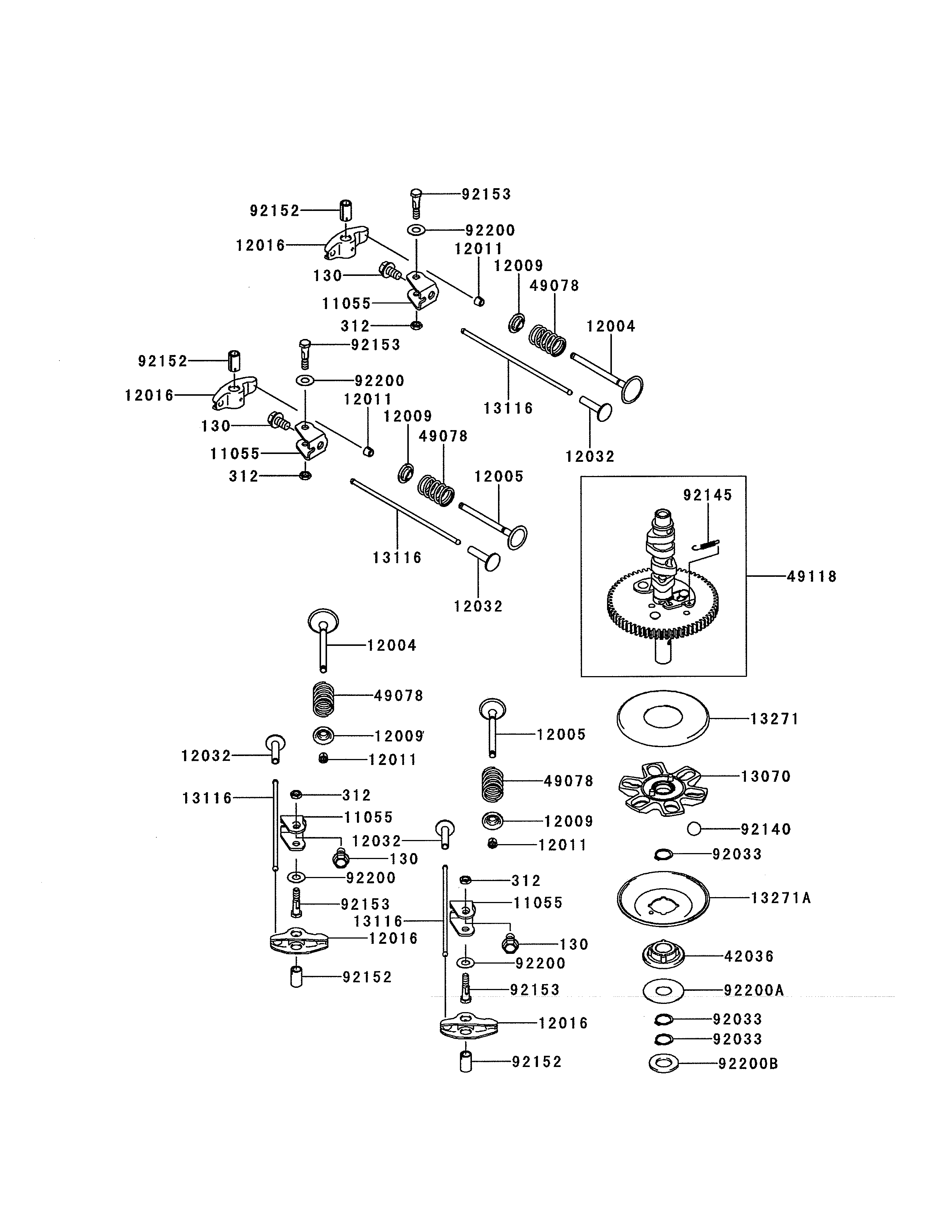

Valve/camshaft diagram

Governor

Part #13070-7017

Replaced by #KM-13070-7017

?
Manufacturer substitution
This part replaces 13070-7017. Substitute parts can look different from the original.
$9.54
In Stock
Gasket 11061-7009
#11061

Carburetor diagram

Gasket

Part #11061-7009

Replaced by #KM-11061-7009

?
Manufacturer substitution
This part replaces 11061-7009. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
Lawn & Garden Equipment Engine Carburetor 15004-0827
#15004

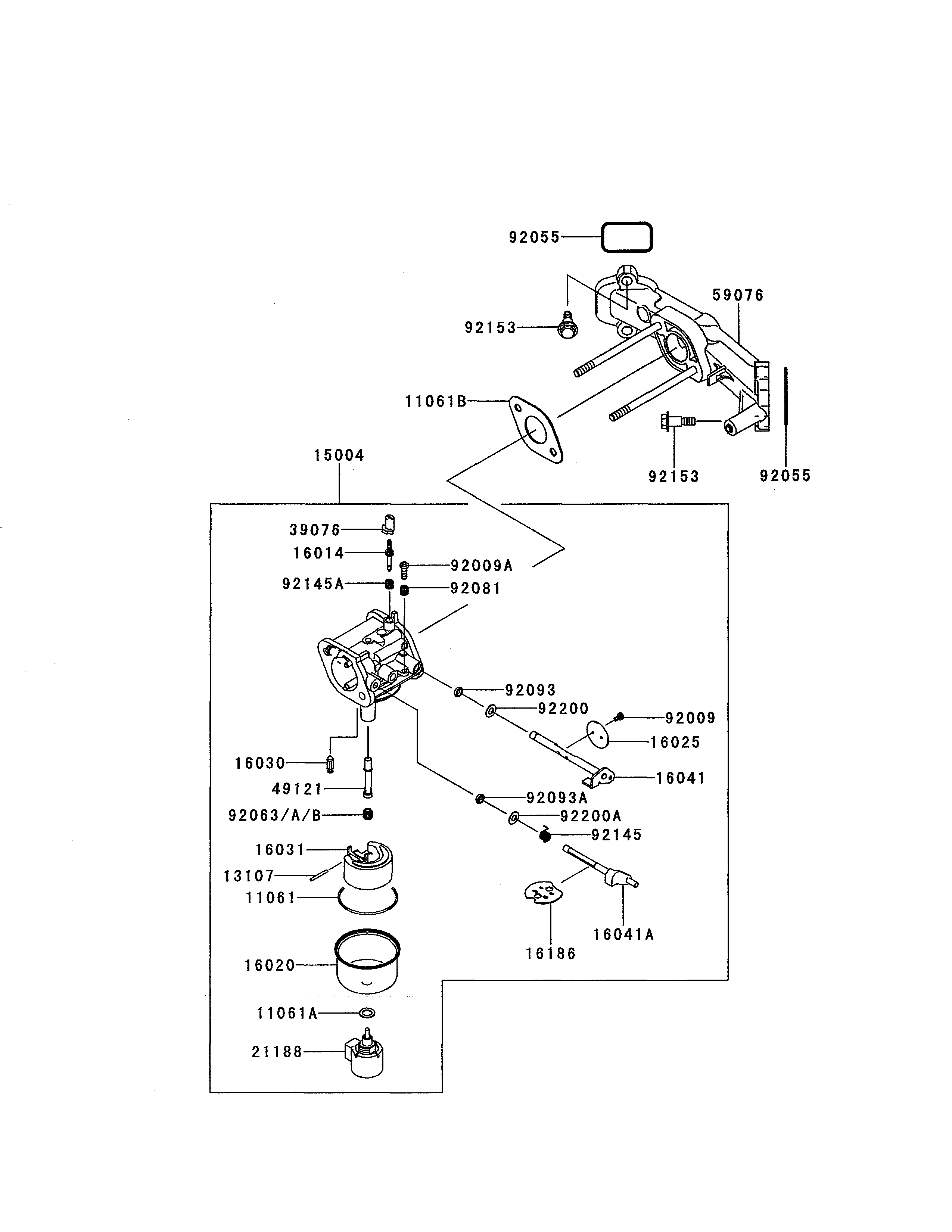

Carburetor diagram

Lawn & garden equipment engine carburetor

Part #15004-0827

Replaced by #KM-15004-0827

?
Manufacturer substitution
This part replaces 15004-0827. Substitute parts can look different from the original.
$527.82 |
$12.00 OFF Phone Price : $539.82
In Stock
Float 16031-7002
#16031

Carburetor diagram

Float

Part #16031-7002

Replaced by #KM-16031-7002

?
Manufacturer substitution
This part replaces 16031-7002. Substitute parts can look different from the original.
$51.36
In Stock
Nut 312AA0500
#312

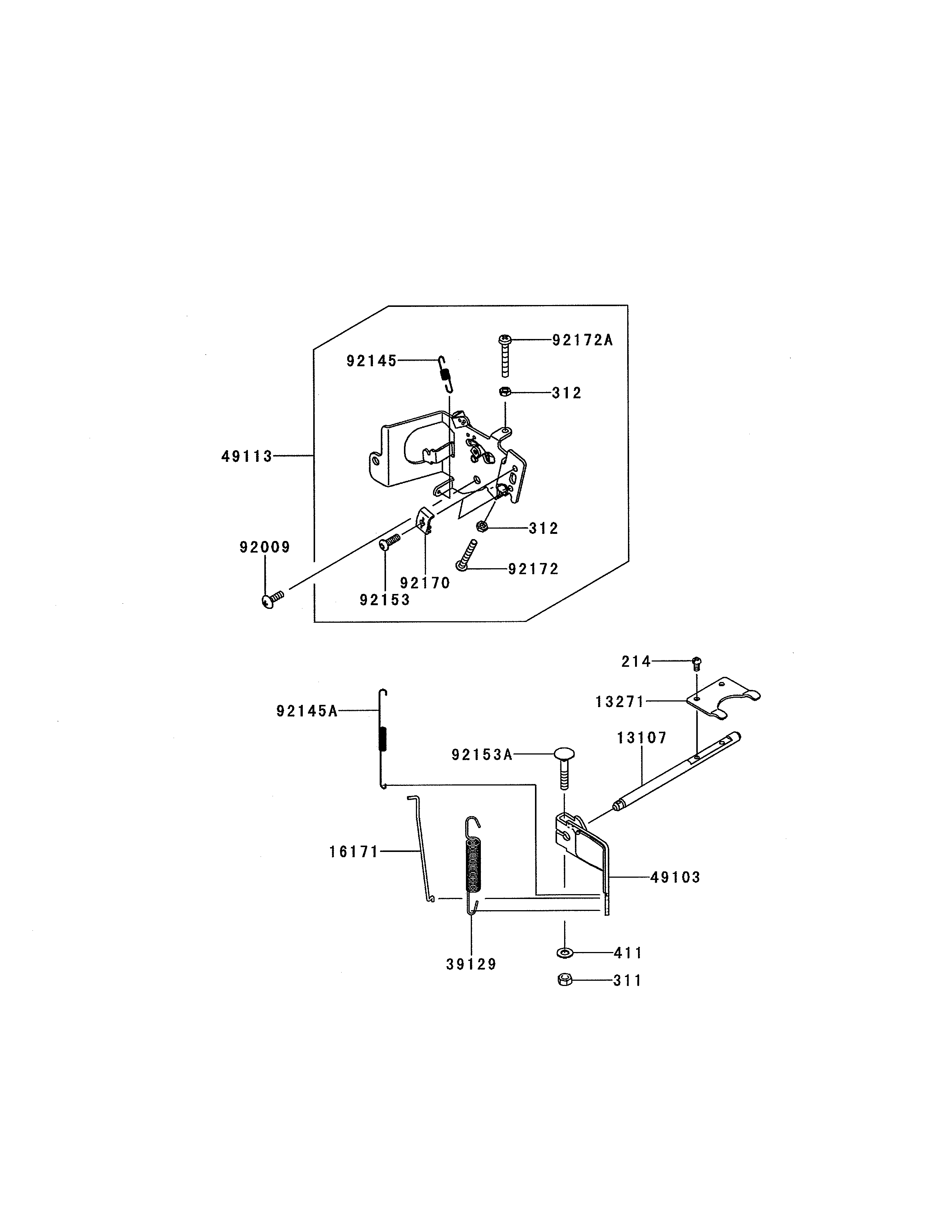

Control equipment diagram

Nut

Part #312AA0500

Replaced by #KM-312AA0500

?
Manufacturer substitution
This part replaces 312AA0500. Substitute parts can look different from the original.
This item is not returnable
$2.88
In Stock
Screw 92009-2349
#92009A

Carburetor diagram

Screw

Part #92009-2349

Replaced by #KM-92009-2349

?
Manufacturer substitution
This part replaces 92009-2349. Substitute parts can look different from the original.
This item is not returnable
$3.44
In Stock
Retainer 12009-7001
#12009

Valve/camshaft diagram

Retainer

Part #12009-7001

Replaced by #KM-12009-7001

?
Manufacturer substitution
This part replaces 12009-7001. Substitute parts can look different from the original.
$10.60
In Stock
