Tappan
Electric Cooktop

Model # 13-3078-00-02 Official Tappan electric range - 5995226338

Here are the diagrams and repair parts for Official Tappan 13-3078-00-02 electric range - 5995226338, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Light 3200297
#6

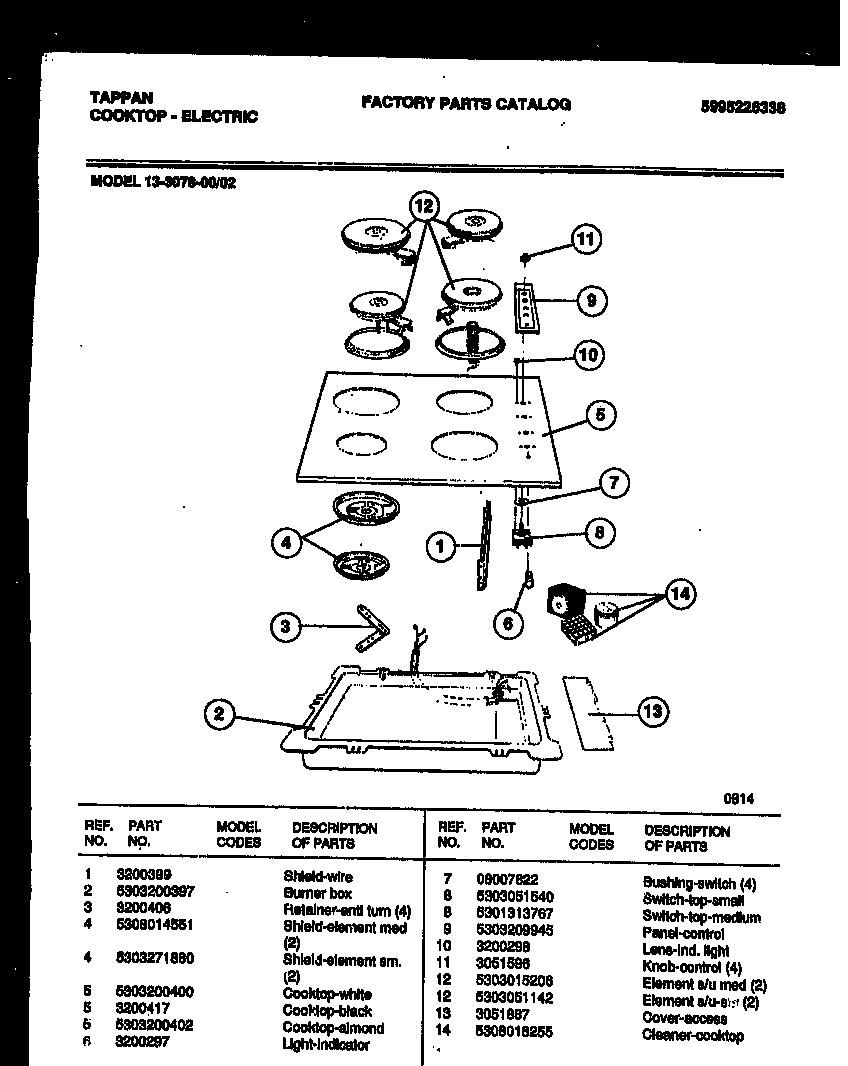

Electric smooth top diagram

Light

Part #3200297

Replaced by #316022503

?
Manufacturer substitution
This part replaces 3200297. Substitute parts can look different from the original.
$57.09 |
10% OFF Phone Price : $63.09
In Stock
Bushing 08007822
#7

Electric smooth top diagram

Bushing

Part #08007822

Replaced by #318146010

?
Manufacturer substitution
This part replaces 08007822. Substitute parts can look different from the original.
$18.86
In Stock
Gibson Panel 5303209945
#9

Electric smooth top diagram

Gibson panel

Part #5303209945

$50.16
In Stock
Switch-8" El 5301313767
#8

Electric smooth top diagram

Switch-8" el

Part #5301313767

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 5301313767. Substitute parts can look different from the original.
$39.79 |
13% OFF Phone Price : $45.79
In Stock
Switch 5303051540
#8

Electric smooth top diagram

Switch

Part #5303051540

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 5303051540. Substitute parts can look different from the original.
$39.79 |
13% OFF Phone Price : $45.79
In Stock
Shield Element 5303271880
#4

Electric smooth top diagram

Shield element

Part #5303271880

The manufacturer no longer makes this part, and there's no substitute part

Knob Set Switch 3051596
#11

Electric smooth top diagram

Knob set switch

Part #3051596

The manufacturer no longer makes this part, and there's no substitute part

Main 3200417
#5

Electric smooth top diagram

Main

Part #3200417

The manufacturer no longer makes this part, and there's no substitute part

Shield 5308014551
#4

Electric smooth top diagram

Shield

Part #5308014551

The manufacturer no longer makes this part, and there's no substitute part

Cleaner-cooktop 5308016255
#14

Electric smooth top diagram

Cleaner-cooktop

Part #5308016255

The manufacturer no longer makes this part, and there's no substitute part
