DeWalt
Hammer Drill

Model # DW999K-2TY1 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW999K-2TY1 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

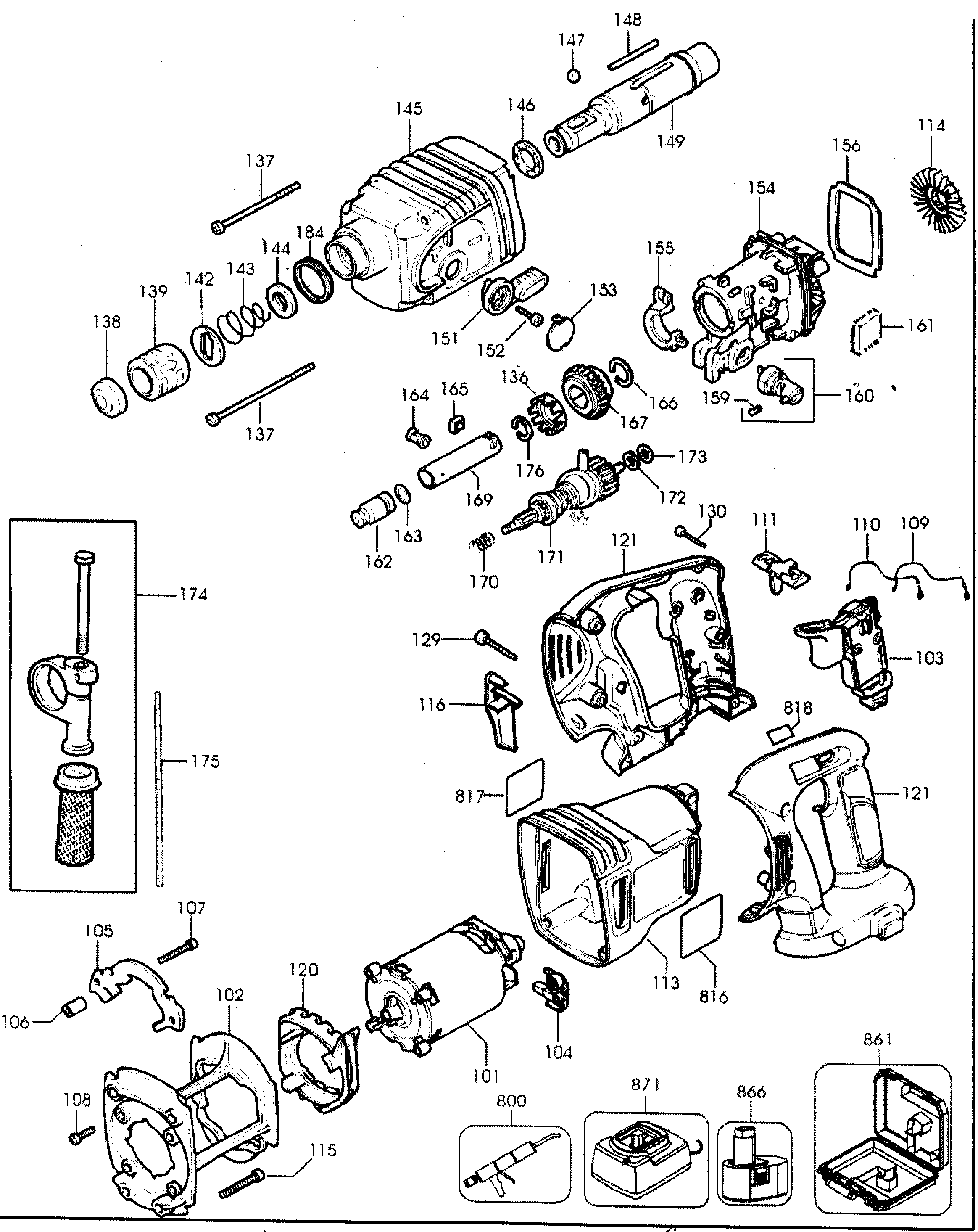

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Lever 327119-00
#151

Drill diagram

Lever

Part #327119-00

The manufacturer no longer makes this part, and there's no substitute part

Cover 387213-00
#116

Drill diagram

Cover

Part #387213-00

The manufacturer no longer makes this part, and there's no substitute part

Seal 323572-00
#156

Drill diagram

Seal

Part #323572-00

The manufacturer no longer makes this part, and there's no substitute part

O-ring 577168-00
#163

Drill diagram

O-ring

Part #577168-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Fan 575520-00
#114

Drill diagram

Dewalt fan

Part #575520-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 324431-03
#173

Drill diagram

Washer

Part #324431-03

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Plate 577100-00
#105

Drill diagram

Dewalt plate

Part #577100-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Side Handle 939794-00
#174

Drill diagram

Drill side handle

Part #939794-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Clutch Assembly 487401-00
#167

Drill diagram

Dewalt clutch assembly

Part #487401-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Slider 575455-00
#111

Drill diagram

Dewalt slider

Part #575455-00

The manufacturer no longer makes this part, and there's no substitute part
