Wall Oven/Microwave Combo

Model # KOCE507EBS07 Official KitchenAid electric oven with microwave

Here are the diagrams and repair parts for Official KitchenAid KOCE507EBS07 electric oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

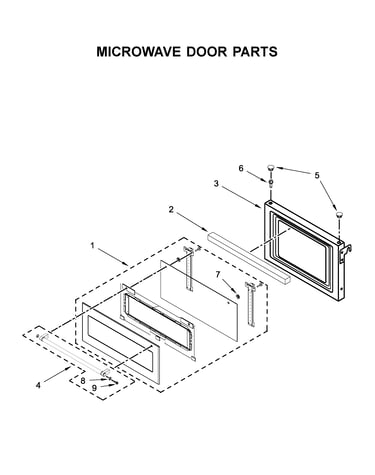

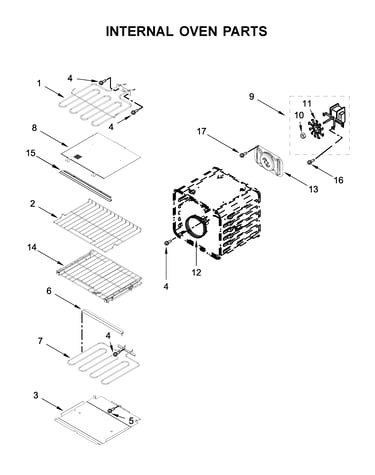

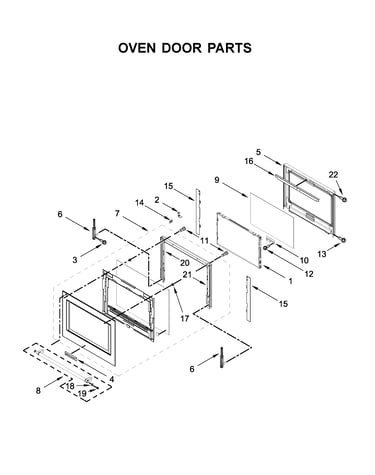

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KOCE507EBS07 ELECTRIC OVEN WITH MICROWAVE
Whirlpool Wall Oven Microwave Element Clip 461967753871
#12

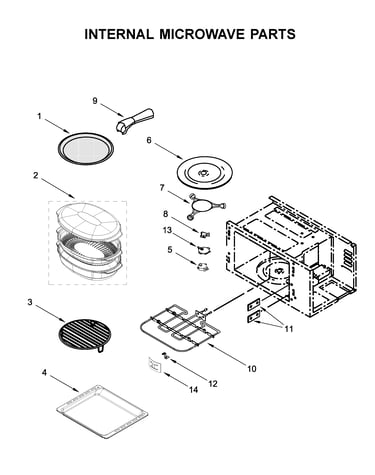

Internal microwave parts diagram

Whirlpool wall oven microwave element clip

Part #461967753871

BEST SELLER
In Stock
Thermal Fuse W10436434
#4

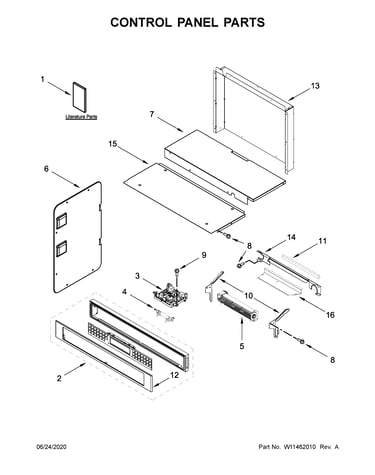

Control panel parts diagram

Thermal fuse

Part #W10436434

Replaced by #WPW10545255

?
Manufacturer substitution
This part replaces W10436434. Substitute parts can look different from the original.
BEST SELLER
$23.02
21% OFF Phone Price : $29.02
In Stock
Switch 461967848881
#20

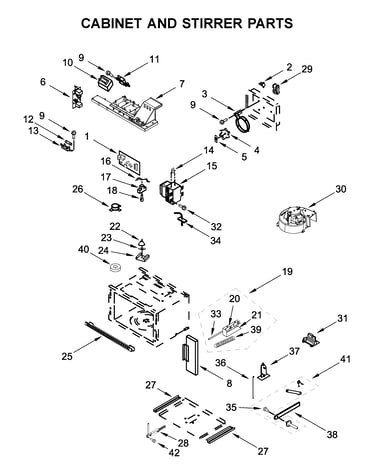

Cabinet and stirrer parts diagram

Switch

Part #461967848881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
BEST SELLER
$28.80
17% OFF Phone Price : $34.80
In Stock
Control (with Power Supply) W11040195
#3

Control panel parts diagram

Control (with power supply)

Part #W11040195

Replaced by #W11179310

?
Manufacturer substitution
This part replaces W11040195. Substitute parts can look different from the original.
BEST SELLER
$261.64
$12.00 OFF Phone Price : $273.64
In Stock
Range High-limit Thermostat 4449751
#18

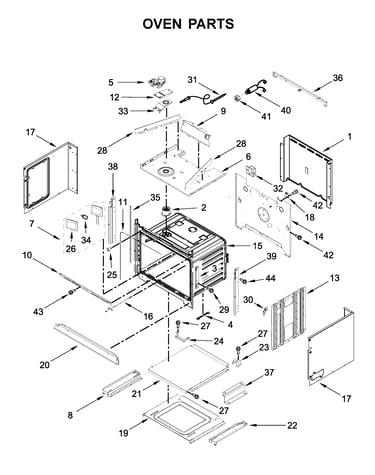

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25
11% OFF Phone Price : $113.25
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Inverter W11237240
#31

Cabinet and stirrer parts diagram

Inverter

Part #W11237240

Replaced by #W11325604

?
Manufacturer substitution
This part replaces W11237240. Substitute parts can look different from the original.
BEST SELLER
$151.29
7% OFF Phone Price : $163.29
In Stock
Blower W11200130
#5

Control panel parts diagram

Blower

Part #W11200130

Replaced by #W11245567

?
Manufacturer substitution
This part replaces W11200130. Substitute parts can look different from the original.
BEST SELLER
$188.00
6% OFF Phone Price : $200.00
In Stock
Wako Minerva W10622170
#16

Oven parts diagram

Wako minerva

Part #W10622170

Replaced by #W10859573

?
Manufacturer substitution
This part replaces W10622170. Substitute parts can look different from the original.
$100.74
11% OFF Phone Price : $112.74
In Stock
Lamp G4 Halo W10795595
#18

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
This item is not returnable
$22.89
21% OFF Phone Price : $28.89
In Stock
