Model # SDE607QF Official Speed Queen dryer

Here are the diagrams and repair parts for Official Speed Queen SDE607QF dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

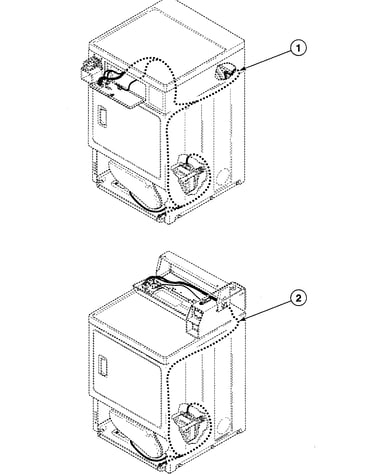

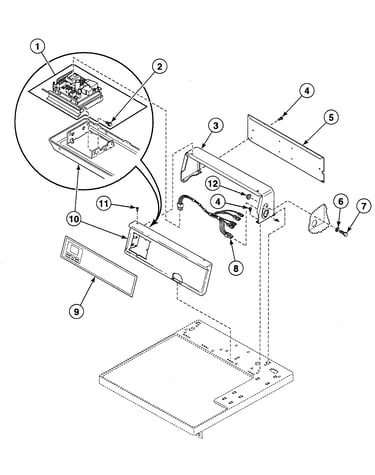

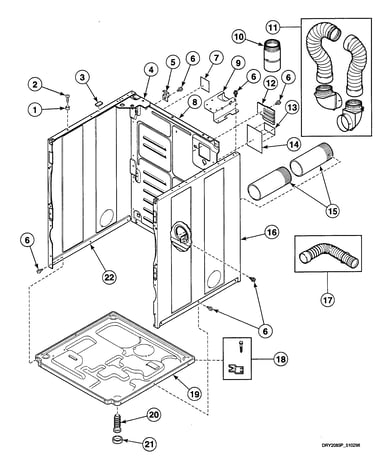

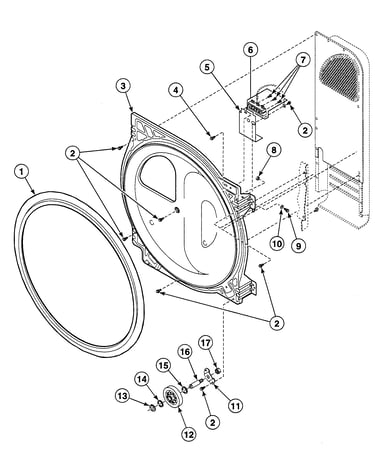

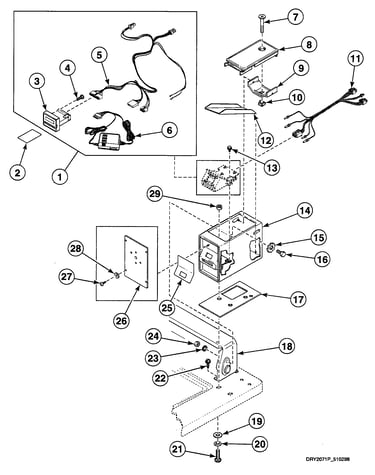

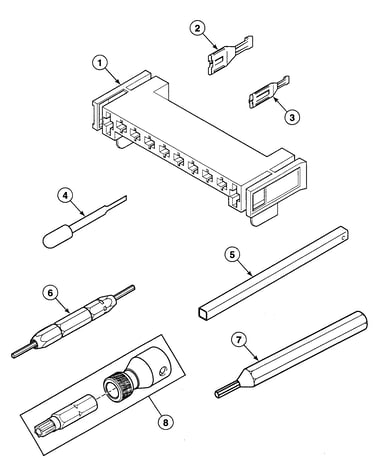

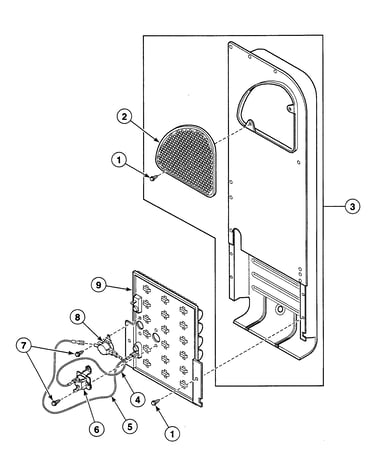

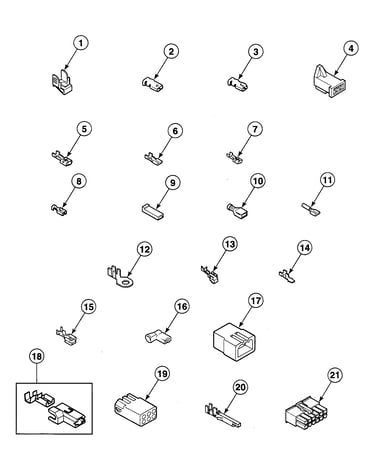

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |
Dryer Blower Fan 510139P
#11

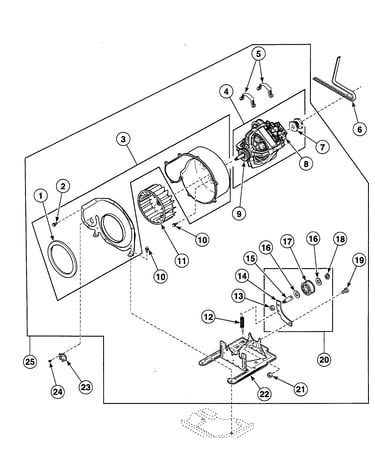

Motor assy diagram

Dryer blower fan

Part #510139P

The manufacturer no longer makes this part, and there's no substitute part

Screw 503688
#2

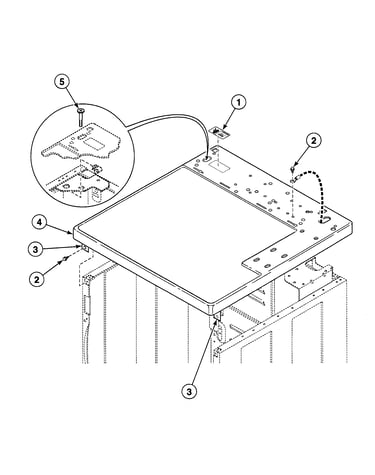

Cabiet top diagram

Screw

Part #503688

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 503688. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Drive Motor 511629P
#4

Motor assy diagram

Dryer drive motor

Part #511629P

The manufacturer no longer makes this part, and there's no substitute part

Dryer Door Strike 510181
#6

Door assy diagram

Dryer door strike

Part #510181

This item is not returnable
$3.57
In Stock
Washer Housing 512108
#2

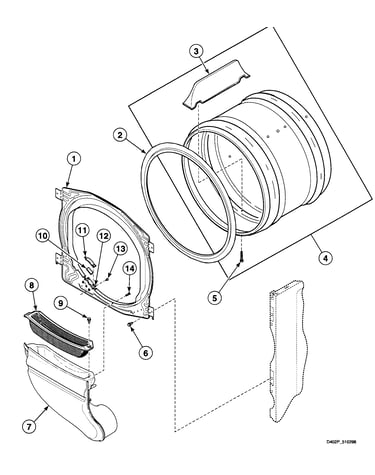

Cylinder diagram

Washer housing

Part #512108

$27.71
In Stock
Light Lens 512106
#1

Cylinder diagram

Light lens

Part #512106

$10.00
In Stock
Switch 504570
#2

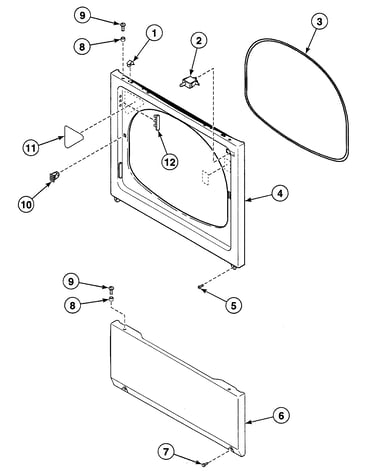

Front panel diagram

Switch

Part #504570

The manufacturer no longer makes this part, and there's no substitute part

Nut 52566
Nut

Part #52566

Replaced by #52566

?
Manufacturer substitution
This part replaces 52566. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Amana Terminal 00117
#3

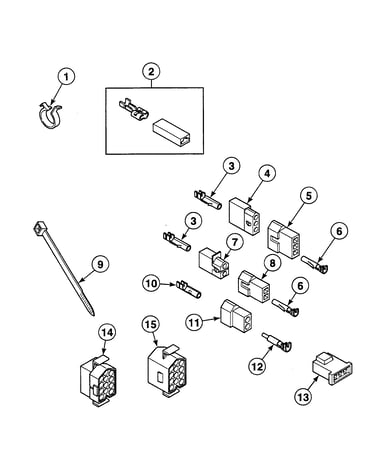

Blocks diagram

Amana terminal

Part #00117

This item is not returnable
$3.11
In Stock
Screw M405188
#8

Cylinder diagram

Screw

Part #M405188

This item is not returnable
$2.16
In Stock
