Model # LDE8626ACE Official Maytag washer/dryer
Here are the diagrams and repair parts for Official Maytag LDE8626ACE washer/dryer, as well as links to manuals and error code tables, if available.

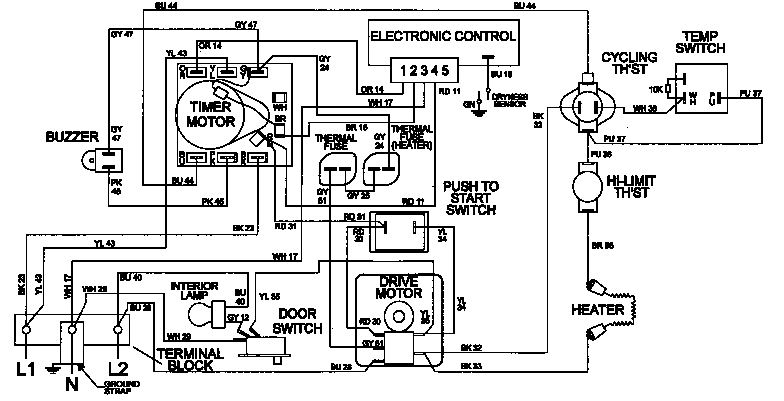

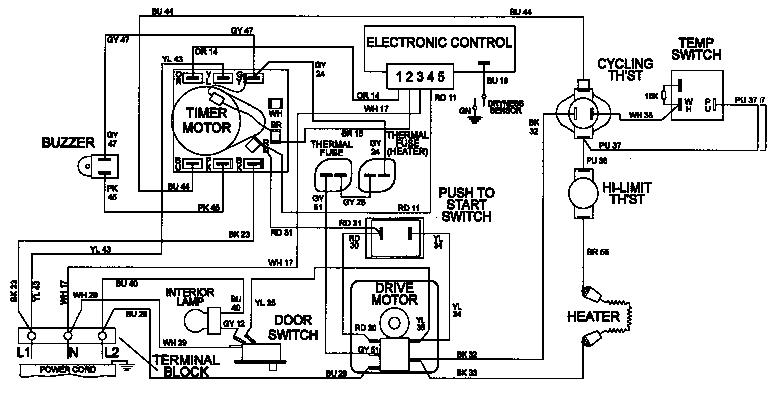

By Schematic
By Part

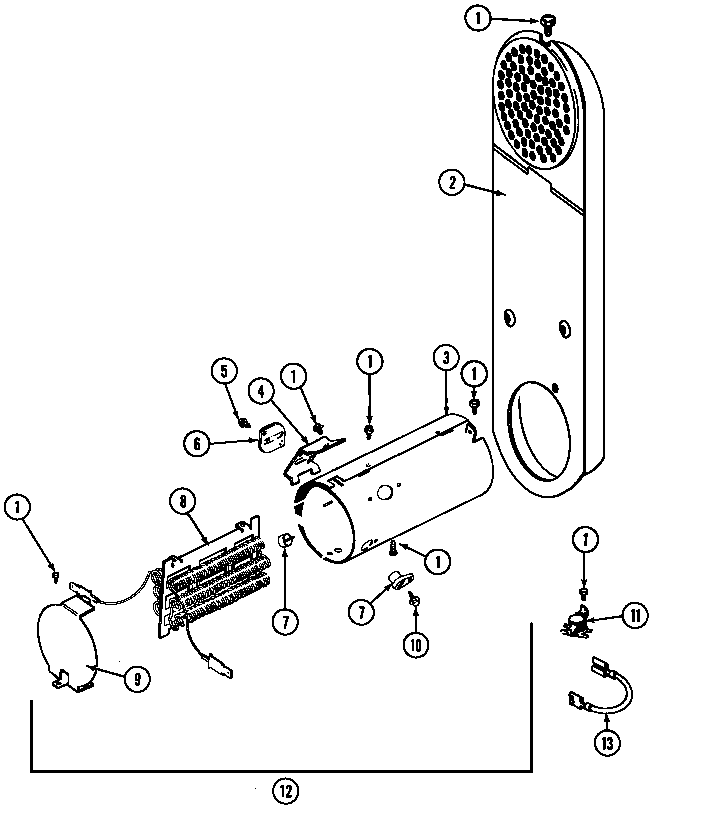

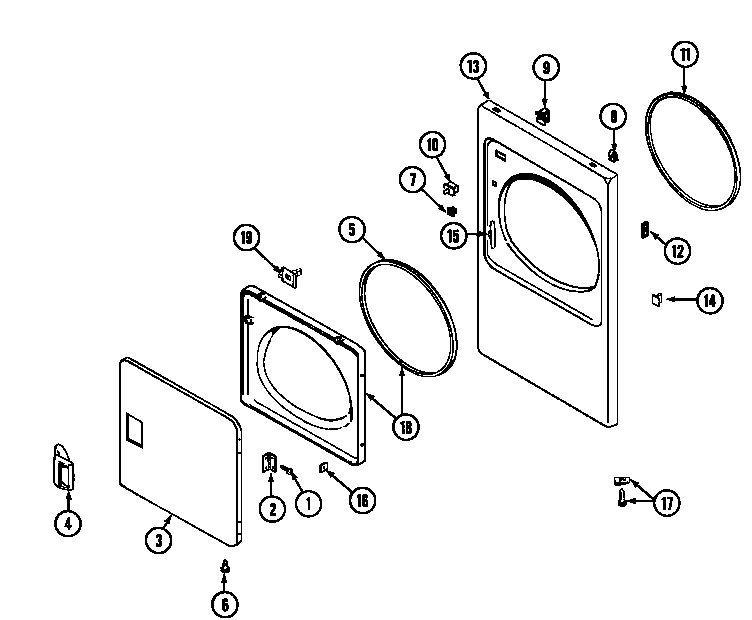

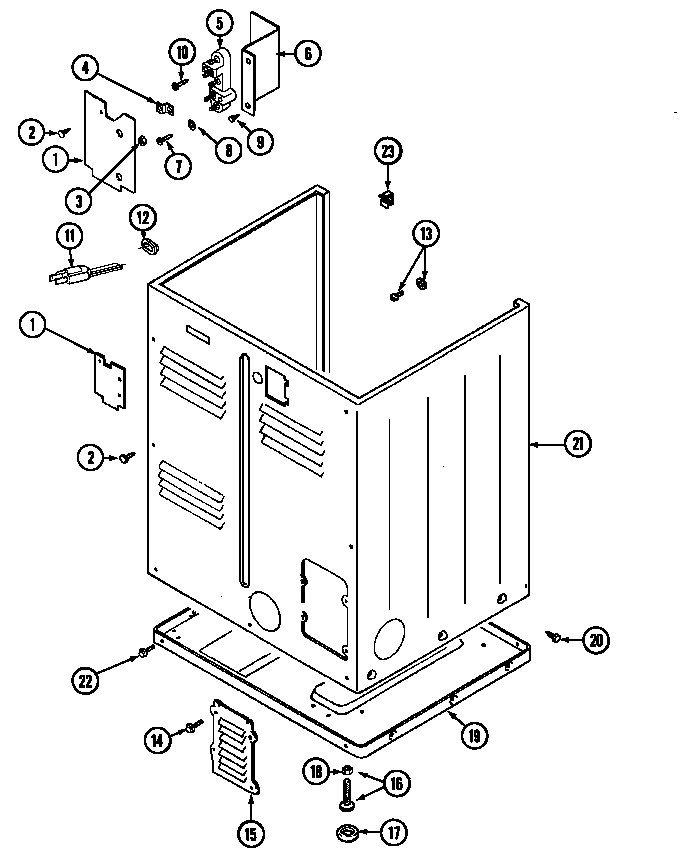

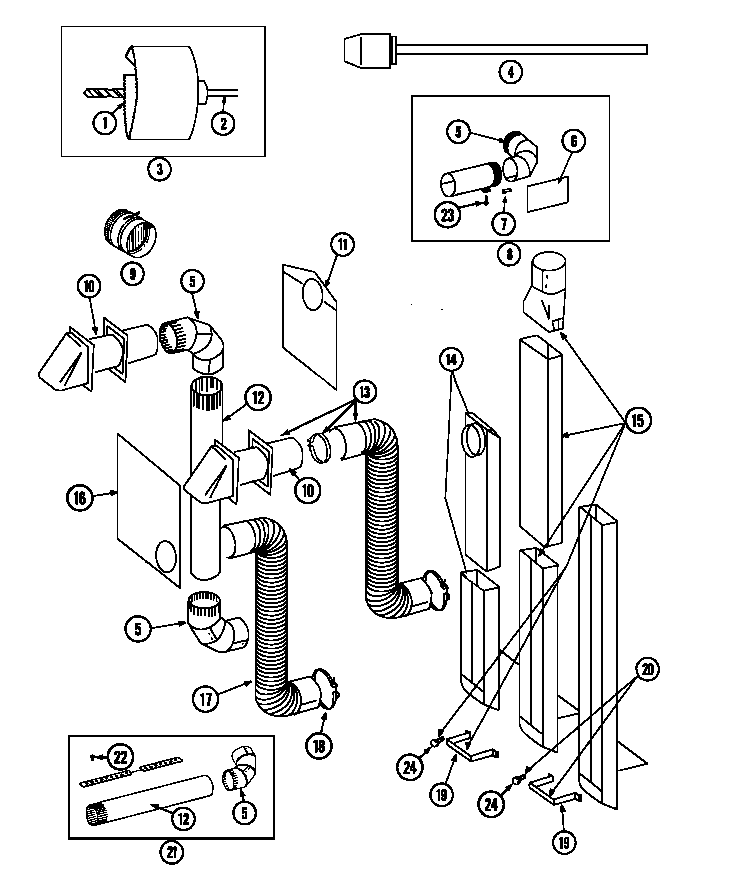

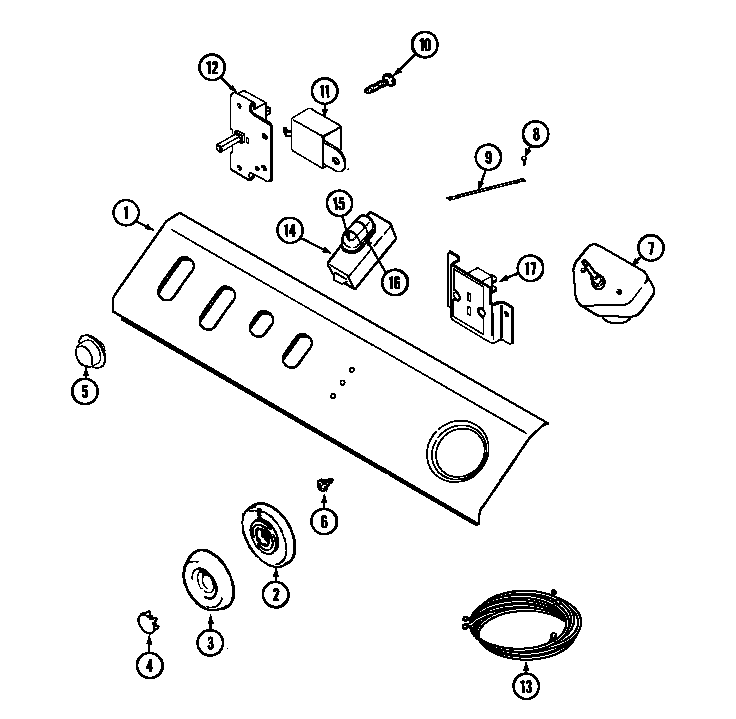

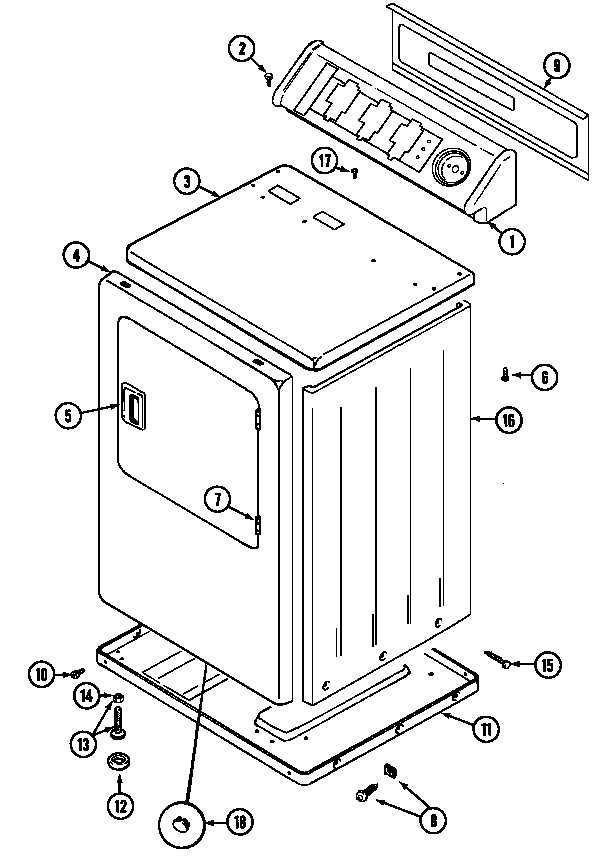

SELECT DIAGRAM
Browse Parts forLDE8626ACE Washer/Dryer
- #7

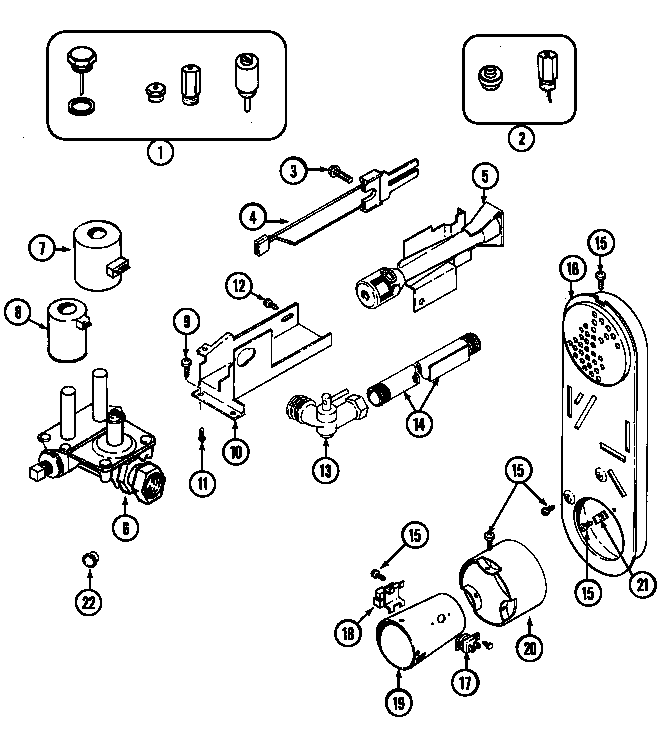

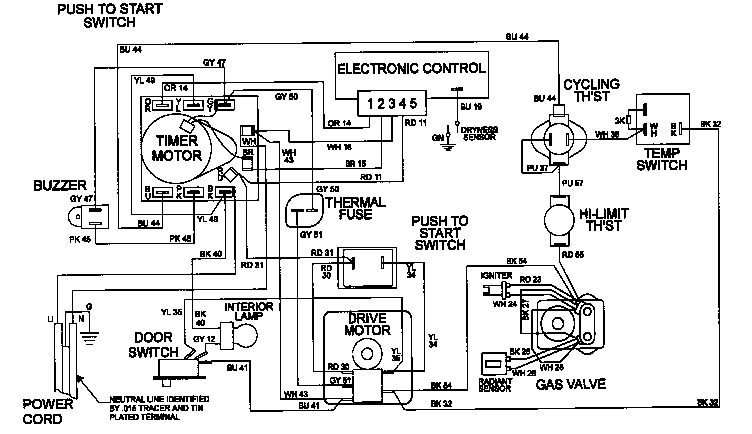

Gas valve (ldg8626aae) (ldg8626aam) diagram
Holding coilPart #306106
Replaced by #279834
?Manufacturer substitutionThis part replaces 306106. Substitute parts can look different from the original.$24.51 |20% OFF Phone Price : $30.51In Stock - #8
Gas valve (ldg8626aae) (ldg8626aam) diagram
Second coilPart #306105
Replaced by #279834
?Manufacturer substitutionThis part replaces 306105. Substitute parts can look different from the original.$24.51 |20% OFF Phone Price : $30.51In Stock - #8

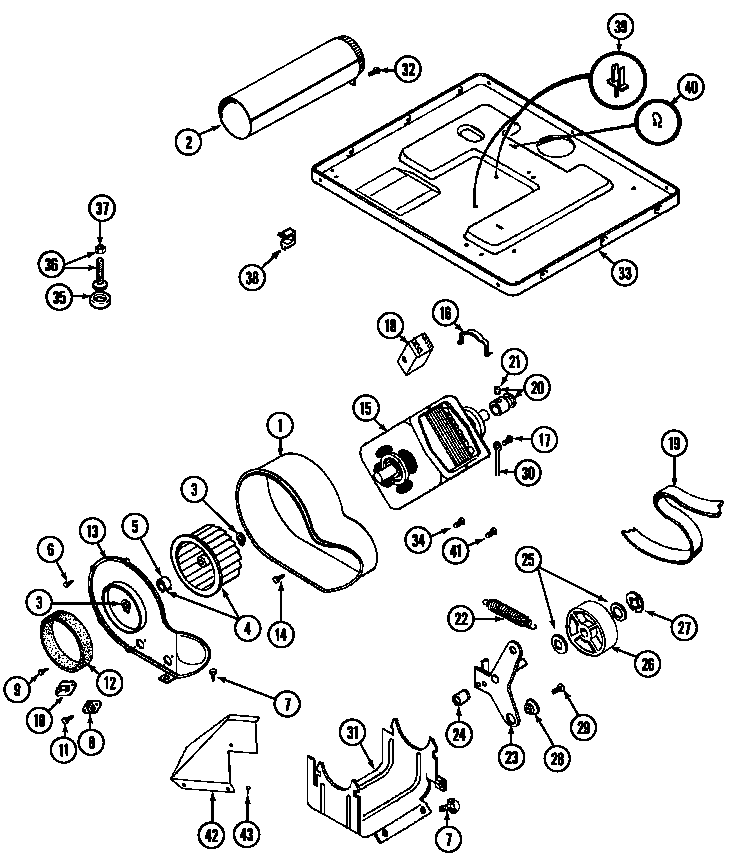

Motor drive diagram
ThermostatPart #306910
Replaced by #WP3387134
?Manufacturer substitutionThis part replaces 306910. Substitute parts can look different from the original.$17.96 |10% OFF Phone Price : $19.96In Stock - #4
Motor drive diagram
ImpellerPart #303836
Replaced by #Y303836
?Manufacturer substitutionThis part replaces 303836. Substitute parts can look different from the original.$18.04 |10% OFF Phone Price : $20.04In Stock - Dryer drum belt
Part #312959
Replaced by #WPY312959
?Manufacturer substitutionThis part replaces 312959. Substitute parts can look different from the original.$25.70 |19% OFF Phone Price : $31.70In Stock - #26
Motor drive diagram
Idler pulleyPart #303705
Replaced by #WP6-3037050
?Manufacturer substitutionThis part replaces 303705. Substitute parts can look different from the original.$18.29 |10% OFF Phone Price : $20.29In Stock - #5
Motor drive diagram
Blower wheel clampPart #312967
Replaced by #WP312967
?Manufacturer substitutionThis part replaces 312967. Substitute parts can look different from the original.$8.21 |11% OFF Phone Price : $9.21In Stock - #20

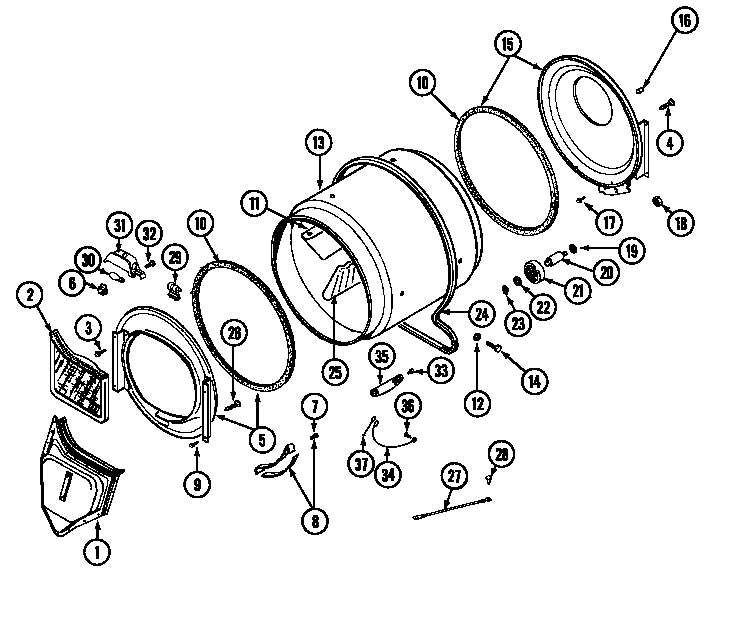

Tumbler diagram
Tumbler shaftPart #312948
Replaced by #WP6-3129480
?Manufacturer substitutionThis part replaces 312948. Substitute parts can look different from the original.$8.27 |11% OFF Phone Price : $9.27In Stock - #25
Motor drive diagram
Idler washerPart #312527
Replaced by #WPY312527
?Manufacturer substitutionThis part replaces 312527. Substitute parts can look different from the original.$8.12 |11% OFF Phone Price : $9.12In Stock - #15
Motor drive diagram
MotorPart #303358
The manufacturer no longer makes this part, and there's no substitute part
