Eureka
Upright Vacuum

Model # SE4471DT Official Eureka vacuum

Here are the diagrams and repair parts for Official Eureka SE4471DT vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

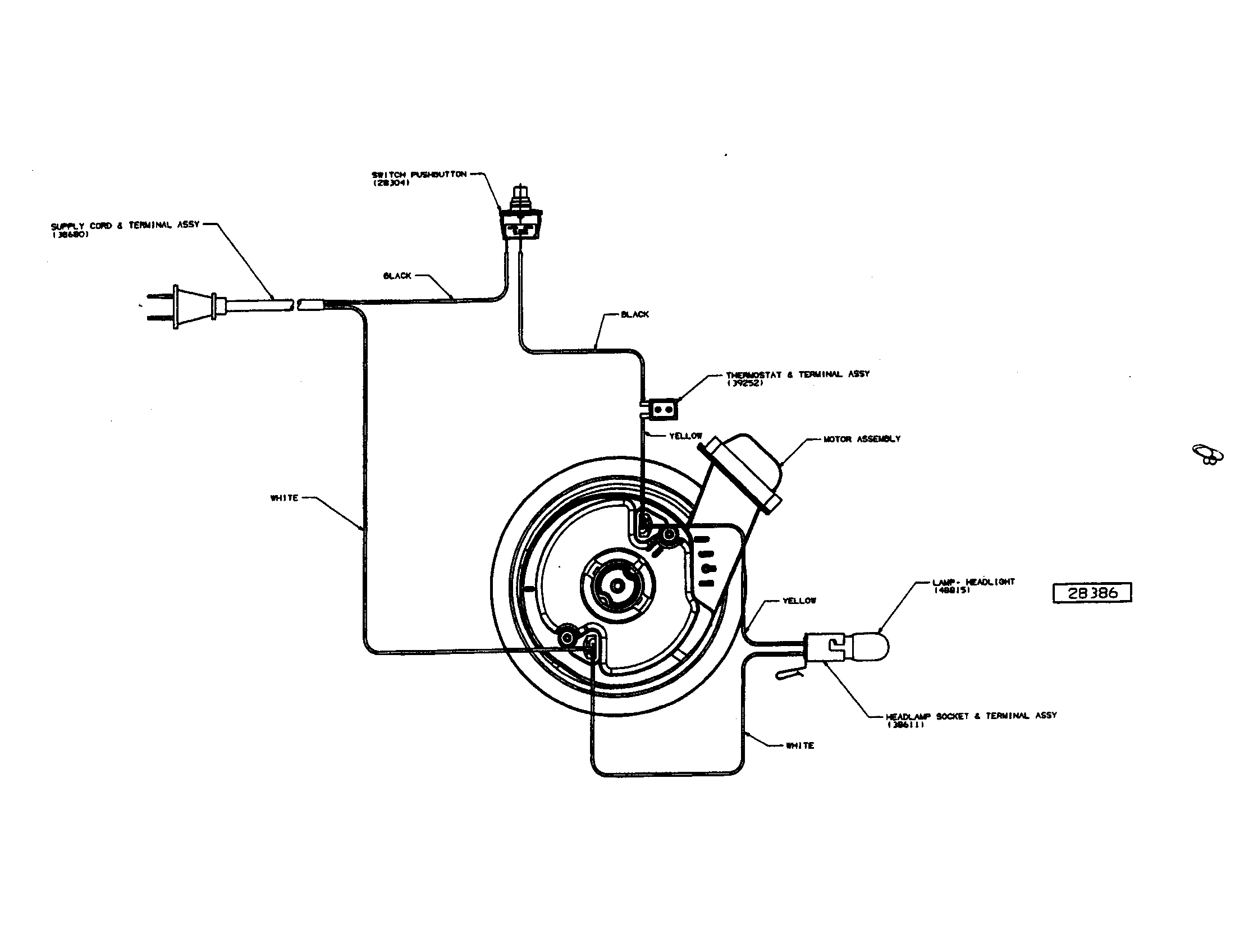

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Owner's Manual 59695B

#NI

All parts diagram

Owner's manual

Part #59695B

The manufacturer no longer makes this part, and there's no substitute part

Eureka Handle 71140-3
#19

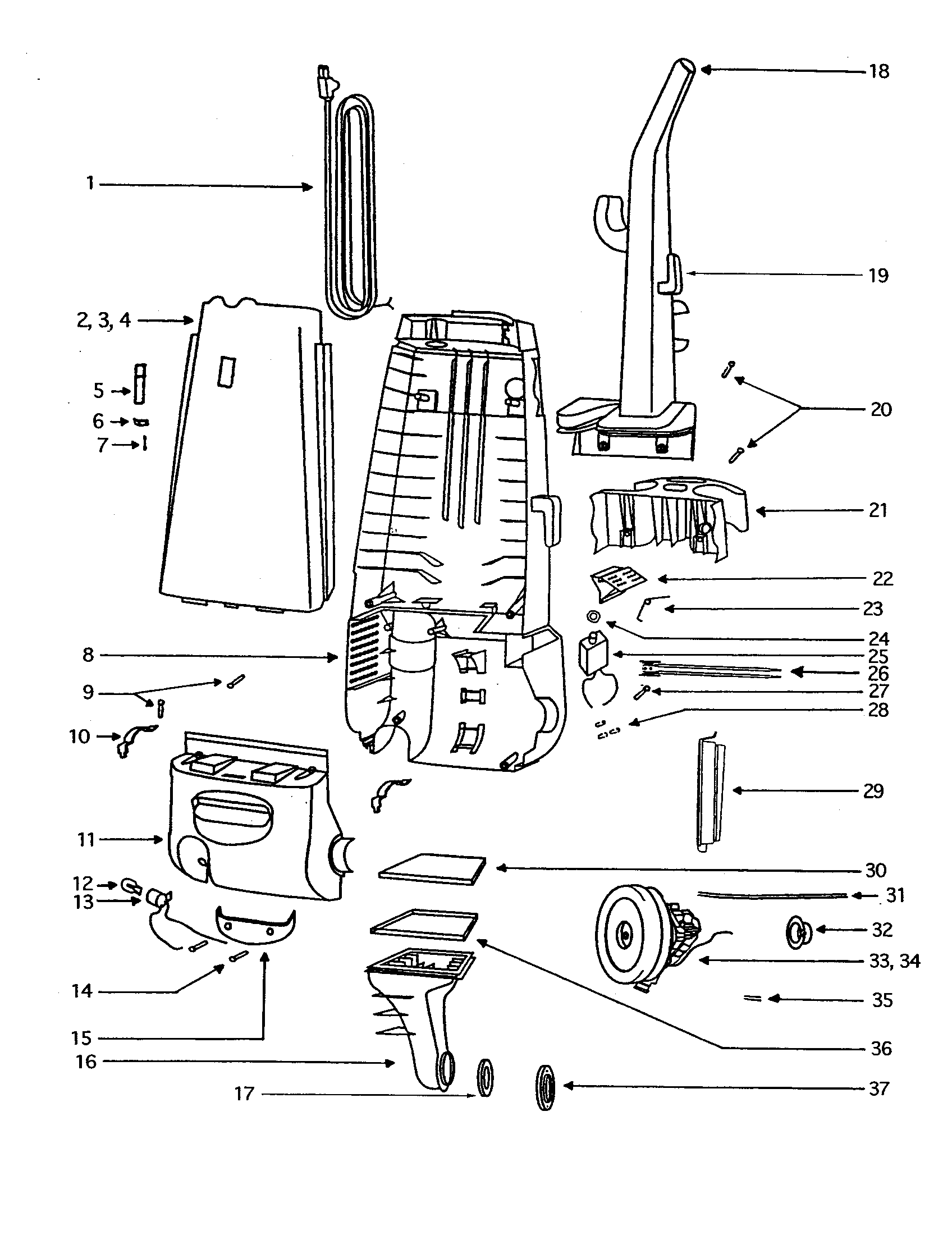

Motor and bag cover diagram

Eureka handle

Part #71140-3

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#15

Motor and bag cover diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-4
#6

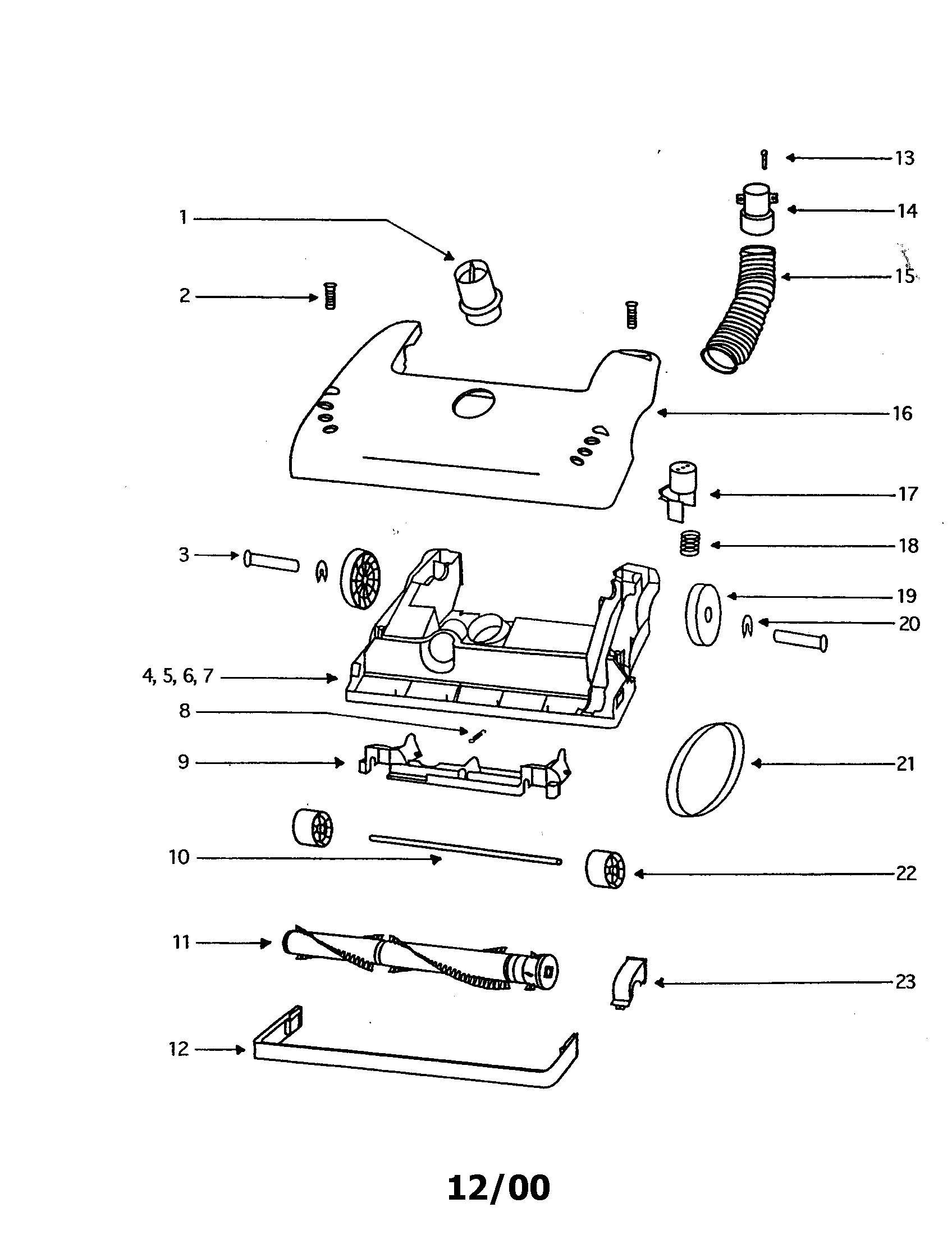

Hood diagram

Gasket

Part #58506-4

The manufacturer no longer makes this part, and there's no substitute part

Gasket 38613
#4

Motor and bag cover diagram

Gasket

Part #38613

The manufacturer no longer makes this part, and there's no substitute part

Push On Nut 60613
#21

Hood diagram

Push on nut

Part #60613

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Twist-on Wire Connector, 5-pack 60192-1
#28

Motor and bag cover diagram

Vacuum twist-on wire connector, 5-pack

Part #60192-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly 61028-1
#1

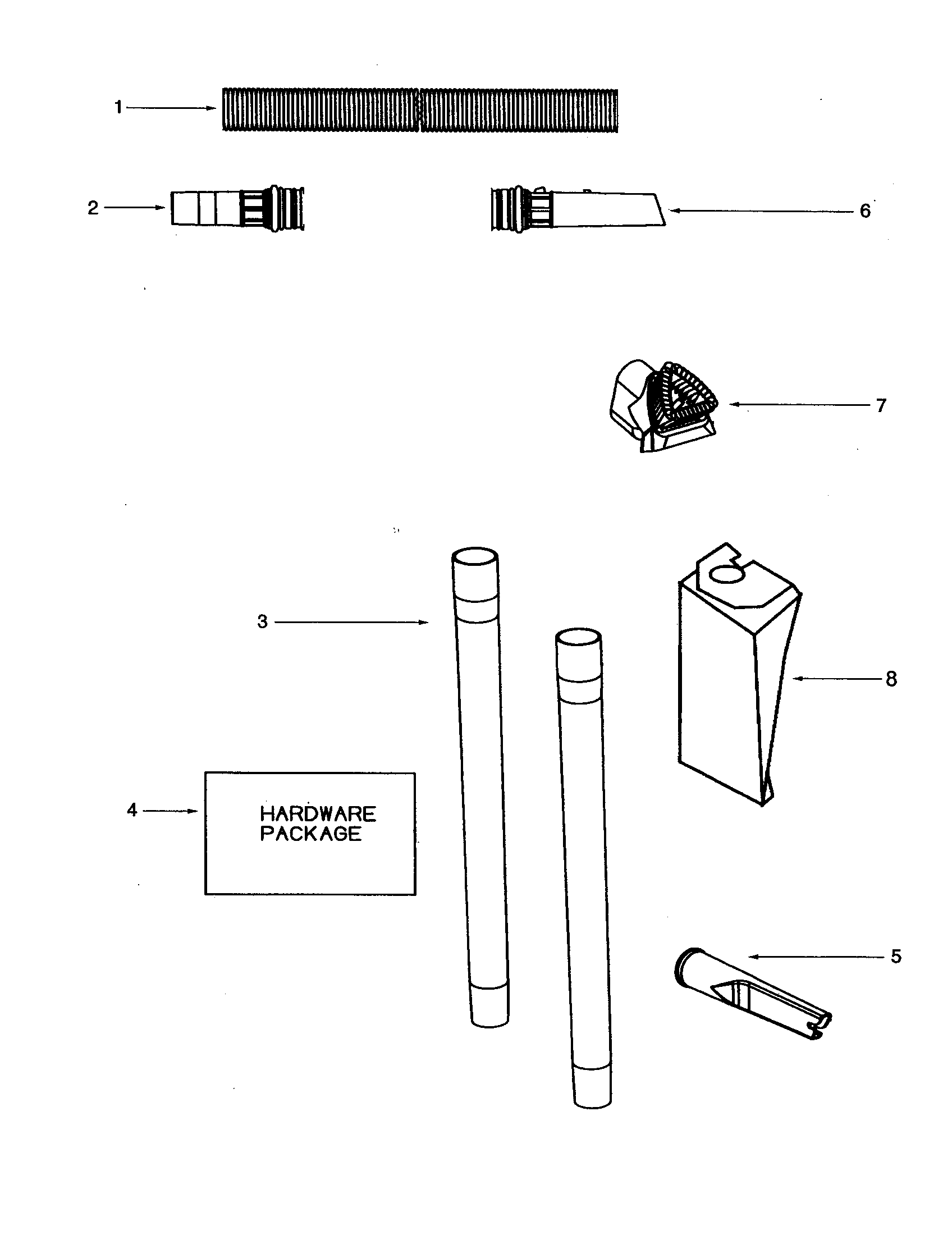

Attachments diagram

Vacuum hose assembly

Part #61028-1

The manufacturer no longer makes this part, and there's no substitute part

Cuff Hose 27468D-119N
#14

Hood diagram

Cuff hose

Part #27468D-119N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle Bracket 14993C-119N
#9

Hood diagram

Vacuum wheel axle bracket

Part #14993C-119N

The manufacturer no longer makes this part, and there's no substitute part
