Model # ARTSC8650E-P1130668NE Official Amana electric slide-in convection smoothtop range
Here are the diagrams and repair parts for Official Amana ARTSC8650E-P1130668NE electric slide-in convection smoothtop range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

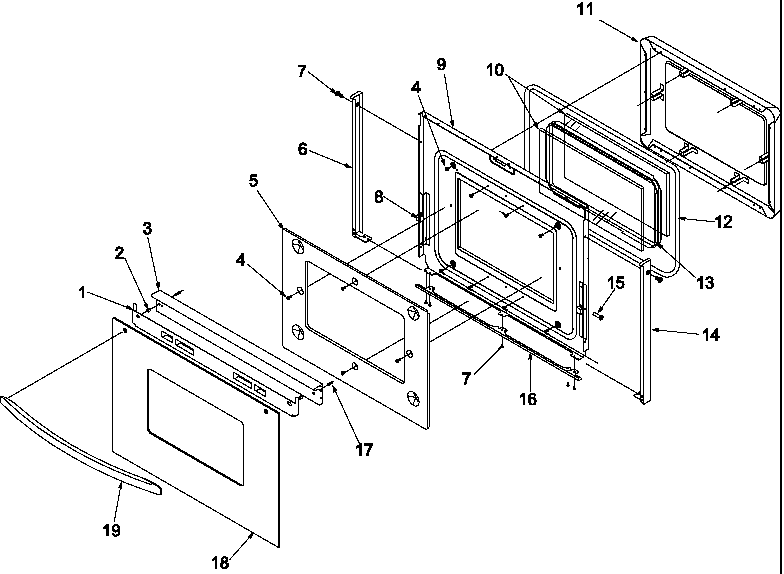

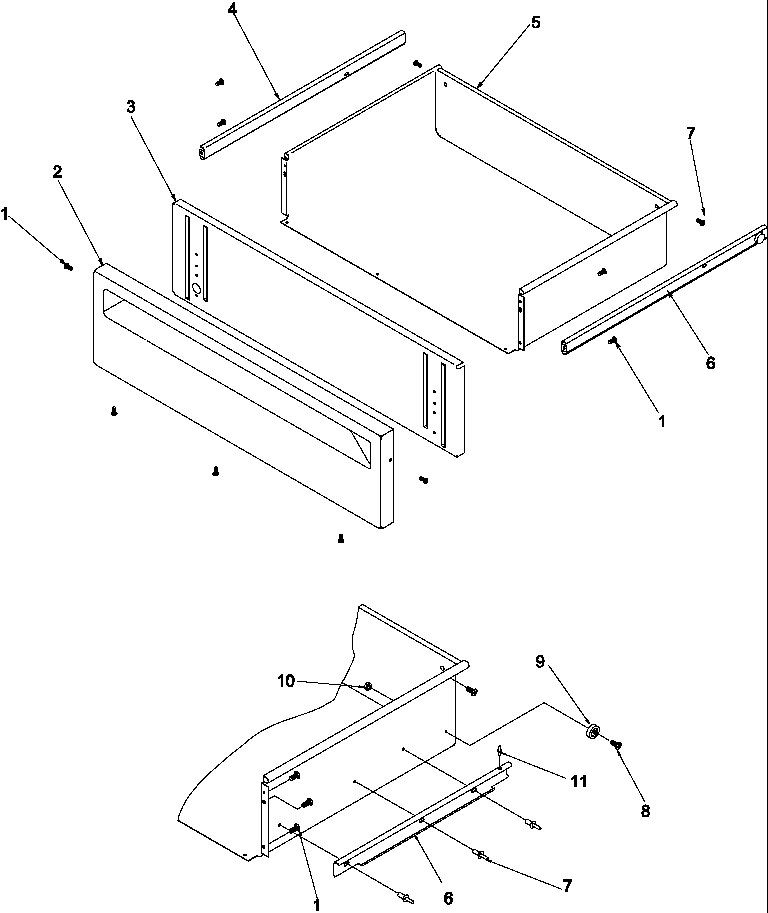

Browse Parts forARTSC8650E-P1130668NE Ranges
- #19

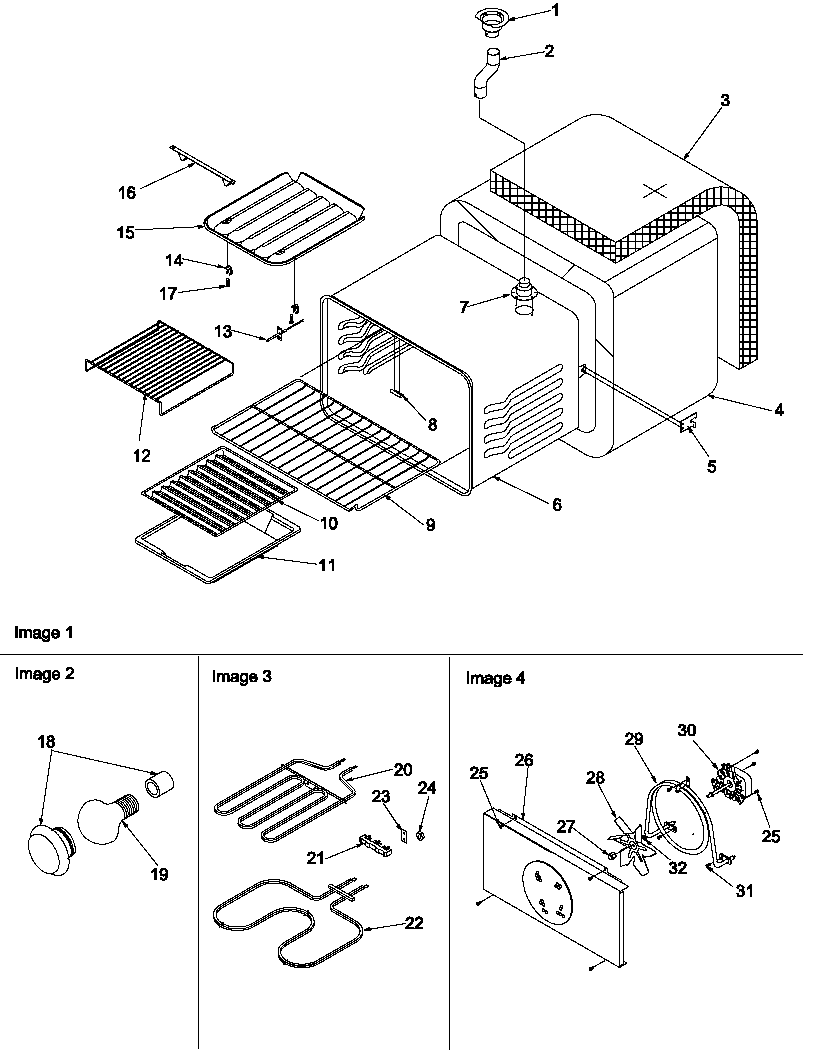

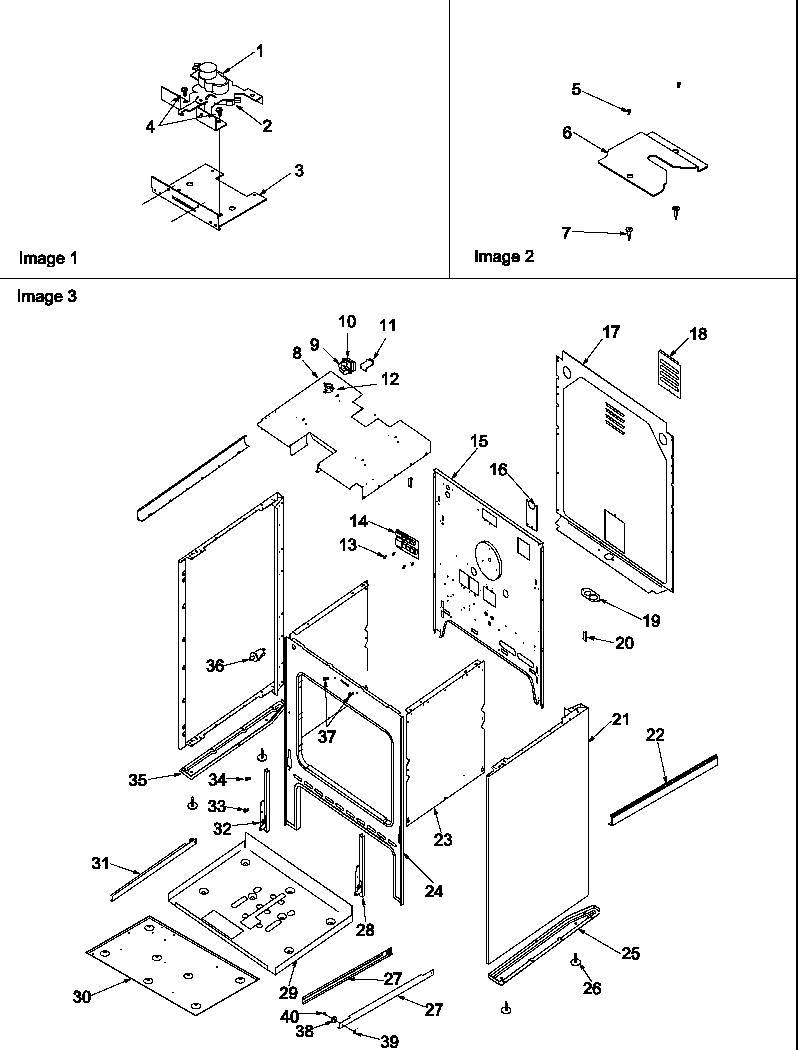

Cavity diagram
LampPart #0042175
Replaced by #40A15
?Manufacturer substitutionThis part replaces 0042175. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #23
Cavity diagram
Cover,backgdPart #0306379
Replaced by #WPW10245259
?Manufacturer substitutionThis part replaces 0306379. Substitute parts can look different from the original.$24.63 |24% OFF Was : $32.40In Stock - Hex nut
Part #31750103
Replaced by #WP3400029
?Manufacturer substitutionThis part replaces 31750103. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #6

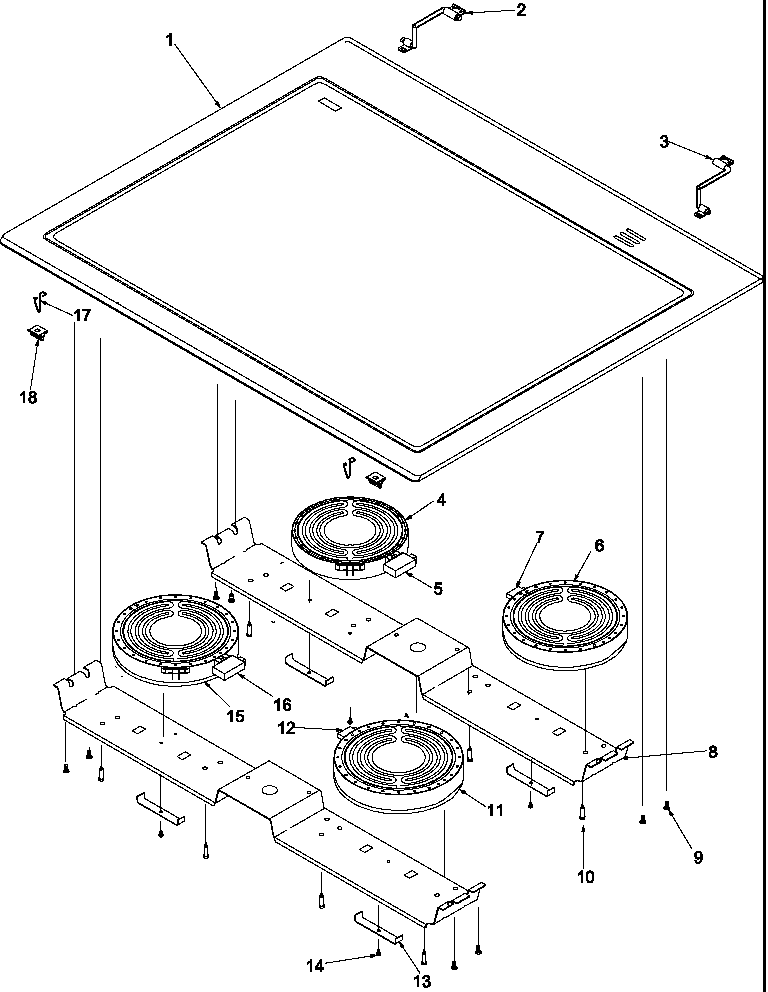

Main top diagram
ElementPart #0314911
Replaced by #W10823699
?Manufacturer substitutionThis part replaces 0314911. Substitute parts can look different from the original.$89.44 |6% OFF Phone Price : $95.44In Stock - #22
Cavity diagram
Element-blkPart #0059552
The manufacturer no longer makes this part, and there's no substitute part
- #2

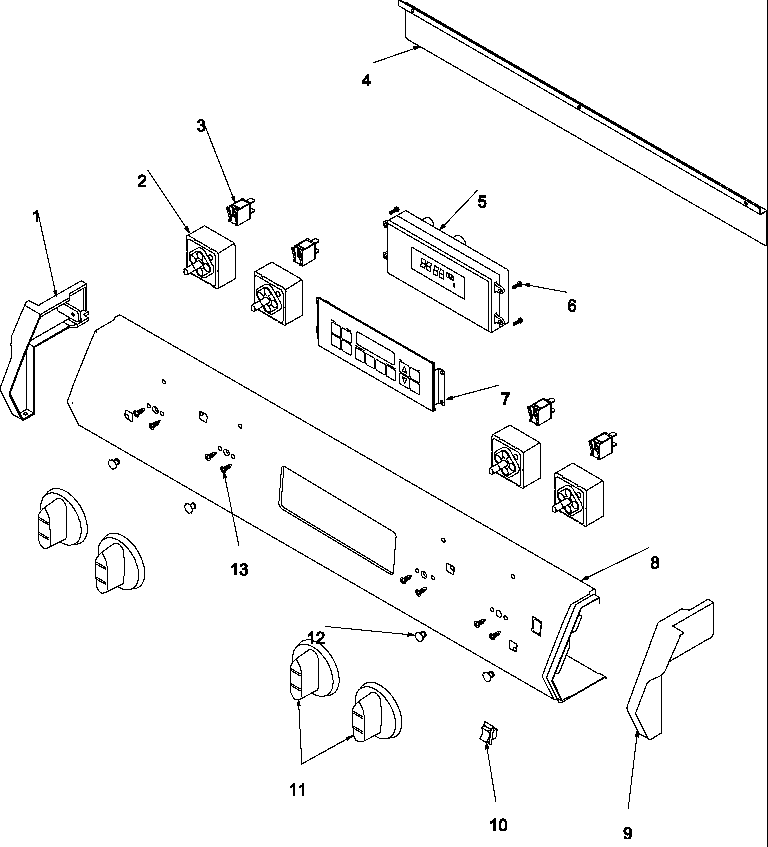

Control panel diagram
Infinite switchPart #0315563
The manufacturer no longer makes this part, and there's no substitute part
- #11
Main top diagram
ElementPart #0314899
Replaced by #W10823726
?Manufacturer substitutionThis part replaces 0314899. Substitute parts can look different from the original.$128.56 |9% OFF Phone Price : $140.56In Stock - #11
Main top diagram
ElementPart #31777801
Replaced by #W10823726
?Manufacturer substitutionThis part replaces 31777801. Substitute parts can look different from the original.$128.56 |9% OFF Phone Price : $140.56In Stock - #18
Cavity diagram
Oven lightPart #0314842
The manufacturer no longer makes this part, and there's no substitute part
- #10
Control panel diagram
SwitchPart #316160L
Replaced by #74008765
?Manufacturer substitutionThis part replaces 316160L. Substitute parts can look different from the original.$41.73 |13% OFF Phone Price : $47.73In Stock
