Model # DCR-DVD908 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-DVD908 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

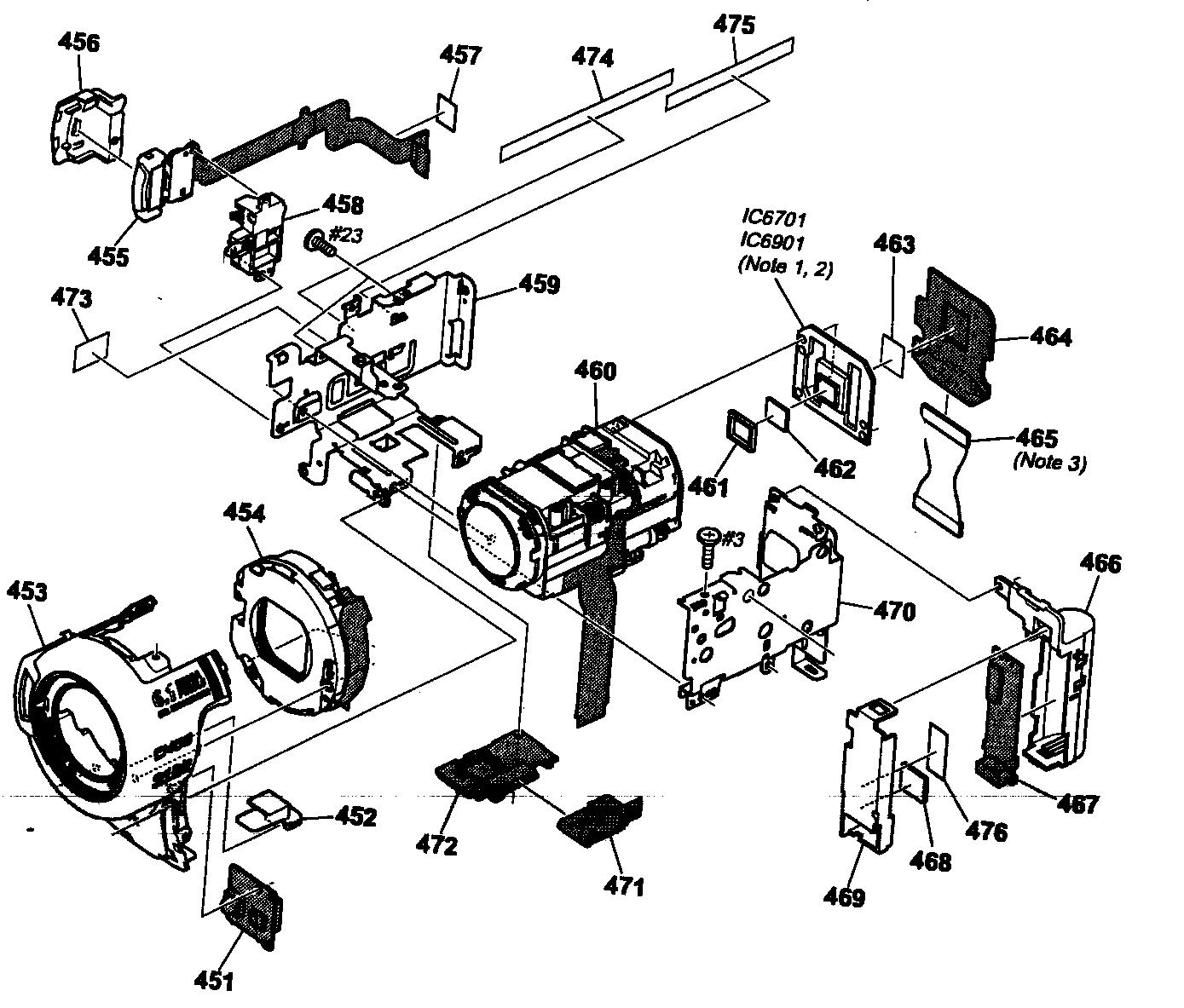

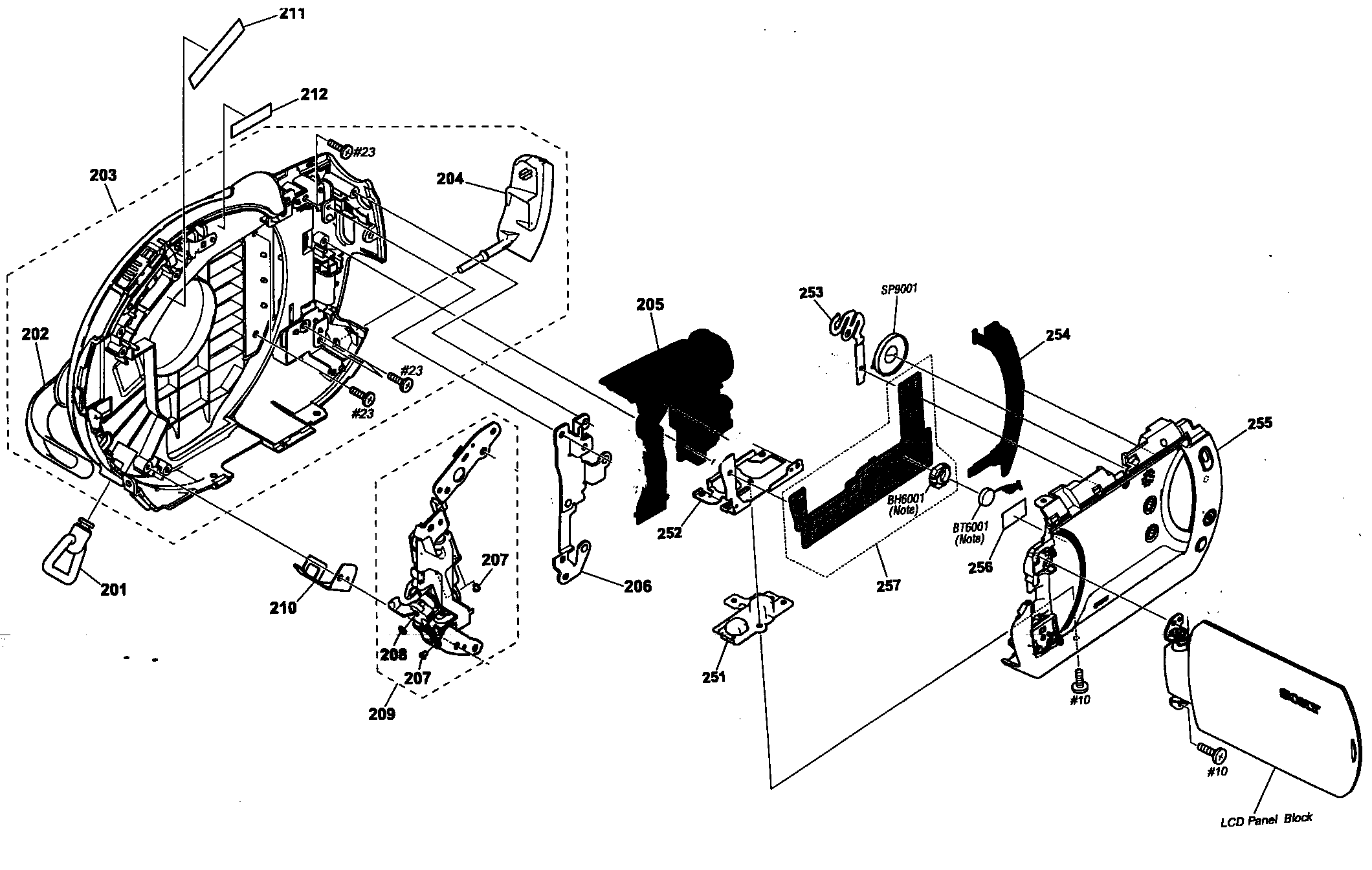

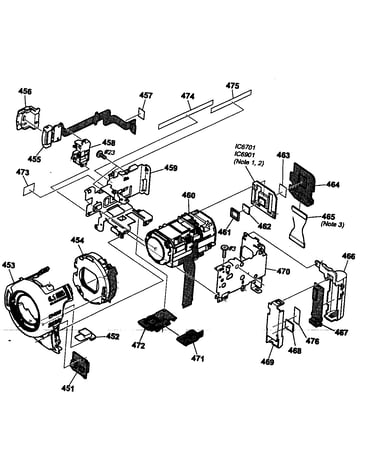

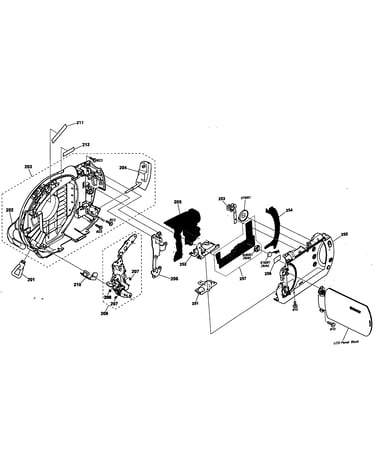

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Fp-534 Pcb 187098911
#501

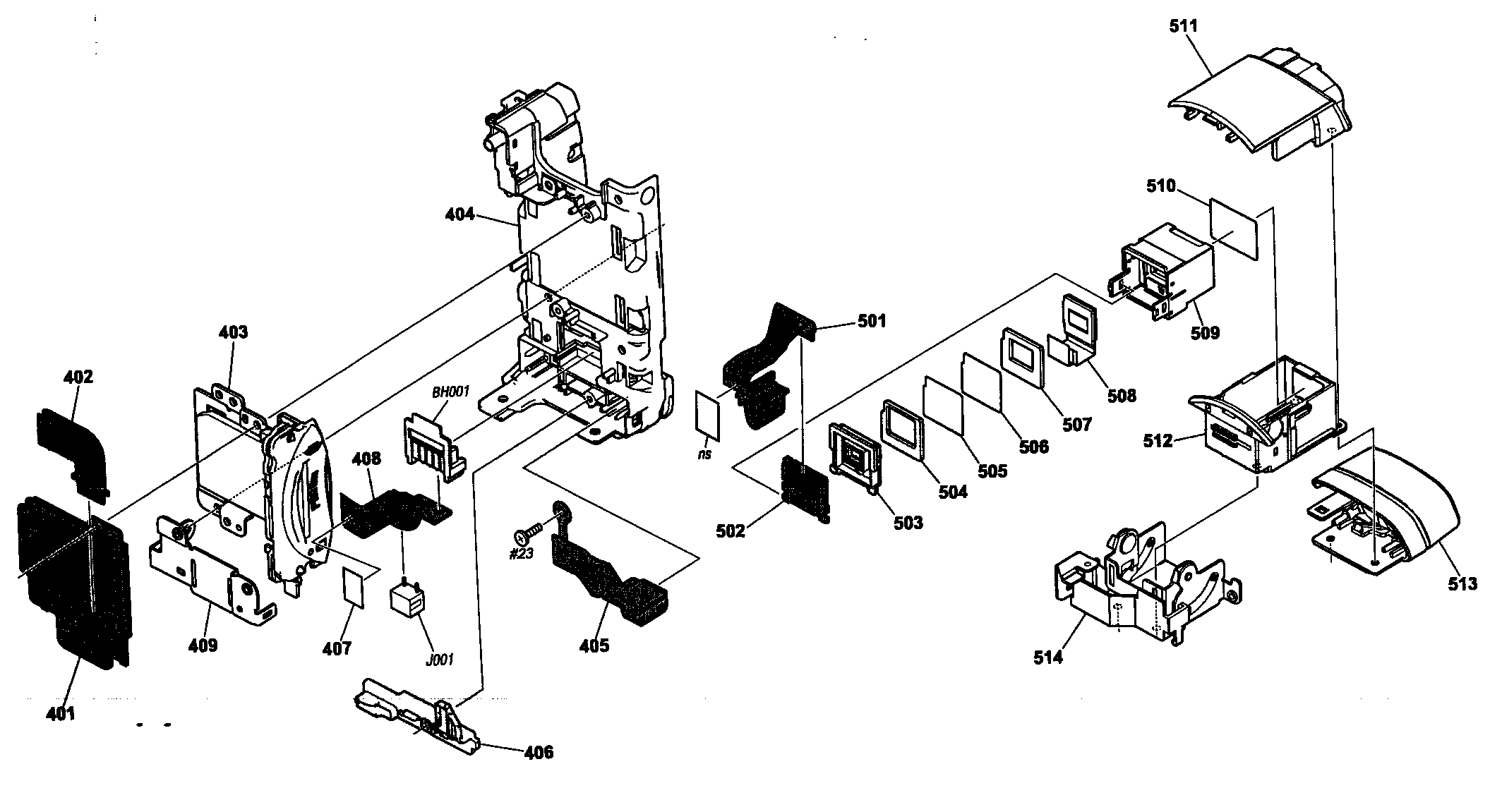

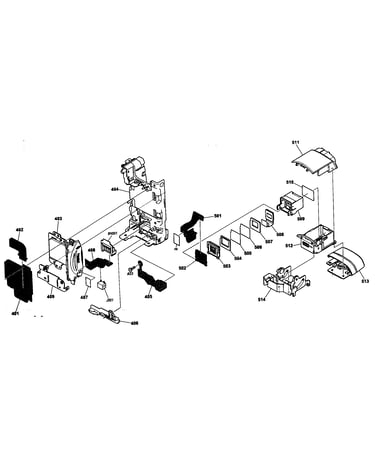

Evf/back assy diagram

Fp-534 pcb

Part #187098911

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Cover 309651401
#53

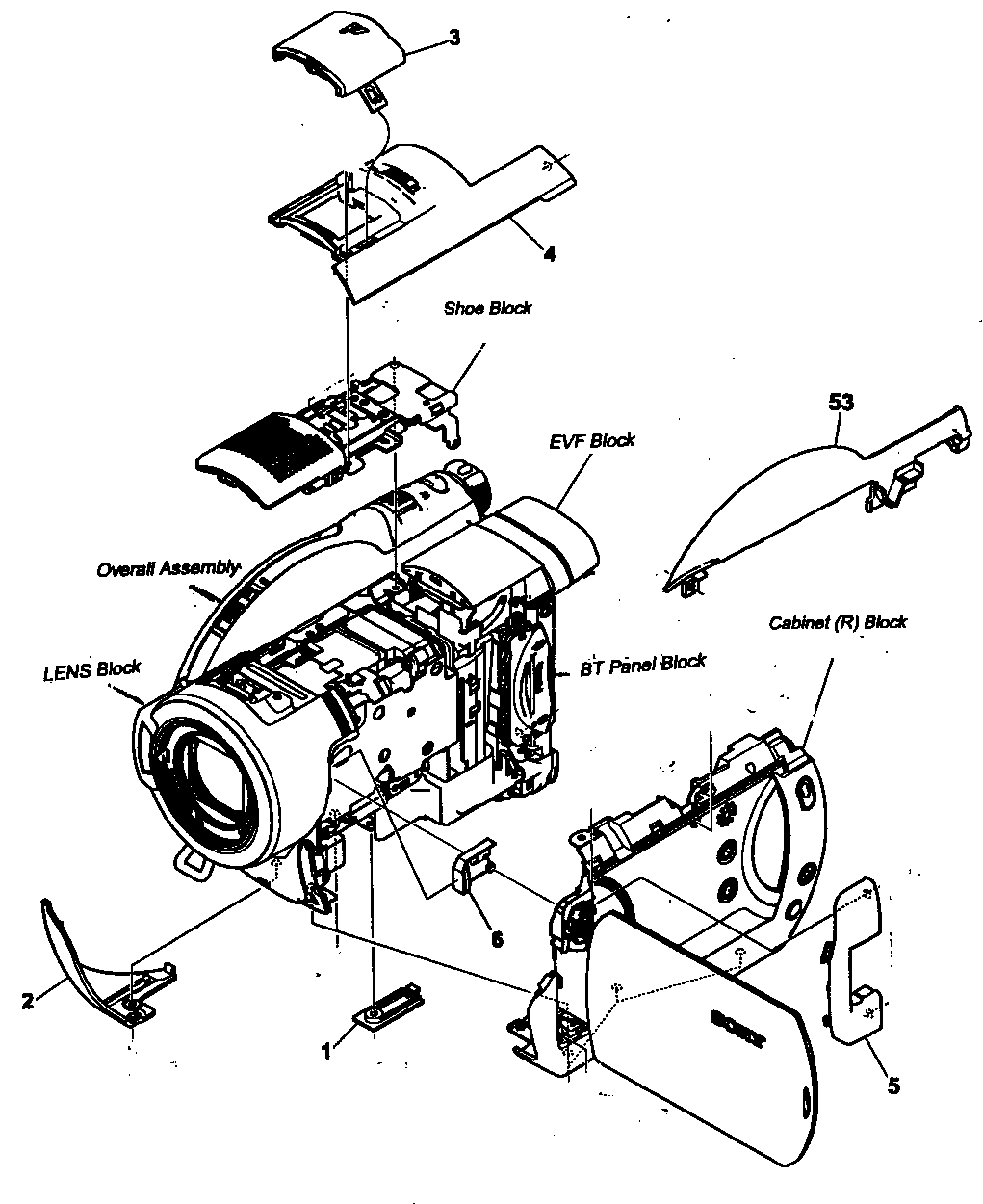

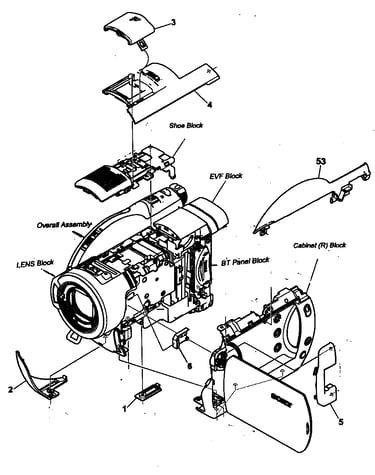

Cabinet parts 1 diagram

Cabinet cover

Part #309651401

The manufacturer no longer makes this part, and there's no substitute part

Prism Sheet 266680301
#320

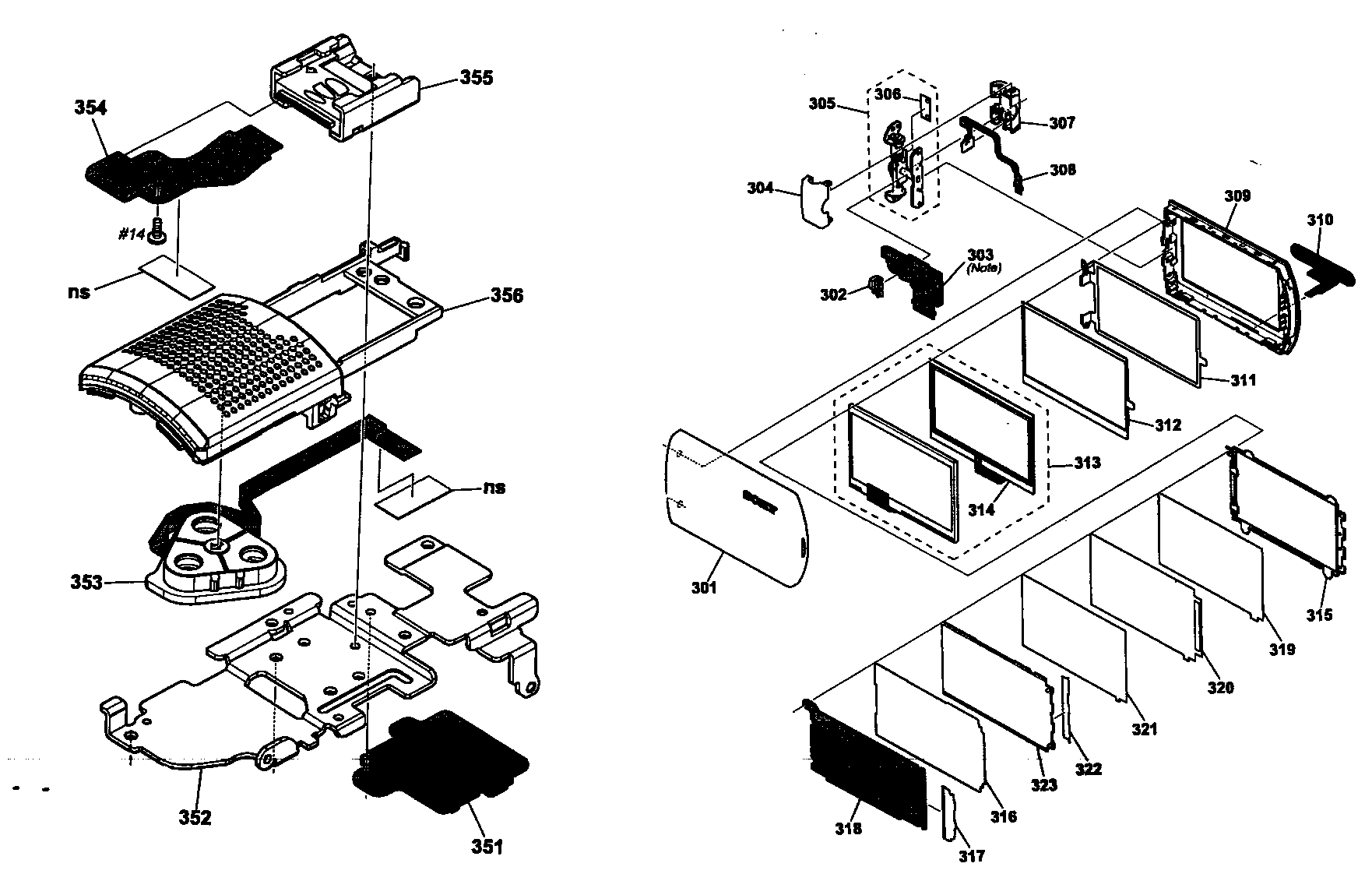

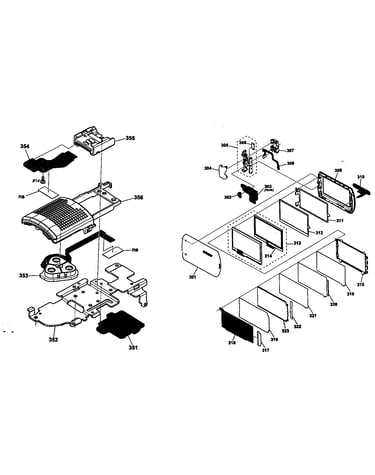

Lcd/top assy diagram

Prism sheet

Part #266680301

The manufacturer no longer makes this part, and there's no substitute part

Eye Cup Assembly X21768881
#513

Evf/back assy diagram

Eye cup assembly

Part #X21768881

The manufacturer no longer makes this part, and there's no substitute part

Connector 181889011
#355

Lcd/top assy diagram

Connector

Part #181889011

The manufacturer no longer makes this part, and there's no substitute part

Jack 179399521
#NI

Cabinet parts 1 diagram

Jack

Part #179399521

The manufacturer no longer makes this part, and there's no substitute part

Cable Audio Video 182315651
#NI

Cabinet parts 1 diagram

Cable audio video

Part #182315651

The manufacturer no longer makes this part, and there's no substitute part

Fp-531 Pcb A1242023A
#405

Evf/back assy diagram

Fp-531 pcb

Part #A1242023A

The manufacturer no longer makes this part, and there's no substitute part

Fp539 Pcb 187099411
#102

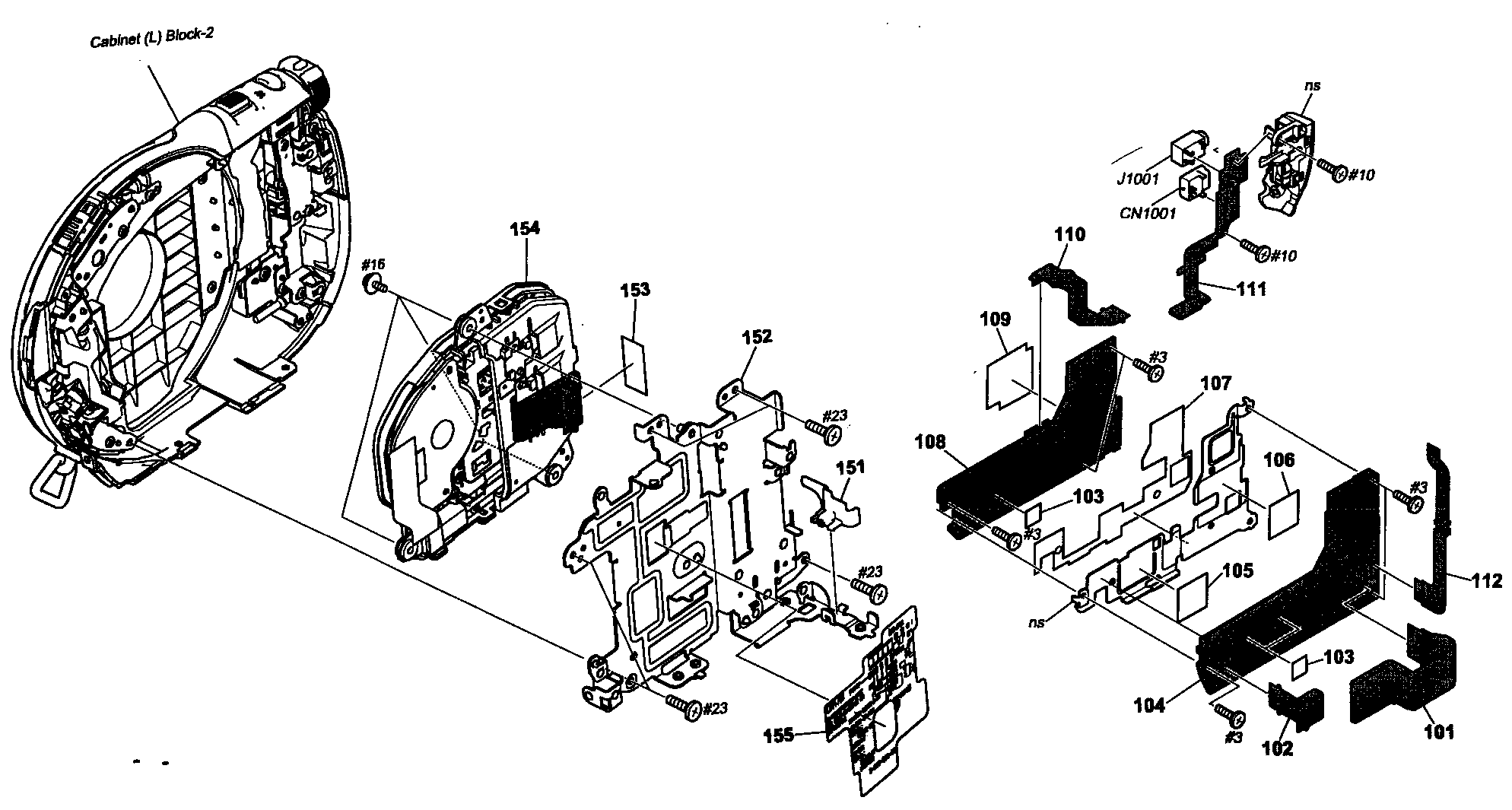

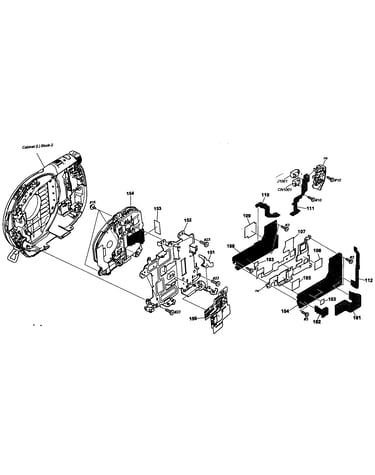

Cabinet parts 2 diagram

Fp539 pcb

Part #187099411

The manufacturer no longer makes this part, and there's no substitute part

Grille Assembly X21768831
#356

Lcd/top assy diagram

Grille assembly

Part #X21768831

The manufacturer no longer makes this part, and there's no substitute part
