Jenn-Air
Electric Wall Oven

Model # 21137 Official Jenn-Air wall oven

Here are the diagrams and repair parts for Official Jenn-Air 21137 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

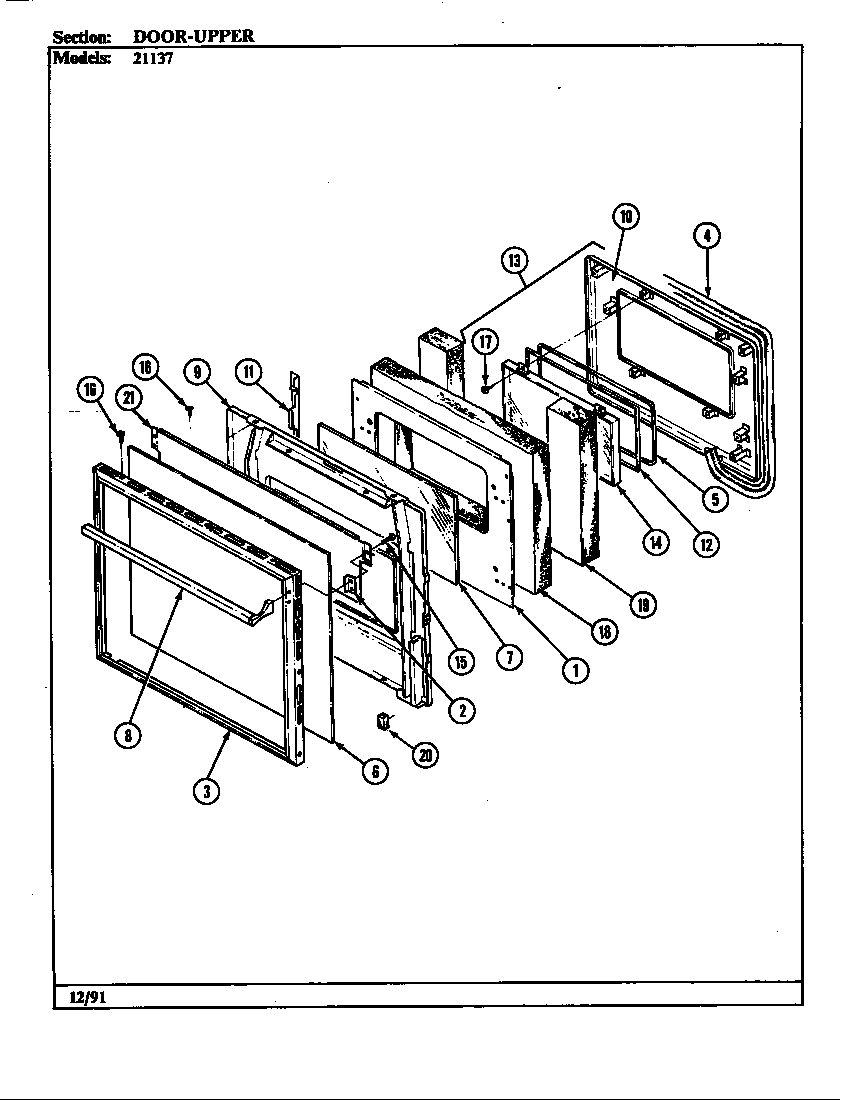

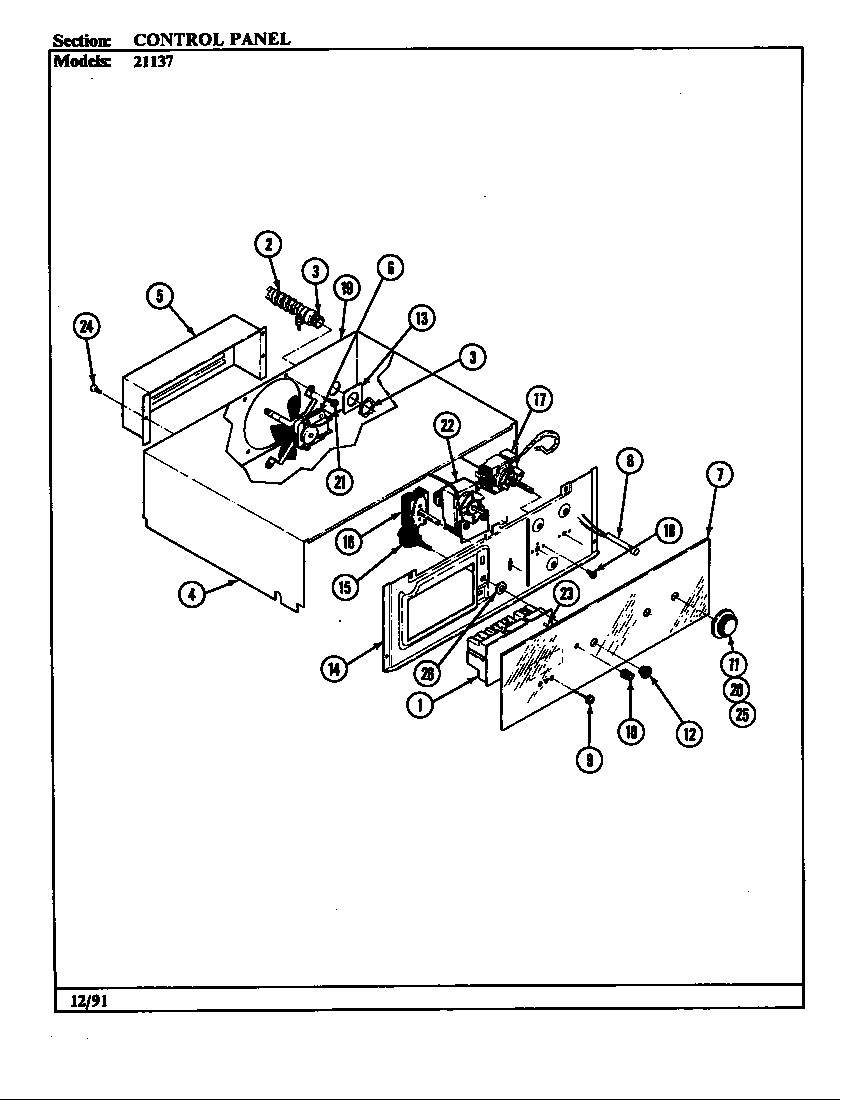

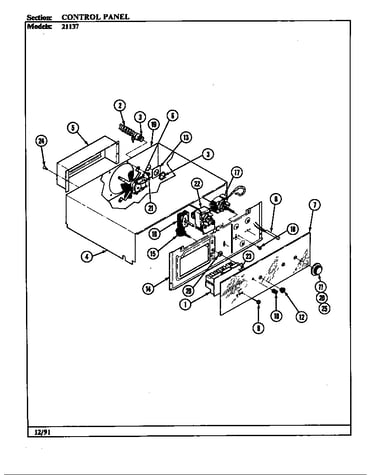

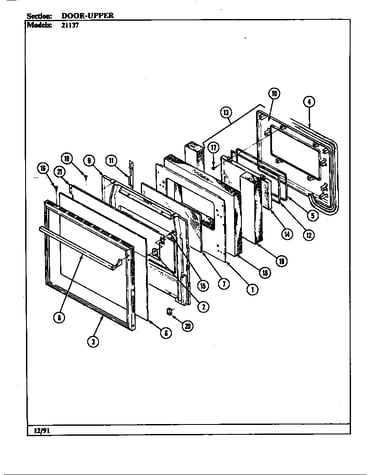

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Screw 7101P115-60
#7

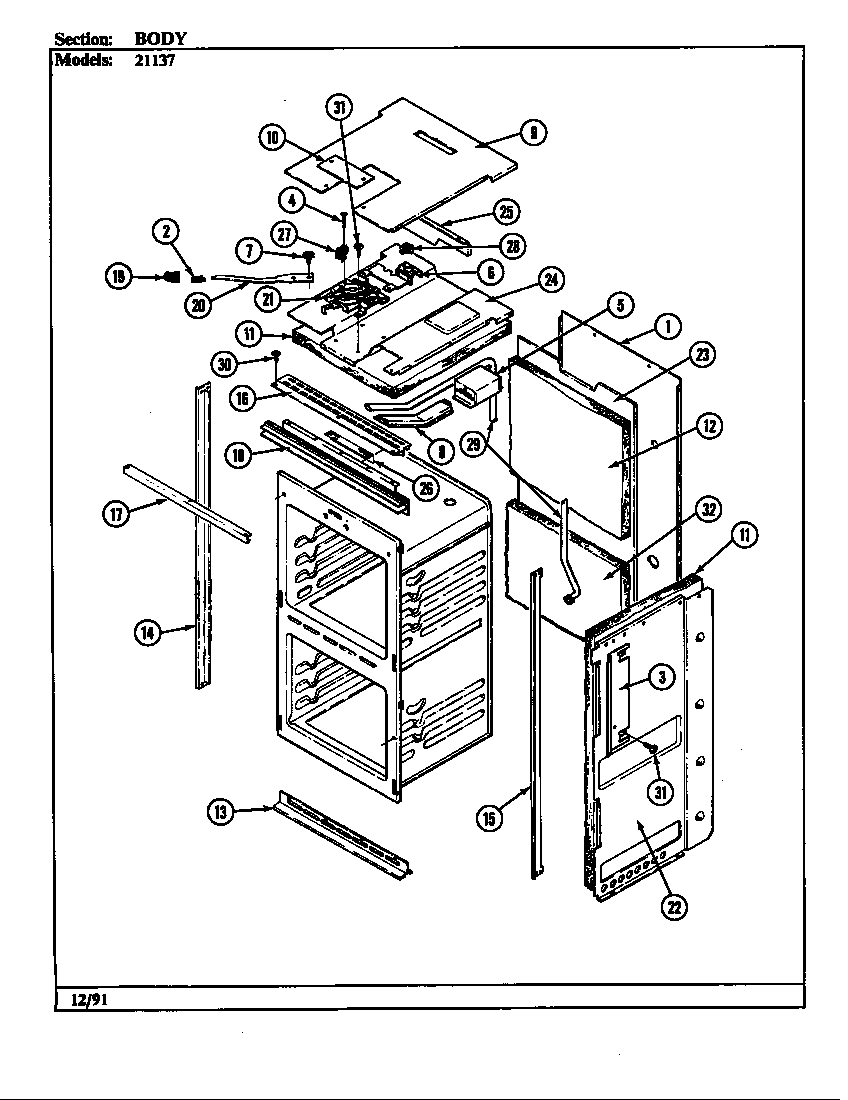

Body diagram

Screw

Part #7101P115-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P115-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Hinge Screw 7101P017-60
#16A

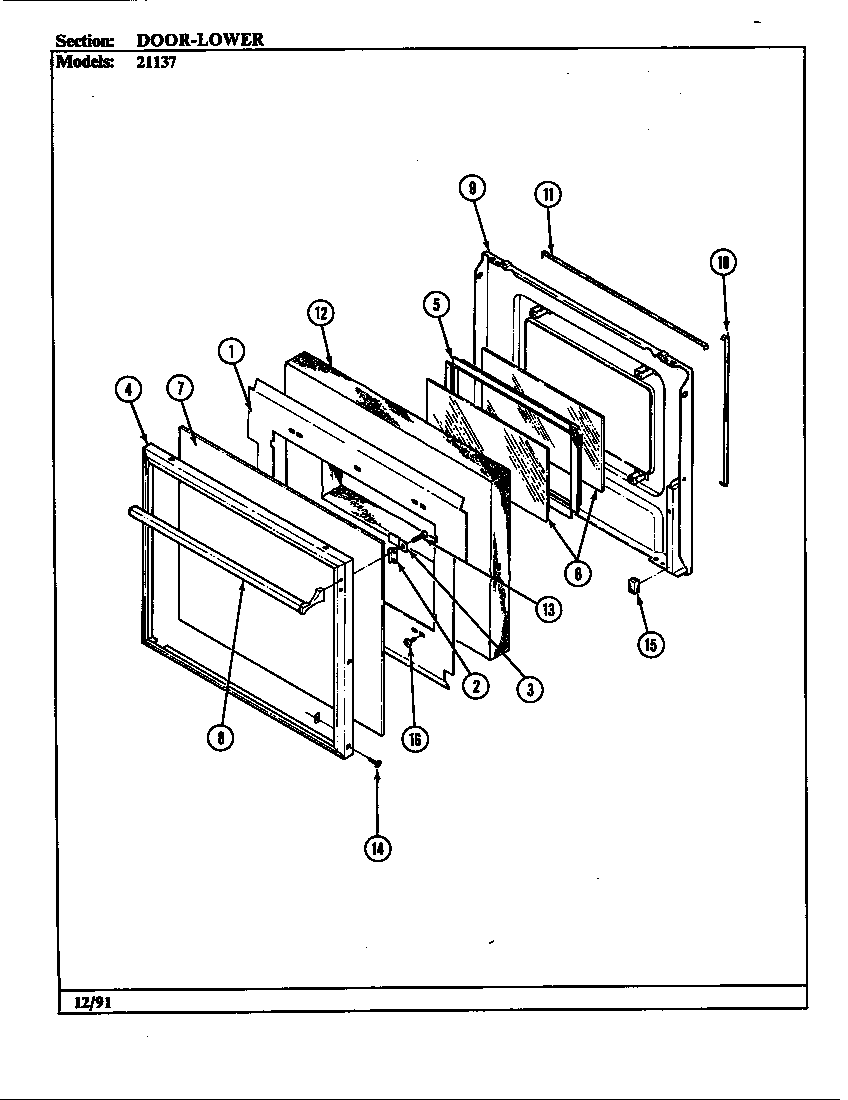

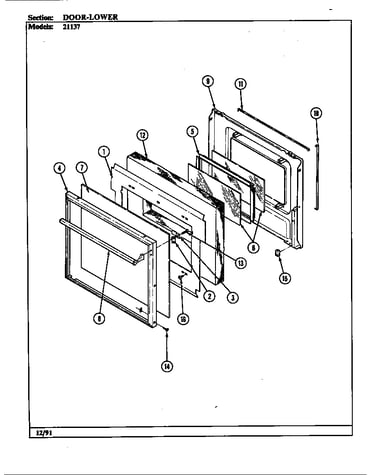

Door (lower) diagram

Hinge screw

Part #7101P017-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P017-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Broiler Element 7406P003-60
#12

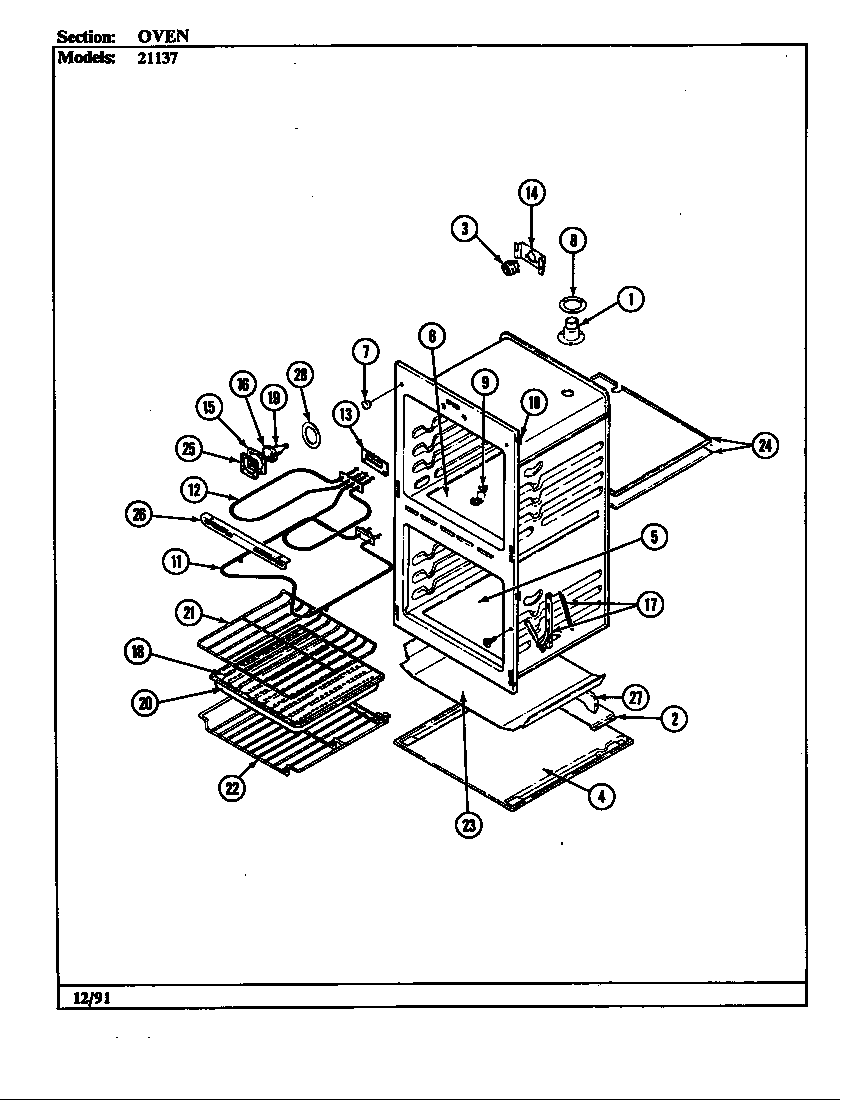

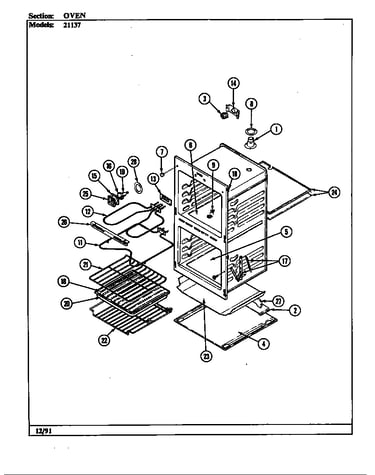

Oven diagram

Broiler element

Part #7406P003-60

Replaced by #WPY04000048

?
Manufacturer substitution
This part replaces 7406P003-60. Substitute parts can look different from the original.
$89.92 |
6% OFF Phone Price : $95.92
In Stock
Bracket Screw 7101P040-60
#30

Body diagram

Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Range Oven Door Seal 7212P006-60
#11

Door (lower) diagram

Range oven door seal

Part #7212P006-60

Replaced by #WP7212P006-60

?
Manufacturer substitution
This part replaces 7212P006-60. Substitute parts can look different from the original.
$47.20 |
11% OFF Phone Price : $53.20
In Stock
Oven Broiler Pan 3401F015-15
#20

Oven diagram

Oven broiler pan

Part #3401F015-15

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3401F015-15. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Broiler Insert 3413F013-19
#18A

Oven diagram

Broiler insert

Part #3413F013-19

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3413F013-19. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Oven Broiler Insert 3413F013-15
#18

Oven diagram

Oven broiler insert

Part #3413F013-15

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3413F013-15. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Door Seal 7212P007-60
#10

Door (lower) diagram

Door seal

Part #7212P007-60

Replaced by #WP7212P007-60

?
Manufacturer substitution
This part replaces 7212P007-60. Substitute parts can look different from the original.
$47.99 |
11% OFF Phone Price : $53.99
In Stock
Latch Assembly 8002P016-60
#21

Body diagram

Latch assembly

Part #8002P016-60

Replaced by #8002P072-60

?
Manufacturer substitution
This part replaces 8002P016-60. Substitute parts can look different from the original.
$135.93 |
8% OFF Phone Price : $147.93
In Stock
