Model # 143640056 Official Craftsman carburetor

Here are the diagrams and repair parts for Official Craftsman 143640056 carburetor, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
143640056 Carburetor
Troybilt Lawn & Garden Equipment Engine Carburetor Rebuild Kit (replaces 632760a, 632809) 632760B
#(NI)

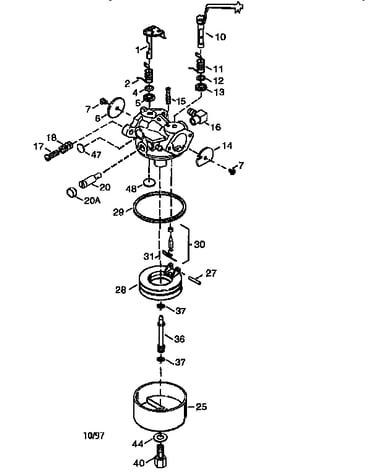

Carburetor 640056 diagram

Troybilt lawn & garden equipment engine carburetor rebuild kit (replaces 632760a, 632809)

Part #632760B

BEST SELLER
$25.02
19% OFF Phone Price : $31.02
In Stock
Gasket 27110
#44

Carburetor 640056 diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Fuel Inlet Fitting 632527
#16

Carburetor 640056 diagram

Lawn & garden equipment engine carburetor fuel inlet fitting

Part #632527

This item is not returnable
$9.59
9% OFF Phone Price : $10.59
In Stock
Troybilt Carburetor Float 631024
#27

Carburetor 640056 diagram

Troybilt carburetor float

Part #631024

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Carburetor Float Pin 631022
#31

Carburetor 640056 diagram

Lawn & garden equipment engine carburetor float pin

Part #631022

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Nozzle 640019
#36

Carburetor 640056 diagram

Lawn & garden equipment engine carburetor nozzle

Part #640019

This item is not returnable
In Stock
Troybilt Lawn & Garden Equipment Engine Tension Spring 630766
#18

Carburetor 640056 diagram

Troybilt lawn & garden equipment engine tension spring

Part #630766

This item is not returnable
In Stock
Troybilt Lawn & Garden Equipment Engine Welch Plug 630748
#47

Carburetor 640056 diagram

Troybilt lawn & garden equipment engine welch plug

Part #630748

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Throttle Shaft 631615
#1

Carburetor 640056 diagram

Lawn & garden equipment engine throttle shaft

Part #631615

This item is not returnable
$10.29
16% OFF Phone Price : $12.29
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor O-ring 632547
#37

Carburetor 640056 diagram

Troybilt lawn & garden equipment engine carburetor o-ring

Part #632547

This item is not returnable
$3.64
22% OFF Phone Price : $4.64
In Stock
