Model # SC-D372 Official Samsung digital camcorder

Here are the diagrams and repair parts for Official Samsung SC-D372 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

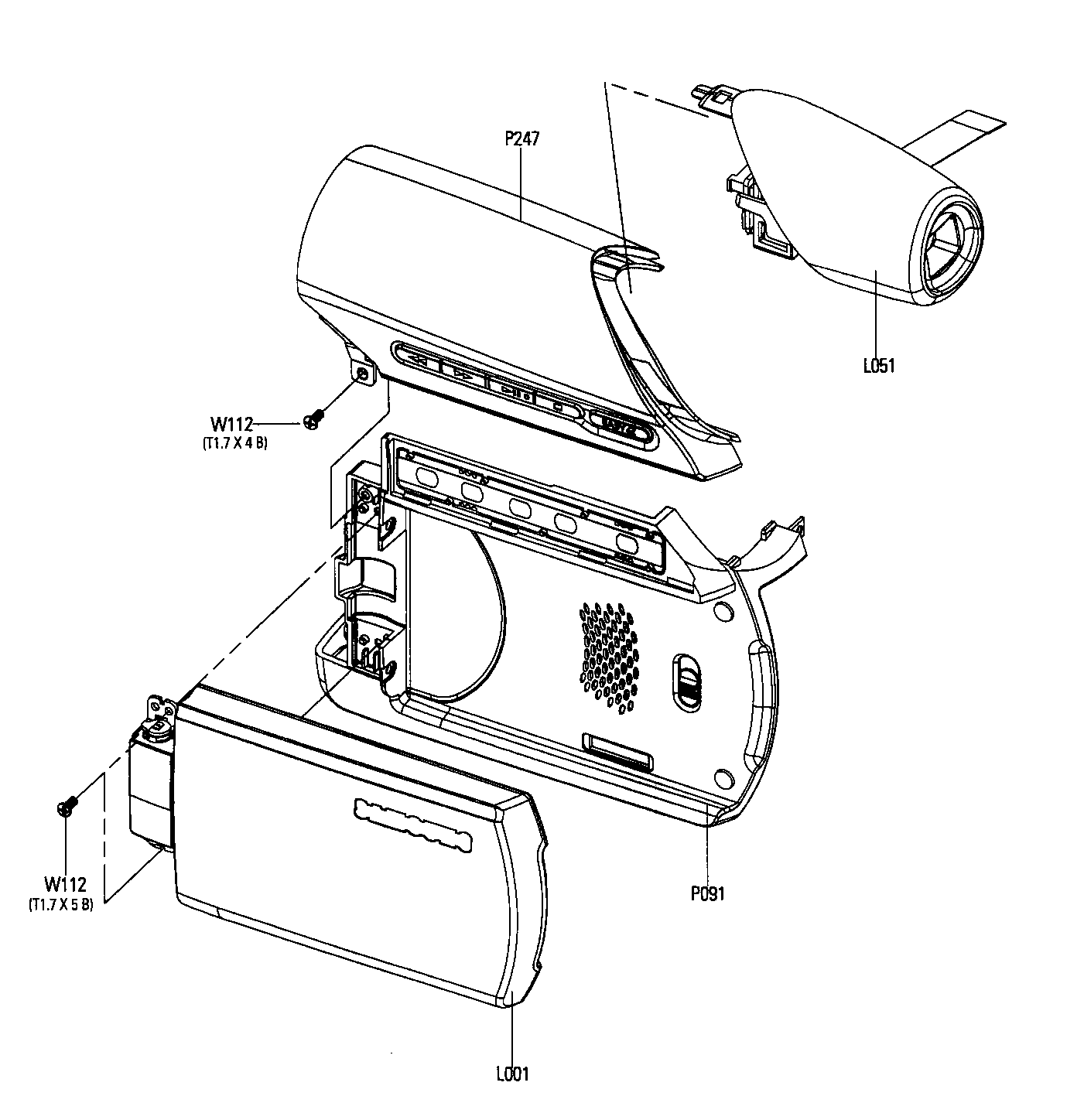

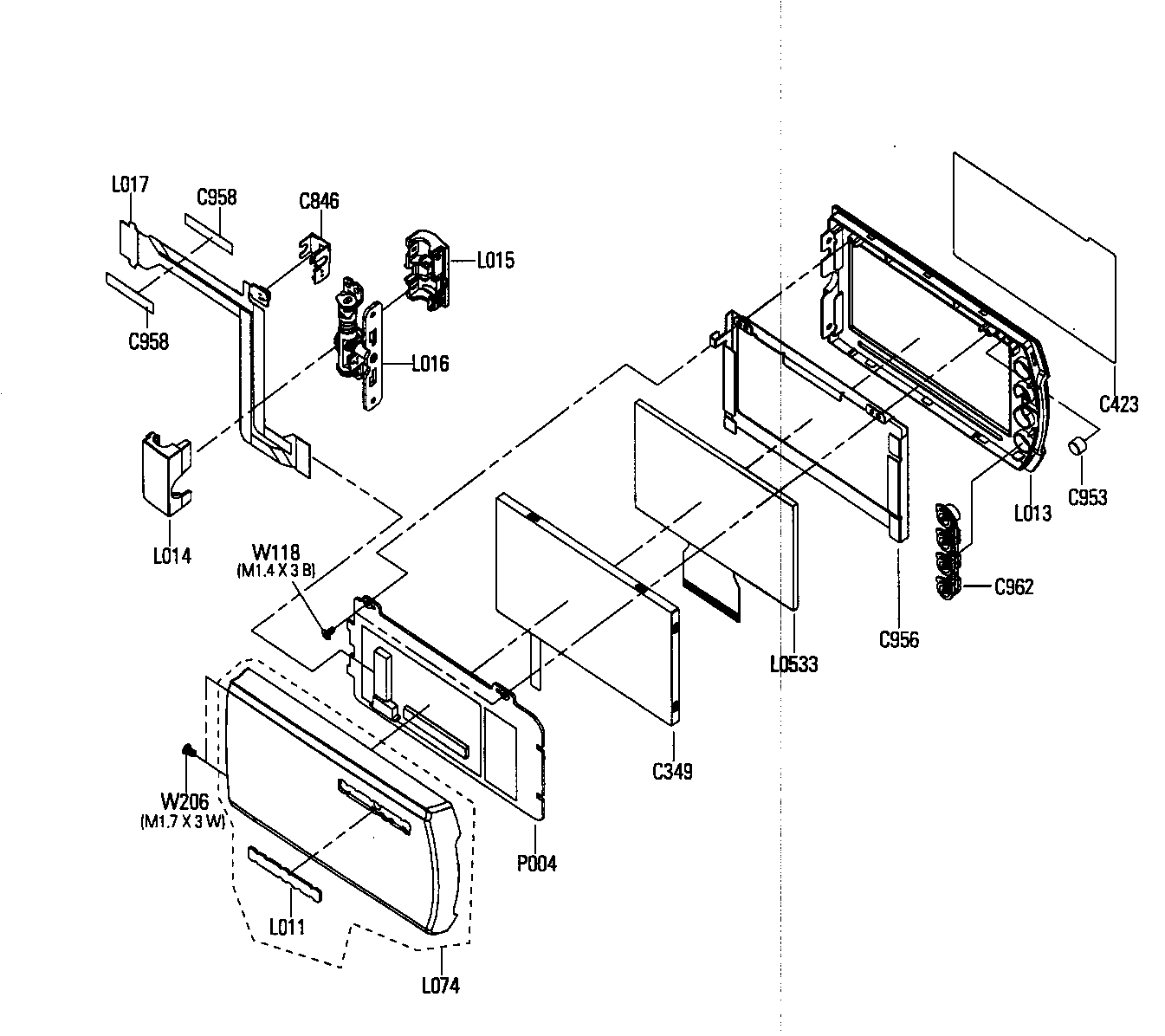

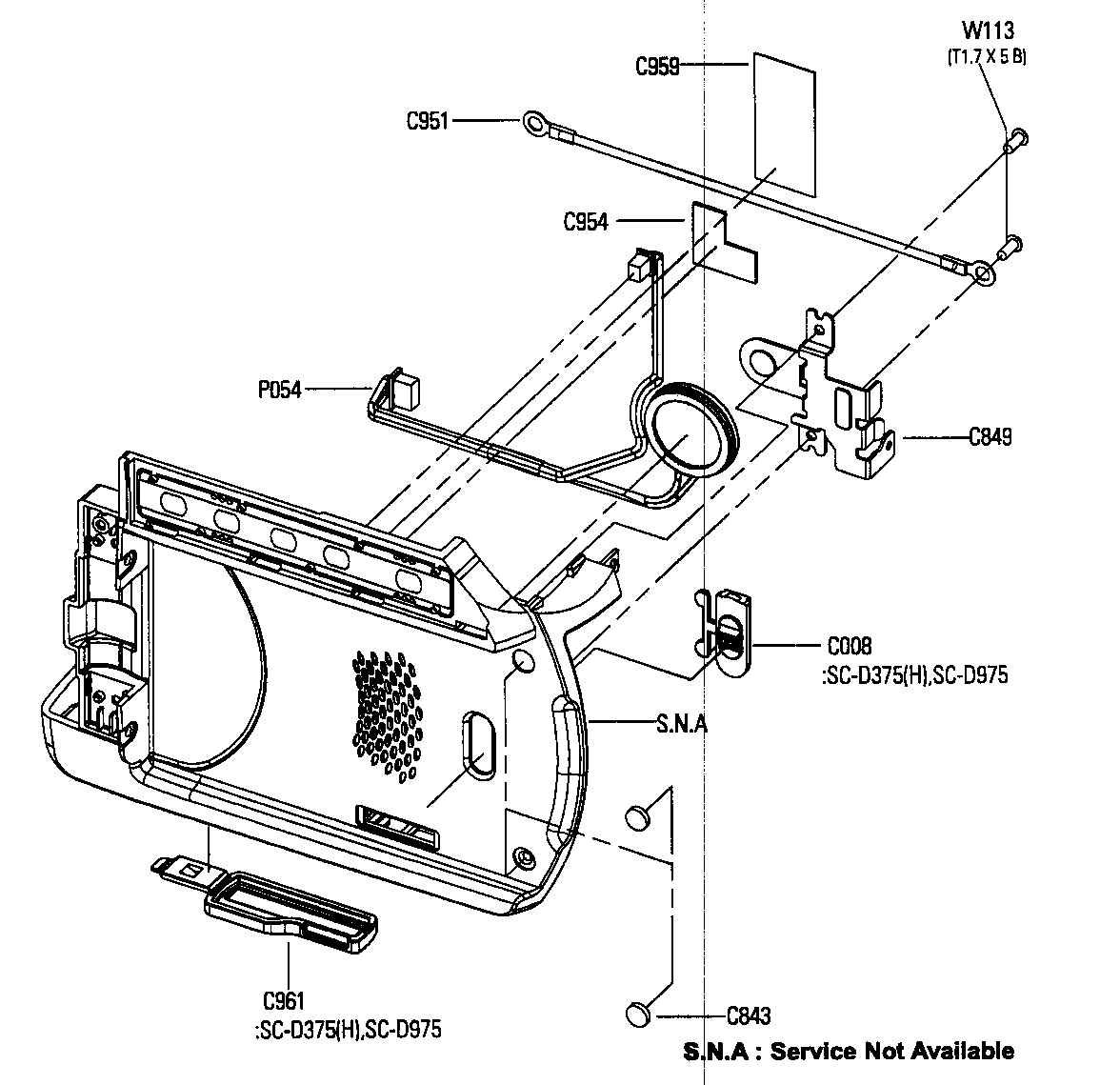

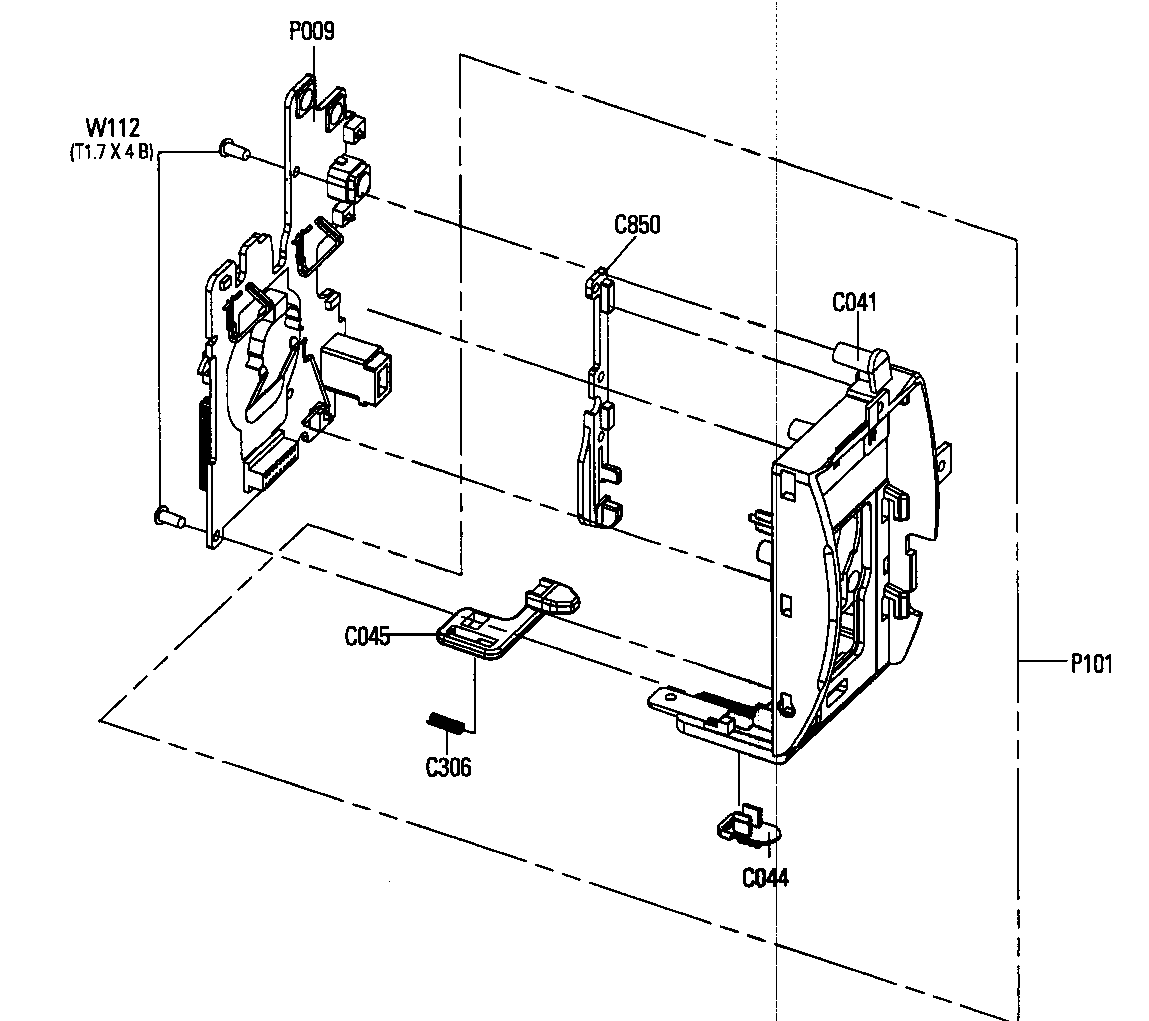

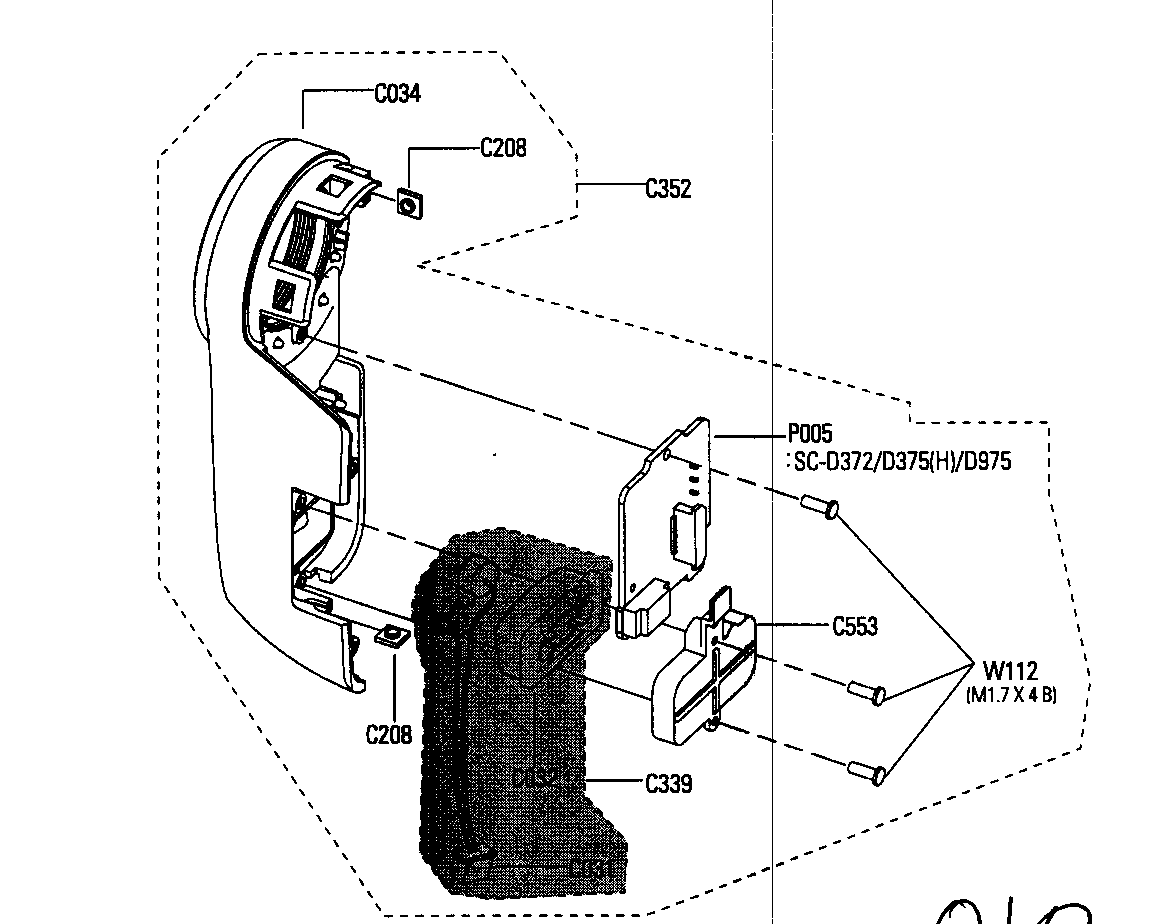

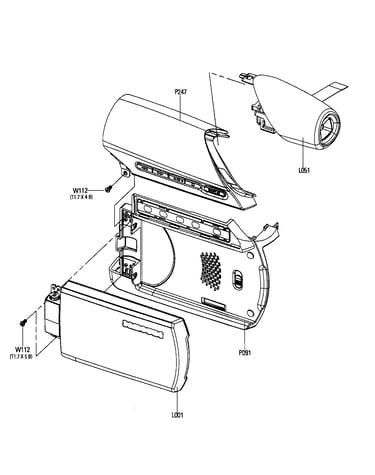

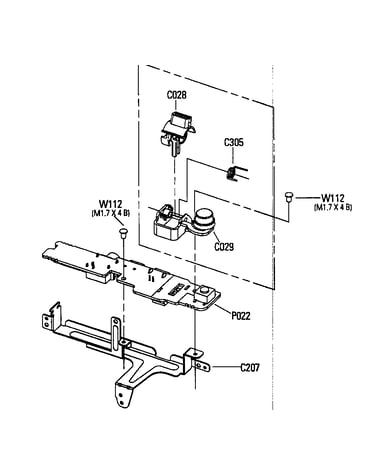

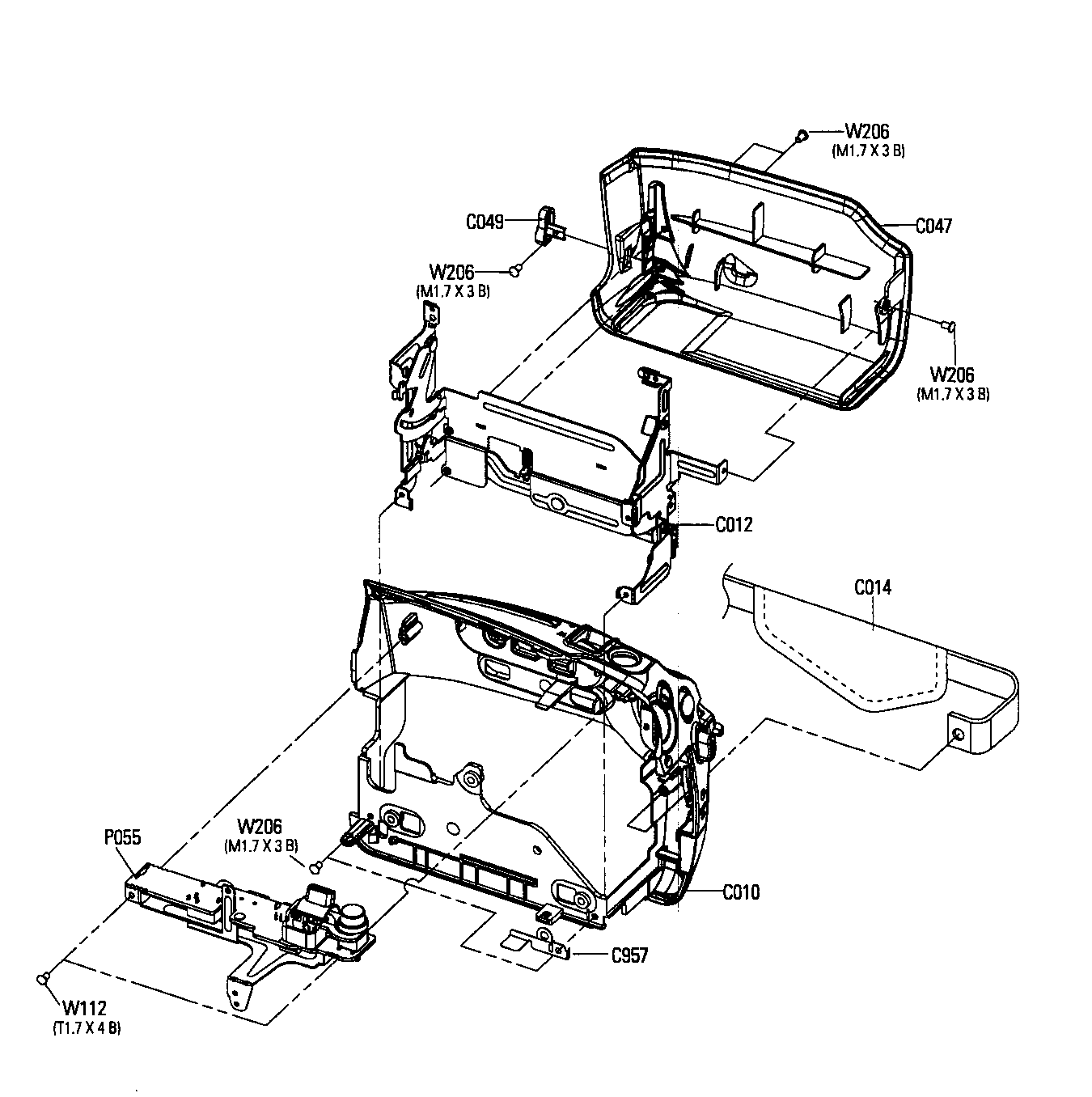

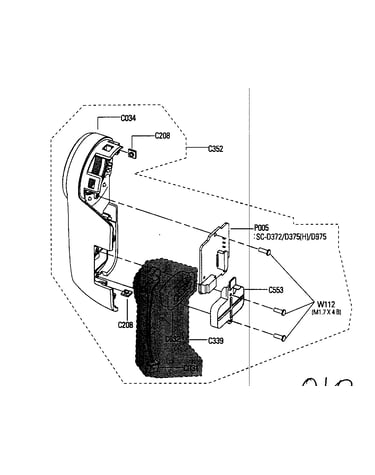

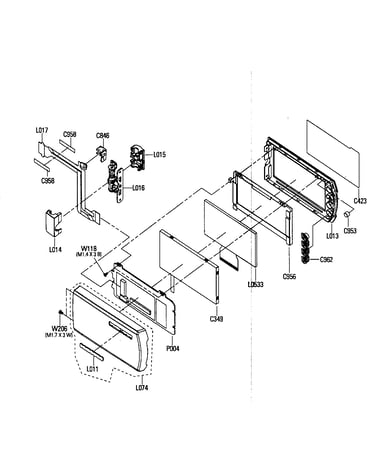

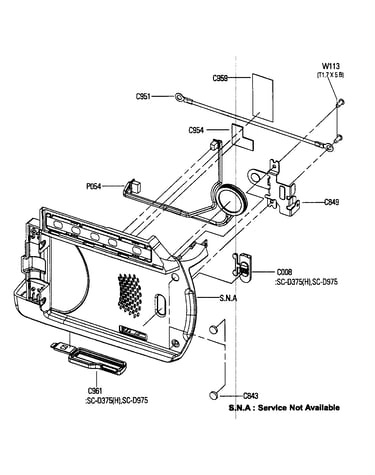

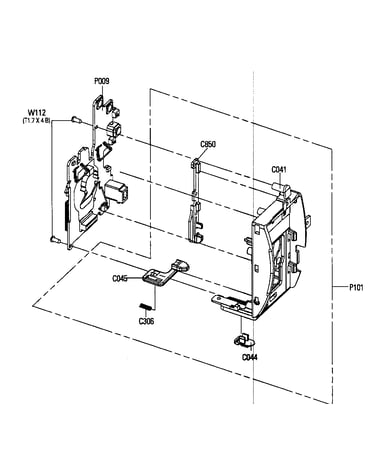

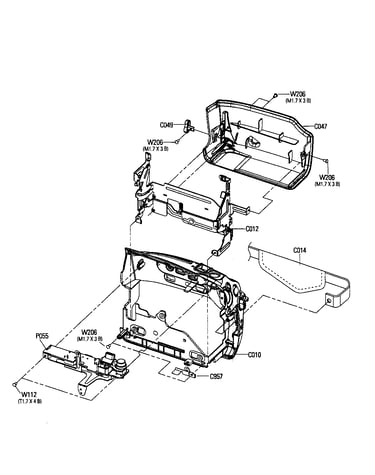

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |

Bracket-nu AD61-12033A
#C208

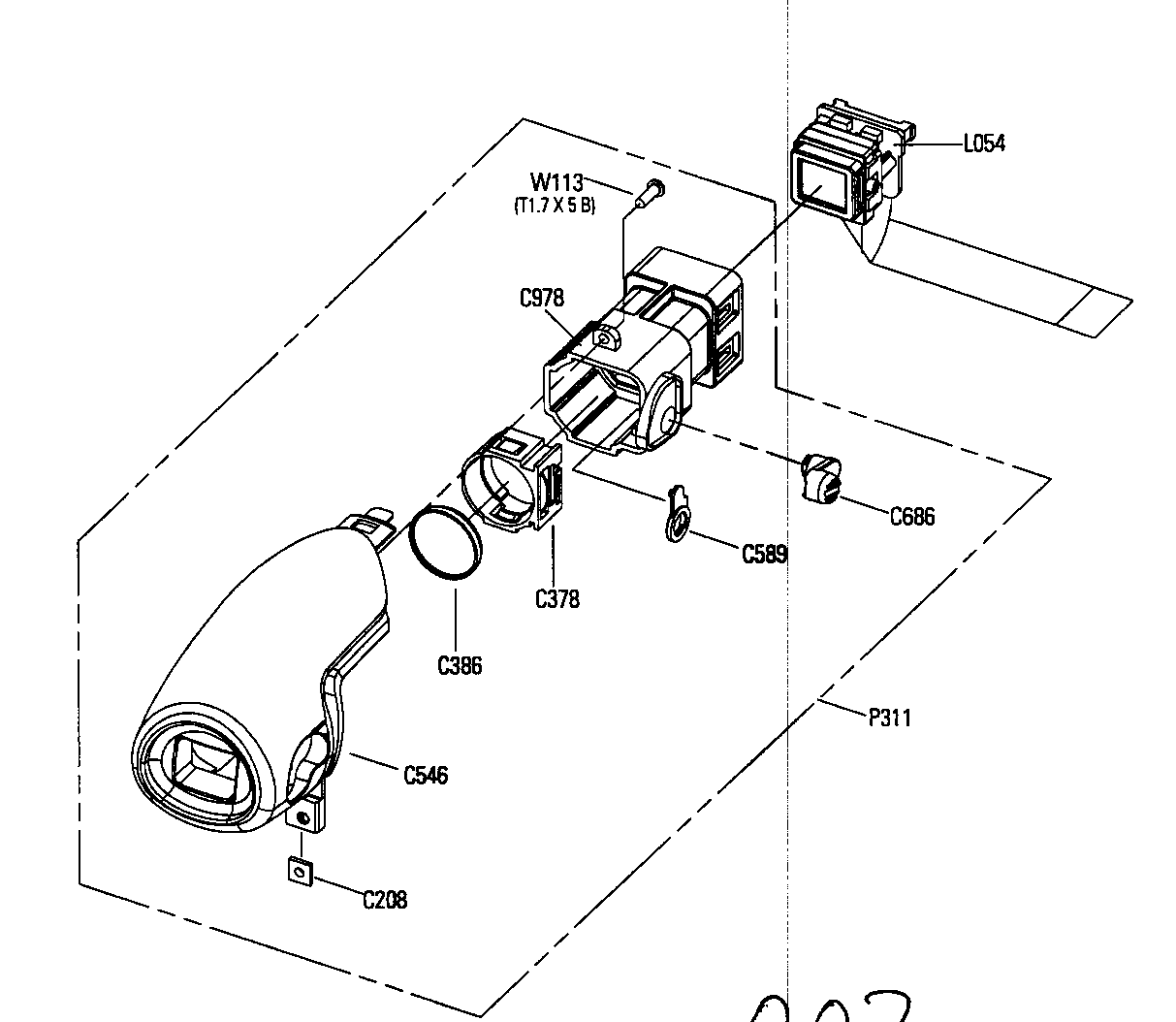

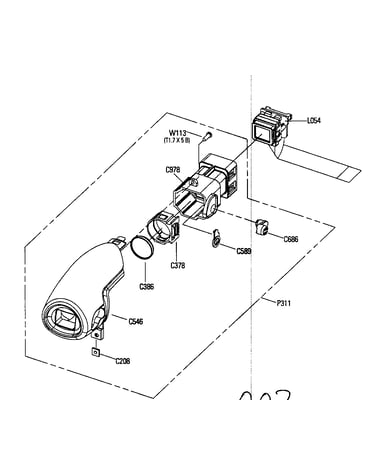

Cvf assy diagram

Bracket-nu

Part #AD61-12033A

The manufacturer no longer makes this part, and there's no substitute part

Fuse 3601-001331
#NI

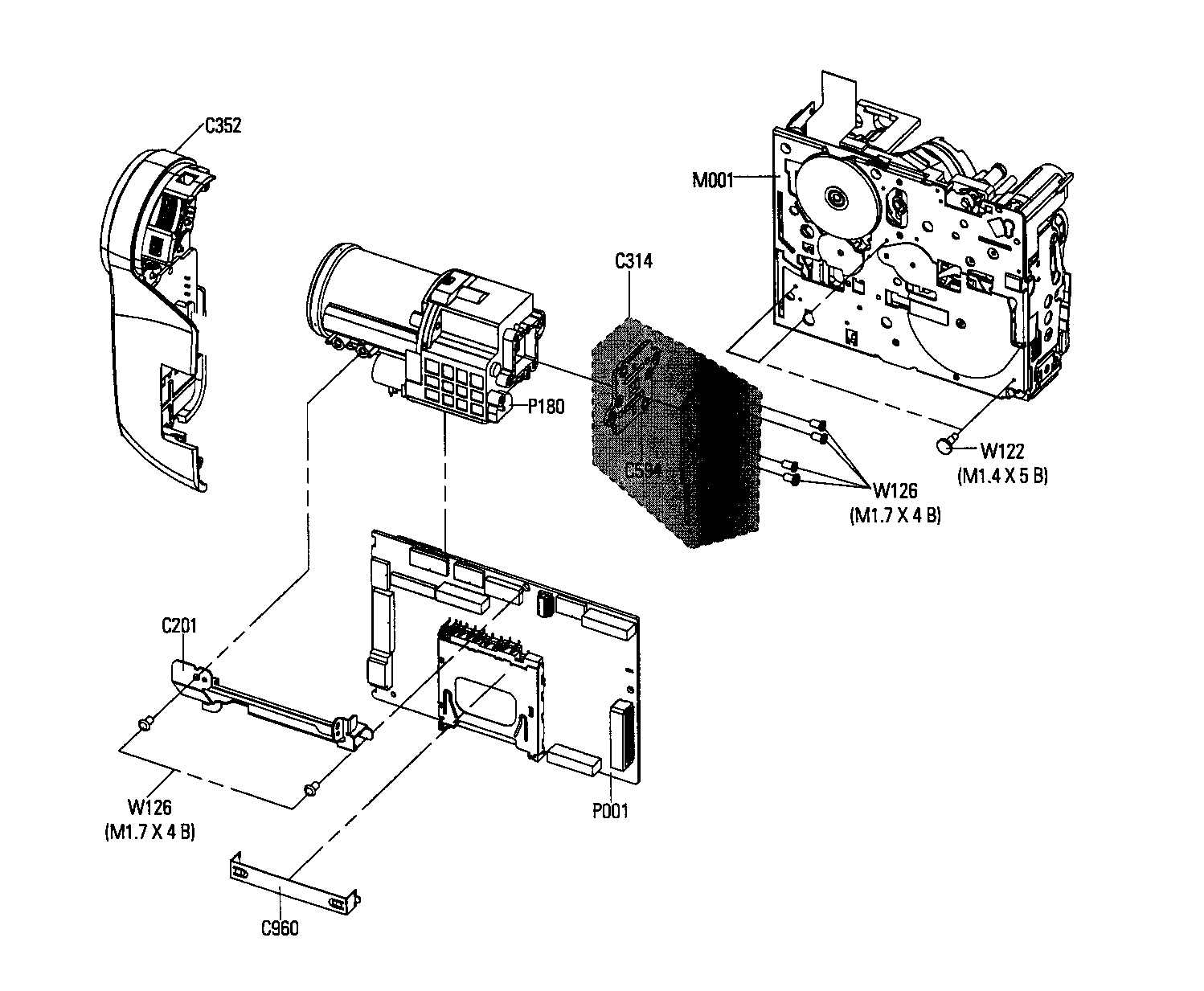

Chassis assy diagram

Fuse

Part #3601-001331

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 0801-002417
#NI

Chassis assy diagram

Integrated circuit

Part #0801-002417

The manufacturer no longer makes this part, and there's no substitute part

Ffc Cable 3809-001481
#NI

Chassis assy diagram

Ffc cable

Part #3809-001481

The manufacturer no longer makes this part, and there's no substitute part

Deck Assembly AD97-12038A
#M001

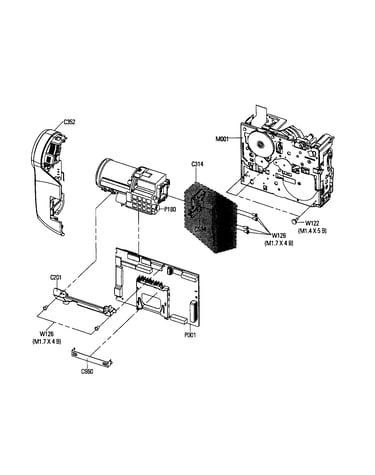

Chassis assy diagram

Deck assembly

Part #AD97-12038A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1003-001065
#NI

Chassis assy diagram

Integrated circuit

Part #1003-001065

The manufacturer no longer makes this part, and there's no substitute part

Ic501,ic 5c372 0909-001013
#NI

Chassis assy diagram

Ic501,ic 5c372

Part #0909-001013

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1003-001988
#NI

Chassis assy diagram

Integrated circuit

Part #1003-001988

The manufacturer no longer makes this part, and there's no substitute part

Guide AD73-00006A
#C022

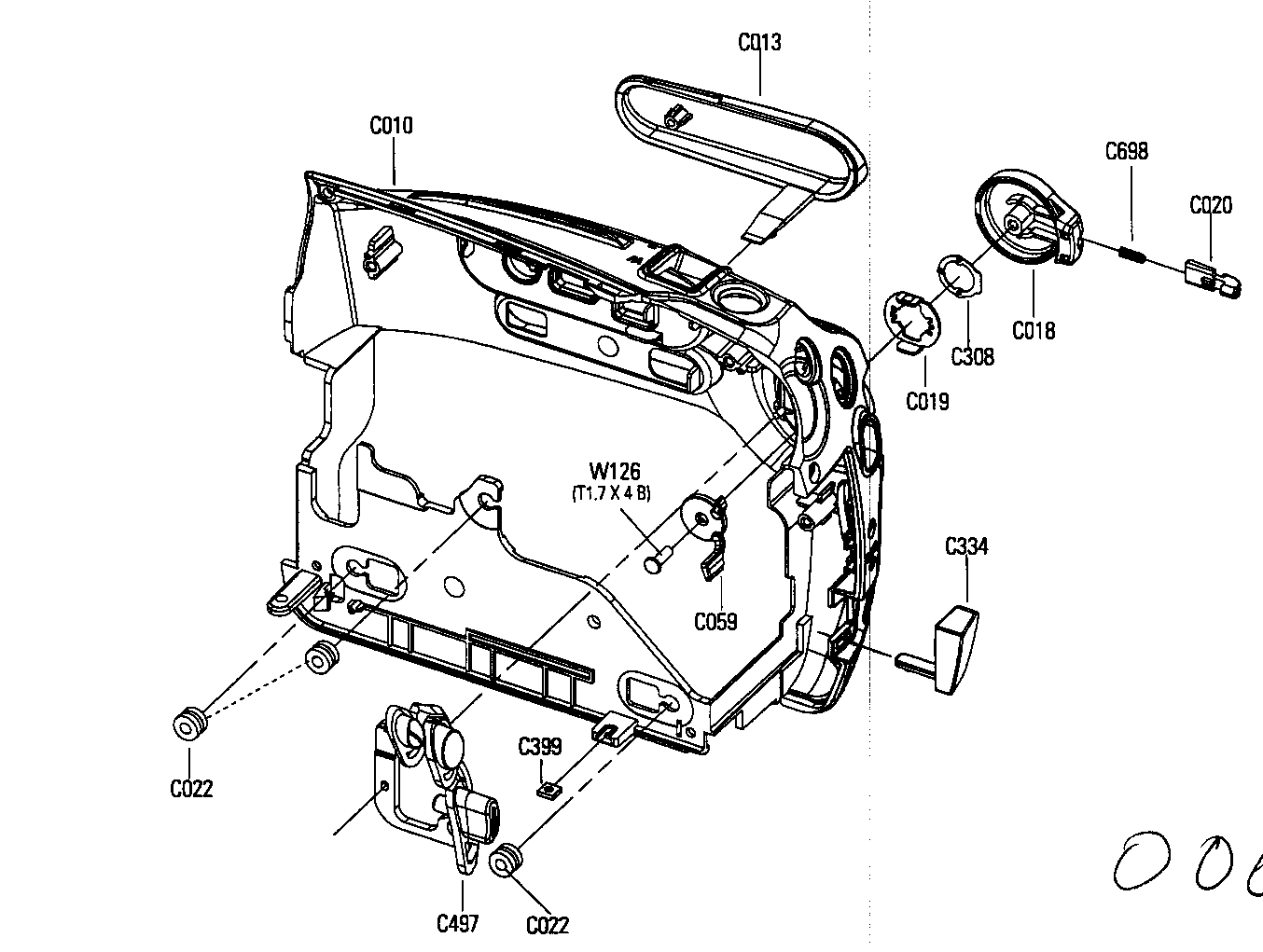

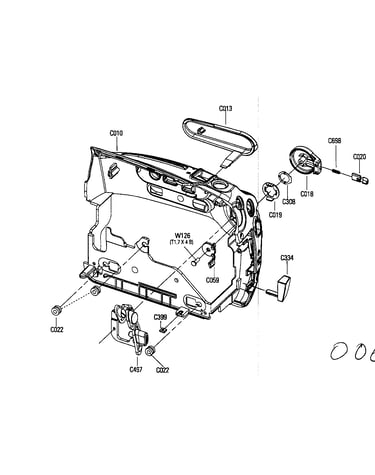

Case rt assy diagram

Guide

Part #AD73-00006A

The manufacturer no longer makes this part, and there's no substitute part

Zoom Lens AD97-12061A
#P180

Chassis assy diagram

Zoom lens

Part #AD97-12061A

The manufacturer no longer makes this part, and there's no substitute part
