Model # 1039337160 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 1039337160 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

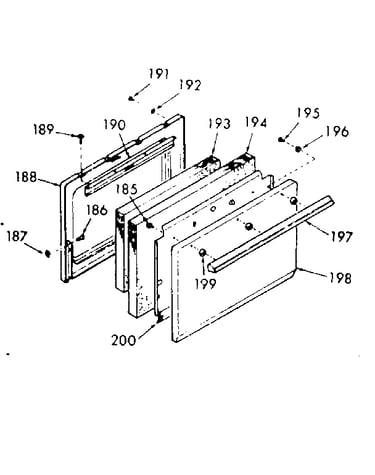

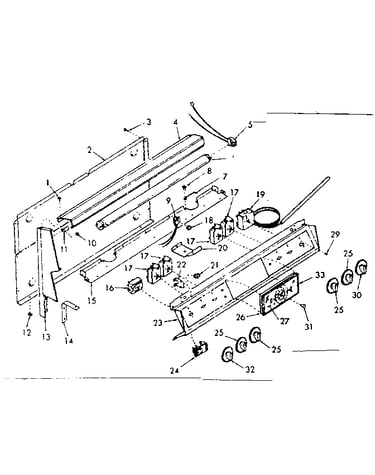

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 197 parts  |
Range Oven Light Bulb 111257
#130

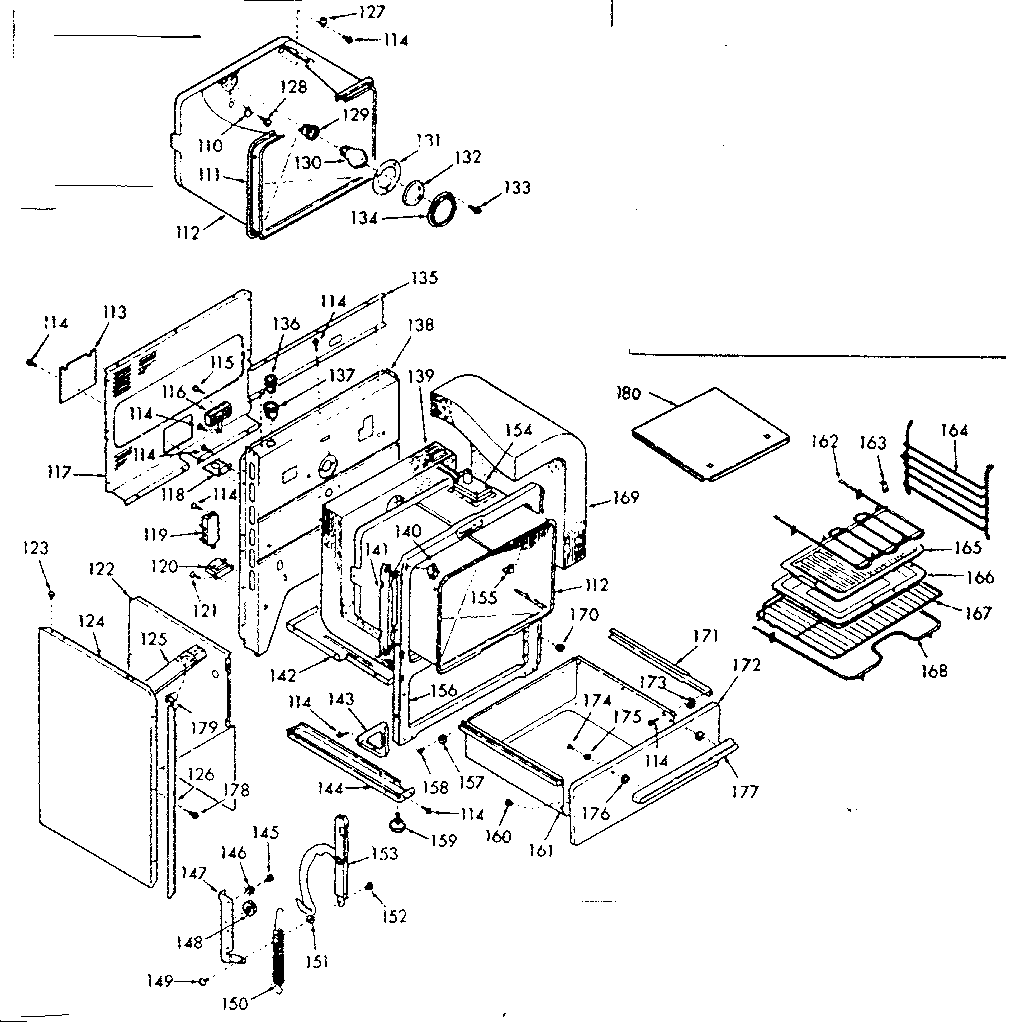

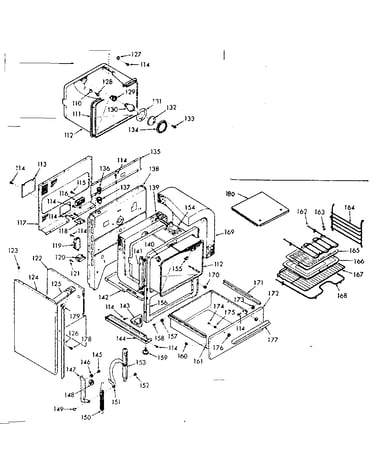

Body section diagram

Range oven light bulb

Part #111257

Replaced by #40A15

?
Manufacturer substitution
This part replaces 111257. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Bowl 281349
#60

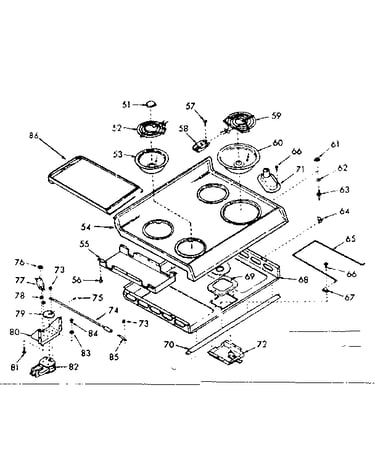

Main top section diagram

Bowl

Part #281349

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 281349. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Bowl 281348
#53

Main top section diagram

Bowl

Part #281348

Replaced by #WB32X107

?
Manufacturer substitution
This part replaces 281348. Substitute parts can look different from the original.
$9.80 |
10% OFF Was : $10.89
In Stock
Unit 111289
#52A

Main top section diagram

Unit

Part #111289

The manufacturer no longer makes this part, and there's no substitute part

Screw 233583
#57

Main top section diagram

Screw

Part #233583

Replaced by #WB1X1425

?
Manufacturer substitution
This part replaces 233583. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Wire Cover 281938
#117

Body section diagram

Wire cover

Part #281938

$14.49
In Stock
Clip 285945
#67

Main top section diagram

Clip

Part #285945

Replaced by #WB2M87

?
Manufacturer substitution
This part replaces 285945. Substitute parts can look different from the original.
$17.71
In Stock
Screw 282634
#178

Body section diagram

Screw

Part #282634

Replaced by #WB01X32746

?
Manufacturer substitution
This part replaces 282634. Substitute parts can look different from the original.
$9.54
In Stock
Hex Screw 102429
Hex screw

Part #102429

Replaced by #WB1X1297

?
Manufacturer substitution
This part replaces 102429. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Element 299463
#59A

Main top section diagram

Element

Part #299463

The manufacturer no longer makes this part, and there's no substitute part
