Upright Vacuum

Model # 1163491290 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 1163491290 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Kenmore Vacuum Hepa Bag, Type O, 2-pack 50690
#46A

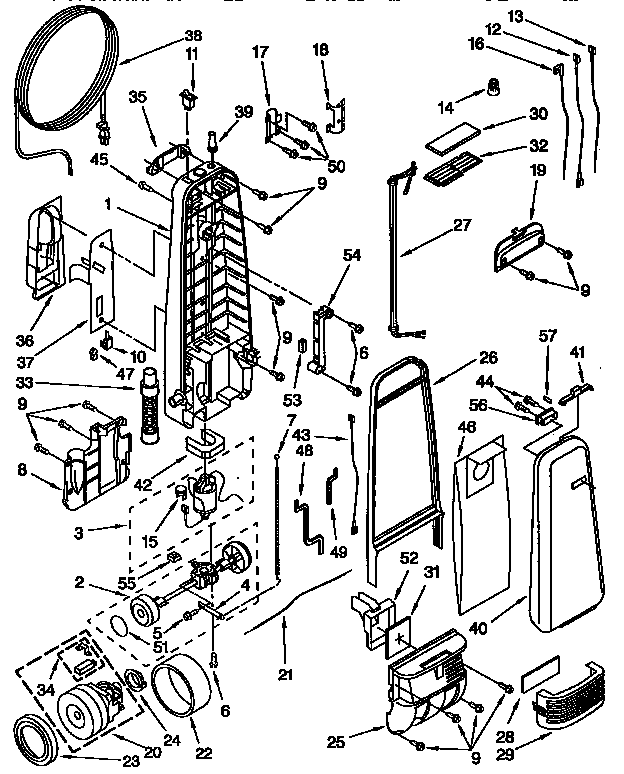

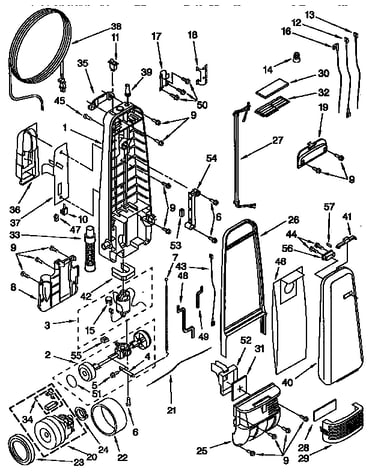

Dust compartment diagram

Kenmore vacuum hepa bag, type o, 2-pack

Part #50690

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Switch 4368653
#10

Dust compartment diagram

Vacuum handle switch

Part #4368653

The manufacturer no longer makes this part, and there's no substitute part

Suppressor 4368663
#22

Dust compartment diagram

Suppressor

Part #4368663

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#5

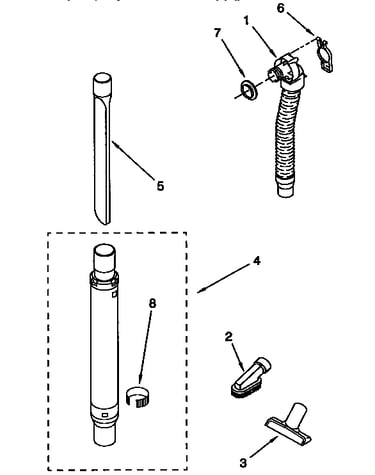

Hose and attachment diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Motor Brush 4368626
#34

Dust compartment diagram

Motor brush

Part #4368626

The manufacturer no longer makes this part, and there's no substitute part

Motor 4368638
#17

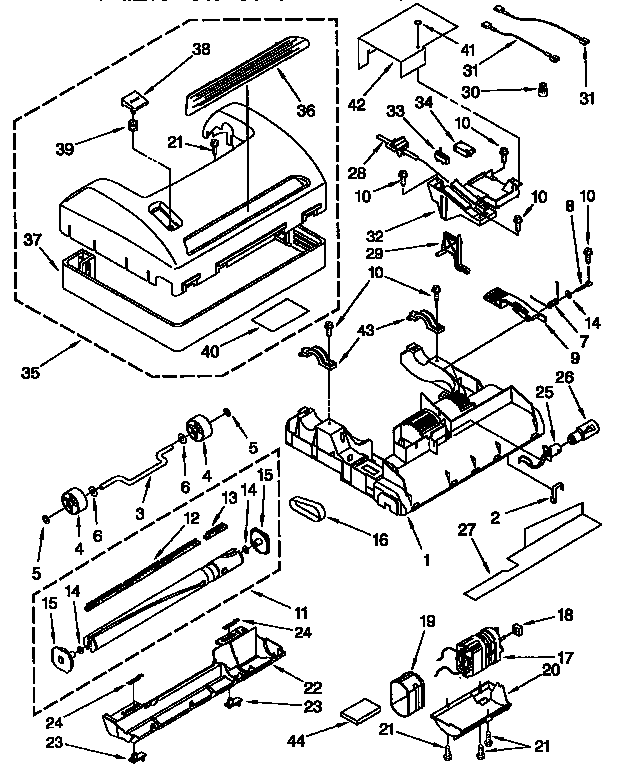

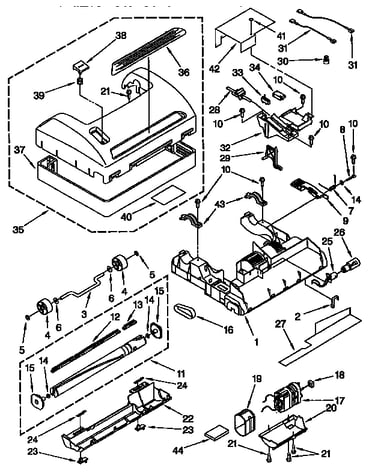

Nozzle and motor diagram

Motor

Part #4368638

The manufacturer no longer makes this part, and there's no substitute part

Ring 4368911
#13

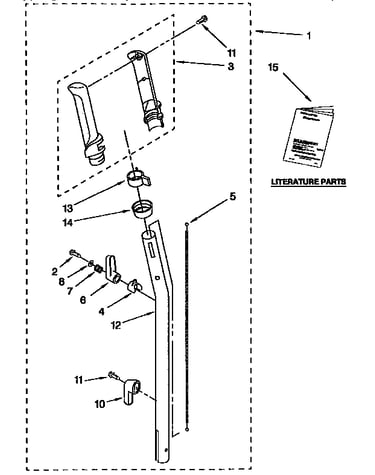

Handle diagram

Ring

Part #4368911

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire (red) 4368690
#31B

Nozzle and motor diagram

Lead wire (red)

Part #4368690

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Filter (black) 4368672
#31

Dust compartment diagram

Exhaust filter (black)

Part #4368672

The manufacturer no longer makes this part, and there's no substitute part
