Model # MLY2256ADB Official Maytag rv range

Here are the diagrams and repair parts for Official Maytag MLY2256ADB rv range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Bracket Screw 7101P040-60
#14A

Door (mly2256adb) diagram

Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Range Surface Burner Knob (replaces 7739p117-60) 74003944
#21

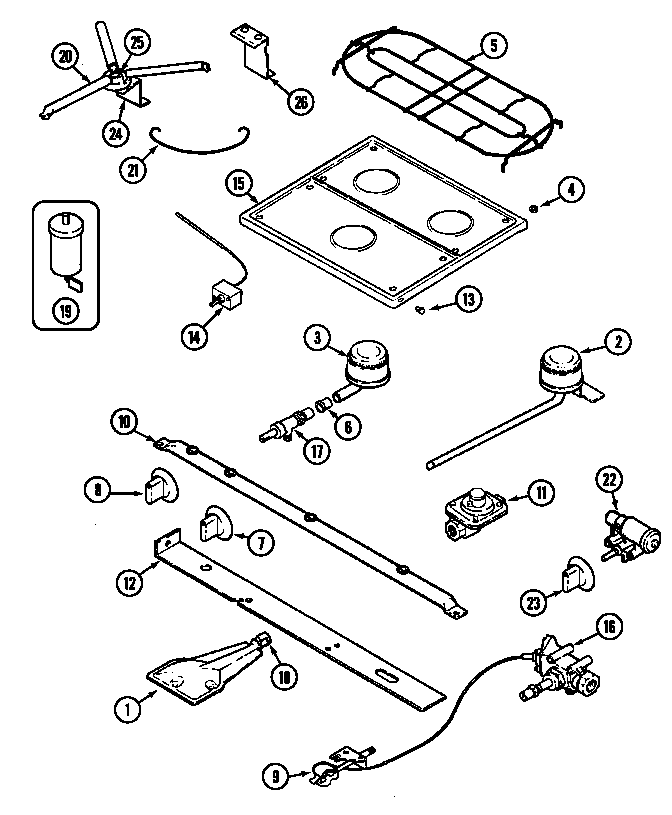

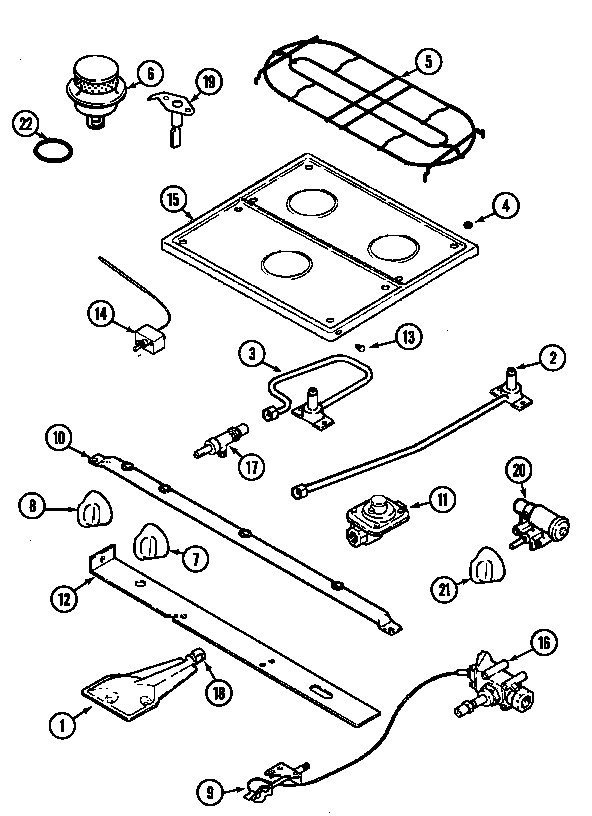

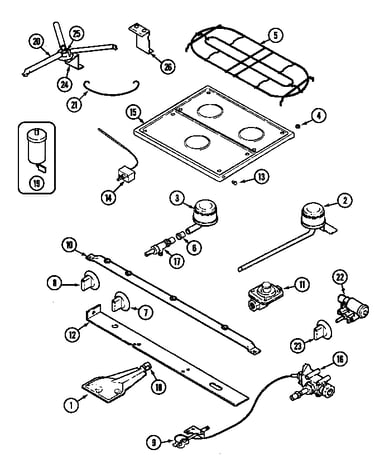

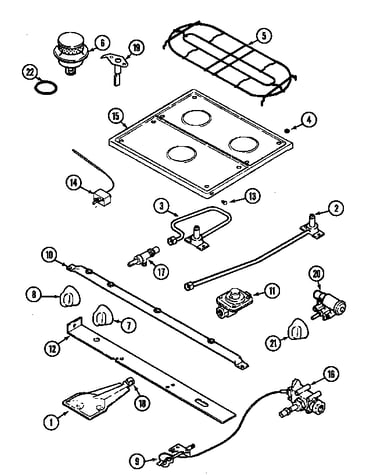

Top & gas controls (mly2256adb) diagram

Range surface burner knob (replaces 7739p117-60)

Part #74003944

This item is not returnable
$17.16 |
10% OFF Phone Price : $19.16
In Stock
Cooktop Washer Screw 7101P124-60
Cooktop washer screw

Part #7101P124-60

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 7101P124-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Oven Light Rocker Switch 7403P067-60
#16

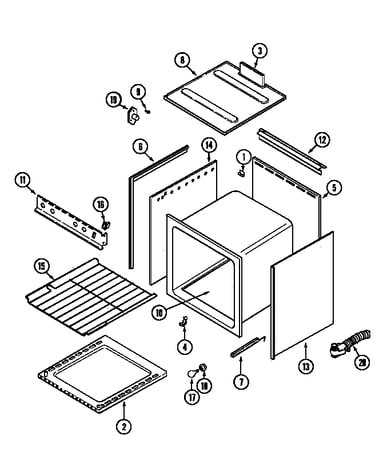

Oven (mly2256adb) diagram

Range oven light rocker switch

Part #7403P067-60

$40.49
In Stock
Range Surface Burner Knob 74003942
#7A

Top & gas controls (mly2256adb) diagram

Range surface burner knob

Part #74003942

This item is not returnable
$12.89
In Stock
Oven Hinge 3418D092-34
#5A

Door (mly2256adb) diagram

Oven hinge

Part #3418D092-34

Replaced by #12400029

?
Manufacturer substitution
This part replaces 3418D092-34. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7101P064-60
#2A

Oven (mly2256adb) diagram

Screw

Part #7101P064-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P064-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Thermostat Clip 7112P004-60
#4

Oven (mly2256adb) diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Burner Assembly 74003949
#6

Top & gas controls (mly2256adb) diagram

Burner assembly

Part #74003949

Replaced by #WP3412D025-09

?
Manufacturer substitution
This part replaces 74003949. Substitute parts can look different from the original.
$81.33
In Stock
Screw (#10 X 74004069
#3

Door (mly2256adb) diagram

Screw (#10 x

Part #74004069

Replaced by #WP999367

?
Manufacturer substitution
This part replaces 74004069. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
