Kenmore
Canister Vacuum

Model # 1162439082 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162439082 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Cover Canopy 4147561
#1

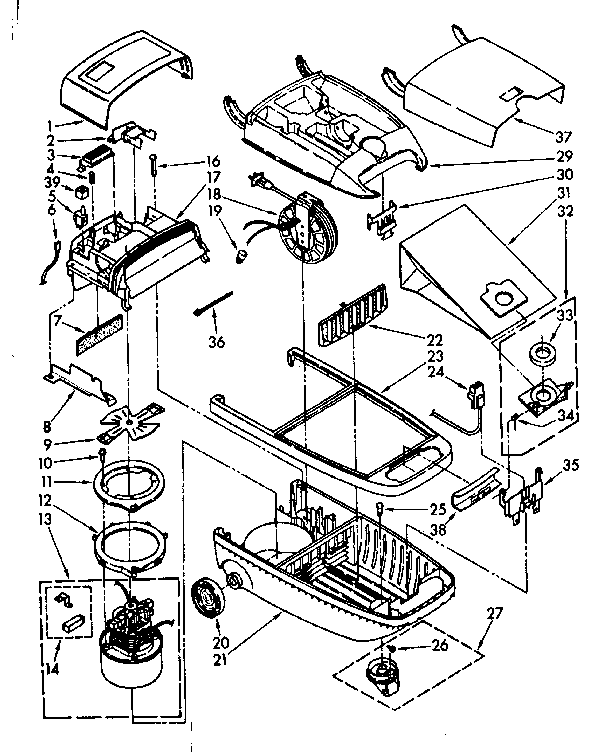

Vacuum cleaner parts diagram

Cover canopy

Part #4147561

The manufacturer no longer makes this part, and there's no substitute part

Brush 742811
#17

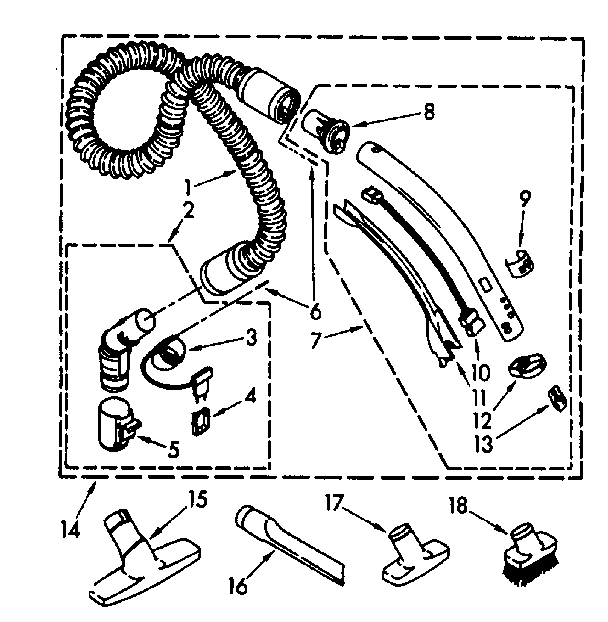

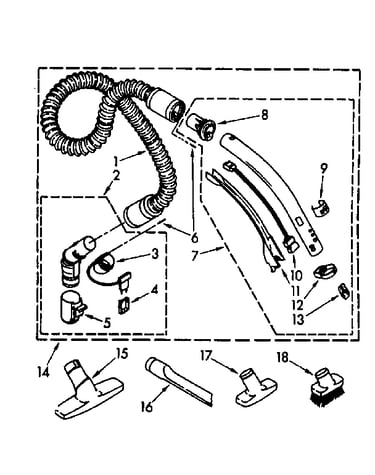

Hose and attachment parts diagram

Brush

Part #742811

The manufacturer no longer makes this part, and there's no substitute part

Screw 681697
#10

Vacuum cleaner parts diagram

Screw

Part #681697

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 706389
#7

Vacuum cleaner parts diagram

Vacuum filter

Part #706389

The manufacturer no longer makes this part, and there's no substitute part

Canister Hood 4147472
#29

Vacuum cleaner parts diagram

Canister hood

Part #4147472

The manufacturer no longer makes this part, and there's no substitute part

Contact Pin 743337
#6

Hose and attachment parts diagram

Contact pin

Part #743337

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bag 676246
#32

Vacuum cleaner parts diagram

Mounting bag

Part #676246

The manufacturer no longer makes this part, and there's no substitute part

Mount 706821
#12

Vacuum cleaner parts diagram

Mount

Part #706821

The manufacturer no longer makes this part, and there's no substitute part

Lock 742859
#12

Hose and attachment parts diagram

Lock

Part #742859

The manufacturer no longer makes this part, and there's no substitute part

Parts List LIT4147668

#NI

All parts diagram

Parts list

Part #LIT4147668

The manufacturer no longer makes this part, and there's no substitute part
