Model # 94865124021 Official Sears custom best hilite storm & screen door (black)

Here are the diagrams and repair parts for Official Sears 94865124021 custom best hilite storm & screen door (black), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

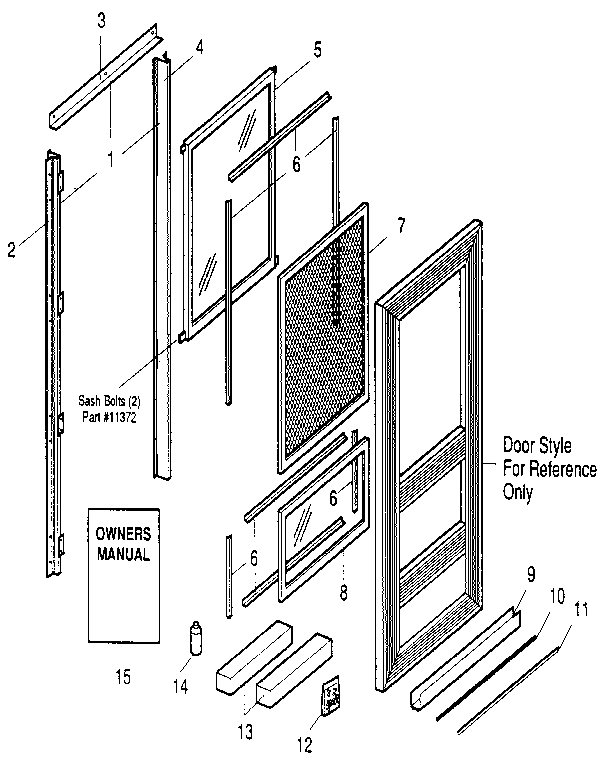

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |

Blk Header 97637
#3

Replacement parts diagram

Blk header

Part #97637

The manufacturer no longer makes this part, and there's no substitute part

Storm Door Latch And Handle Assembly (replaces 18828) 17656
#13A

Replacement parts diagram

Storm door latch and handle assembly (replaces 18828)

Part #17656

The manufacturer no longer makes this part, and there's no substitute part

Blk Z-bar 97693
#1

Replacement parts diagram

Blk z-bar

Part #97693

The manufacturer no longer makes this part, and there's no substitute part

Pack Screw 14444
#12

Replacement parts diagram

Pack screw

Part #14444

The manufacturer no longer makes this part, and there's no substitute part

Vinyl Sweep 17654
#11

Replacement parts diagram

Vinyl sweep

Part #17654

The manufacturer no longer makes this part, and there's no substitute part

Brush Sweep 17653
#10

Replacement parts diagram

Brush sweep

Part #17653

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 17660
#15

Replacement parts diagram

Owner's manual

Part #17660

The manufacturer no longer makes this part, and there's no substitute part

Blk Expander 17652
#9

Replacement parts diagram

Blk expander

Part #17652

The manufacturer no longer makes this part, and there's no substitute part

Blk Hinge 97699
#2

Replacement parts diagram

Blk hinge

Part #97699

The manufacturer no longer makes this part, and there's no substitute part

Blk Glass 98567
#8

Replacement parts diagram

Blk glass

Part #98567

The manufacturer no longer makes this part, and there's no substitute part
