Model # KCMS145JBT1 Official KitchenAid countertop microwave
Here are the diagrams and repair parts for Official KitchenAid KCMS145JBT1 countertop microwave, as well as links to manuals and error code tables, if available.
By Schematic
By Part

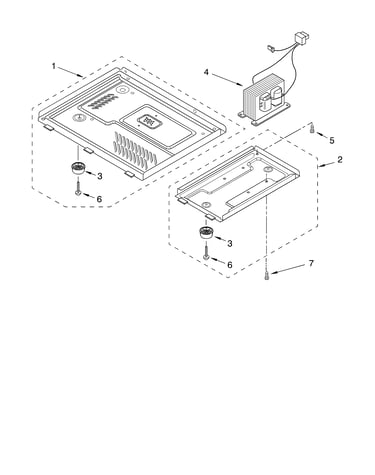

SELECT DIAGRAM
Browse Parts for
KCMS145JBT1 Microwaves
#13

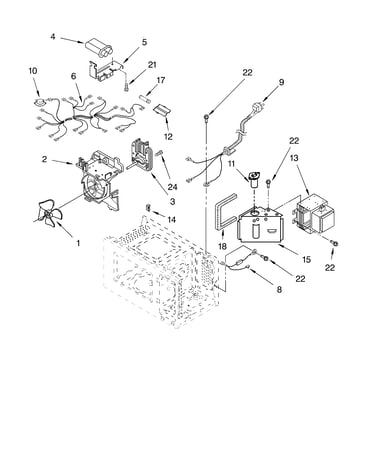

Oven interior parts diagram
Microwave magnetron
Part #8184652
The manufacturer no longer makes this part, and there's no substitute part
#4

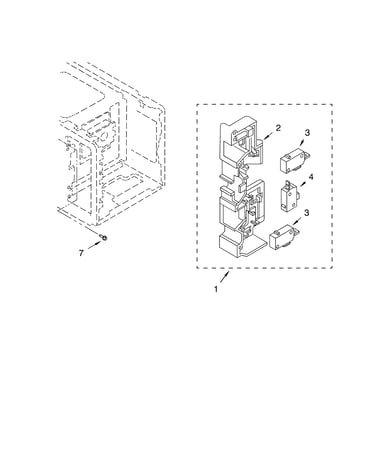

Latch board parts diagram
Switch
Part #4158941
Replaced by #4392027
?
Manufacturer substitution
This part replaces 4158941. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
#3
Latch board parts diagram
Switch
Part #4158940
Replaced by #4392027
?
Manufacturer substitution
This part replaces 4158940. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
#4
Oven interior parts diagram
Microwave high-voltage capacitor
Part #8184813
Replaced by #WP8184813
?
Manufacturer substitution
This part replaces 8184813. Substitute parts can look different from the original.
$79.79 |
7% OFF Phone Price : $85.79
In Stock
#17
Oven interior parts diagram
Microwave fuse
Part #8183507
Replaced by #WP8183507
?
Manufacturer substitution
This part replaces 8183507. Substitute parts can look different from the original.
This item is not returnable
$14.39 |
12% OFF Phone Price : $16.39
In Stock
#3
Control panel parts diagram
Spring
Part #4158178
Replaced by #WP4158178
?
Manufacturer substitution
This part replaces 4158178. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
#10A

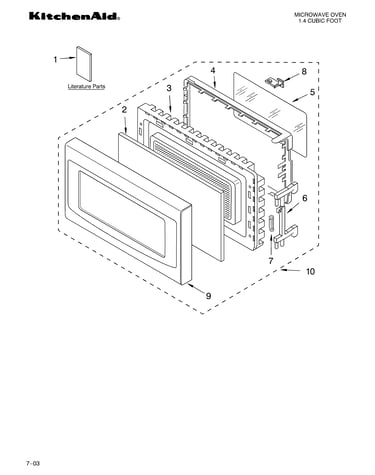

Door parts diagram
Microwave door assembly (white)
Part #4359840
$322.40
In Stock
#2
Latch board parts diagram
Mounting bracket
Part #8184812
Replaced by #WP8185271
?
Manufacturer substitution
This part replaces 8184812. Substitute parts can look different from the original.
$45.63 |
12% OFF Phone Price : $51.63
In Stock
#11
Oven cavity parts diagram
Turntable motor
Part #8183504
Replaced by #WPW10159107
?
Manufacturer substitution
This part replaces 8183504. Substitute parts can look different from the original.
$70.45 |
8% OFF Phone Price : $76.45
In Stock
#16
Oven cavity parts diagram
Screw
Part #8171862
Replaced by #8169474
?
Manufacturer substitution
This part replaces 8171862. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
