Kenmore
Canister Vacuum

Model # 1162439081 Official Kenmore vacuum cleaner hose & attachment

Here are the diagrams and repair parts for Official Kenmore 1162439081 vacuum cleaner hose & attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Frame 743295
#4

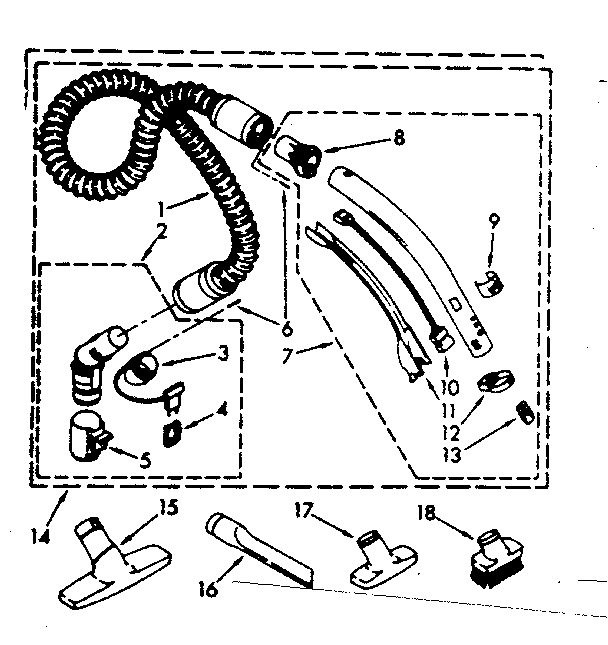

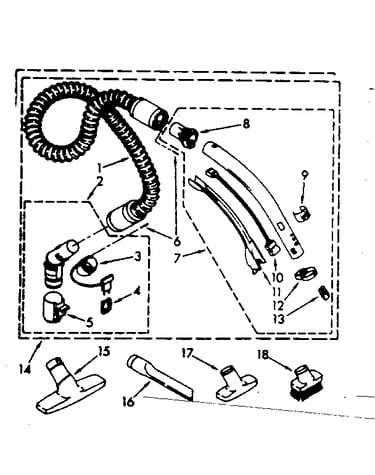

Hose and attachment parts diagram

Frame

Part #743295

The manufacturer no longer makes this part, and there's no substitute part

Mount 706821
#12

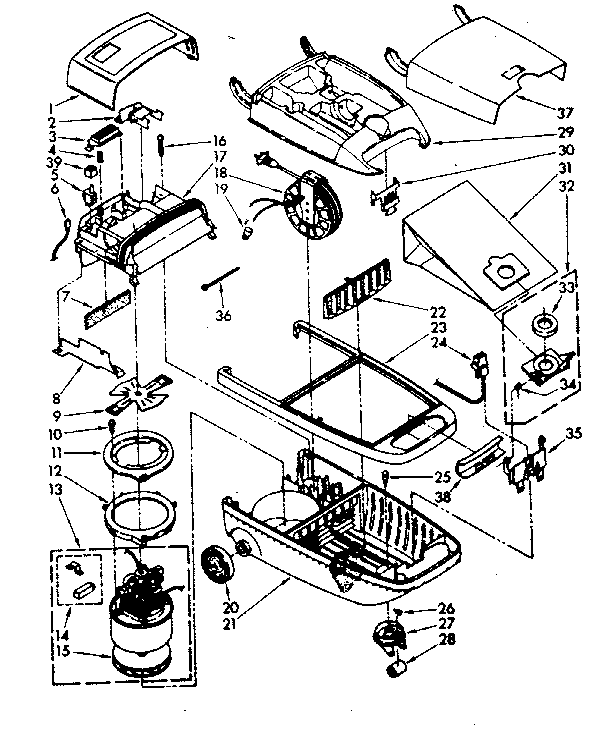

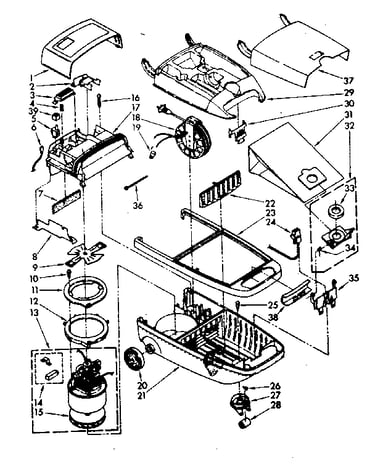

Vacuum cleaner parts diagram

Mount

Part #706821

The manufacturer no longer makes this part, and there's no substitute part

Wheel 706004
#28

Vacuum cleaner parts diagram

Wheel

Part #706004

The manufacturer no longer makes this part, and there's no substitute part

Swivel 743284
#2

Hose and attachment parts diagram

Swivel

Part #743284

The manufacturer no longer makes this part, and there's no substitute part

Motor 700591
#13

Vacuum cleaner parts diagram

Motor

Part #700591

The manufacturer no longer makes this part, and there's no substitute part

Spring (silver) 706024
#34

Vacuum cleaner parts diagram

Spring (silver)

Part #706024

The manufacturer no longer makes this part, and there's no substitute part

Contact Pin 743337
#6

Hose and attachment parts diagram

Contact pin

Part #743337

The manufacturer no longer makes this part, and there's no substitute part

Frame 706592
#2

Vacuum cleaner parts diagram

Frame

Part #706592

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 706389
#7

Vacuum cleaner parts diagram

Vacuum filter

Part #706389

The manufacturer no longer makes this part, and there's no substitute part

Gasket (black) 706017
#33

Vacuum cleaner parts diagram

Gasket (black)

Part #706017

The manufacturer no longer makes this part, and there's no substitute part
