Model # DCR-SR42 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-SR42 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

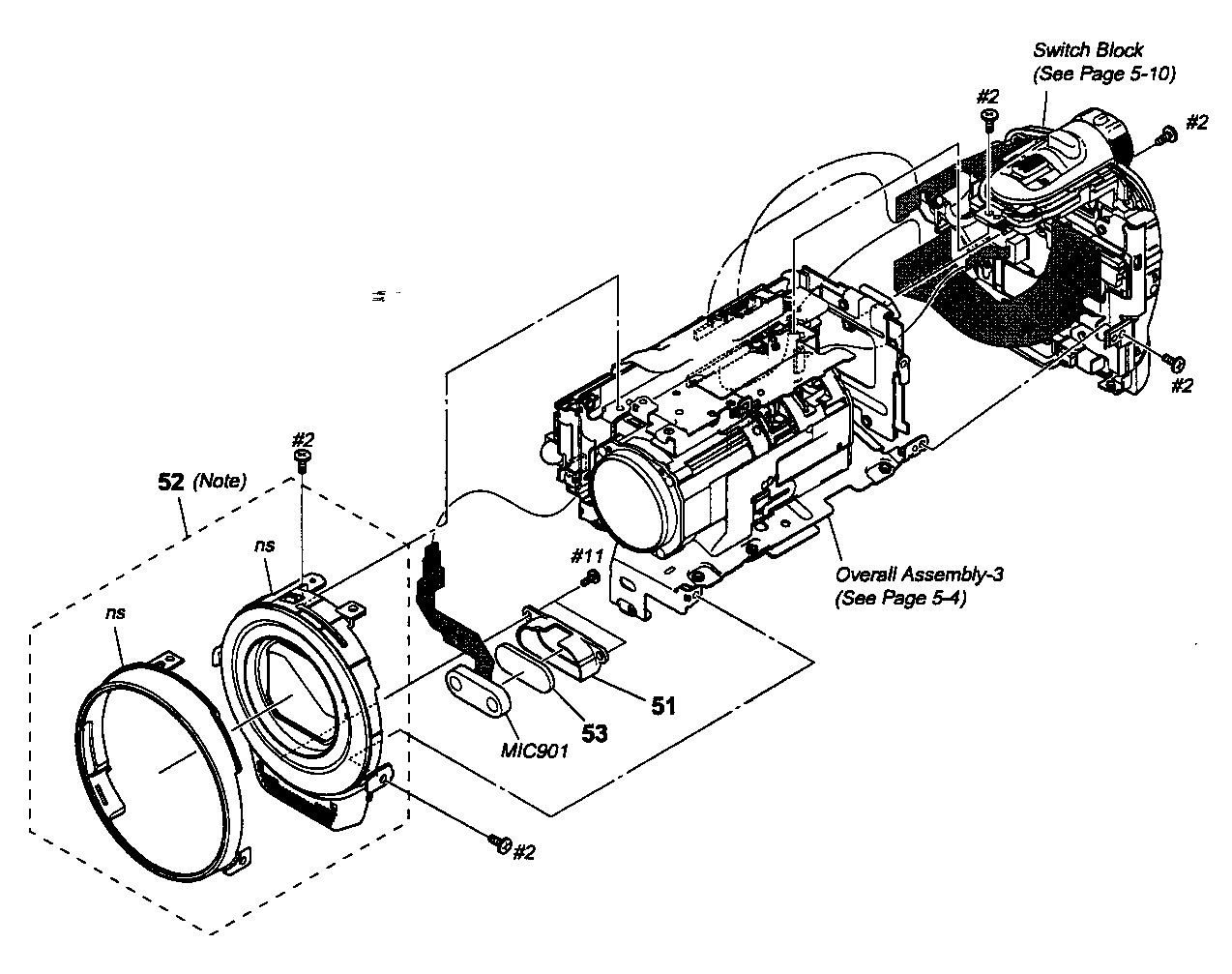

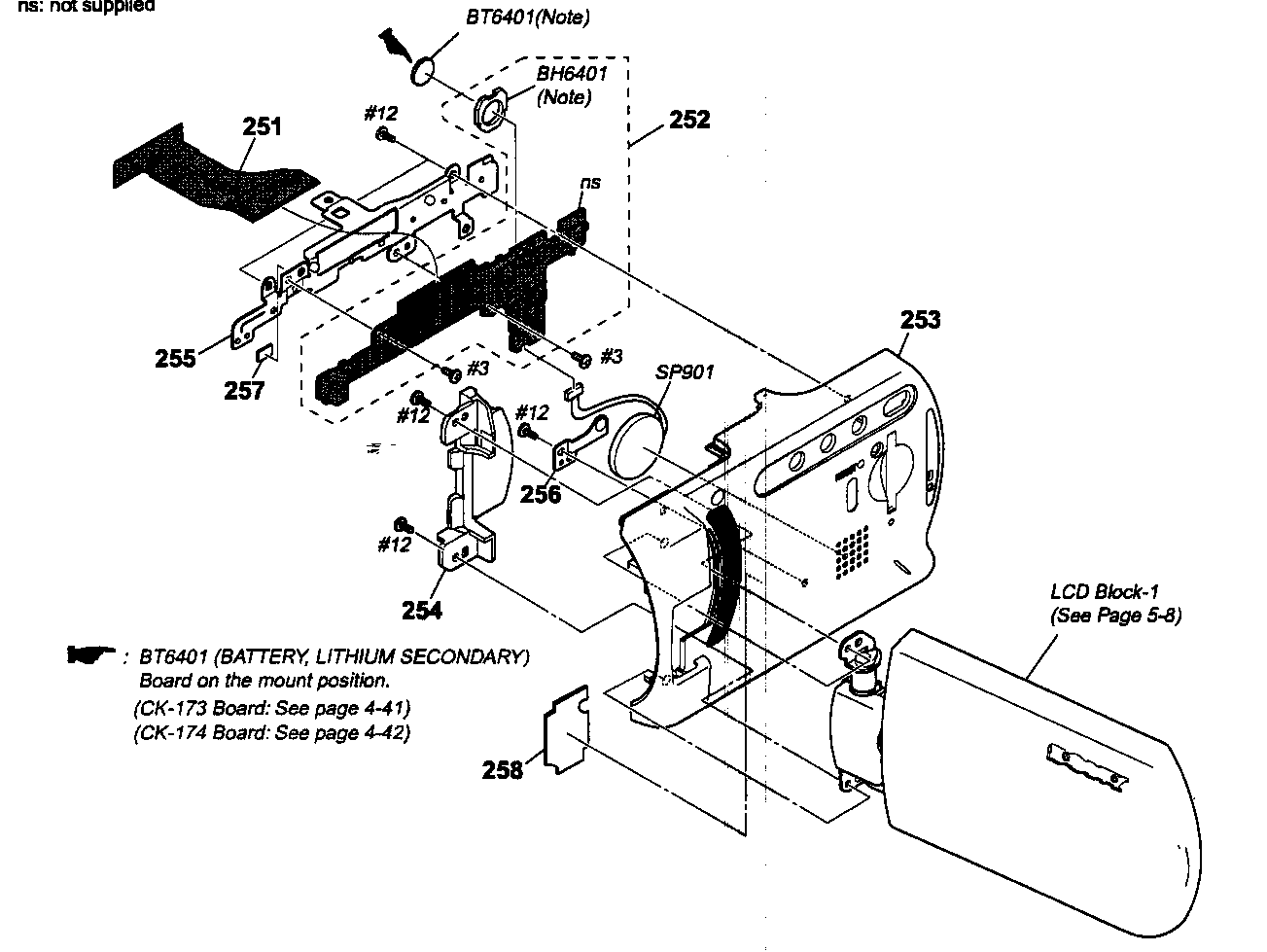

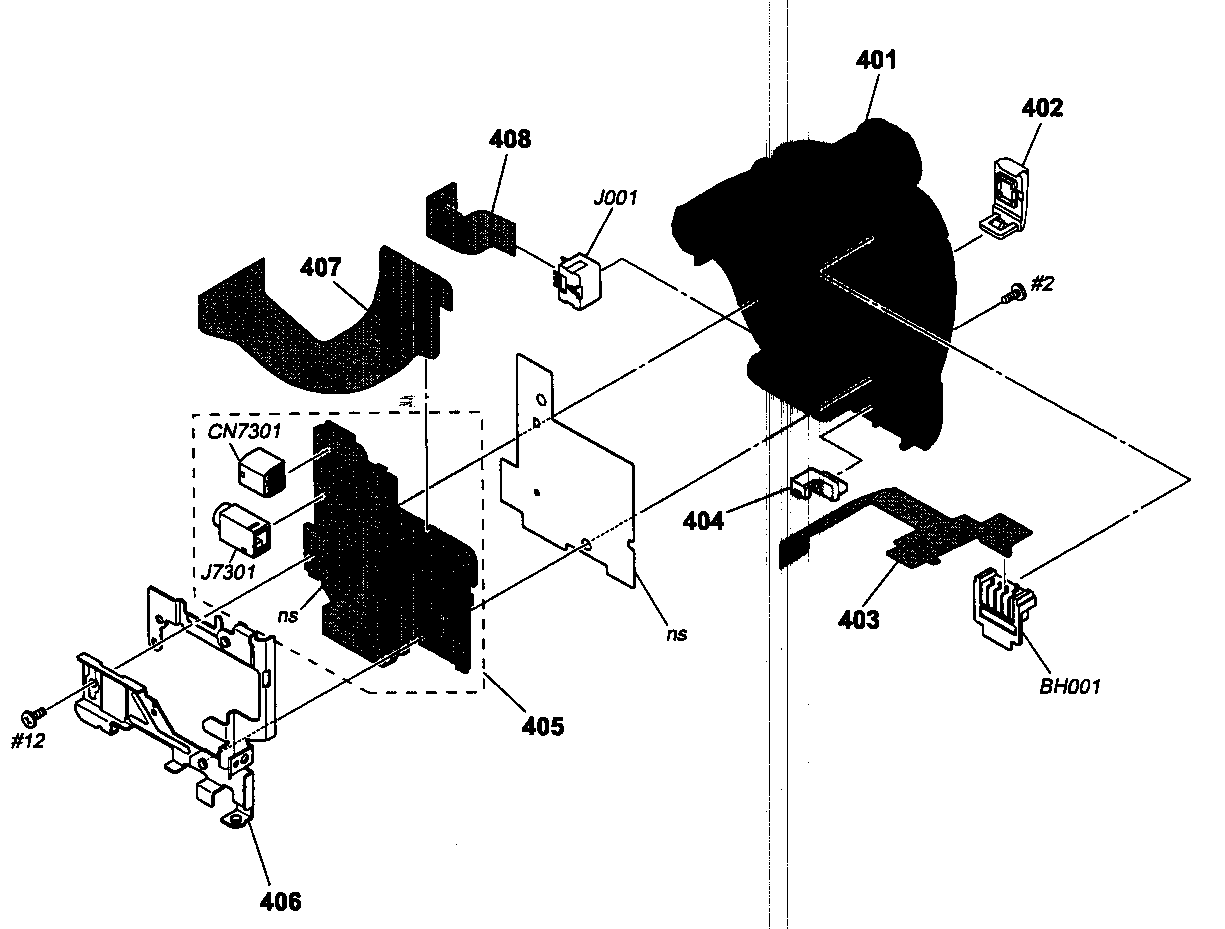

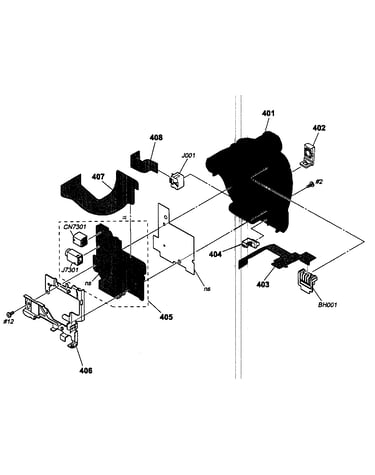

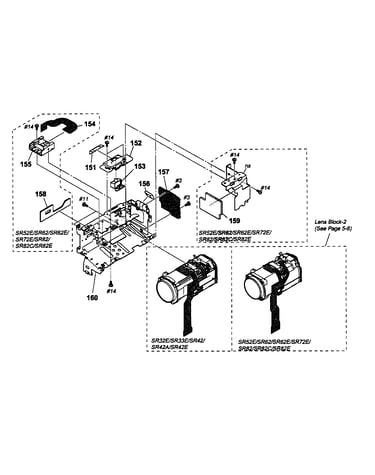

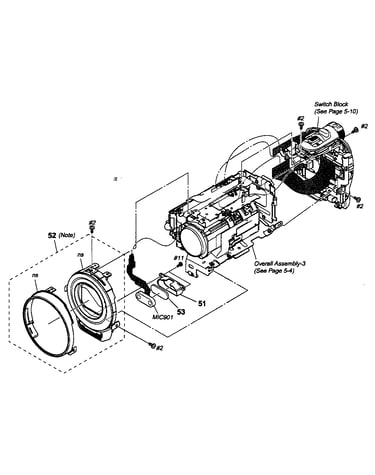

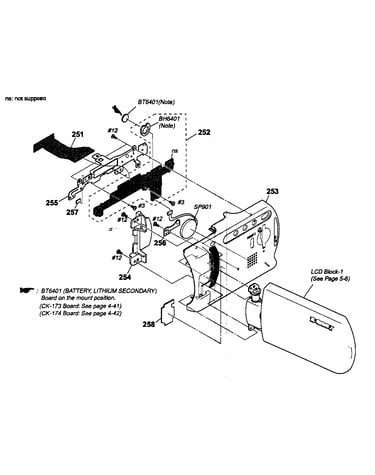

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Flexible Pcb 187146011
#106

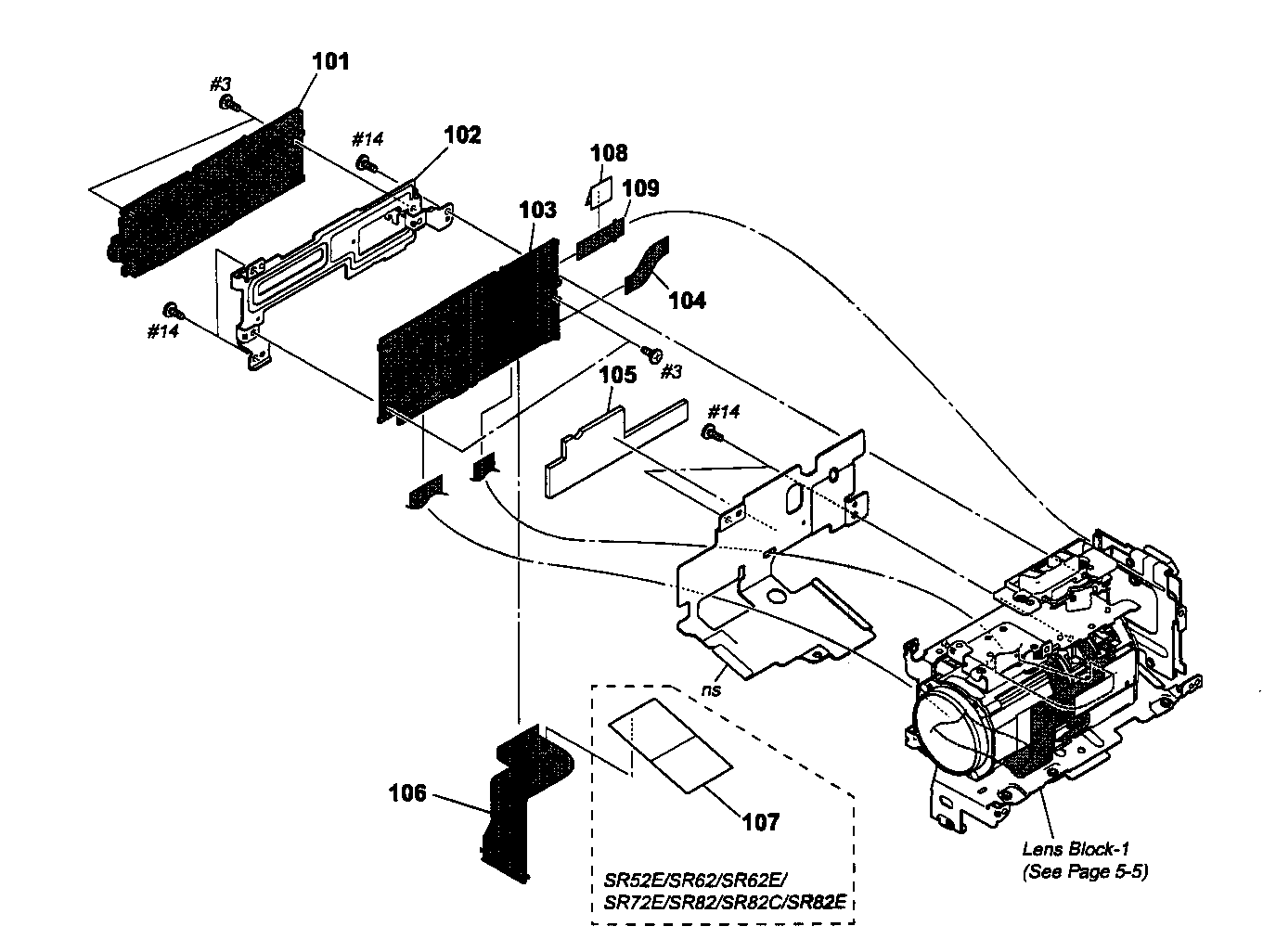

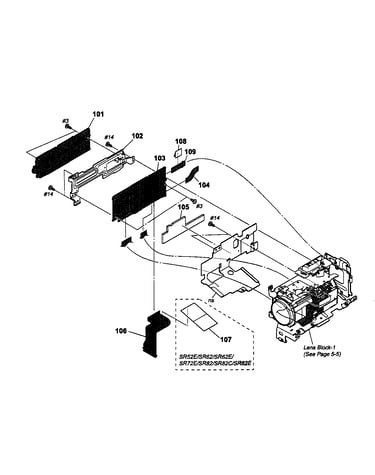

Cabinet parts 3 diagram

Flexible pcb

Part #187146011

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 182394541
#NI

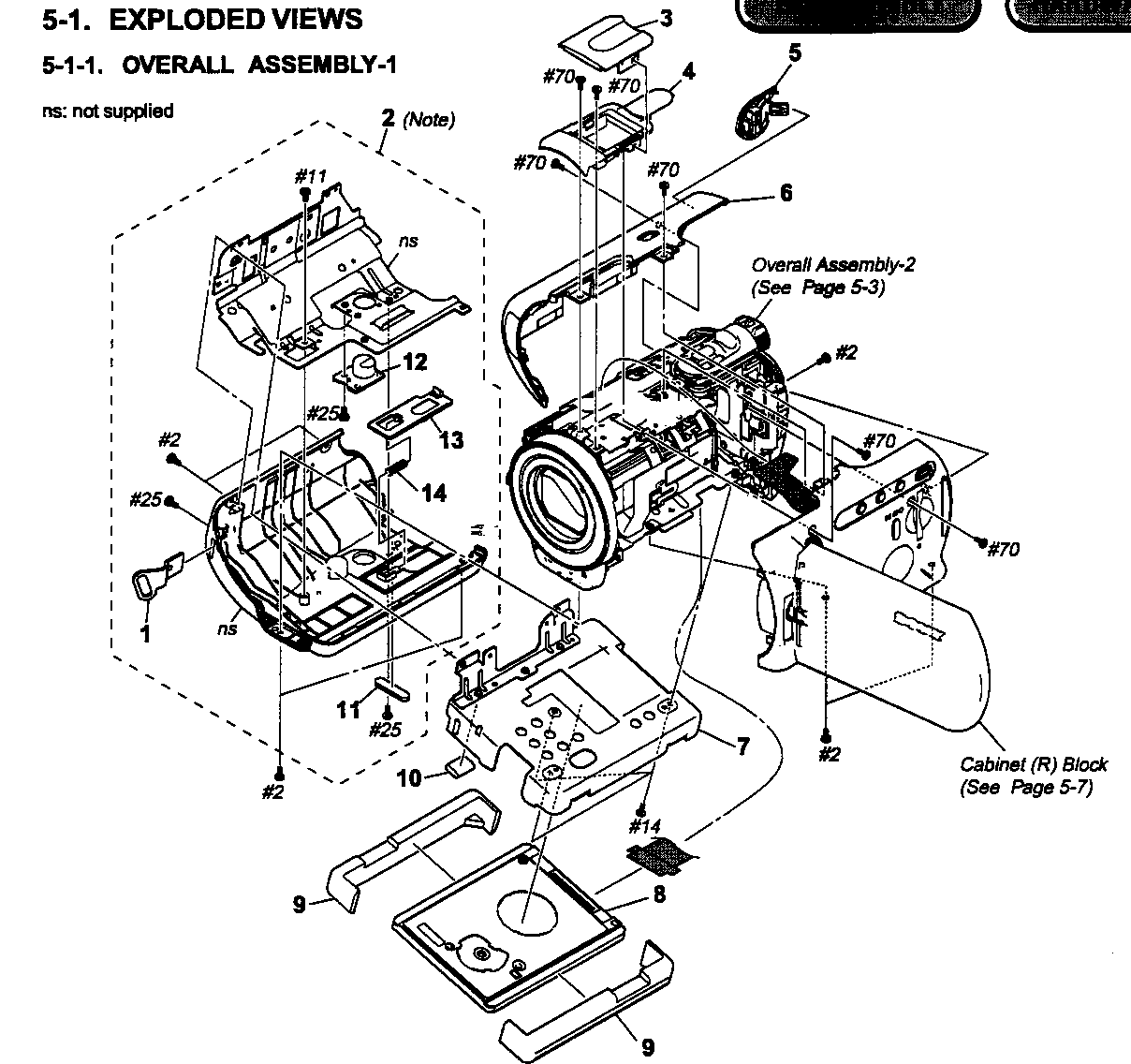

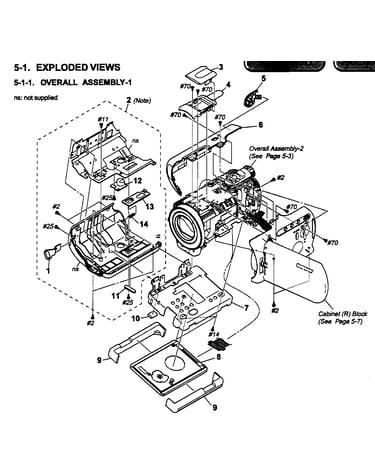

Cabinet parts 1 diagram

Ac cord

Part #182394541

The manufacturer no longer makes this part, and there's no substitute part

Fp-617 Fle 187146411
#203

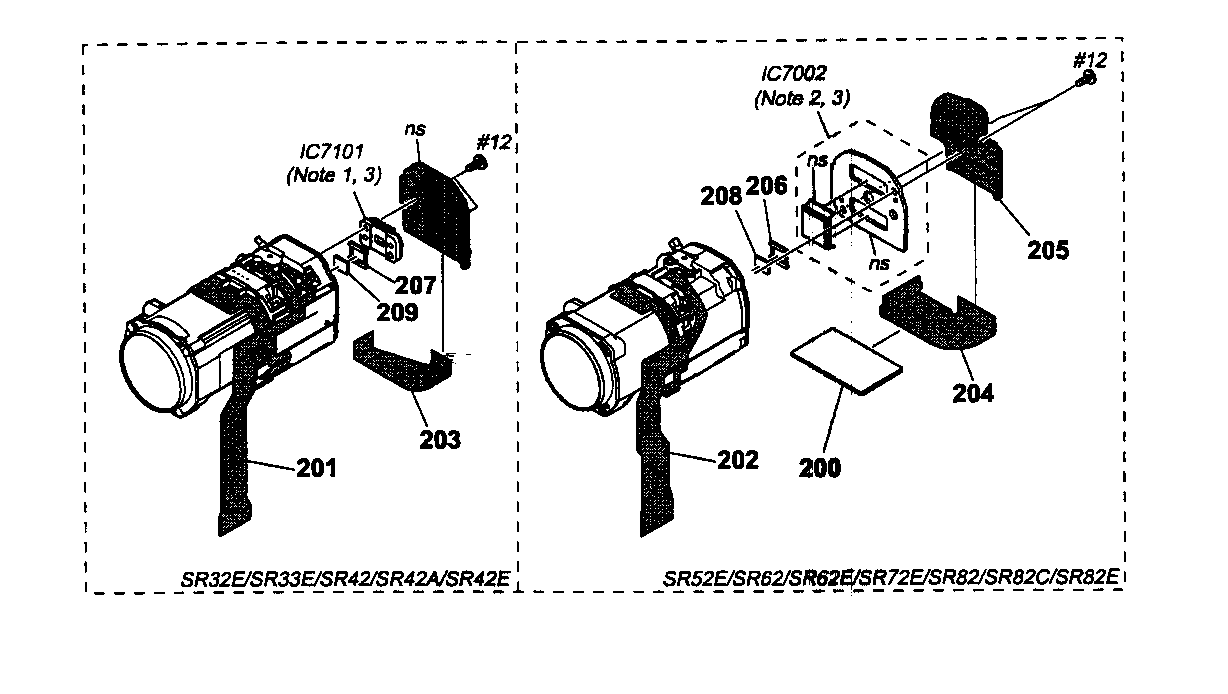

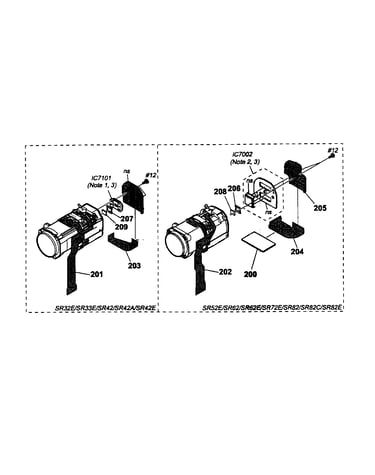

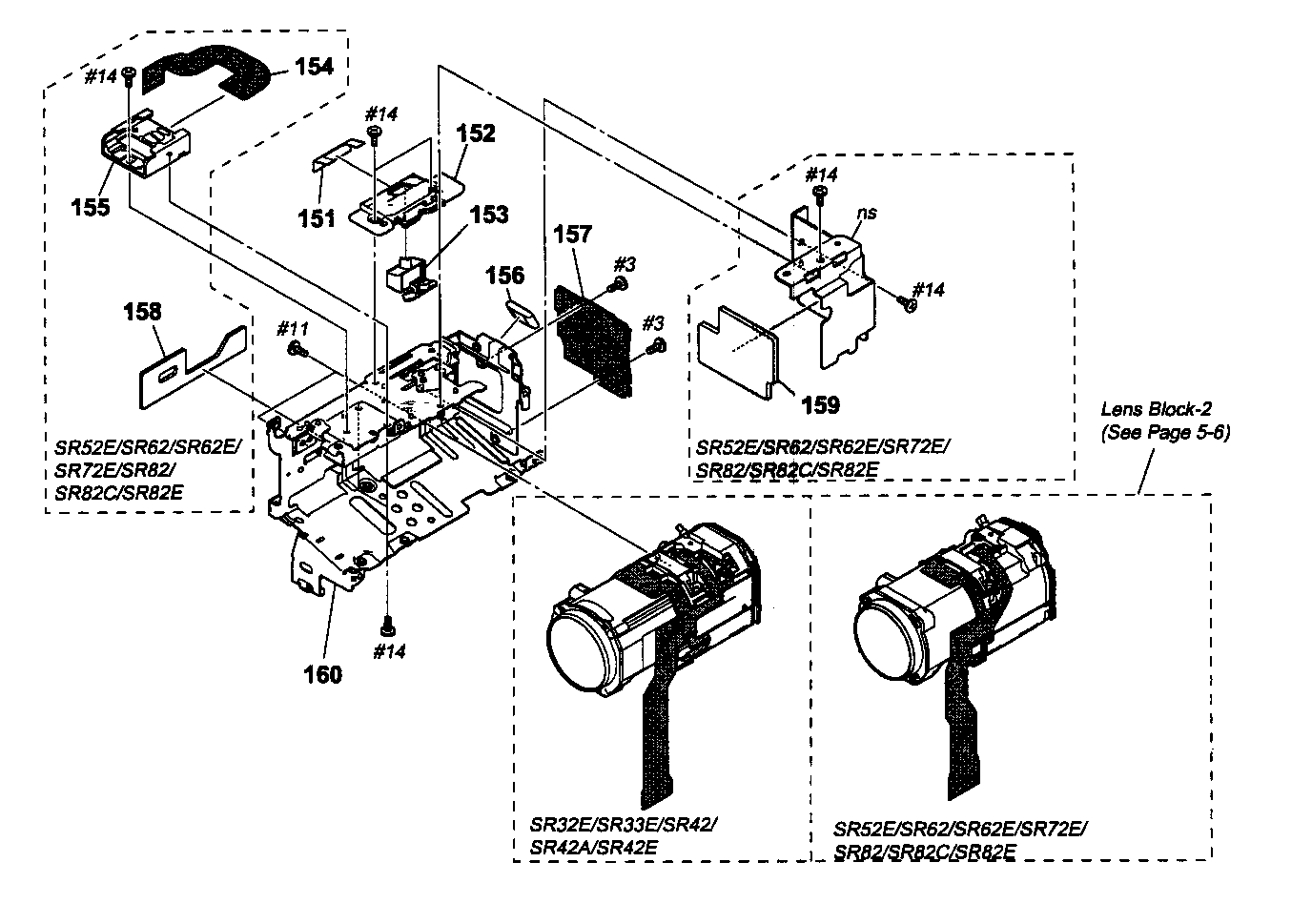

Lens block 2 diagram

Fp-617 fle

Part #187146411

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly X21084751
#303

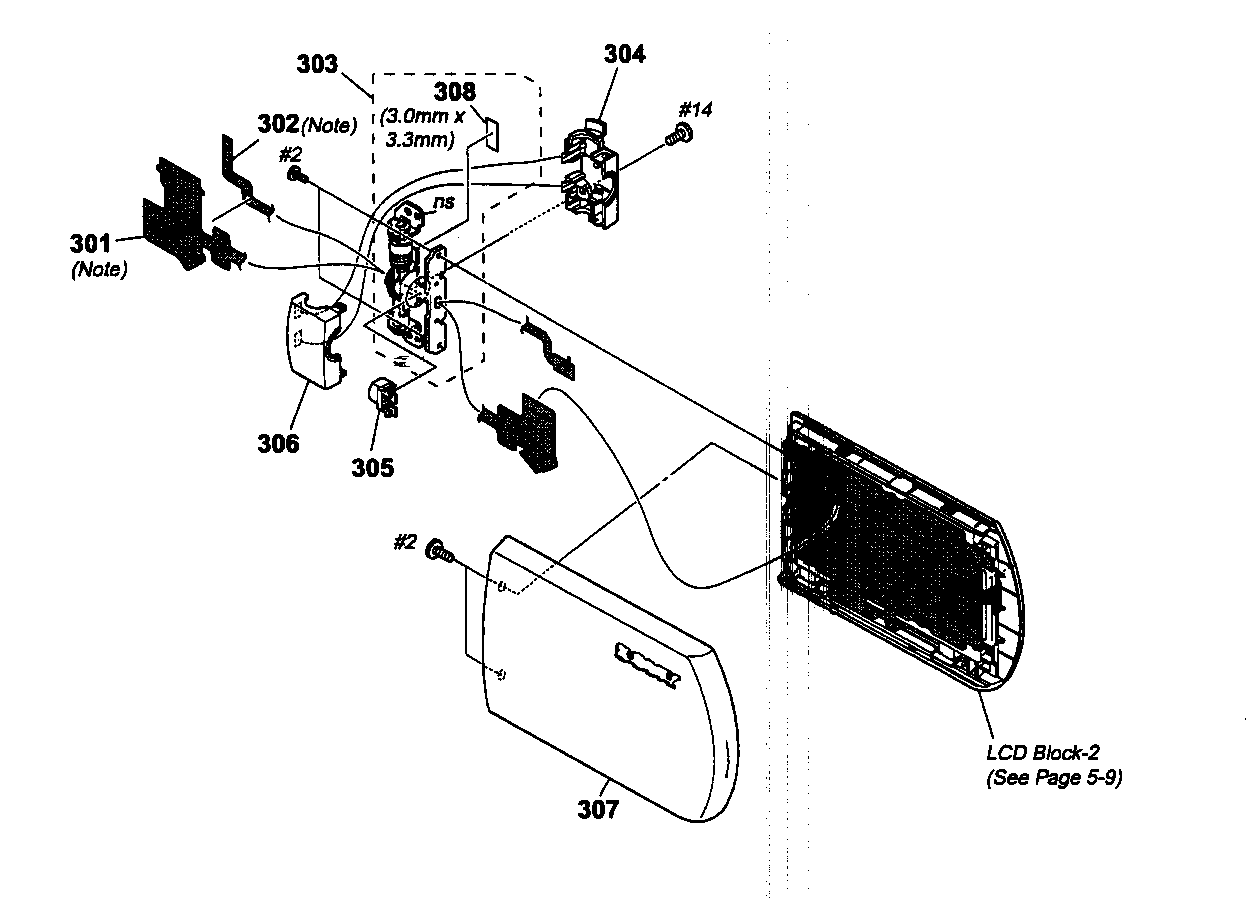

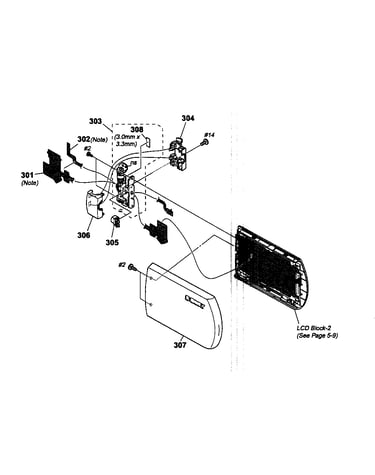

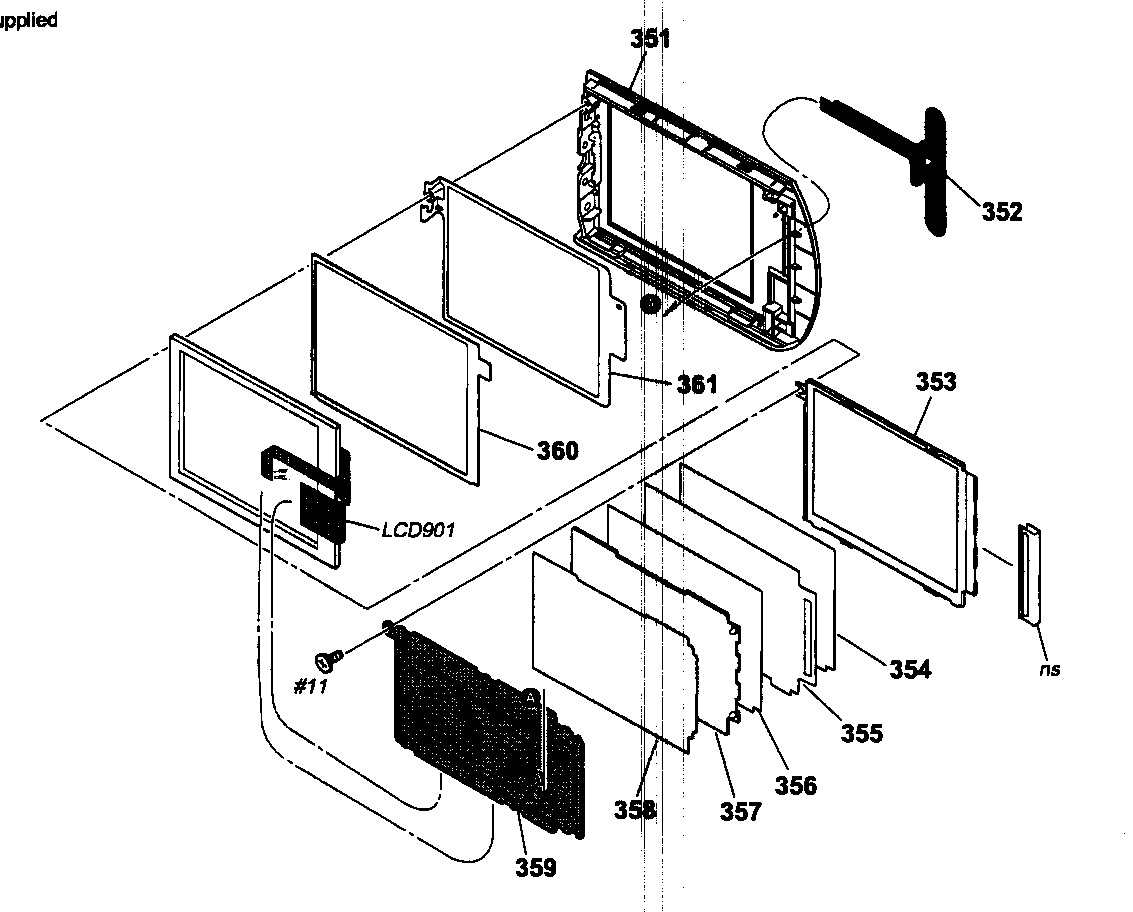

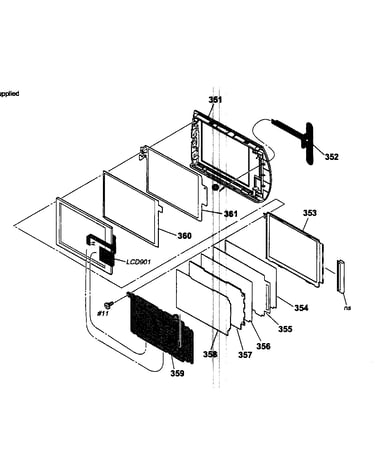

Lcd block 1 diagram

Hinge assembly

Part #X21084751

The manufacturer no longer makes this part, and there's no substitute part

Cover 309826311
#306

Lcd block 1 diagram

Cover

Part #309826311

The manufacturer no longer makes this part, and there's no substitute part

Da-039 Pcb A1244918A
#101

Cabinet parts 3 diagram

Da-039 pcb

Part #A1244918A

The manufacturer no longer makes this part, and there's no substitute part

Tp Block A1202054A
#NI

Cabinet parts 1 diagram

Tp block

Part #A1202054A

The manufacturer no longer makes this part, and there's no substitute part

Holder Battery 175661531
#NI

Cabinet parts 1 diagram

Holder battery

Part #175661531

The manufacturer no longer makes this part, and there's no substitute part

Usb Cable 182957941
#NI

Cabinet parts 1 diagram

Usb cable

Part #182957941

The manufacturer no longer makes this part, and there's no substitute part

Jack Cover 309815811
#5

Cabinet parts 1 diagram

Jack cover

Part #309815811

The manufacturer no longer makes this part, and there's no substitute part
