Magic Chef
Electric Range

Model # 9524WPW Official Magic Chef electric range

Here are the diagrams and repair parts for Official Magic Chef 9524WPW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Door Hinge 74001882
#16B

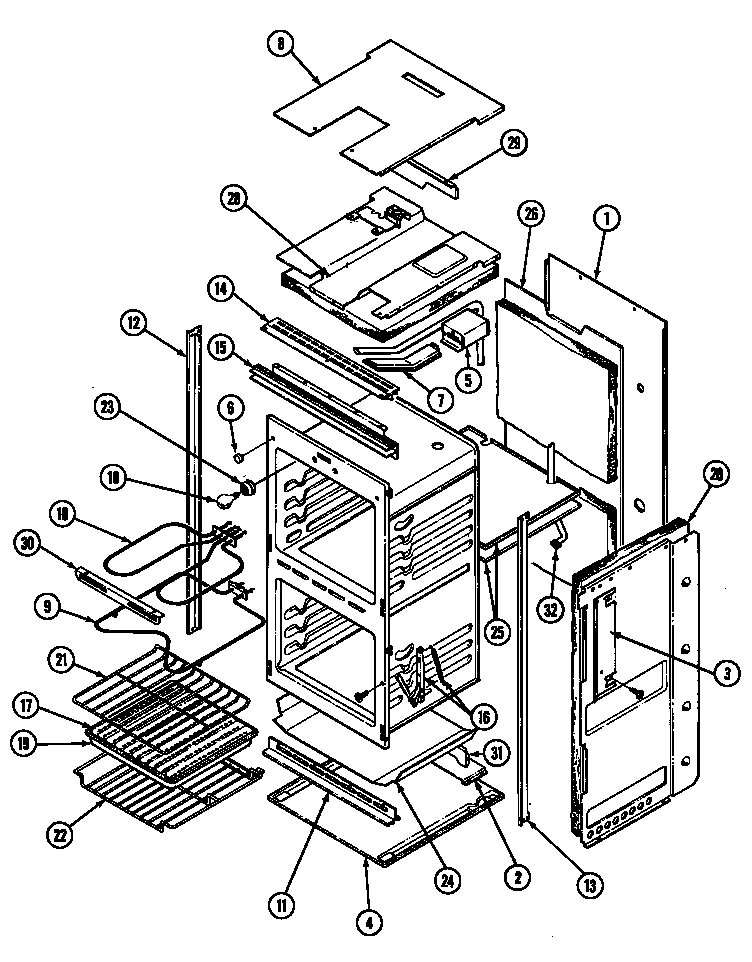

Body diagram

Door hinge

Part #74001882

Replaced by #74001856

?
Manufacturer substitution
This part replaces 74001882. Substitute parts can look different from the original.
$88.02 |
6% OFF Phone Price : $94.02
Back Order
Range Oven Door Seal 7212P006-60
Range oven door seal

Part #7212P006-60

Replaced by #WP7212P006-60

?
Manufacturer substitution
This part replaces 7212P006-60. Substitute parts can look different from the original.
$47.20 |
11% OFF Phone Price : $53.20
In Stock
Selector Switch 7403P172-60
#16

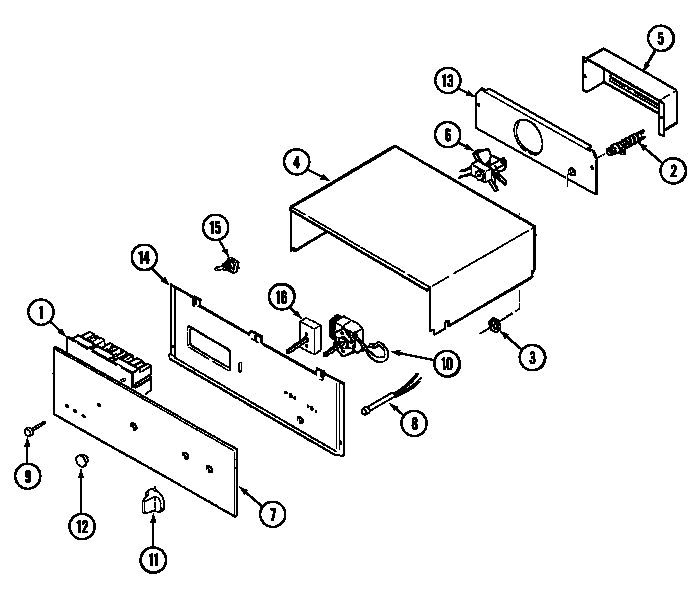

Control panel diagram

Selector switch

Part #7403P172-60

Replaced by #WP7403P172-60

?
Manufacturer substitution
This part replaces 7403P172-60. Substitute parts can look different from the original.
$70.80
In Stock
Seal 7208P011-60
#10A

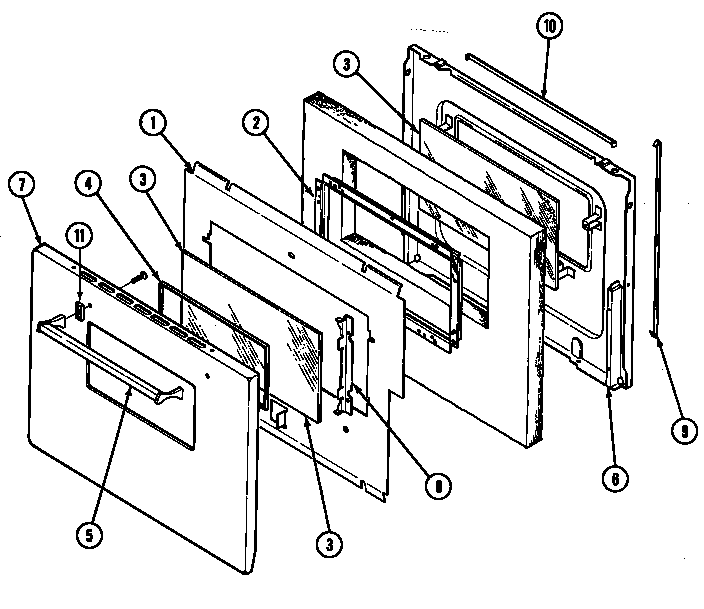

Door-upper diagram

Seal

Part #7208P011-60

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 7208P011-60. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Range Oven Door Hinge (replaces 7106p063-60) 74001984
#16C

Body diagram

Range oven door hinge (replaces 7106p063-60)

Part #74001984

$84.60 |
7% OFF Phone Price : $90.60
In Stock
Bake Element 04000047
#9

Body diagram

Bake element

Part #04000047

Replaced by #WPY04000066

?
Manufacturer substitution
This part replaces 04000047. Substitute parts can look different from the original.
$57.02 |
10% OFF Phone Price : $63.02
In Stock
Broiler Element 04000048
#10

Body diagram

Broiler element

Part #04000048

Replaced by #WPY04000048

?
Manufacturer substitution
This part replaces 04000048. Substitute parts can look different from the original.
$89.92 |
6% OFF Phone Price : $95.92
In Stock
Oven Panel 2401F039-74
#4A

Door-lower diagram

Oven panel

Part #2401F039-74

The manufacturer no longer makes this part, and there's no substitute part

Support 3807F137-80
#31

Body diagram

Support

Part #3807F137-80

The manufacturer no longer makes this part, and there's no substitute part

Lining Door 2402W131-19
#3

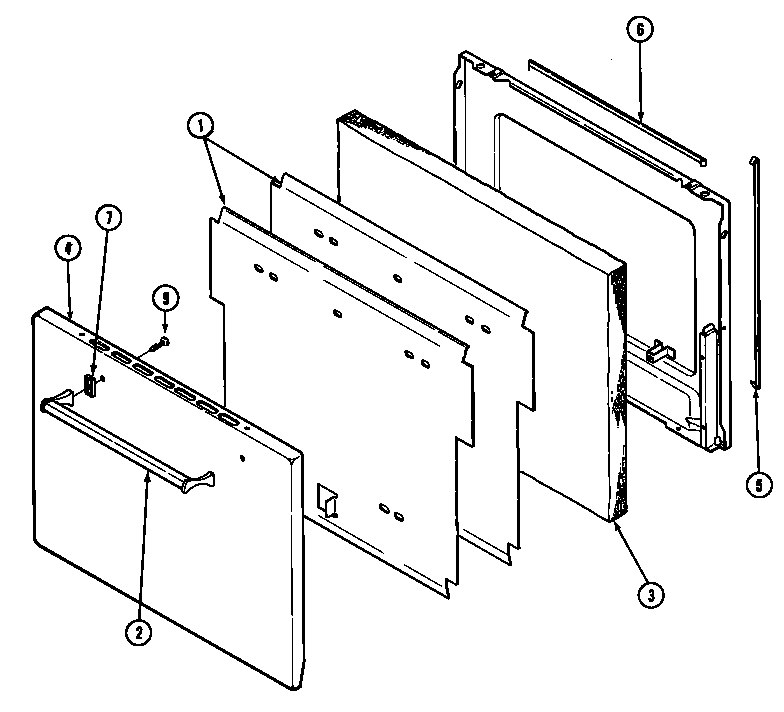

Door-lower diagram

Lining door

Part #2402W131-19

The manufacturer no longer makes this part, and there's no substitute part
