Model # JSP49G1J1 Official GE electric range

Here are the diagrams and repair parts for Official GE JSP49G1J1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Range Oven Light Bulb WX12X1510
#280

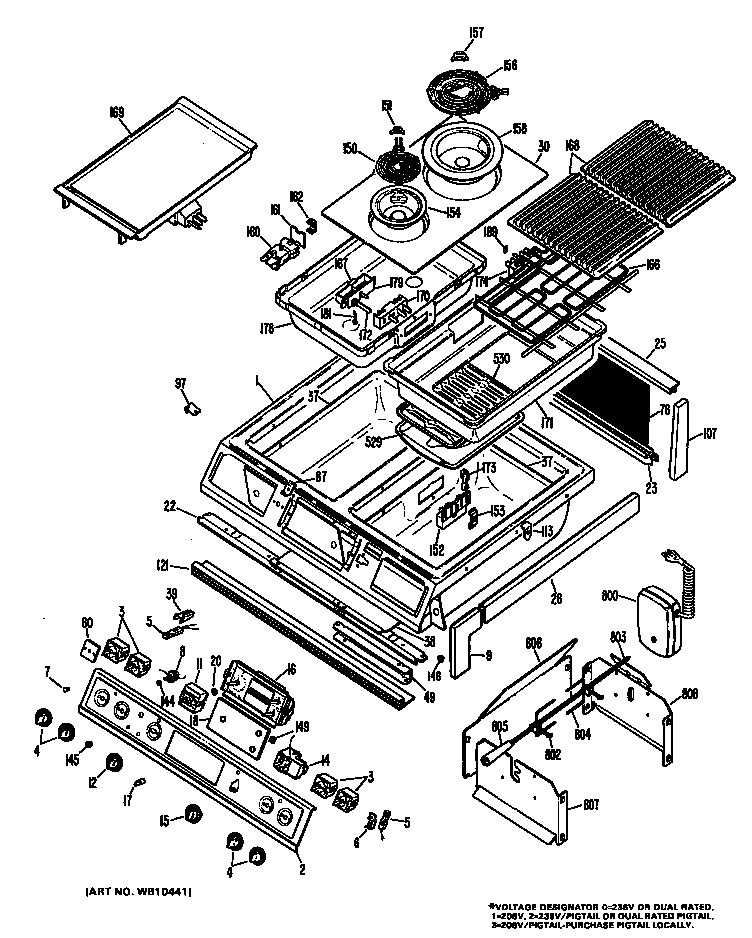

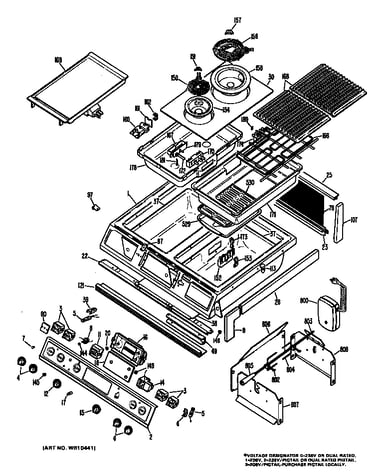

Cooktop diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Bake Element (replaces 8030, Wb44x10003, Wb44x5061, Wb44x5072, Wb44x5082r, Wb44x5083) WB44X5082
#650

Cooktop diagram

Range bake element (replaces 8030, wb44x10003, wb44x5061, wb44x5072, wb44x5082r, wb44x5083)

Part #WB44X5082

BEST SELLER
$47.68 |
11% OFF Phone Price : $53.68
In Stock
Broil Unit WB44X185
#651

Cooktop diagram

Broil unit

Part #WB44X185

Replaced by #WB44X173

?
Manufacturer substitution
This part replaces WB44X185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Range Oven Light Lens (replaces Wb2x6211, Wb36x0192, Wb36x279, Wb36x299, Wb36x389, Wb8k5) WB36X192
#523

Cooktop diagram

Range oven light lens (replaces wb2x6211, wb36x0192, wb36x279, wb36x299, wb36x389, wb8k5)

Part #WB36X192

This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Range Broil Element Support WB2X1452
#652

Cooktop diagram

Range broil element support

Part #WB2X1452

$26.02 |
19% OFF Phone Price : $32.02
In Stock
Washer WB1X119
#362

Cooktop diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Range Indicator Light Lens WB25X65
#7

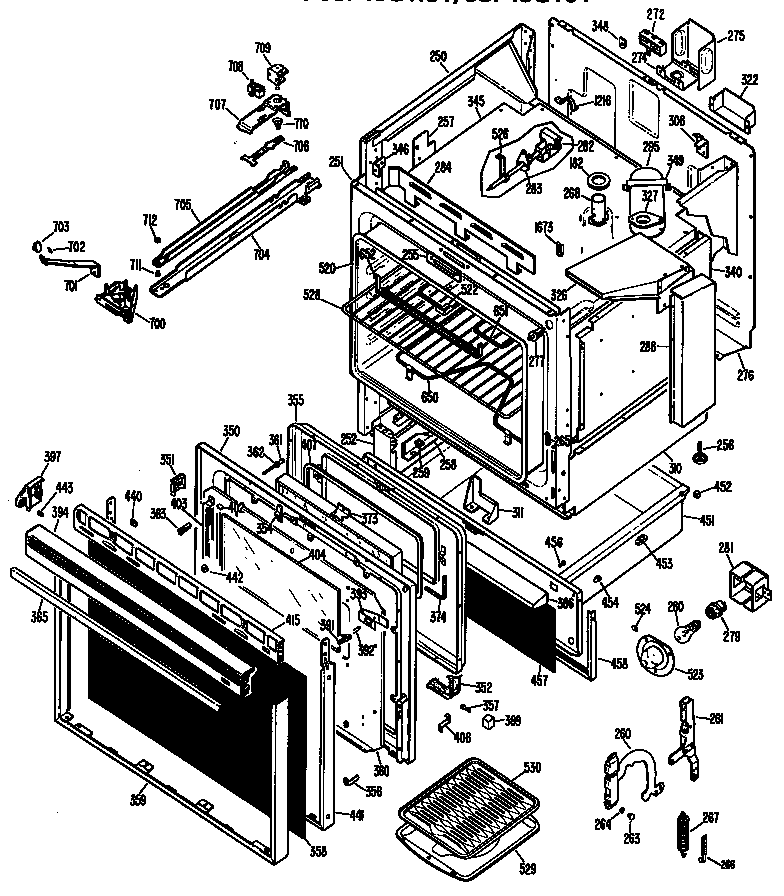

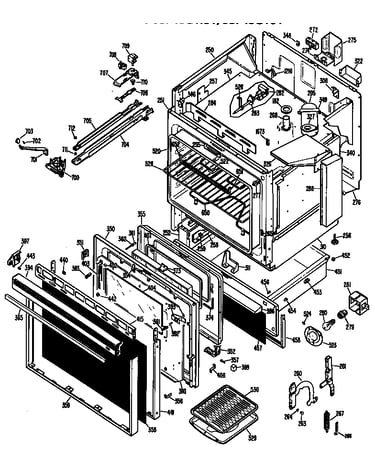

Oven/door diagram

Range indicator light lens

Part #WB25X65

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Gasket WB2X6547
#352

Cooktop diagram

Range oven door gasket

Part #WB2X6547

$106.65 |
10% OFF Phone Price : $118.65
In Stock
Range Coil Element, 6-in WB30X218
#150

Oven/door diagram

Range coil element, 6-in

Part #WB30X218

$33.92 |
15% OFF Phone Price : $39.92
In Stock
Eskimo Range Drip Pan WB31X5011
#158

Oven/door diagram

Eskimo range drip pan

Part #WB31X5011

This item is not returnable
$20.77 |
22% OFF Phone Price : $26.77
In Stock
