Black & Decker
Circular Saw

Model # FS2400CS TYPE1 Official Black & Decker circular saw

Here are the diagrams and repair parts for Official Black & Decker FS2400CS-TYPE1 circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Black & Decker Acorn Nut 497898-00
#30

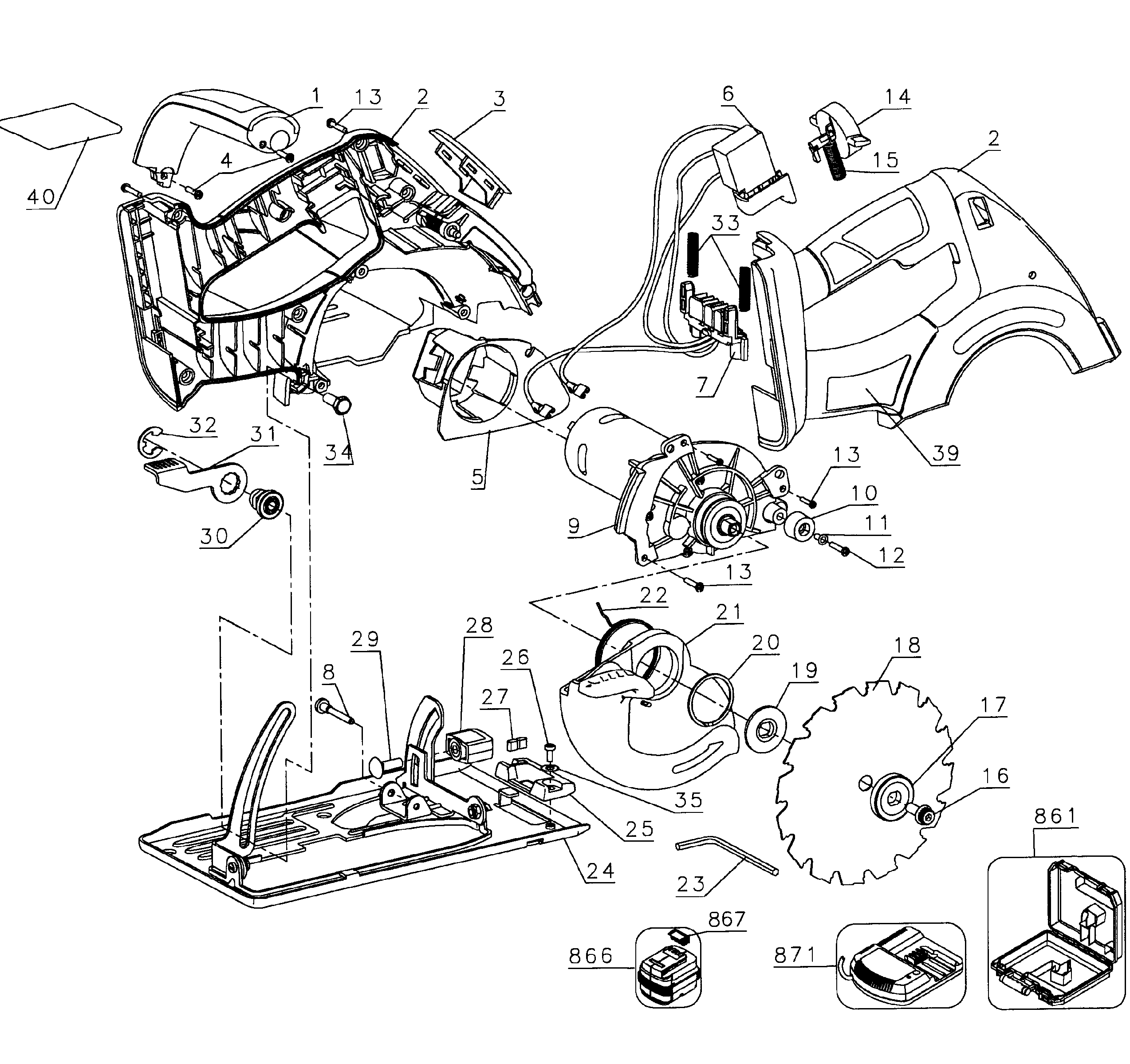

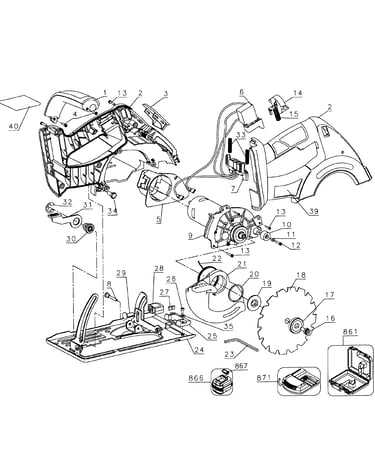

Saw circular diagram

Black & decker acorn nut

Part #497898-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Baffle 497549-01
#5

Saw circular diagram

Black & decker baffle

Part #497549-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Pivot Scre 497486-02
#8

Saw circular diagram

Black & decker pivot scre

Part #497486-02

The manufacturer no longer makes this part, and there's no substitute part

Spring 5100035-03
#33

Saw circular diagram

Spring

Part #5100035-03

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Knob 497915-00
#28

Saw circular diagram

Black & decker knob

Part #497915-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Screw 498156-00
#12

Saw circular diagram

Black & decker screw

Part #498156-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Plug,wrenc 497583-00
#27

Saw circular diagram

Black & decker plug,wrenc

Part #497583-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Washer,spr 498513-00
#35

Saw circular diagram

Black & decker washer,spr

Part #498513-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Spring,loc 497504-02
#15

Saw circular diagram

Black & decker spring,loc

Part #497504-02

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Shroud 497513-00
#3

Saw circular diagram

Black & decker shroud

Part #497513-00

The manufacturer no longer makes this part, and there's no substitute part
