Model # 153320860HT Official Kenmore power miser 10+
Here are the diagrams and repair parts for Official Kenmore 153320860HT power miser 10+, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
153320860HT Water Heaters
#20

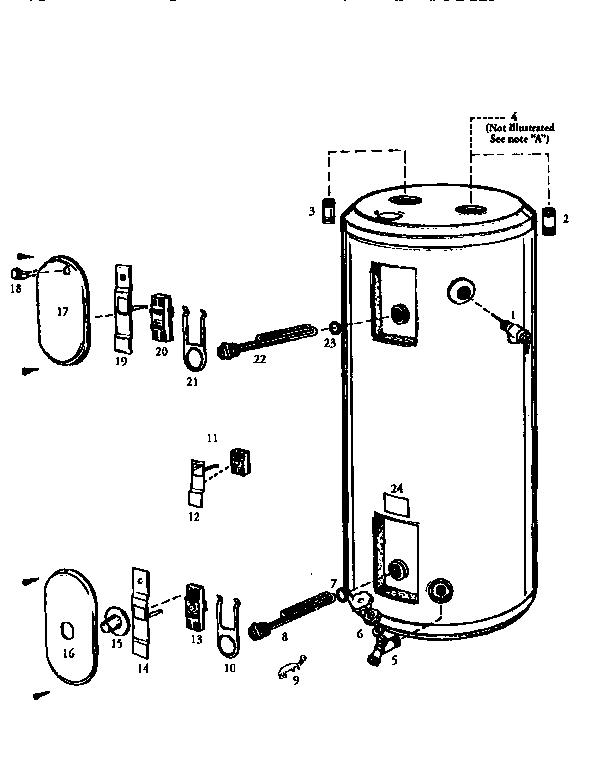

Replacement parts diagram
Thermostat
Part #9002302
Replaced by #9001954015
?
Manufacturer substitution
This part replaces 9002302. Substitute parts can look different from the original.
$28.09 |
18% OFF Phone Price : $34.09
Back Order
#11
Replacement parts diagram
Thermostat
Part #9002214
Replaced by #9000507015
?
Manufacturer substitution
This part replaces 9002214. Substitute parts can look different from the original.
$30.65 |
16% OFF Phone Price : $36.65
In Stock
#12
Replacement parts diagram
Kenmore elite water heater thermostat cover (replaces 183529-000)
Part #9002276
This item is not returnable
$17.69 |
10% OFF Phone Price : $19.69
In Stock
#2
Replacement parts diagram
Nipple
Part #9000948
Replaced by #9002564
?
Manufacturer substitution
This part replaces 9000948. Substitute parts can look different from the original.
$19.19 |
9% OFF Phone Price : $21.19
In Stock
#3
Replacement parts diagram
Nipple
Part #9000949
Replaced by #100108409
?
Manufacturer substitution
This part replaces 9000949. Substitute parts can look different from the original.
$25.71
In Stock
#22
Replacement parts diagram
Element 3800
Part #9000049
Replaced by #100108346
?
Manufacturer substitution
This part replaces 9000049. Substitute parts can look different from the original.
$62.22
In Stock
#18
Replacement parts diagram
Kenmore elite indicator light
Part #9001590
Replaced by #100108606
?
Manufacturer substitution
This part replaces 9001590. Substitute parts can look different from the original.
$28.89
In Stock
#1
Replacement parts diagram
Relief valve
Part #9001583
The manufacturer no longer makes this part, and there's no substitute part
#13
Replacement parts diagram
Thermostat
Part #9002300
Replaced by #100108424
?
Manufacturer substitution
This part replaces 9002300. Substitute parts can look different from the original.
$32.99
In Stock
#5
Replacement parts diagram
Ao smith water heater drain valve (replaces 35472-9, 9003911, ap10424b, ap-10424-b, ap-10424-c, ap-10424-d, ap-8963-b)
Part #9001588
Replaced by #100108605
?
Manufacturer substitution
This part replaces 9001588. Substitute parts can look different from the original.
$27.78
In Stock
