Model # 40BNQ012101 Official Carrier air handler

Here are the diagrams and repair parts for Official Carrier 40BNQ012101 air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Blower Wheel 51308501200
#31

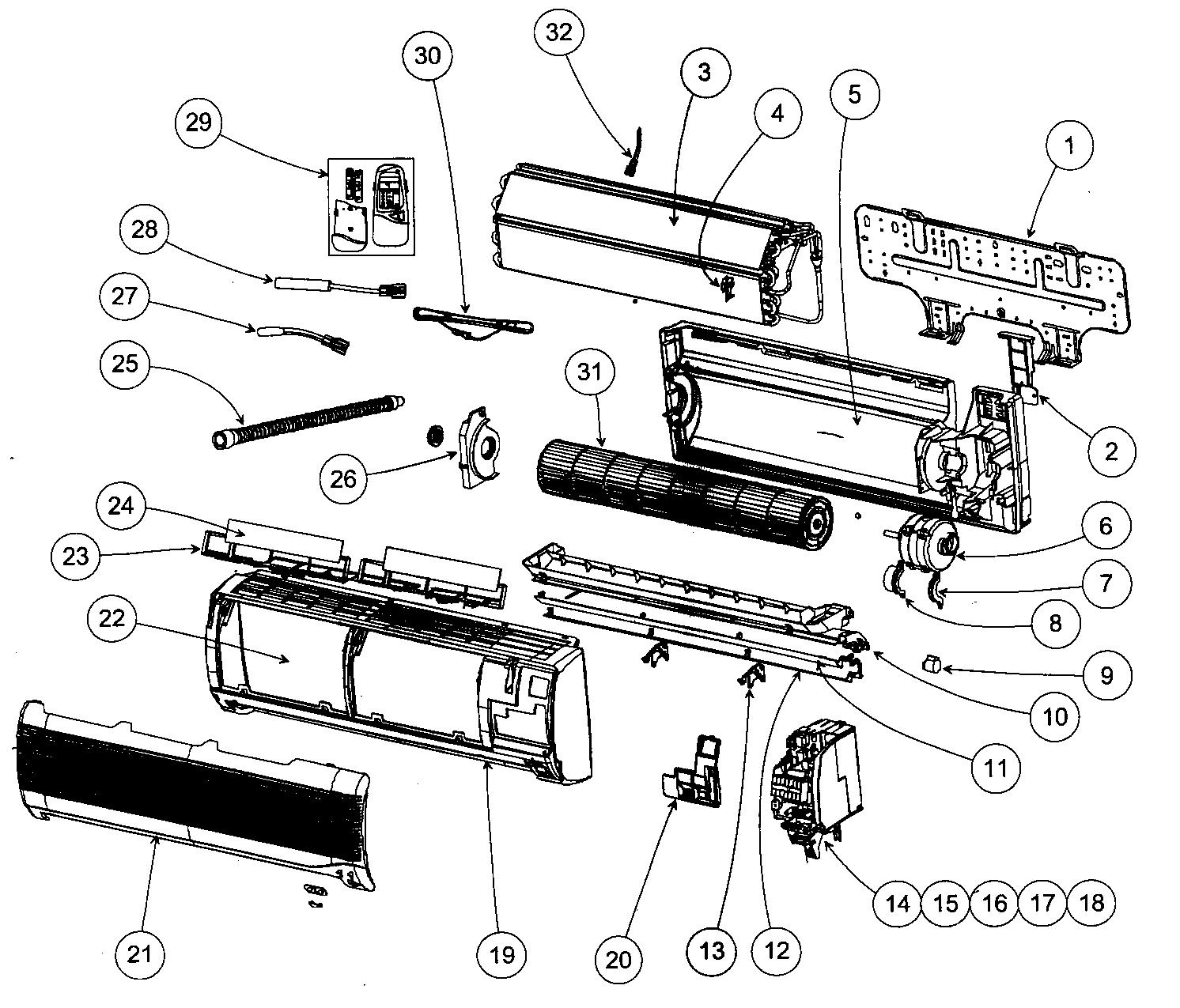

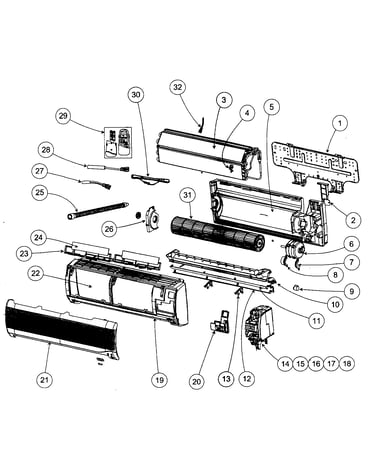

Air handler diagram

Blower wheel

Part #51308501200

$112.03 |
10% OFF Phone Price : $124.03
In Stock
Control Assembly 51303540400
#14

Air handler diagram

Control assembly

Part #51303540400

$245.89
In Stock
Coil 51308470400
#3

Air handler diagram

Coil

Part #51308470400

$426.58
In Stock
Motor 51301300400
#9

Air handler diagram

Motor

Part #51301300400

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 51301323600
#6

Air handler diagram

Fan motor

Part #51301323600

The manufacturer no longer makes this part, and there's no substitute part

Spport,air 51300901900
#13

Air handler diagram

Spport,air

Part #51300901900

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 51300901600
#22

Air handler diagram

Air filter

Part #51300901600

The manufacturer no longer makes this part, and there's no substitute part

Deflector 51300901100
#11

Air handler diagram

Deflector

Part #51300901100

The manufacturer no longer makes this part, and there's no substitute part

Filter 51301030400
#24

Air handler diagram

Filter

Part #51301030400

The manufacturer no longer makes this part, and there's no substitute part

Sensor 51303502660
#28

Air handler diagram

Sensor

Part #51303502660

The manufacturer no longer makes this part, and there's no substitute part
