Model # F1361W-P1323106M Official Amana microwave

Here are the diagrams and repair parts for Official Amana F1361W-P1323106M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Magnetron R9900378
#201

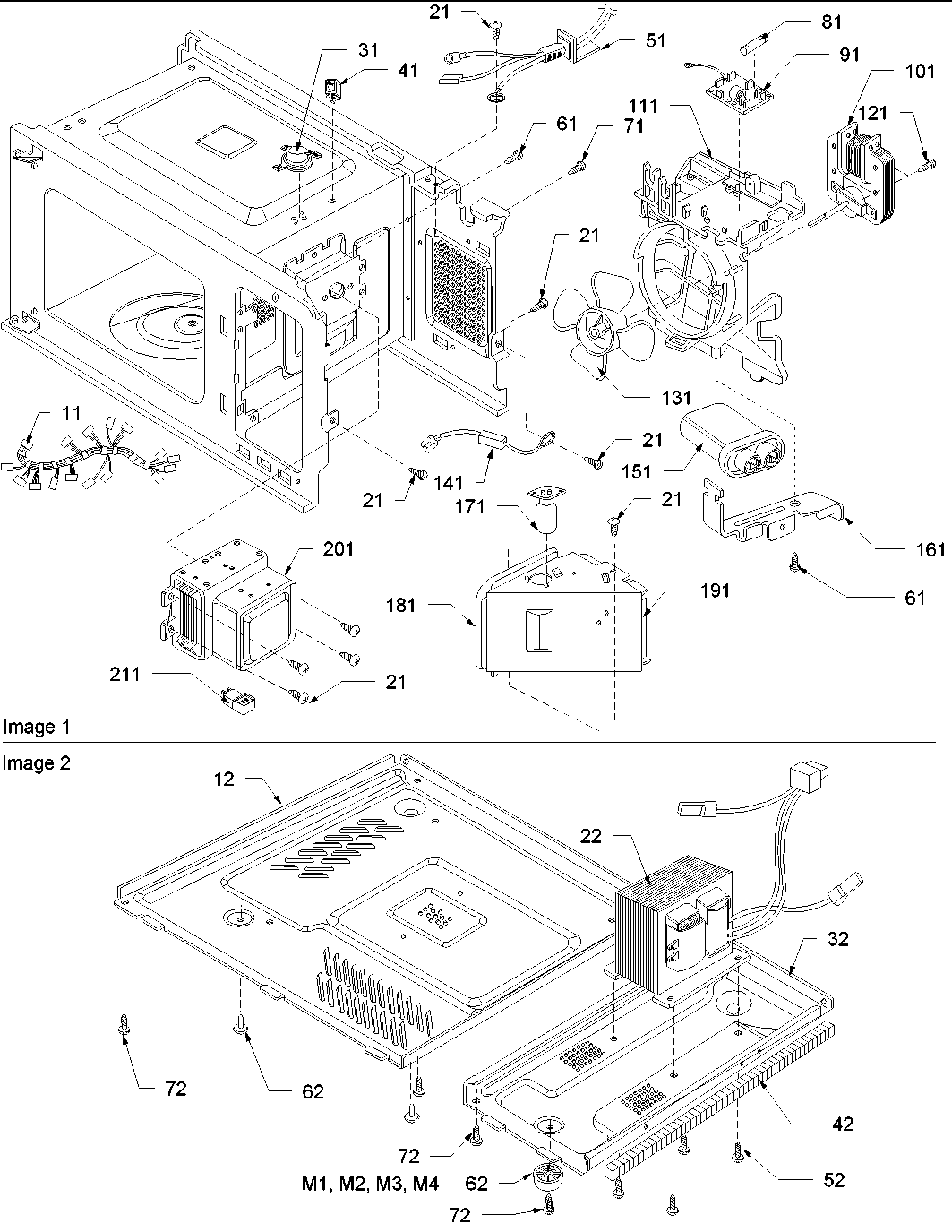

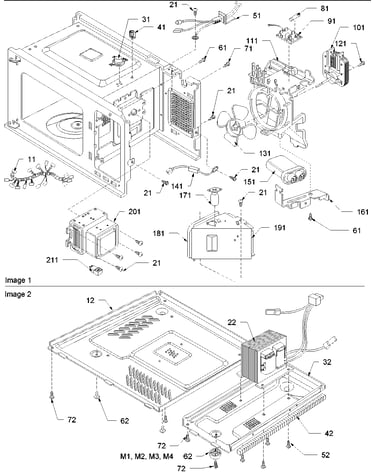

Interior and base plate parts diagram

Magnetron

Part #R9900378

The manufacturer no longer makes this part, and there's no substitute part

Cap R9800305
#81

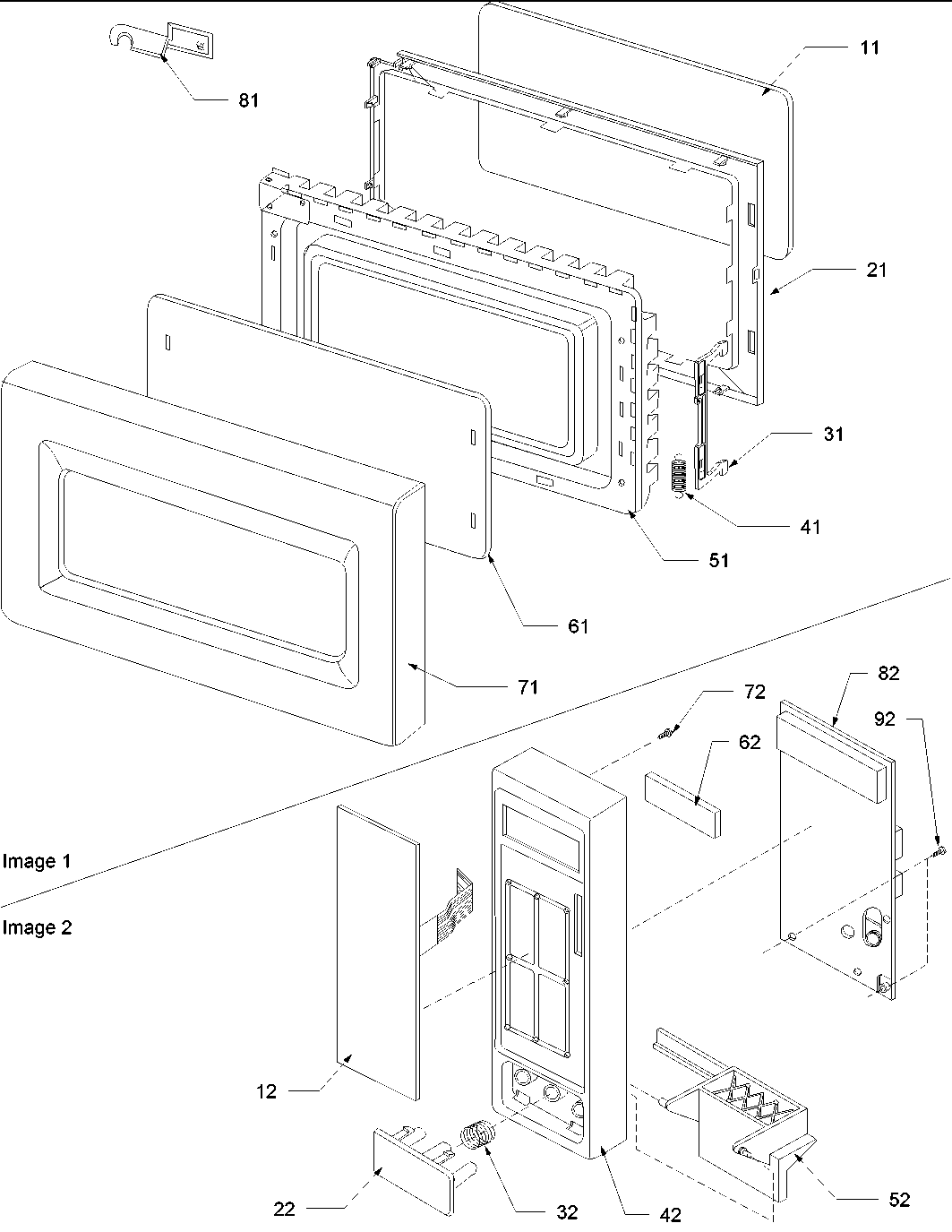

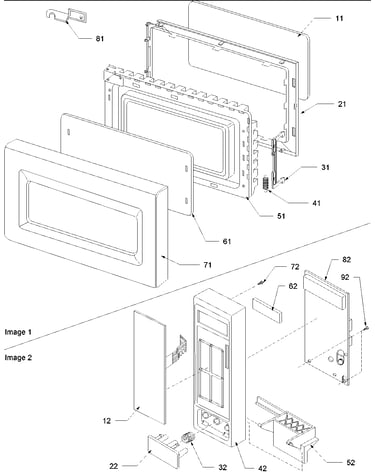

Door & control panel parts diagram

Cap

Part #R9800305

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces R9800305. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Capacitor-1. R9900304
#151

Interior and base plate parts diagram

Capacitor-1.

Part #R9900304

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces R9900304. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Spring R9800320
#32

Door & control panel parts diagram

Spring

Part #R9800320

Replaced by #WP4158178

?
Manufacturer substitution
This part replaces R9800320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Fuse, 20amp R9800424
#81

Interior and base plate parts diagram

Fuse, 20amp

Part #R9800424

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces R9800424. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Glass Tray R9800389
#191

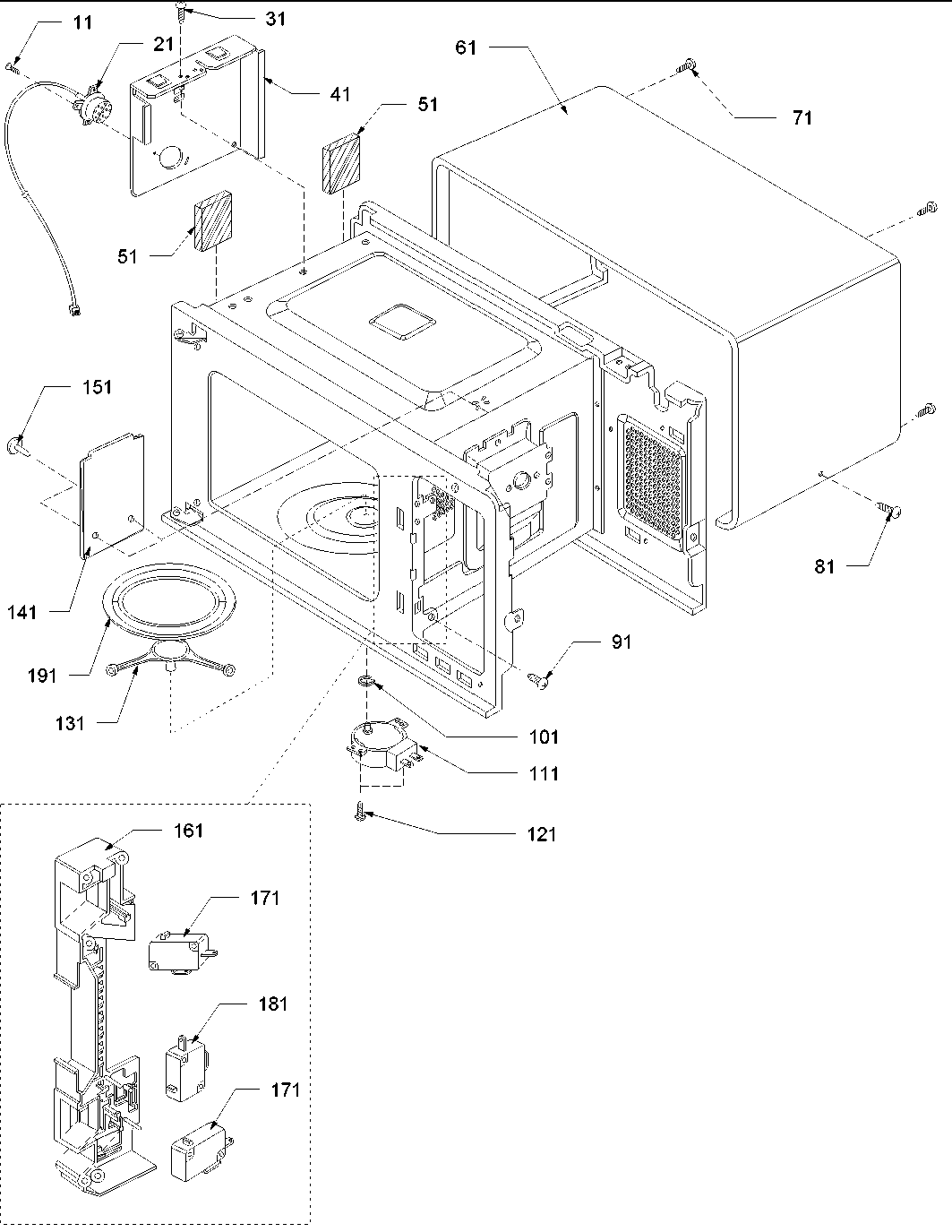

Oven cavity & latch assembly parts diagram

Glass tray

Part #R9800389

Replaced by #WPW10267856

?
Manufacturer substitution
This part replaces R9800389. Substitute parts can look different from the original.
$43.49 |
12% OFF Phone Price : $49.49
In Stock
Lamp Oven Burner R9800423
#171

Interior and base plate parts diagram

Lamp oven burner

Part #R9800423

Replaced by #WP8183592

?
Manufacturer substitution
This part replaces R9800423. Substitute parts can look different from the original.
$24.11 |
20% OFF Phone Price : $30.11
In Stock
Diode R9900303
#141

Interior and base plate parts diagram

Diode

Part #R9900303

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R9900303. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Rivet R9800452
#151

Oven cavity & latch assembly parts diagram

Rivet

Part #R9800452

Replaced by #WP4359508

?
Manufacturer substitution
This part replaces R9800452. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Filter Assembly R9800442
#211

Interior and base plate parts diagram

Filter assembly

Part #R9800442

Replaced by #4359624

?
Manufacturer substitution
This part replaces R9800442. Substitute parts can look different from the original.
$17.87
